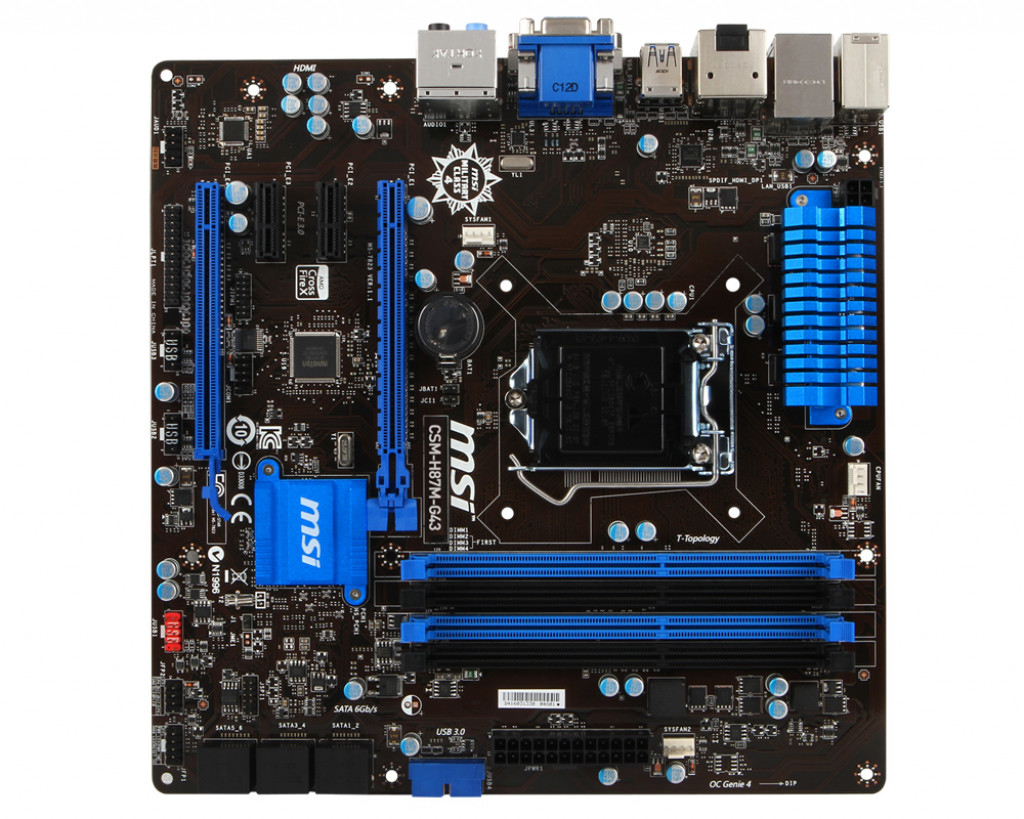

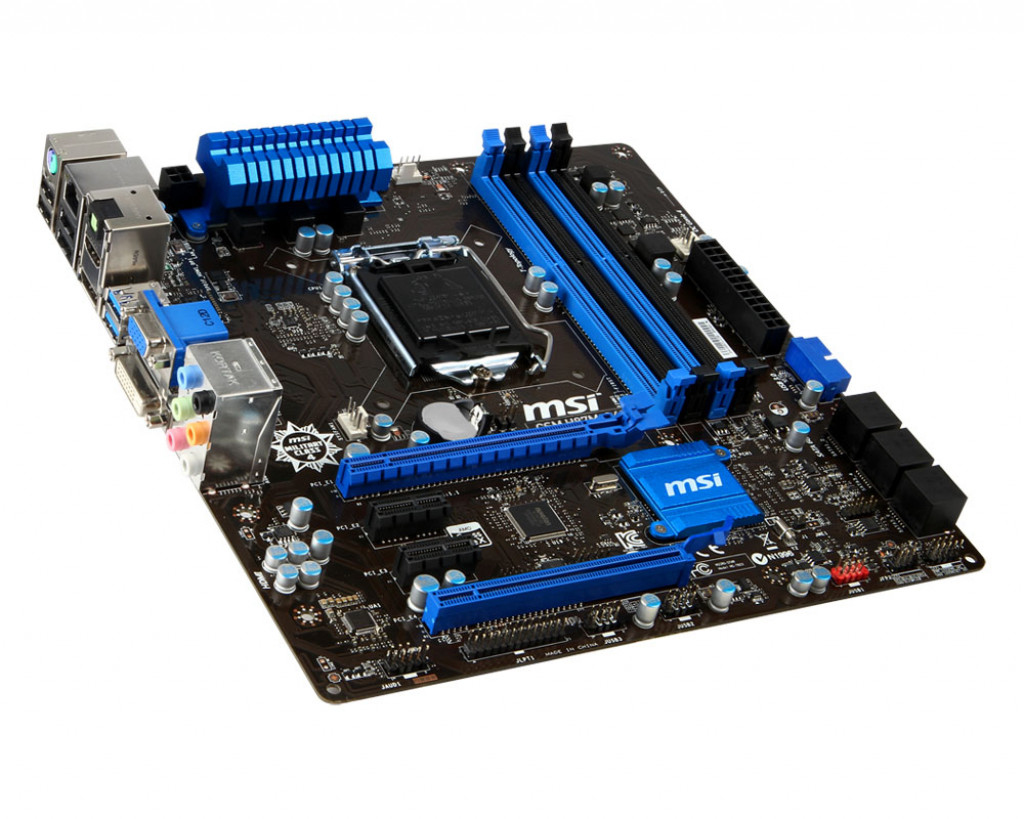

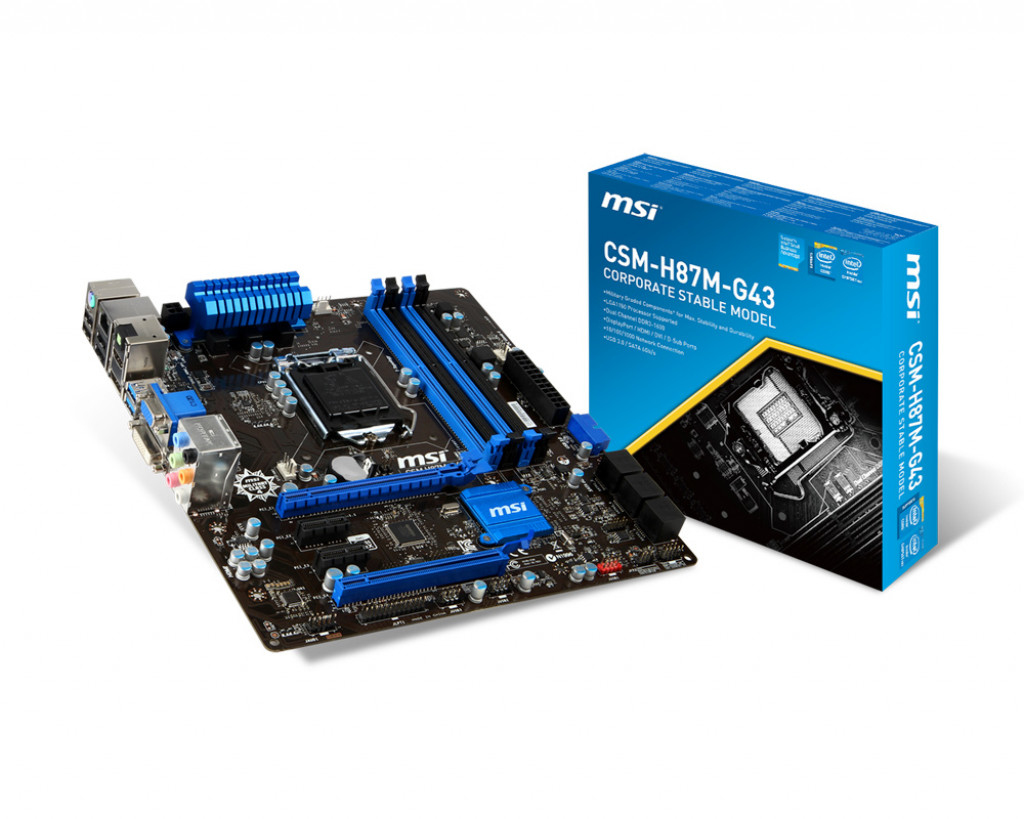

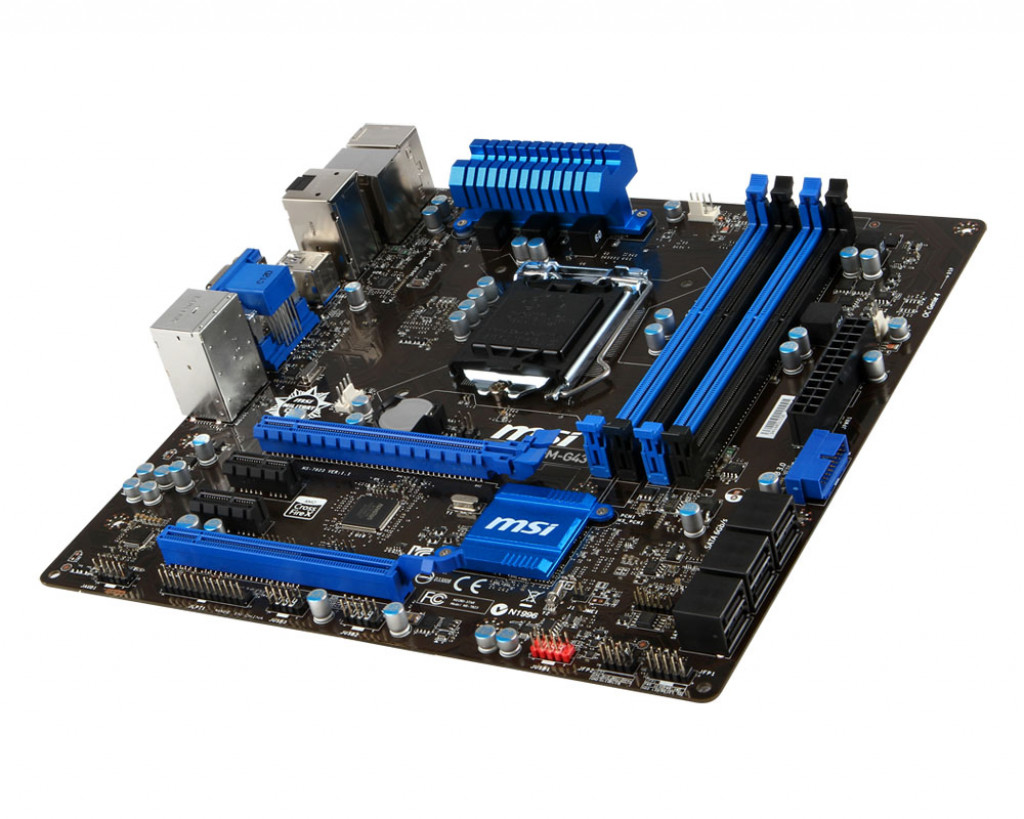

MSI CSM-H87M-G43 motherboard Intel® H87 LGA 1150 (Socket H3) micro ATX
Model CSM-H87M-G43Part no. 7823-004REAN 4053162667785
49 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
- Supported storage drive interfacesSATA III
- Parallel processing technology supportCrossfire
- Number of SATA III connectors6
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM, DDR3L-SDRAM
- Supported storage drive interfaces
- SATA III
- Parallel processing technology support
- Crossfire
- Number of SATA III connectors
- 6
- USB 2.0 ports quantity
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- CSM-H87M-G43
- Part numbers
- 7823-004R, CSM-H87M-G43
- EAN / UPC
- 4053162667785, 824142008492, 8241420084924, 4719072309152
- Also known as
- MSI CSM-H87M-G43 motherboard Intel® H87 LGA 1150 (Socket H3) micro ATX
Specifications
49 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Crossfire |
| DirectX version | 11 |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA III connectors | 6 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| TPM connector | Yes |

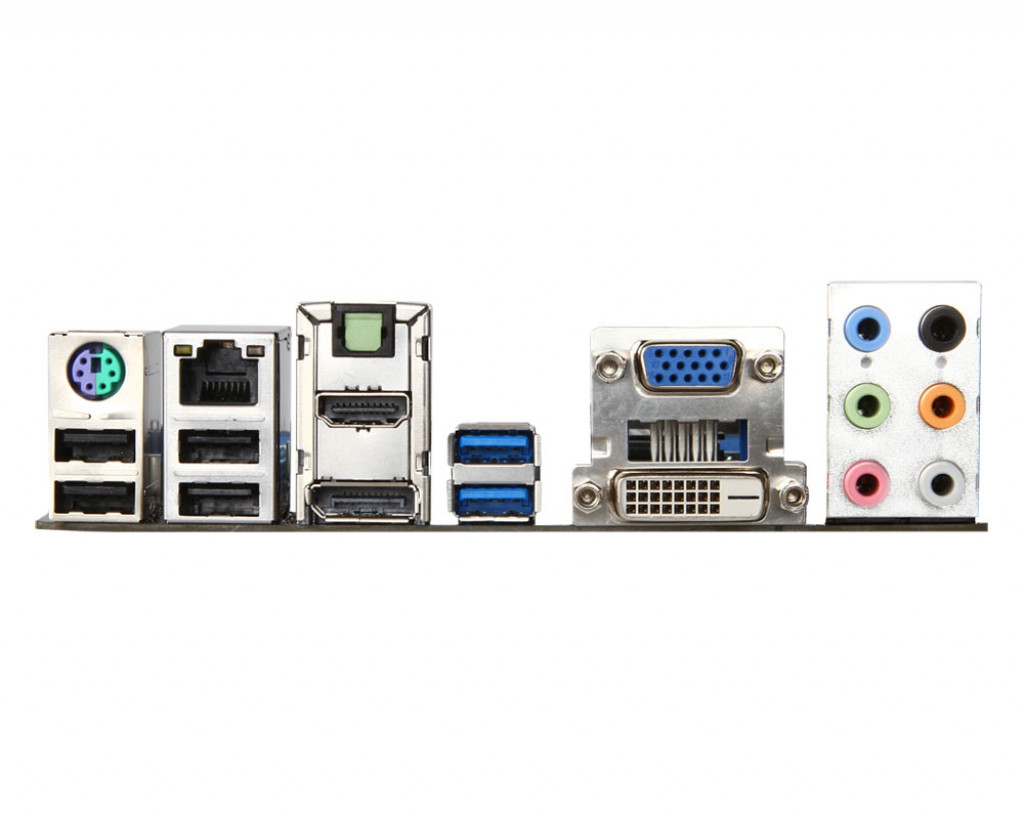

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 6 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111G |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H87 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| DVI port | Yes |
