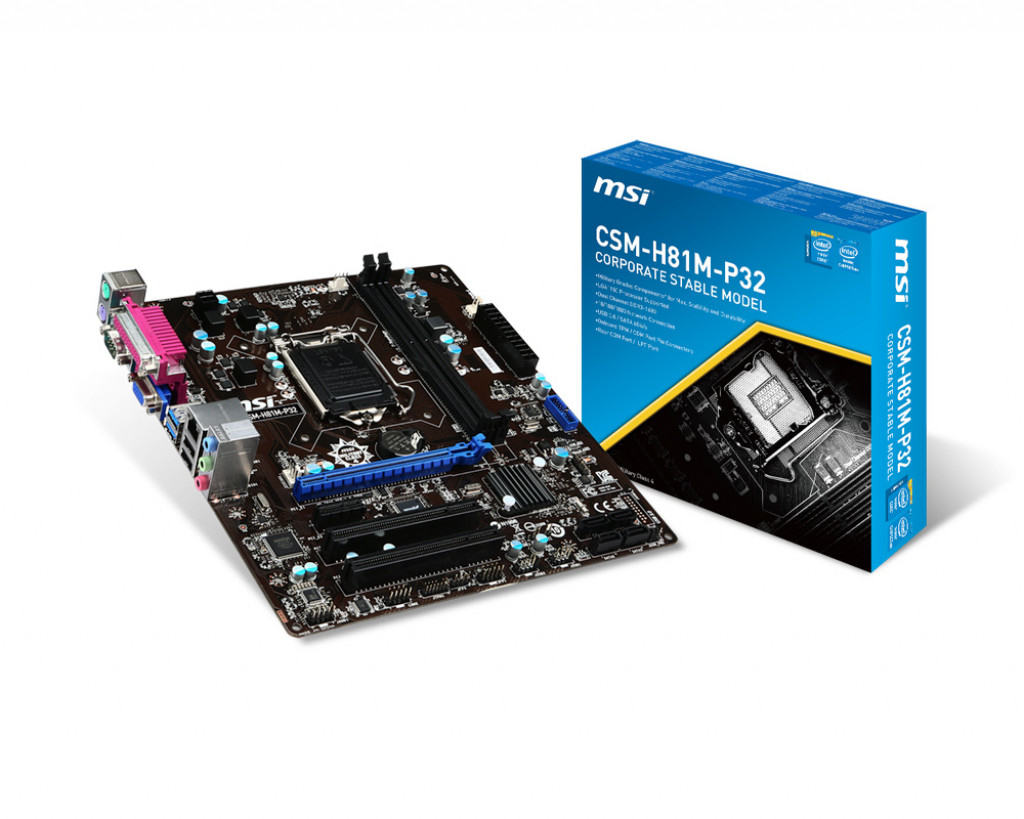

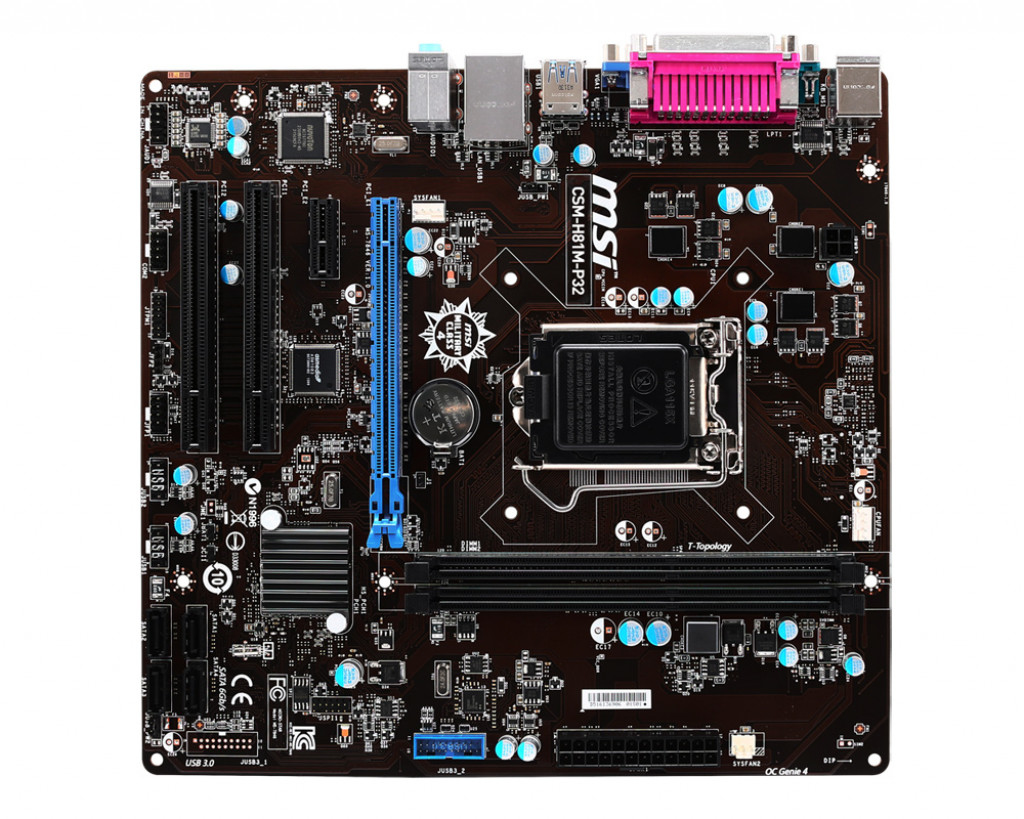

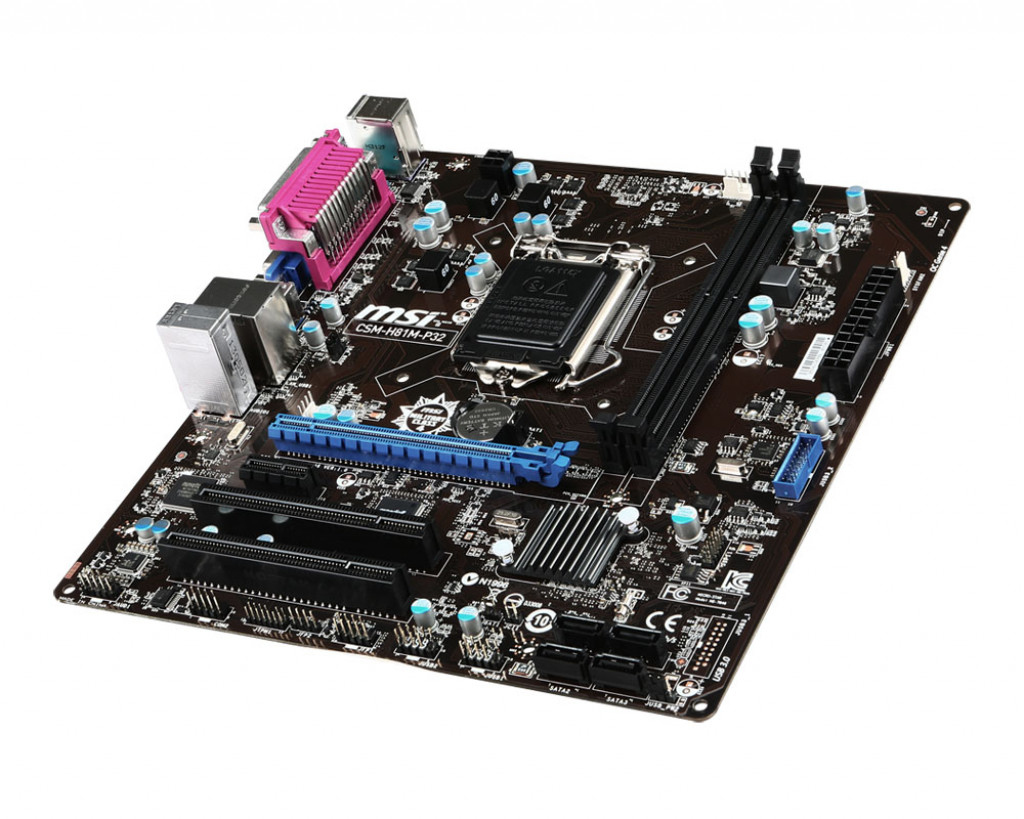

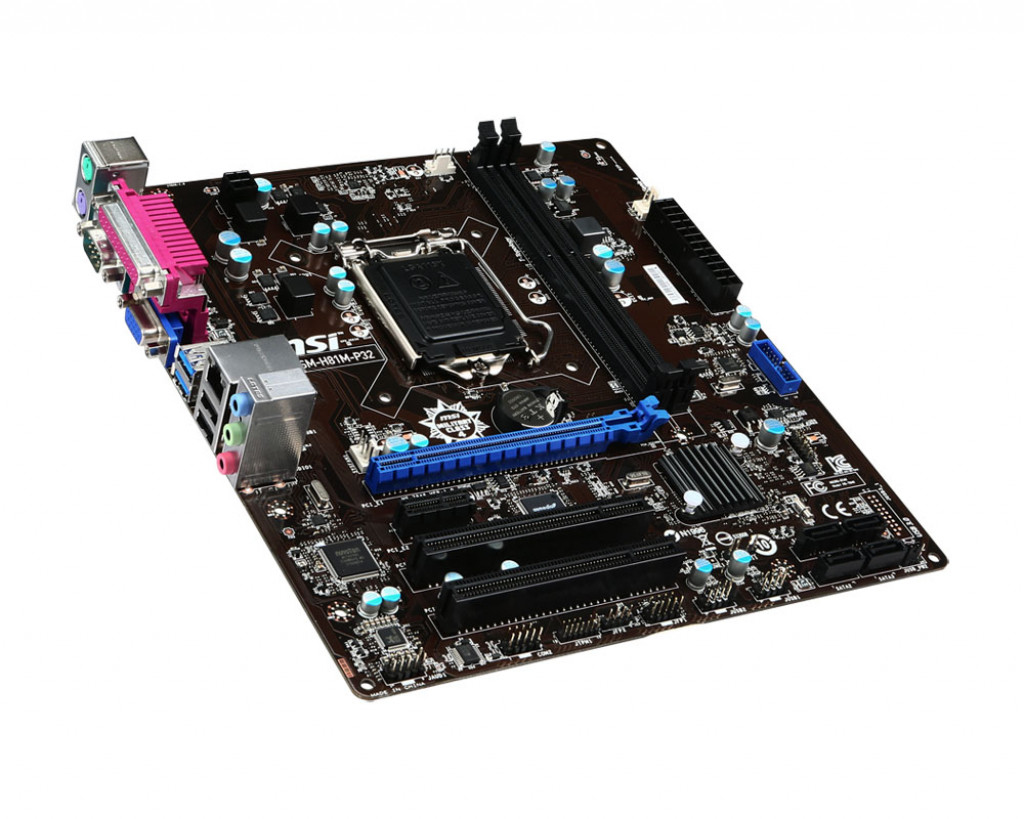

MSI CSM-H81M-P32 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX

MSI CSM-H81M-P32 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX

Model CSM-H81M-P32Part no. 7846-002REAN 4719072311476

45 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • DirectX version11
  • USB 2.0 connectors4
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM, DDR3L-SDRAM
Supported storage drive interfaces
SATA II, SATA III
DirectX version
11
USB 2.0 connectors
4
USB 2.0 ports quantity
2
Brand
MSI
Category
Motherboard
Model
CSM-H81M-P32
Part numbers
7846-002R, CSM-H81M-P32
EAN / UPC
4719072311476, 117582296902, 824142015711, 8241420157116 +1 more
Also known as
MSI CSM-H81M-P32 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATX

Specifications

45 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

DirectX version11

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors2
Number of SATA II connectors2
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
TPM connectorYes

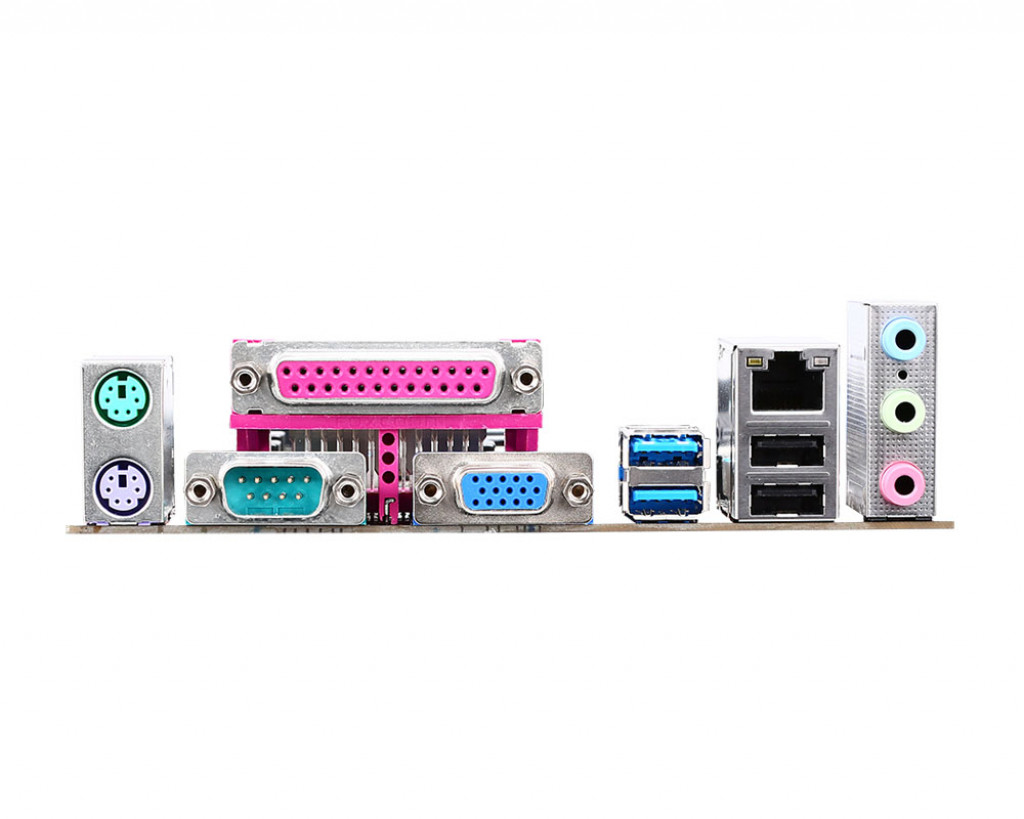

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
Digital audio optical out3
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H81
Audio chipRealtek ALC887
Audio output channels8 channels

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 2.x) slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width228 mm
Depth243 mm
