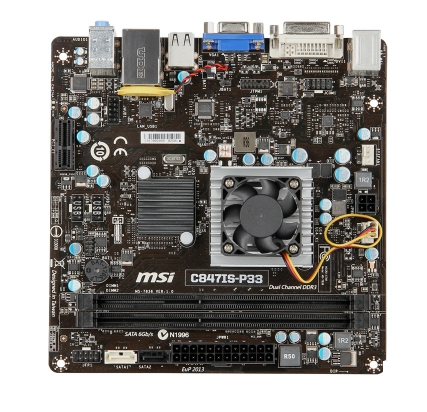

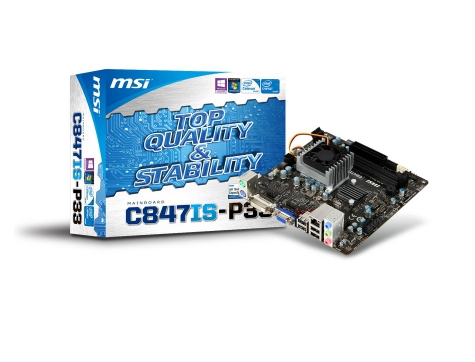

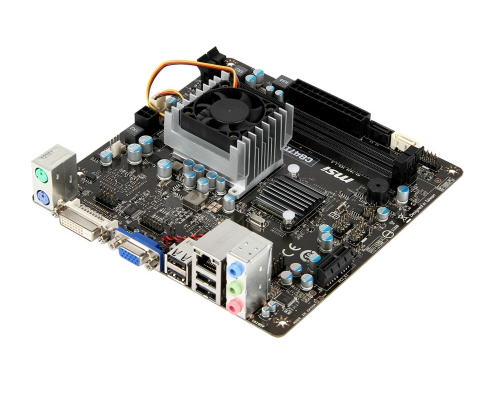

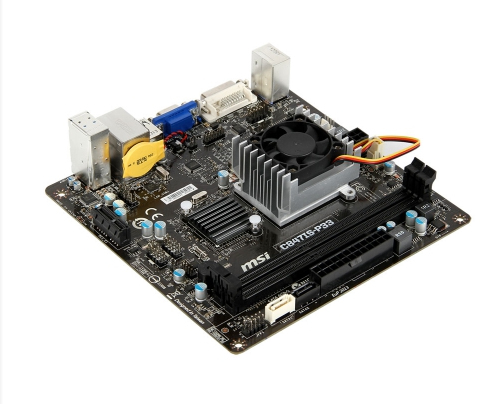

MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX
Model C847IS-P33EAN 816909102864
70 specifications
- Memory16 GB
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- DirectX version10.1
- USB 2.0 connectors2
Overview
- Memory
- 16 GB
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- DirectX version
- 10.1
- USB 2.0 connectors
- 2
- Brand
- MSI
- Category
- Motherboard
- Model
- C847IS-P33
- Part number
- C847IS-P33
- EAN / UPC
- 816909102864, 4719072280512, 4719072281366, 8169091028644
- Also known as
- MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX
Specifications
70 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 1023 |
| Compatible processor series | Intel® Celeron®, Intel® Celeron® Dual-Core |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Internal memory | 16 GB |
| Supported memory clock speeds | 1066,1333 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| DirectX version | 10.1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 1 |
| Number of SATA II connectors | 1 |
| Number of Parallel ATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| Chassis intrusion connector | Yes |

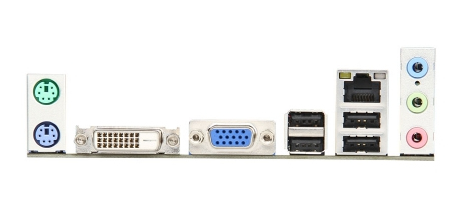

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 0 |
| COM ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 1 |
| WiFi-AP antenna jack | 0 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| LAN controller | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® NM70 Express |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 0 |
| PCI Express x1 (Gen 3.x) slots | 0 |
| PCI Express x4 (Gen 1.x) slots | 0 |
| PCI Express x4 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 1.x) slots | 0 |
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 0 |
| Mini PCI Express slot (full length) | 0 |
| Mini PCI Express slot (half-length) | 0 |
| Mini PCI Express slots | 0 |
| PCI slots | 0 |
| PCI-X slots | 0 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Other features
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 1.x) slots | 0 |
| PCI Express x4 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 1.x) slots | 0 |
| AGP x4 slots | 0 |
| AGP x8 slots | 0 |
| Quick installation guide | Yes |
| eSATA/USB 2.0 ports quantity | 0 |
What people say
Reviews & ratings
MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX
No reviews yet
Be the first to tell others how MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX
All motherboard comparisons- MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX vsMSI H61I-E35/W8 motherboard Intel® H61 LGA 1155 (Socket H2) mini ITXCompare specs
- MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX vsMSI H61M-P32/W8 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
- MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX vsMSI H61M-P20/W8 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs

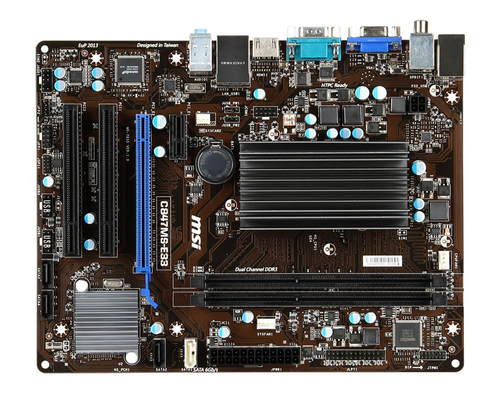

- MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX vsMSI C847MS-E33 motherboard Intel® NM70 Express BGA 1023 micro ATXCompare specs

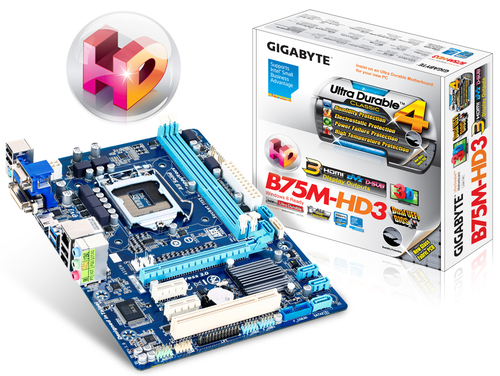

- MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX vsGIGABYTE GA-B75M-HD3 (rev. 1.0)Compare specs
- MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX vsGIGABYTE GA-F2A85XM-HD3 motherboard AMD A85X Socket FM2 micro ATXCompare specs

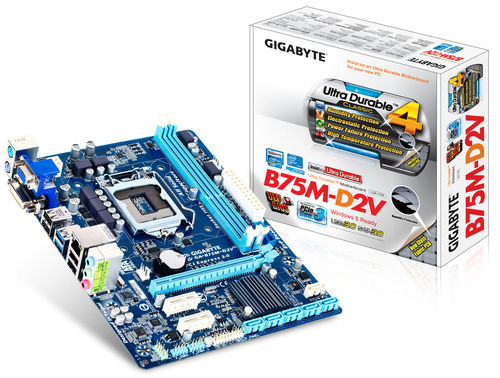

- MSI C847IS-P33 motherboard Intel® NM70 Express BGA 1023 mini ITX vsGIGABYTE GA-B75M-D2V motherboard Intel B75 LGA 1155 (Socket H2) micro ATXCompare specs
