MSI C236M WORKSTATION

MSI C236M WORKSTATION

Model C236M WORKSTATIONPart no. 7972-018REAN 824142126295

58 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
MSI
Category
Motherboard
Model
C236M WORKSTATION
Part number
7972-018R
EAN / UPC
824142126295, 4719072446970
Also known as
MSI C236M WORKSTATION Intel® C236 LGA 1151 (Socket H4) micro ATX

Specifications

58 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Xeon seriesE3-1200

Memory

Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
ECC сompatibilityECC
Supported memory clock speeds2133 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

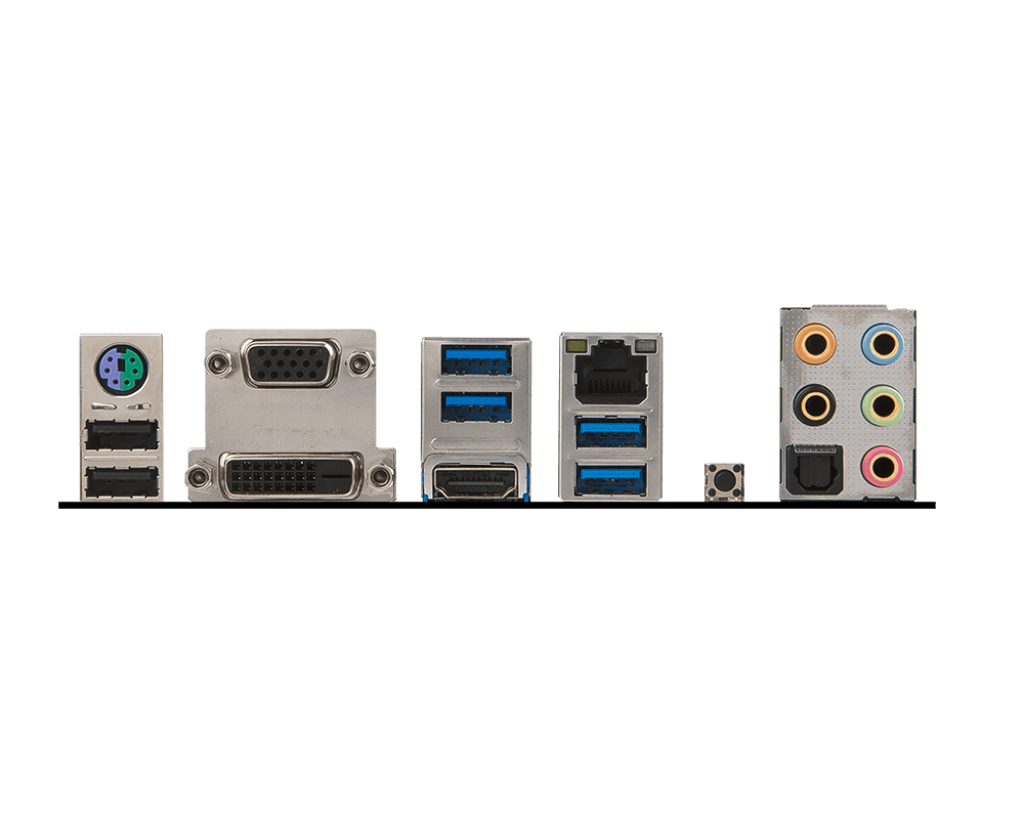

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetIntel® C236
Audio output channels7.1 channels

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x8 (Gen 2.x) slots0
PCI Express x8 (Gen 3.x) slots0
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots2

BIOS

BIOS typeUEFI
Clear CMOS buttonYes

Weight & dimensions

Width244 mm
Depth244 mm

Other features

Number of DIMM slots4
Number of processors supported1
