MSI C236A WORKSTATION

MSI C236A WORKSTATION

Model C236A WORKSTATIONPart no. 7998-012REAN 4719072447793

53 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology support2-Way SLI, 3-Way CrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
2-Way SLI, 3-Way CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
C236A WORKSTATION
Part numbers
7998-012R, C236A WORKSTATION
EAN / UPC
4719072447793, 824142126448
Also known as
MSI C236A WORKSTATION Intel® C236 LGA 1151 (Socket H4) ATX

Specifications

53 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Xeon seriesE3-1200

Memory

Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
ECC сompatibilityECC
Supported memory clock speeds2133 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, 3-Way CrossFireX

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Parallel connectorYes
Serial port headers1
TPM connectorYes

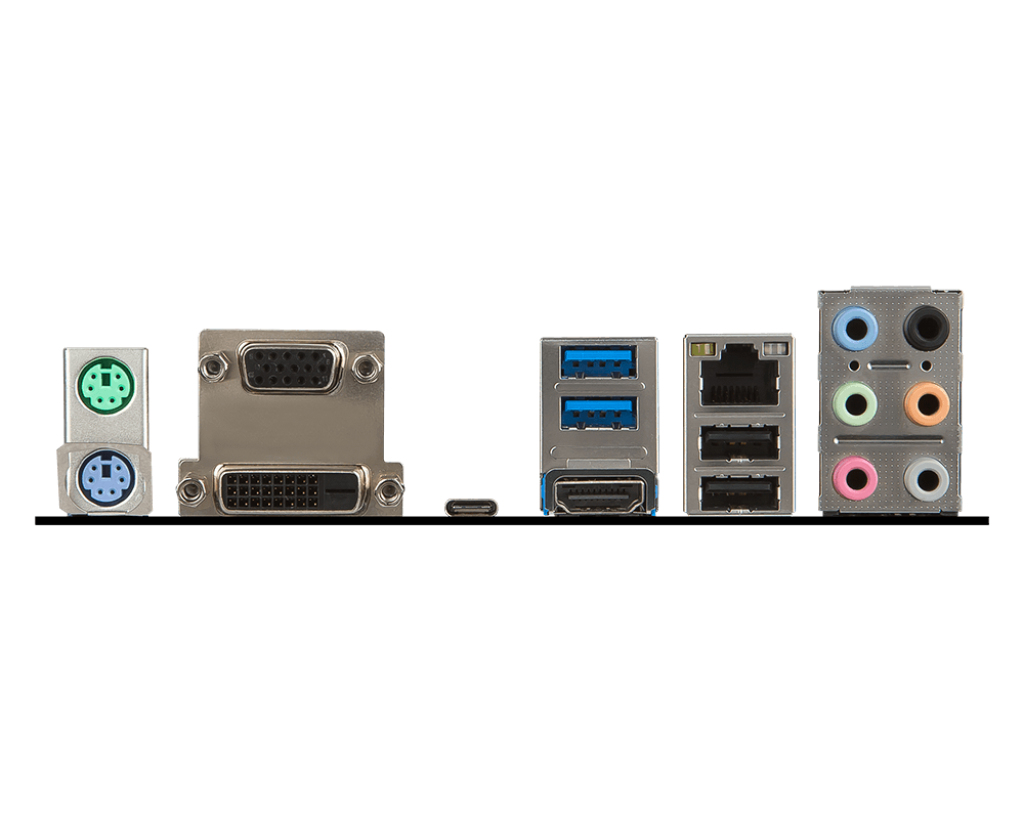

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I219-V
Wi-FiNo

Features

Component forWorkstation
Motherboard form factorATX
Motherboard chipsetIntel® C236
Audio output channels7.1 channels

Expansion slots

PCI Express x1 (Gen 3.x) slots3
PCI Express x16 (Gen 3.x) slots3

BIOS

BIOS typeUEFI

Processor special features

Conflict-FreeYes
Intel Rapid Storage TechnologyYes
Intel Rapid Storage Technology enterpriseYes
Intel Trusted Execution TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® Virtualization Technology (Intel® VT)VT-d

Weight & dimensions

Width305 mm
Depth244 mm

Other features

Intel® vPro™ Platform EligibilityYes
Number of DIMM slots4
