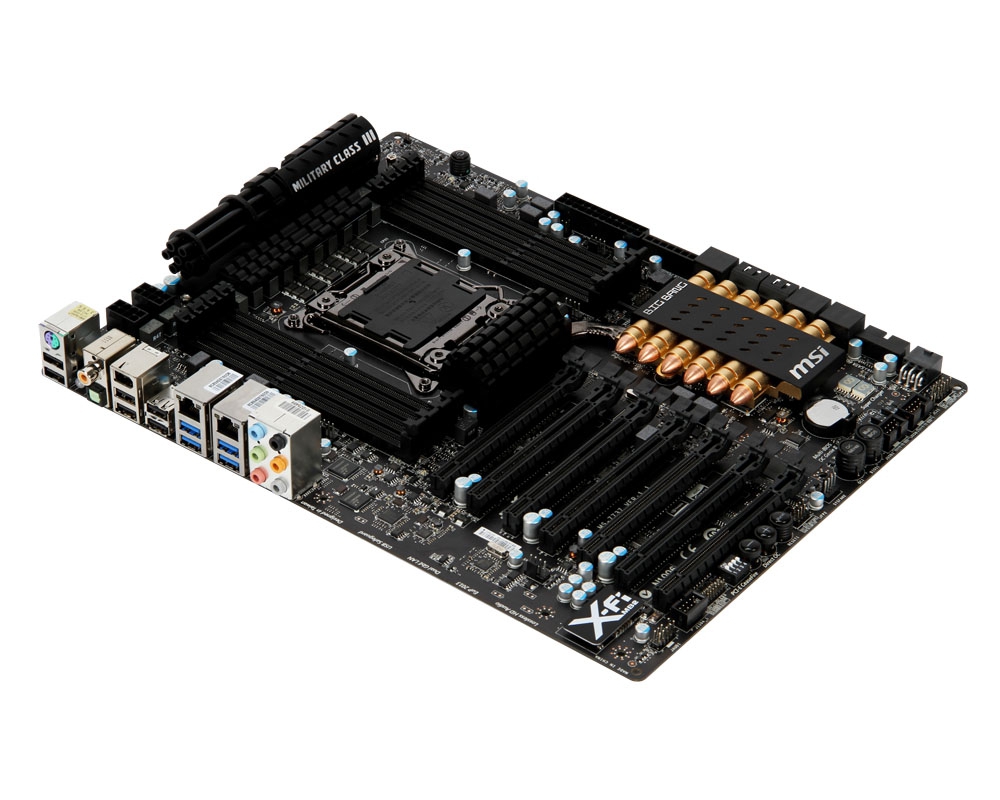

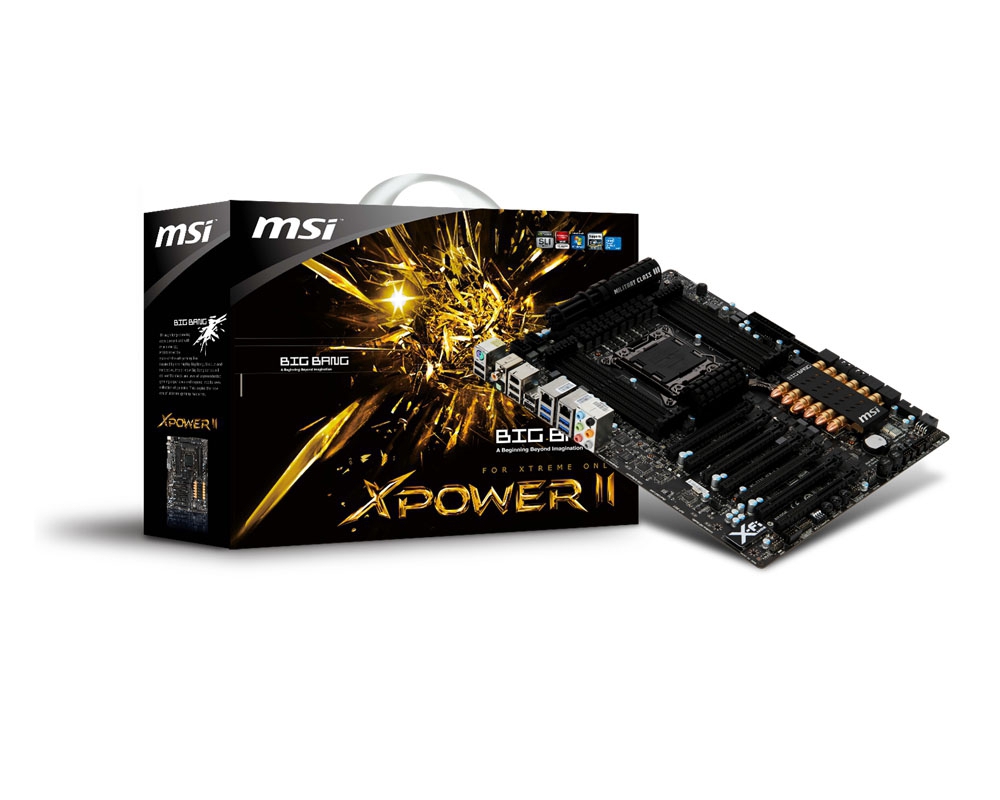

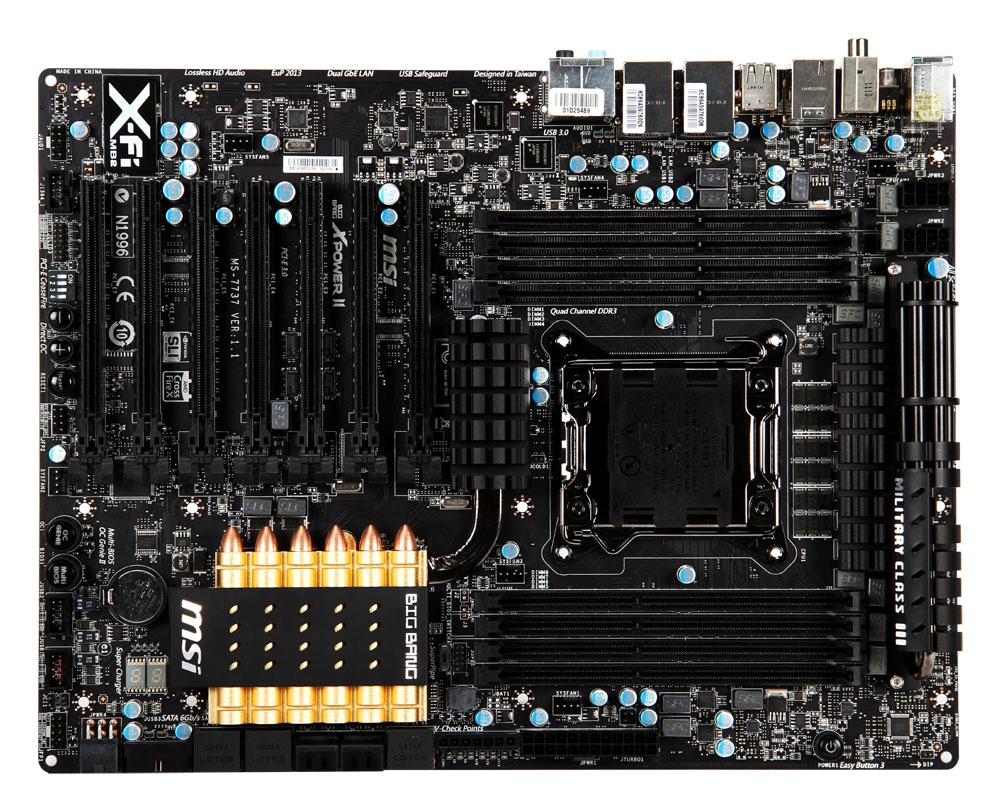

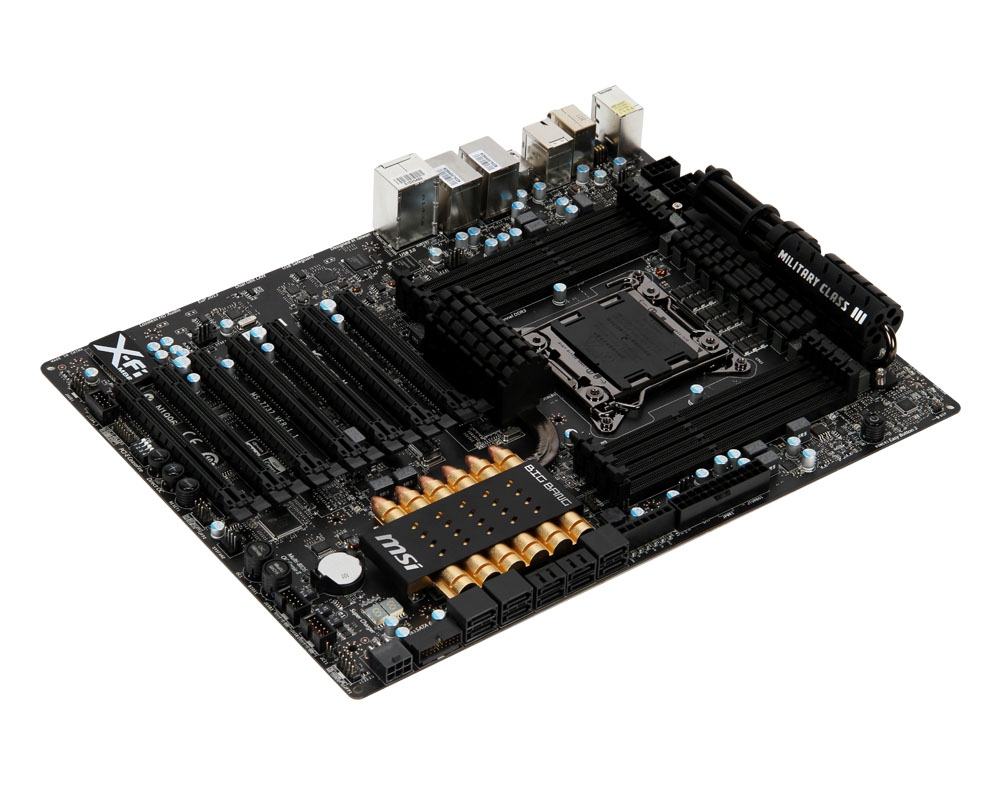

MSI Big Bang-XPower II

MSI Big Bang-XPower II

Model Big Bang-XPower IIPart no. 601-7737-010EAN 8169090936360

56 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Parallel processing technology support2-Way SLI, 3-Way SLI
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Parallel processing technology support
2-Way SLI, 3-Way SLI
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
Big Bang-XPower II
Part numbers
601-7737-010, BIG BANG XPOWER II
EAN / UPC
8169090936360, 816909093636, 4719072250041, 4719072253424 +1 more
Also known as
MSI Big Bang-XPower II Intel X79 LGA 2011 (Socket R) XL-ATX

Specifications

56 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011 (Socket R)
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600,1866,2133,2400 MHz
Maximum internal memory128 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way SLI, 3-Way SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of SATA II connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors2
CPU fan connectorYes
Number of chassis fan connectors5
Chassis intrusion connectorYes
Number of IEEE1394 connectors1

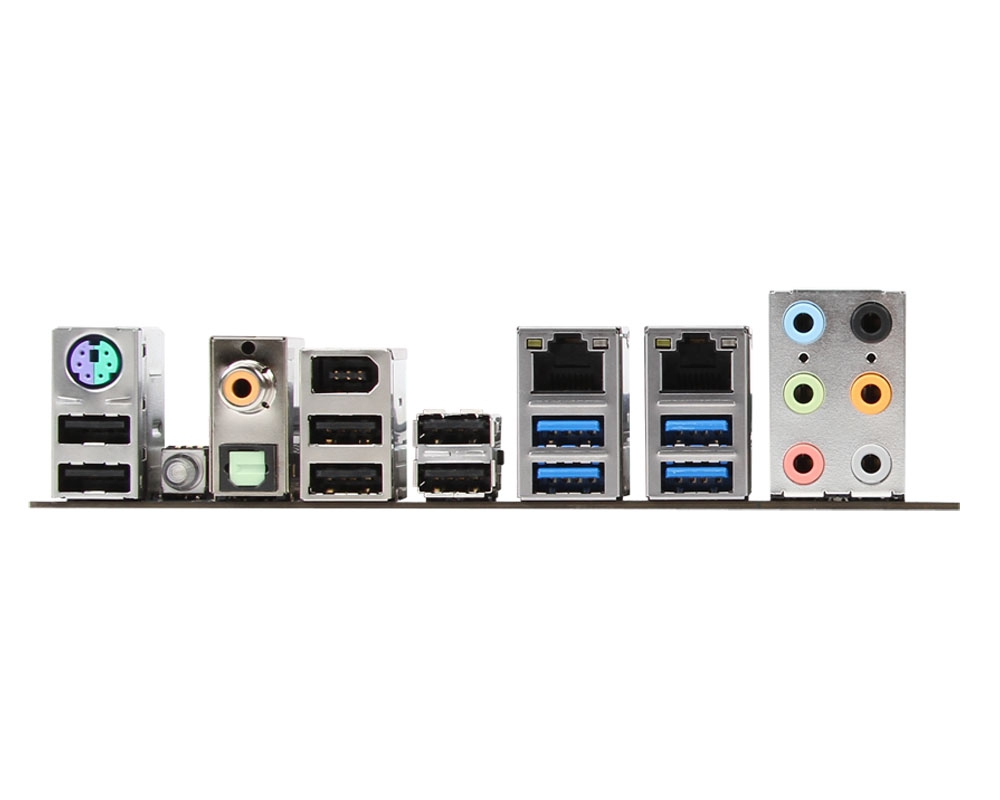

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Digital audio optical out1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerIntel® 82579V

Features

Component forPC
Motherboard form factorXL-ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel X79
Audio chipRealtek ALC898
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x16 slots7

BIOS

BIOS typeUEFI
Clear CMOS buttonYes

Weight & dimensions

Width345 mm
Depth264 mm

Packaging content

Drivers includedYes

Other features

Controller 2nd interface typeASMedia ASM 1061
Controller interface typeIntel X79
