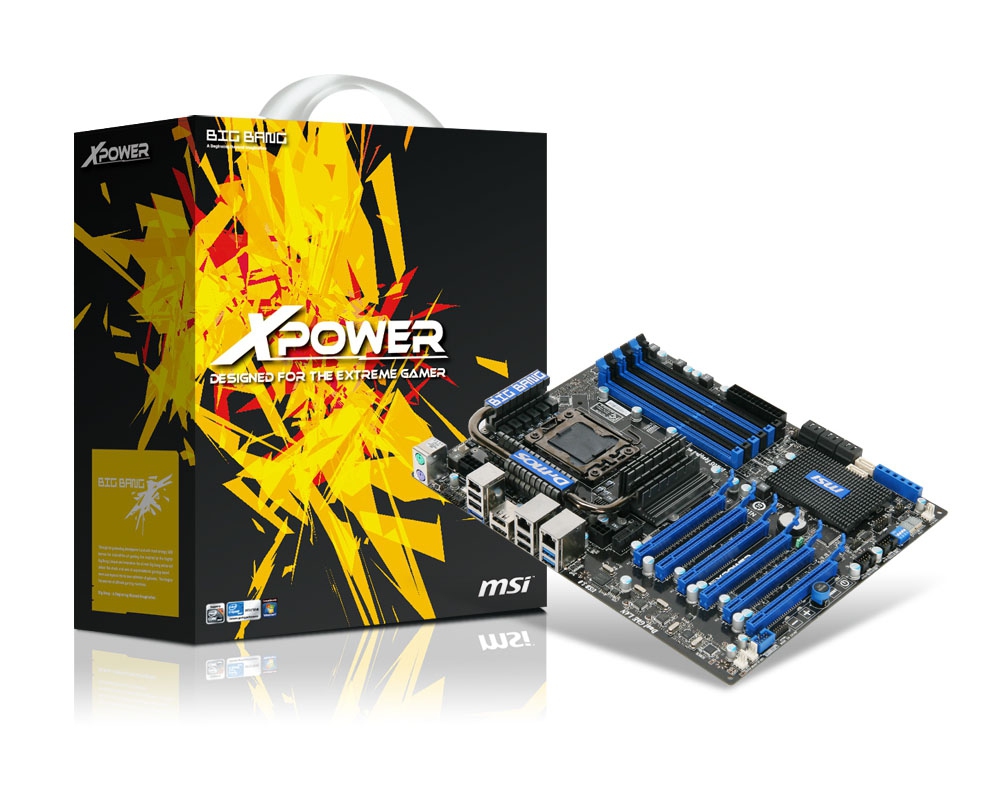

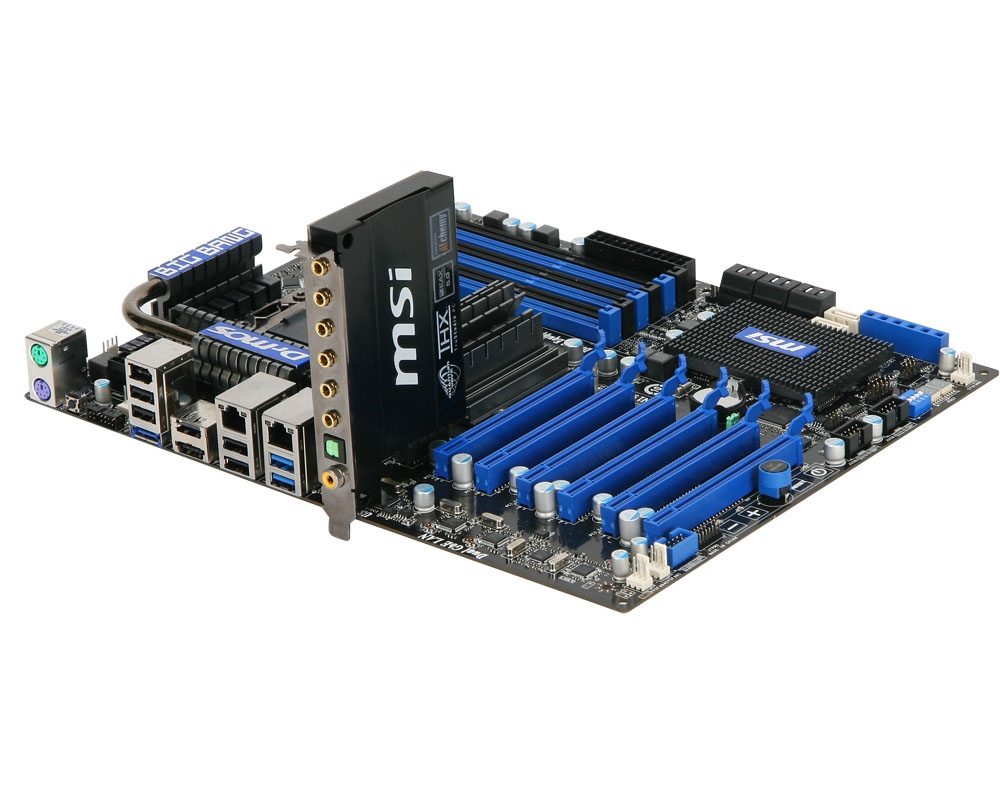

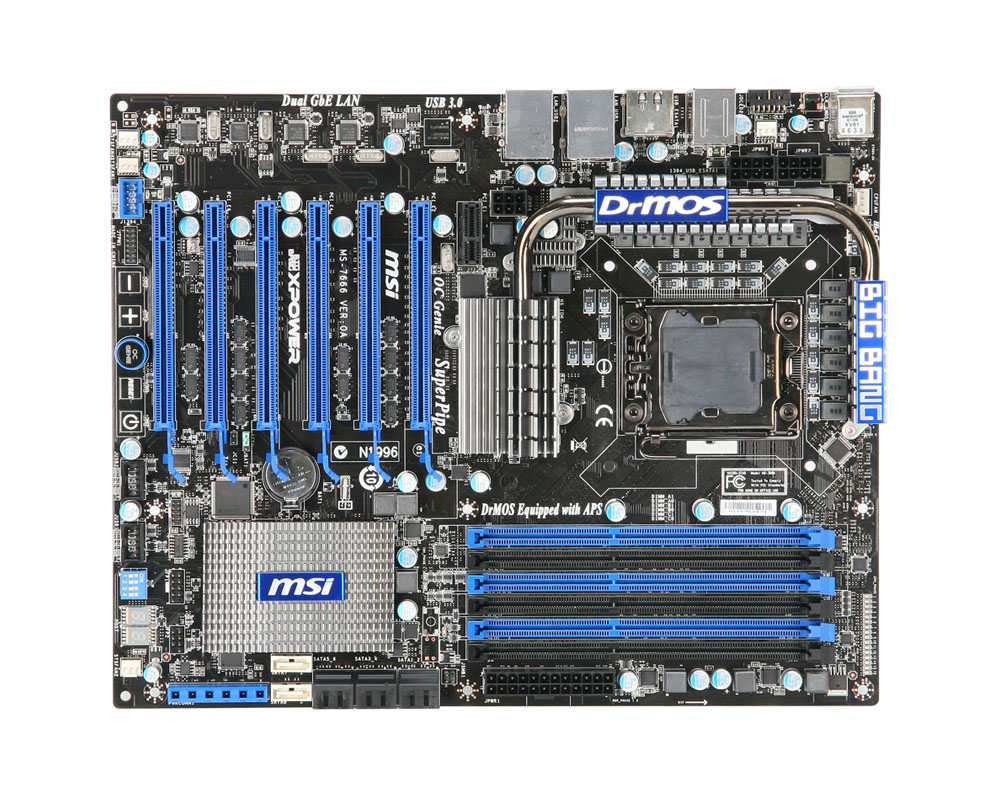

MSI Big Bang-XPower
Model Big Bang-XPowerPart no. BIG BANG-XPOWEREAN 816909073676
33 specifications
- Processor manufacturerIntel
- Number of memory slots6
- USB 2.0 connectors2
- USB 2.0 ports quantity5
- LAN controllerRealtek RTL8111DL
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 5
- LAN controller
- Realtek RTL8111DL
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- Big Bang-XPower
- Part numbers
- BIG BANG-XPOWER, 911-7666-002, 7666-010R, BIGBANG-XPOWER
- EAN / UPC
- 816909073676, 4719072170998
- Also known as
- MSI Big Bang-XPower Socket B (LGA 1366) ATX
Specifications
33 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| Maximum internal memory | 24 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 8 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111DL |
| Networking features | 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 6 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
What people say
Reviews & ratings
MSI Big Bang-XPower
No reviews yet
Be the first to tell others how MSI Big Bang-XPower works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI Big Bang-XPower
All motherboard comparisons- MSI Big Bang-XPower vsMSI P55A-GD65 LGA 1156 (Socket H) ATXCompare specs

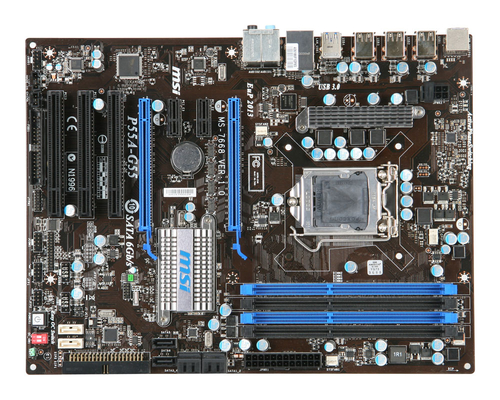

- MSI Big Bang-XPower vsMSI P55A-G55 LGA 1156 (Socket H) ATXCompare specs
- MSI Big Bang-XPower vsMSI 880GMA-E45 AMDCompare specs
- MSI Big Bang-XPower vsMSI 890FXA-GD70 Socket AM3 ATXCompare specs
- MSI Big Bang-XPower vsGIGABYTE GA-880GA-UD3H motherboard AMDCompare specs
- MSI Big Bang-XPower vsGIGABYTE GA-870A-UD3 motherboard AMDCompare specs

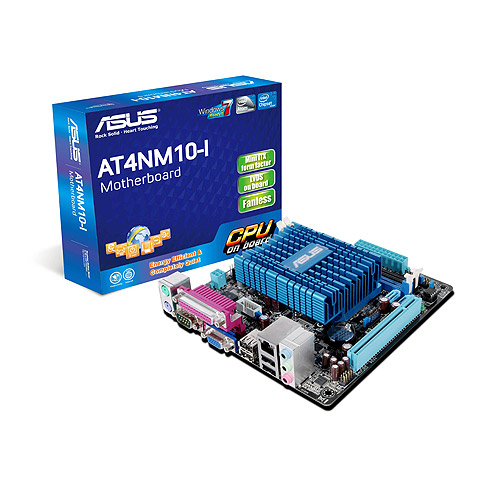

- MSI Big Bang-XPower vsASUS AT4NM10-I BGA 559 mini ITXCompare specs
