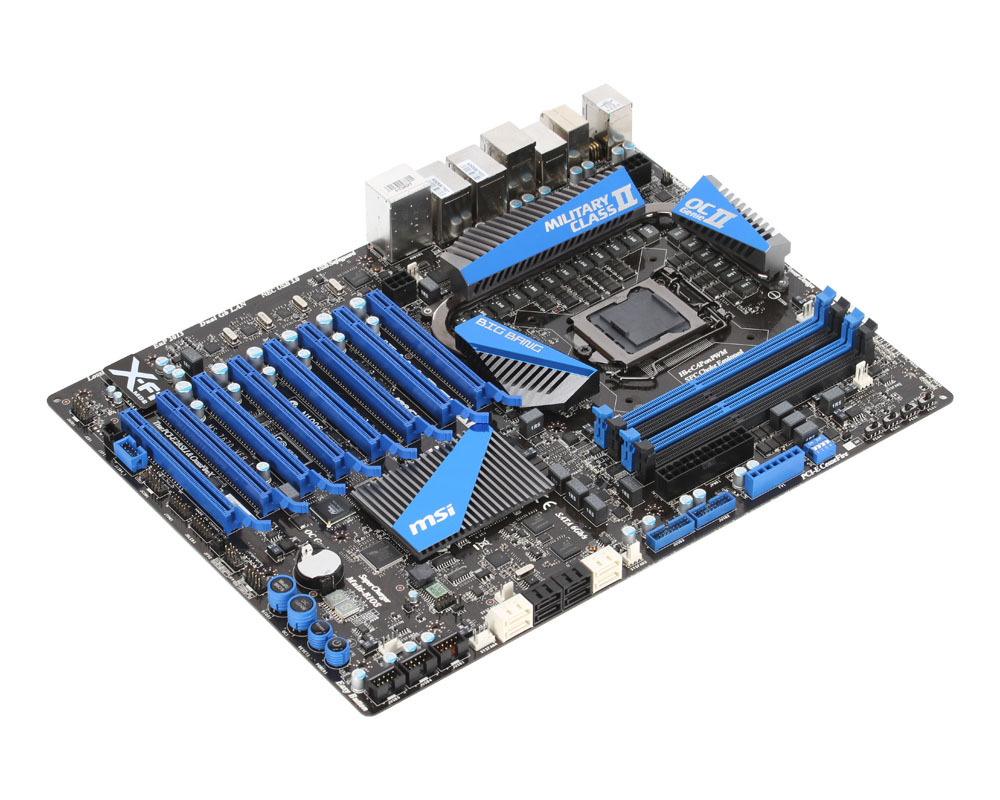

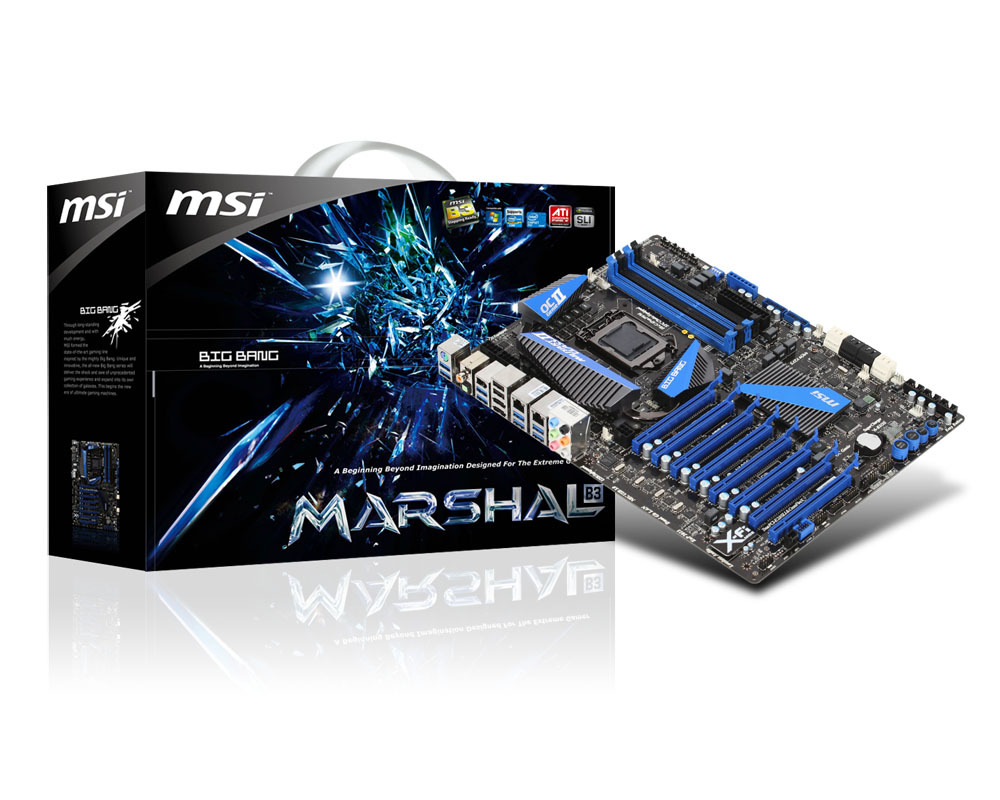

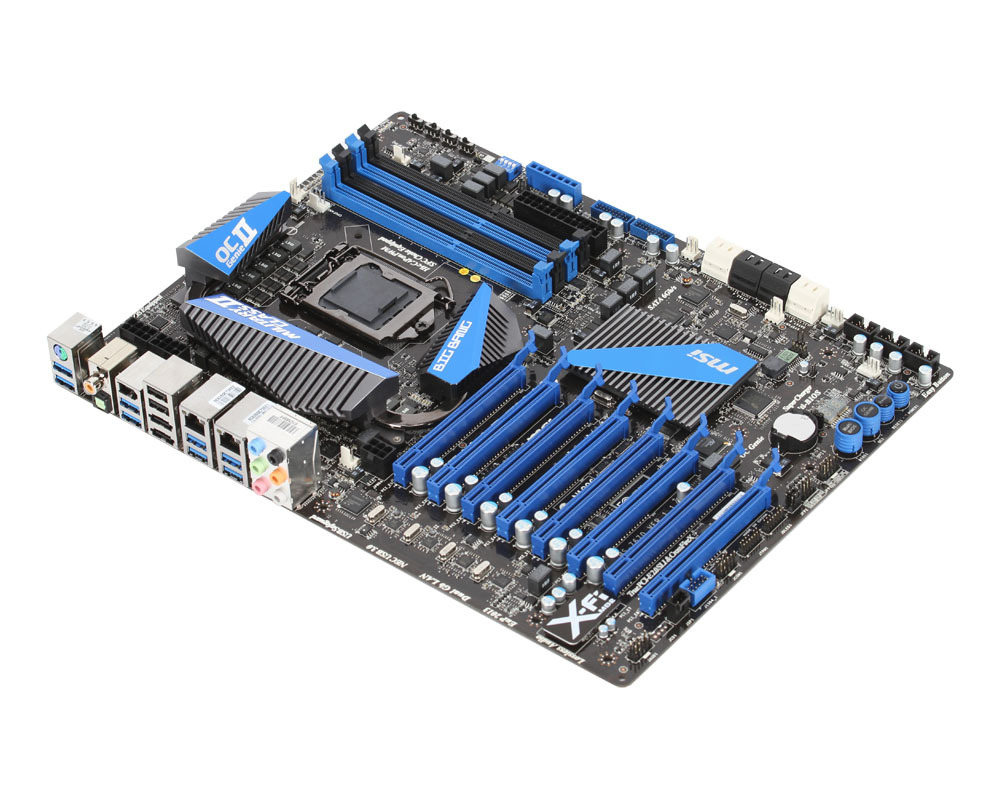

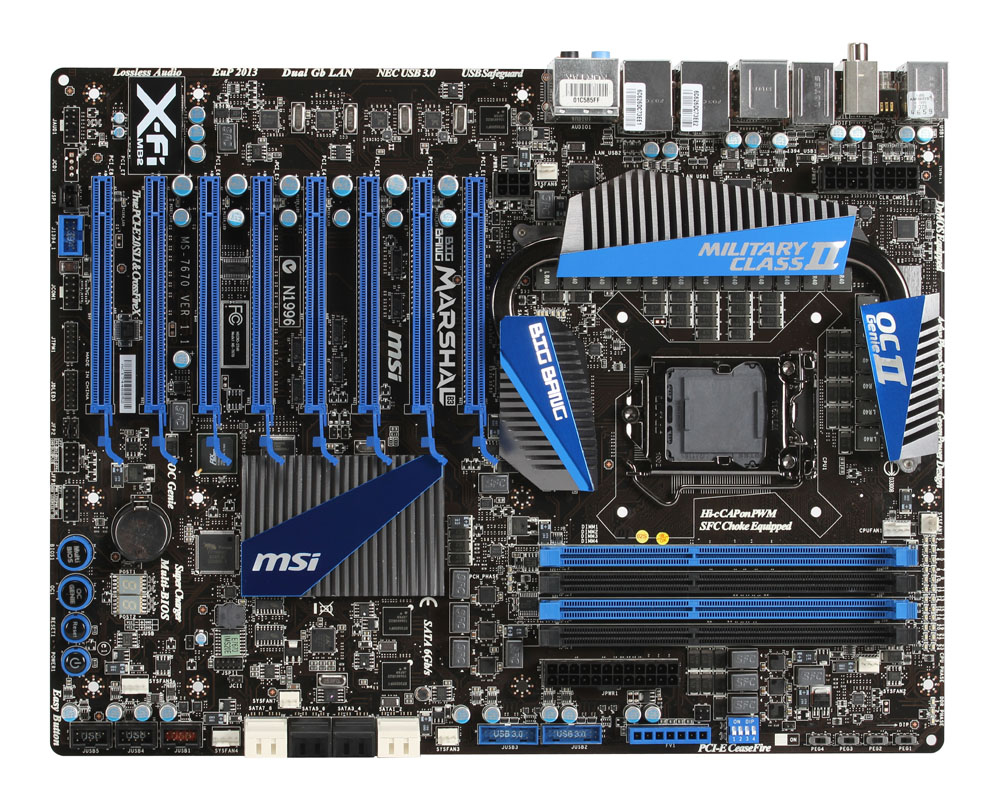

MSI Big Bang-Marshal (B3)
Model Big Bang-Marshal (B3)Part no. 7670-010REAN 4719072199357
37 specifications
- Processor manufacturerIntel
- Number of memory slots4
- On-board graphics cardNo
- USB 2.0 connectors3
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8111E
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- On-board graphics card
- No
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8111E
- Brand
- MSI
- Category
- Motherboard
- Model
- Big Bang-Marshal (B3)
- Part numbers
- 7670-010R, BIG BANG-MARSHAL (B3)
- EAN / UPC
- 4719072199357, 4719072218294
- Also known as
- MSI Big Bang-Marshal (B3) LGA 1155 (Socket H2) XL-ATX
Specifications
37 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |

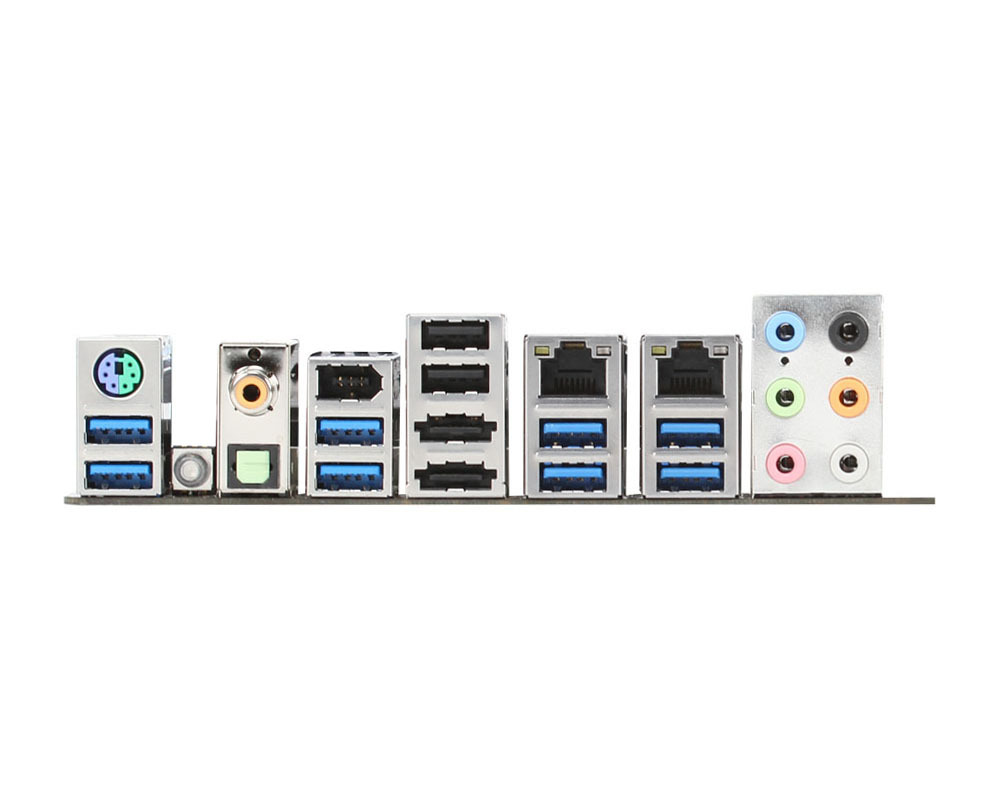

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | XL-ATX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 8 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 264 mm |
| Depth | 435 mm |
