MSI B85M PRO-VD

MSI B85M PRO-VD

Model B85M PRO-VDPart no. 7A01-001REAN 4719072415341

60 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Maximum graphics card memory
1024 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
B85M PRO-VD
Part number
7A01-001R
EAN / UPC
4719072415341
Also known as
MSI B85M PRO-VD Intel® B85 LGA 1150 (Socket H3) micro ATX

Specifications

60 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB
Supported memory module capacities8GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

Maximum graphics card memory1024 MB
Maximum resolution1920 x 1200 pixels
DirectX version12.0

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors2
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Serial port headers1
TPM connectorYes

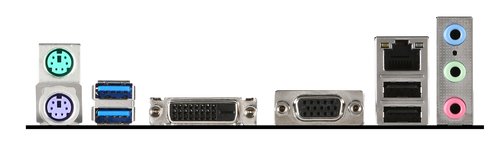

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B85
Audio output channels5.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Weight & dimensions

Width231 mm
Depth173 mm
