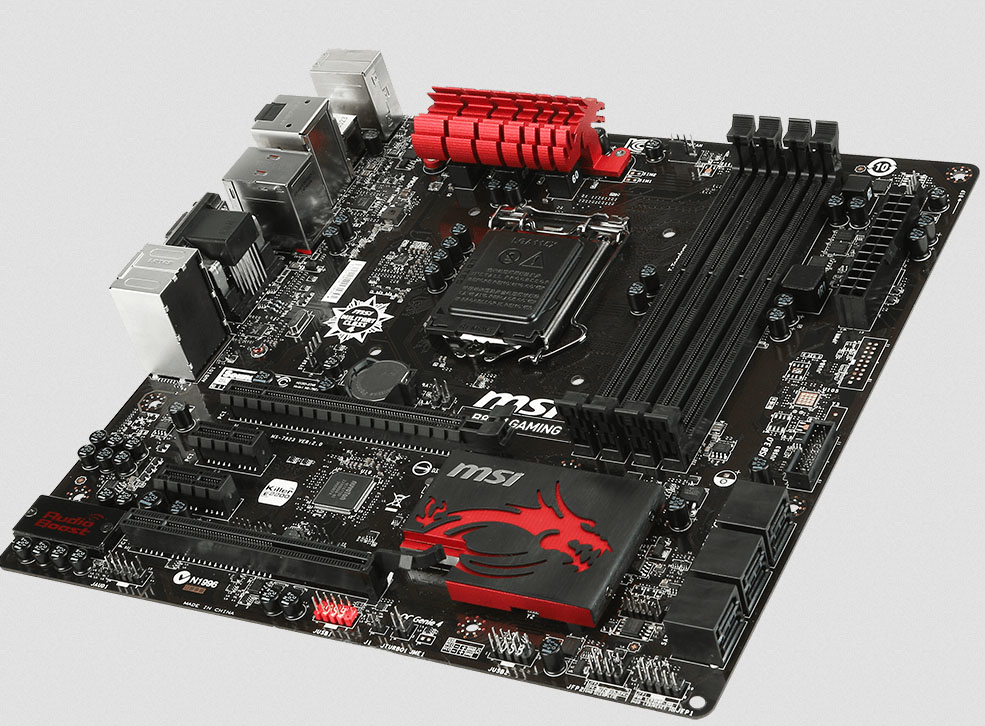

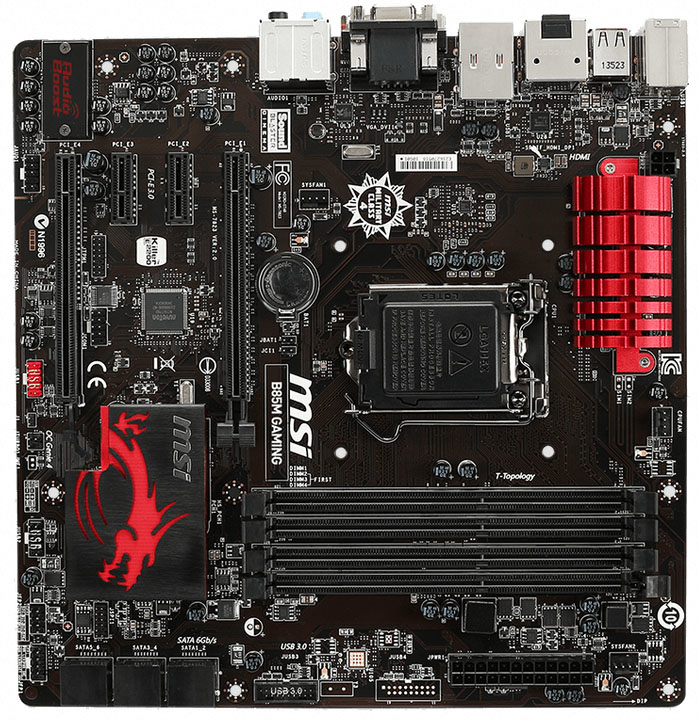

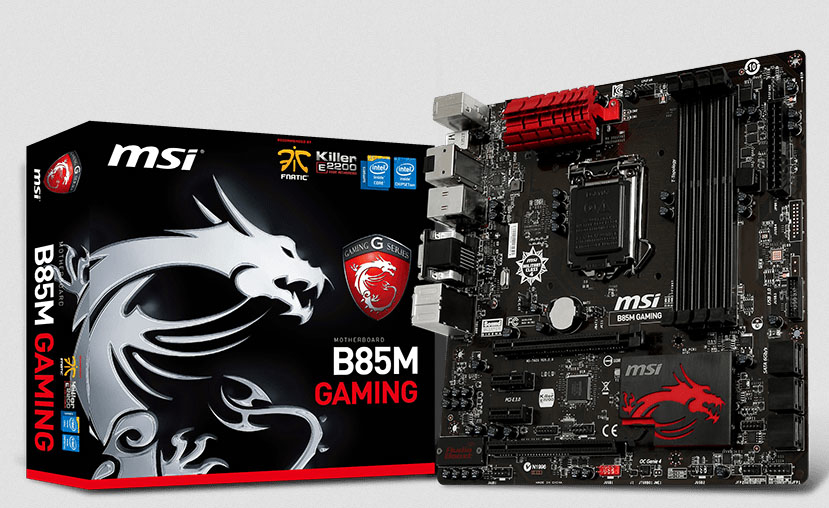

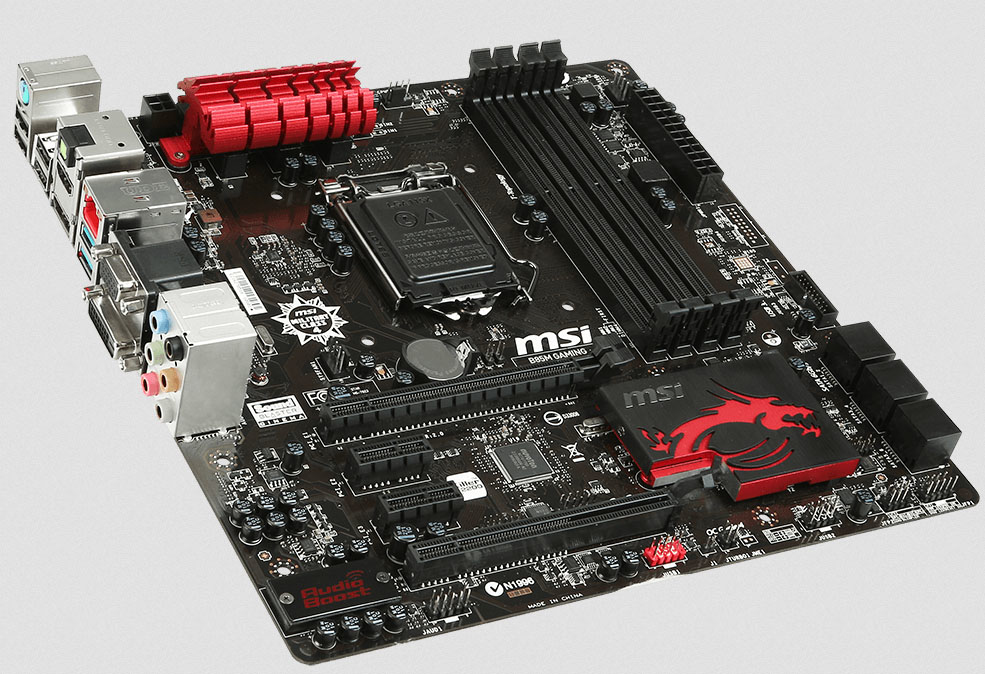

MSI B85M GAMING

MSI B85M GAMING

Model B85M GAMINGPart no. 7823-054REAN 308666174319

58 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
B85M GAMING
Part number
7823-054R
EAN / UPC
308666174319, 824142022900, 4719072342647
Also known as
MSI B85M GAMING Intel® B85 LGA 1150 (Socket H3) micro ATX

Specifications

58 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III

Graphics

Parallel processing technology support2-Way CrossFireX
On-board graphics cardYes
Maximum resolution4096 x 2160 pixels
DirectX version11

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Serial port headers1
TPM connectorYes

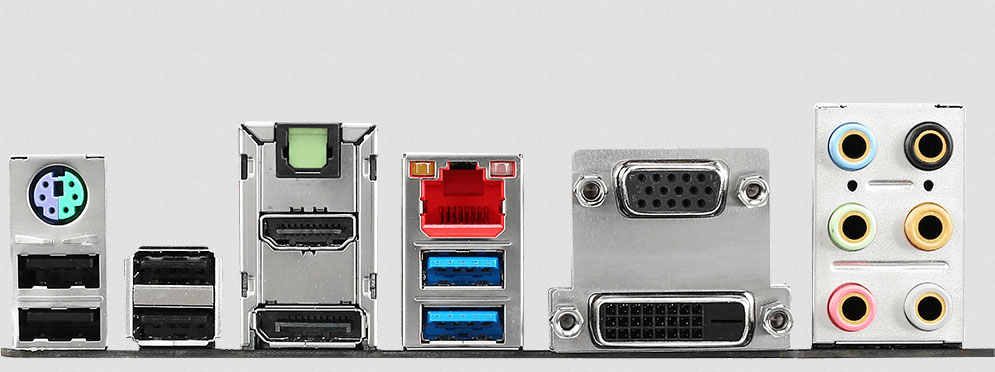

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B85
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots2

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

Quick installation guideYes
