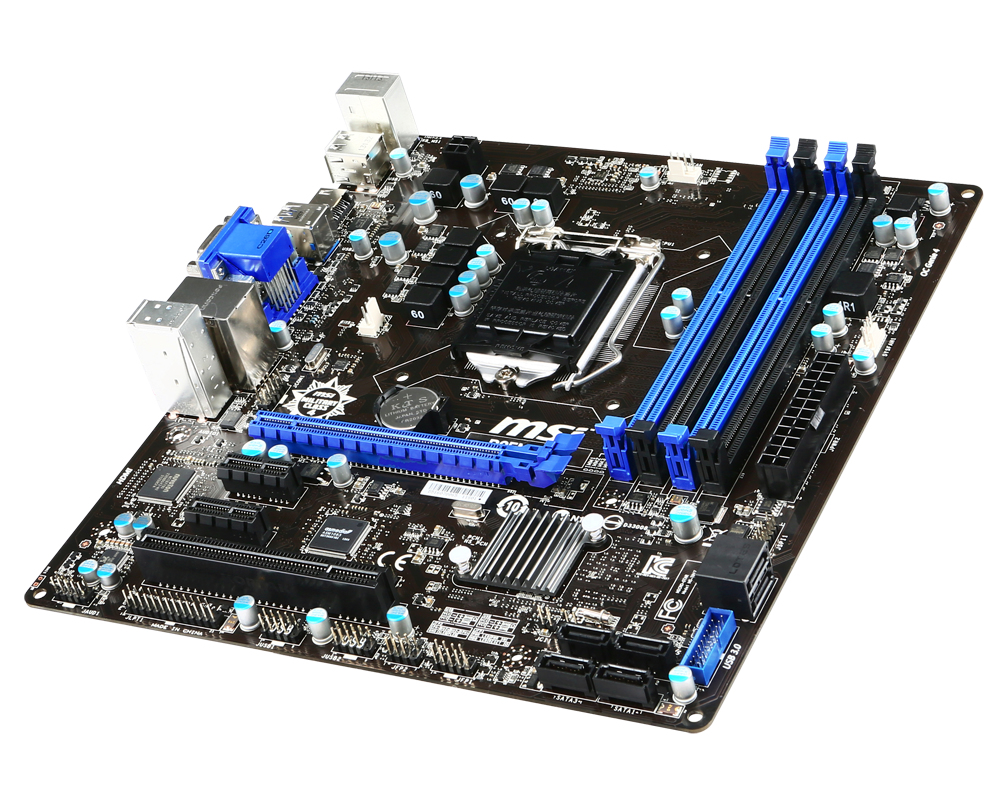

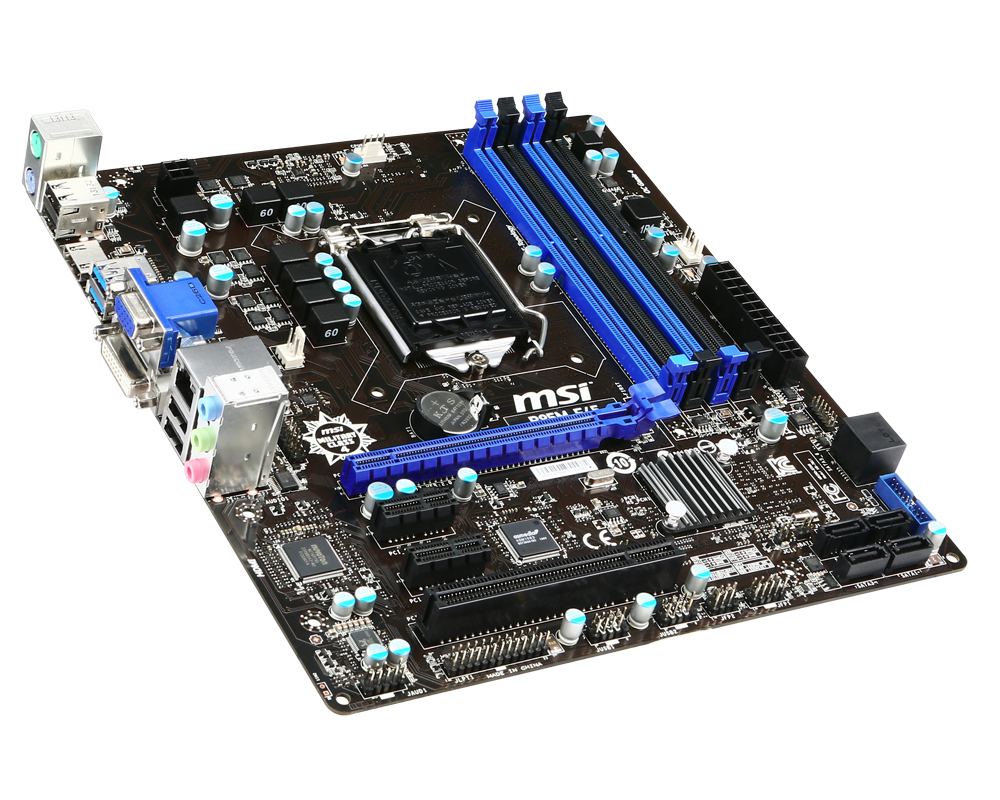

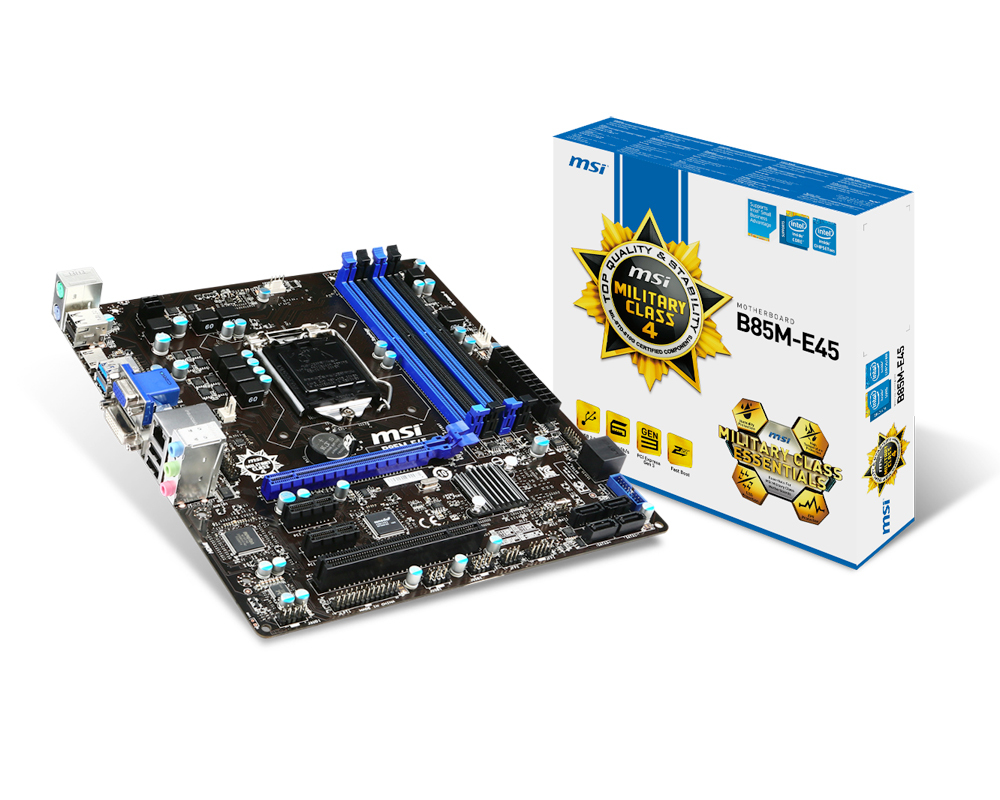

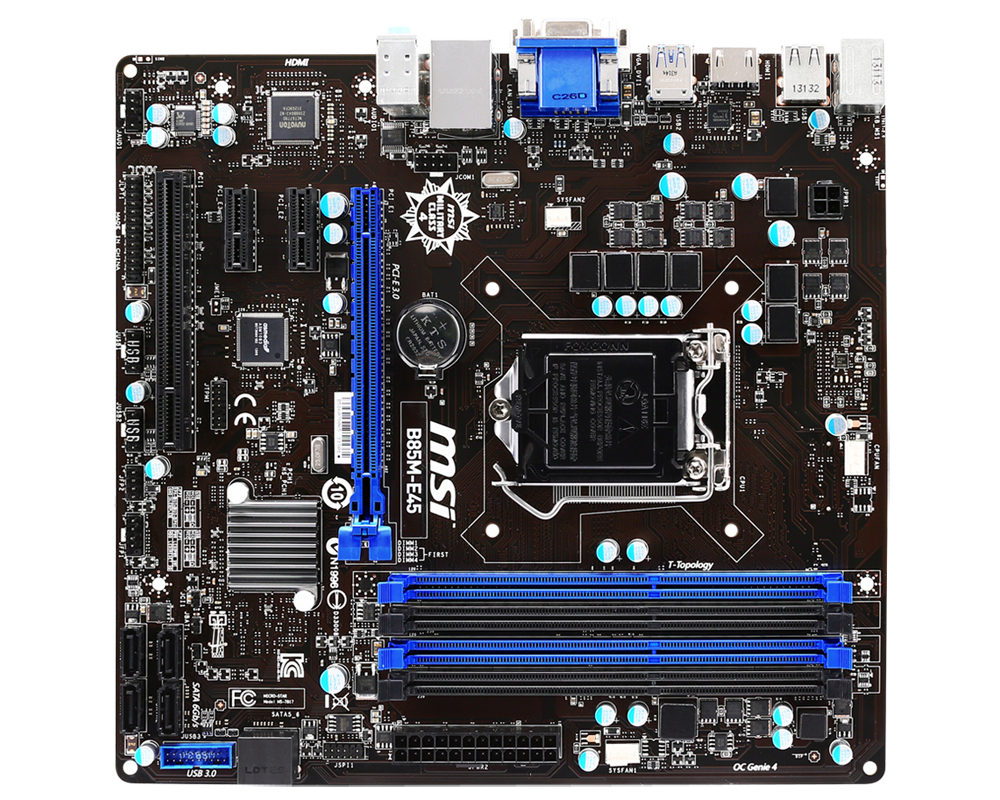

MSI B85M-E45 Intel® B85 LGA 1150 (Socket H3) micro ATX

MSI B85M-E45 Intel® B85 LGA 1150 (Socket H3) micro ATX

Model B85M-E45Part no. B85ME45EAN 816909109436

53 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • DirectX version11
  • USB 2.0 connectors4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
DirectX version
11
USB 2.0 connectors
4
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
B85M-E45
Part numbers
B85ME45, 007817-030R, 7817-030R, 911-7817-015
EAN / UPC
816909109436, 4053162667679, 4054842390825, 4719072304393 +2 more
Also known as
MSI B85M-E45 Intel® B85 LGA 1150 (Socket H3) micro ATX

Specifications

53 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron® D, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

DirectX version11

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
Number of SATA II connectors2
Number of SATA connectors6
Number of Parallel ATA connectors0
Front panel audio connectorYes
Chassis intrusion connectorYes
Parallel connectorYes
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek 8111G

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B85
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1
PCI slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width228 mm
Depth244 mm
