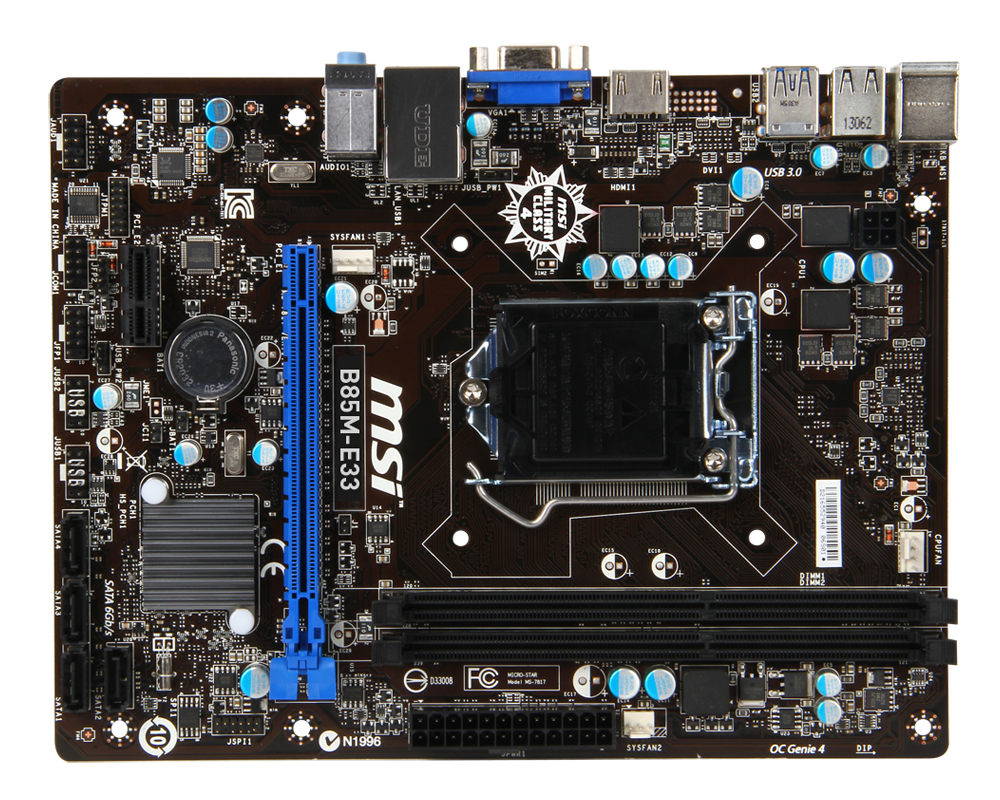

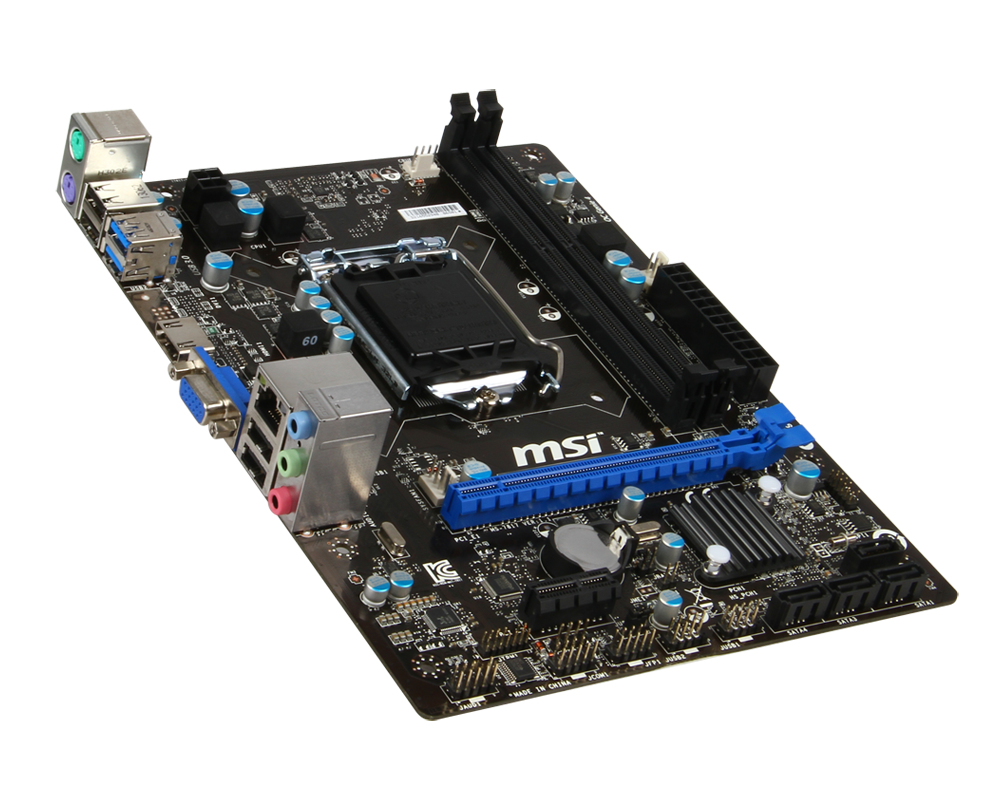

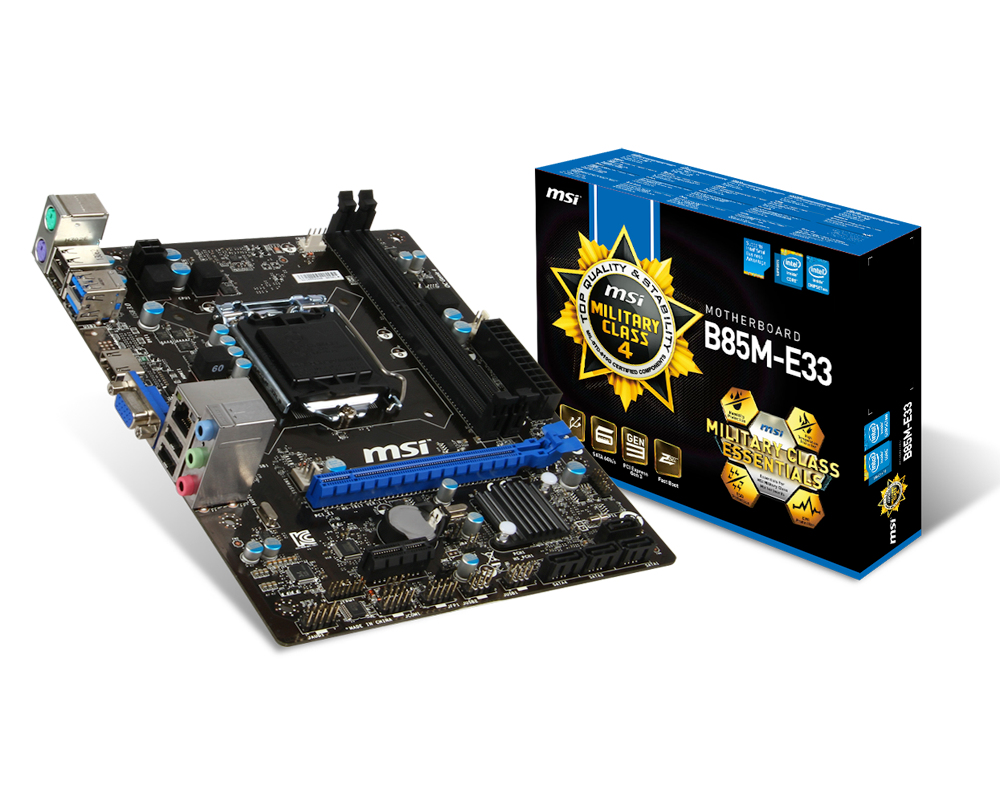

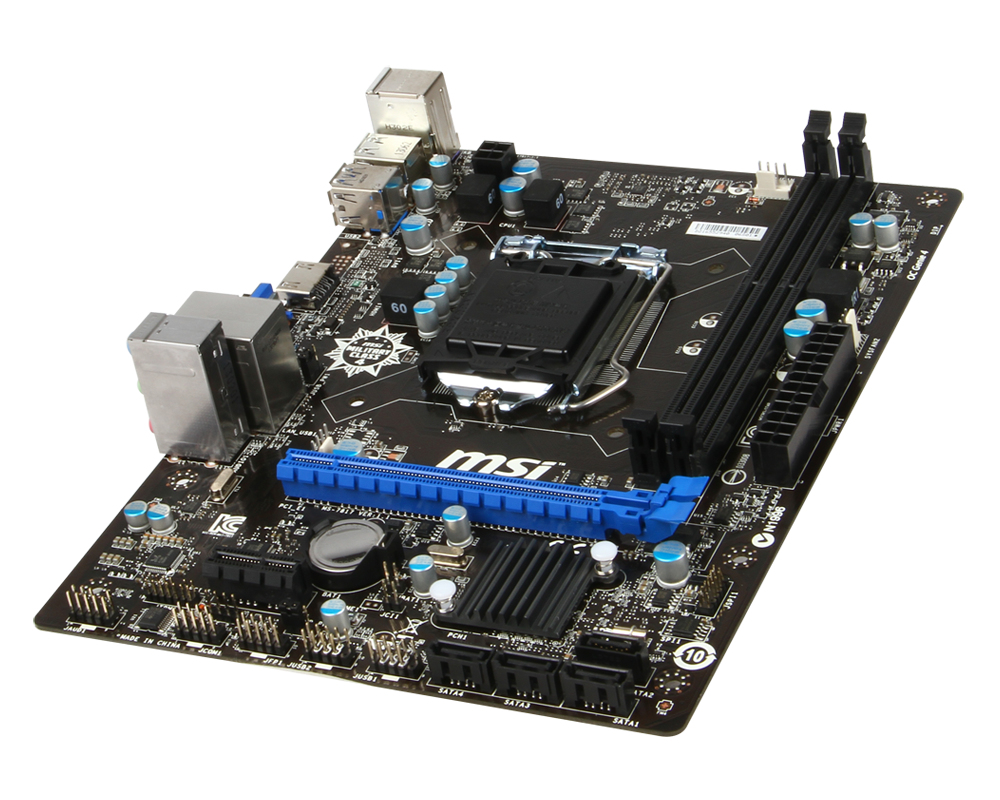

MSI B85M-E33 Intel® B85 LGA 1150 (Socket H3) micro ATX
Model B85M-E33Part no. 7817-010REAN 8169091084398
51 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- MSI
- Category
- Motherboard
- Model
- B85M-E33
- Part number
- 7817-010R
- EAN / UPC
- 8169091084398, 172302725773, 816909107166, 816909108439 +2 more
- Also known as
- MSI B85M-E33 Intel® B85 LGA 1150 (Socket H3) micro ATX
Specifications
51 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Serial port headers | 1 |
| TPM connector | Yes |

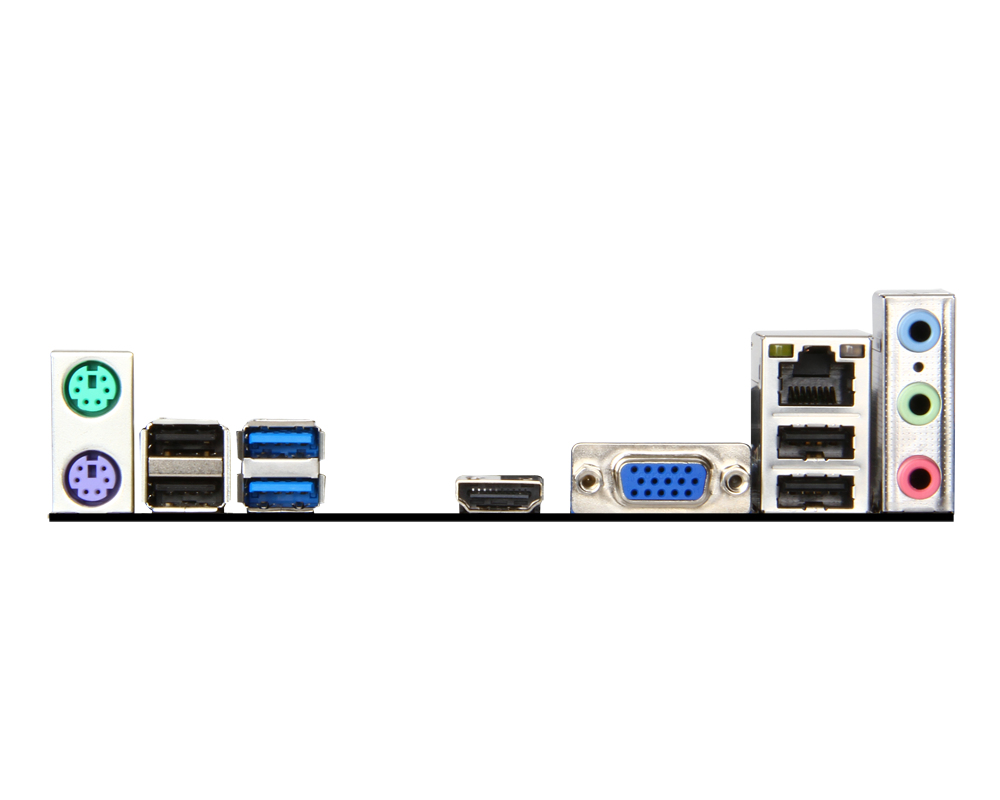

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111G |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B85 |
| Audio chip | Realtek ALC887 |
| Cooling type | Passive |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 3.0 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 173 mm |
| Depth | 226 mm |
