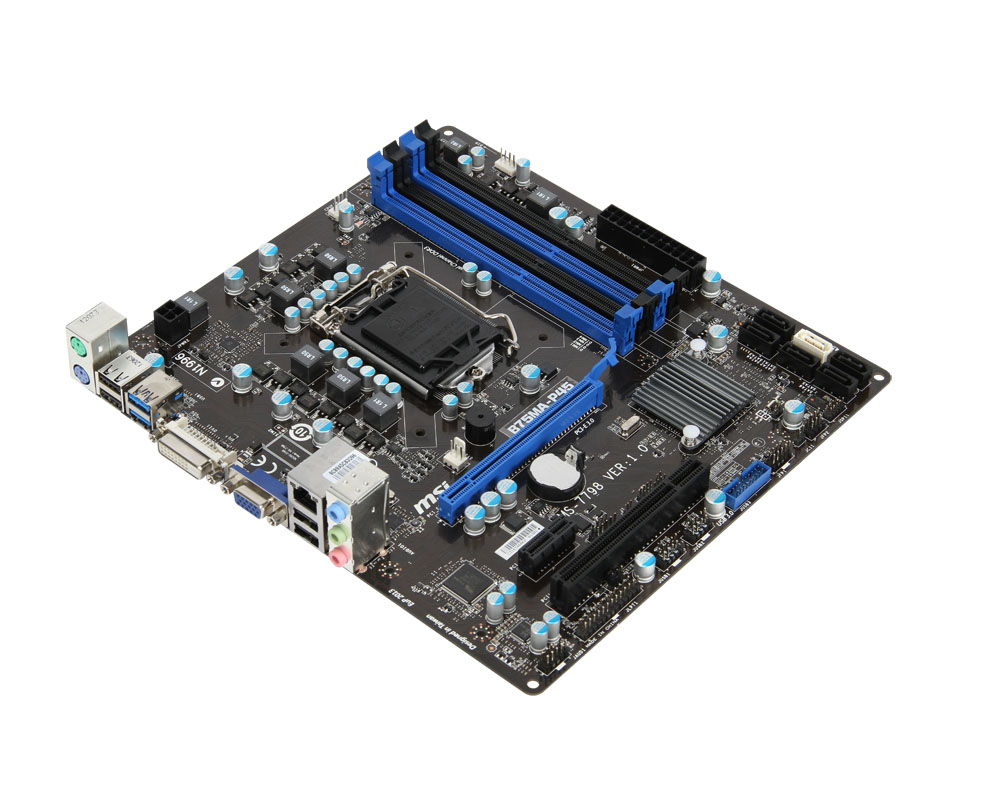

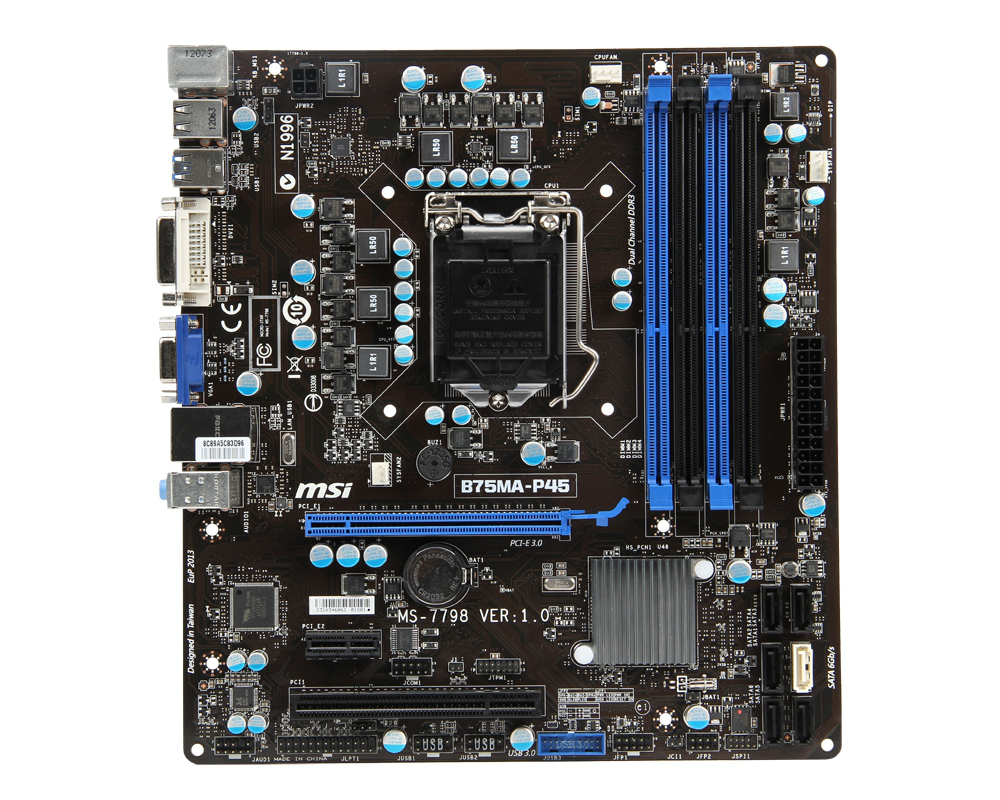

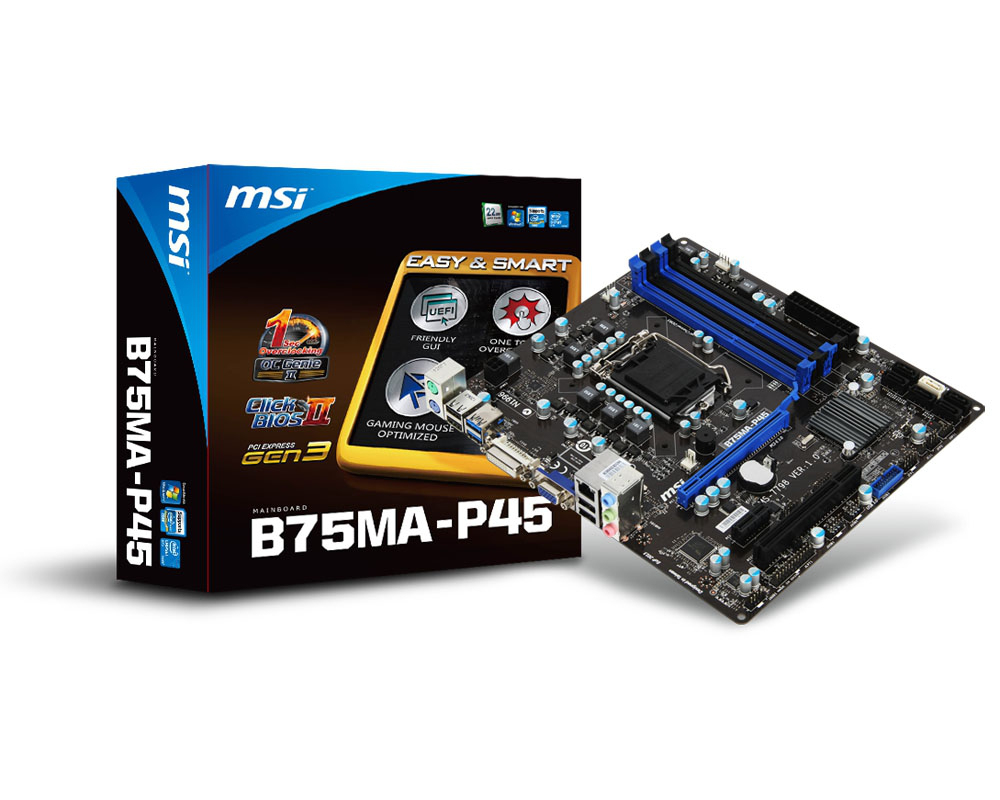

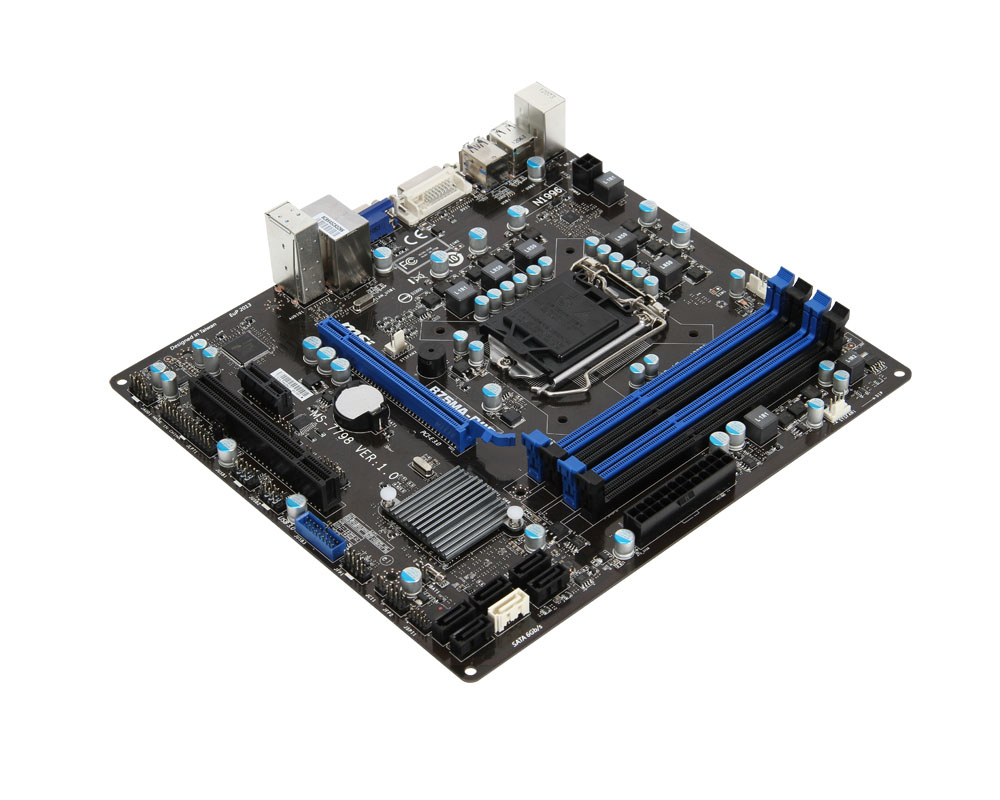

MSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATX
Model B75MA-P45Part no. 911-7798-005EAN 8169090965834
46 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- Ethernet interface typeGigabit Ethernet
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Ethernet interface type
- Gigabit Ethernet
- Brand
- MSI
- Category
- Motherboard
- Model
- B75MA-P45
- Part numbers
- 911-7798-005, 7798-010R, B75MA-P45
- EAN / UPC
- 8169090965834, 4719072261139, 816909096583, 5053460272833 +1 more
- Also known as
- MSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATX
Specifications
46 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 1066,1333,1600,1800,2000,2200,2400 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| DirectX version | 11 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 1 |
| Number of SATA II connectors | 5 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |
| TPM connector | Yes |

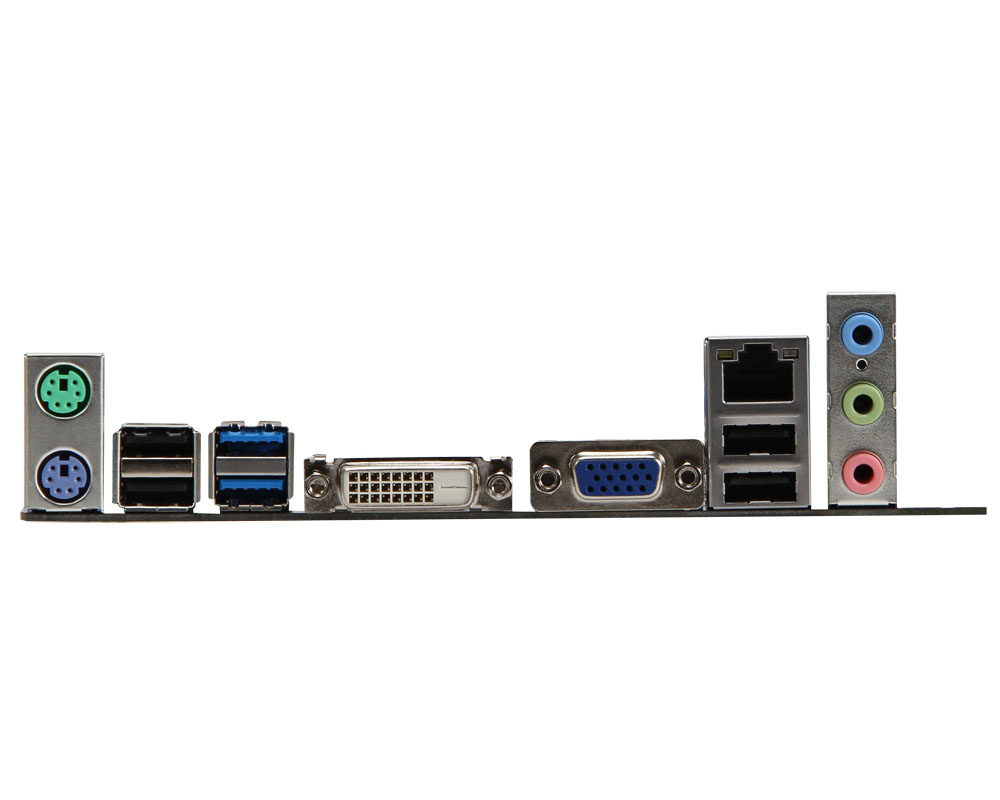

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B75 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 225 mm |
| Depth | 244 mm |
What people say
Reviews & ratings
MSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how MSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATX

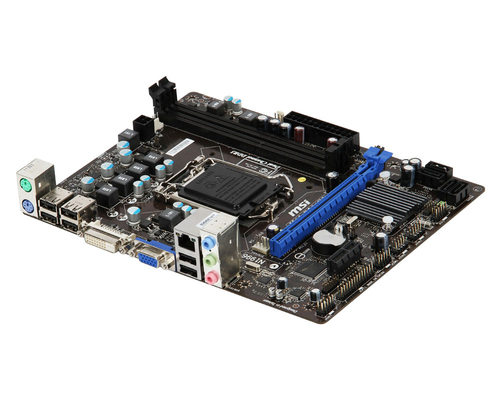

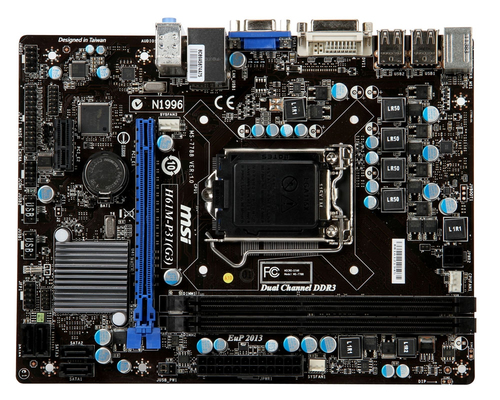

All motherboard comparisons- MSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATX vsMSI H61M-P31 (G3)Compare specs
- MSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATX vsMSI H61M-P20 Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
- MSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATX vsMSI E350DM-E33 AMD Hudson D1 NA (integrated CPU) micro ATXCompare specs
- MSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATX vsMSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATXCompare specs

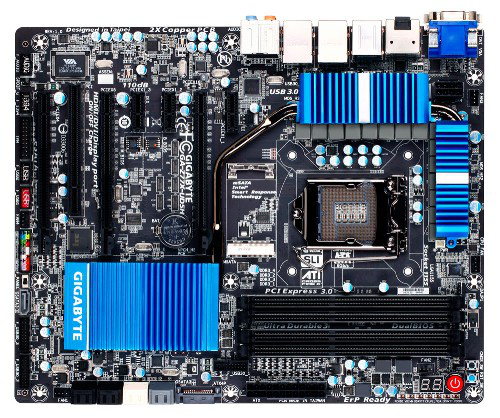

- MSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-Z77X-UD5H-WB WIFICompare specs
