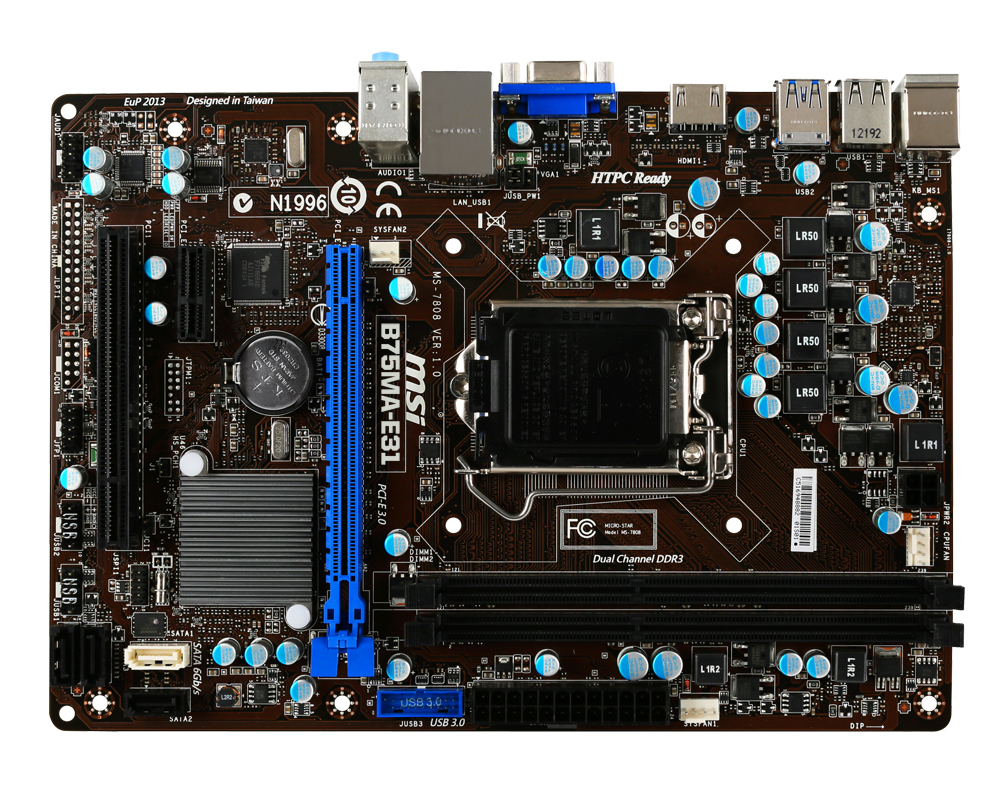

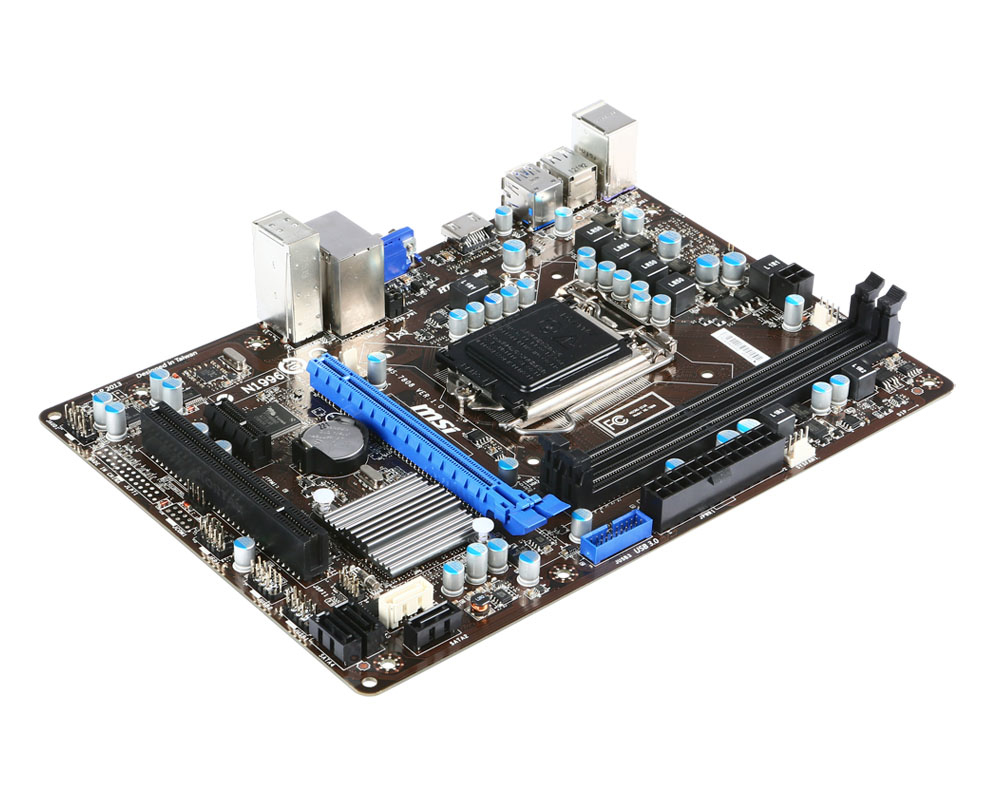

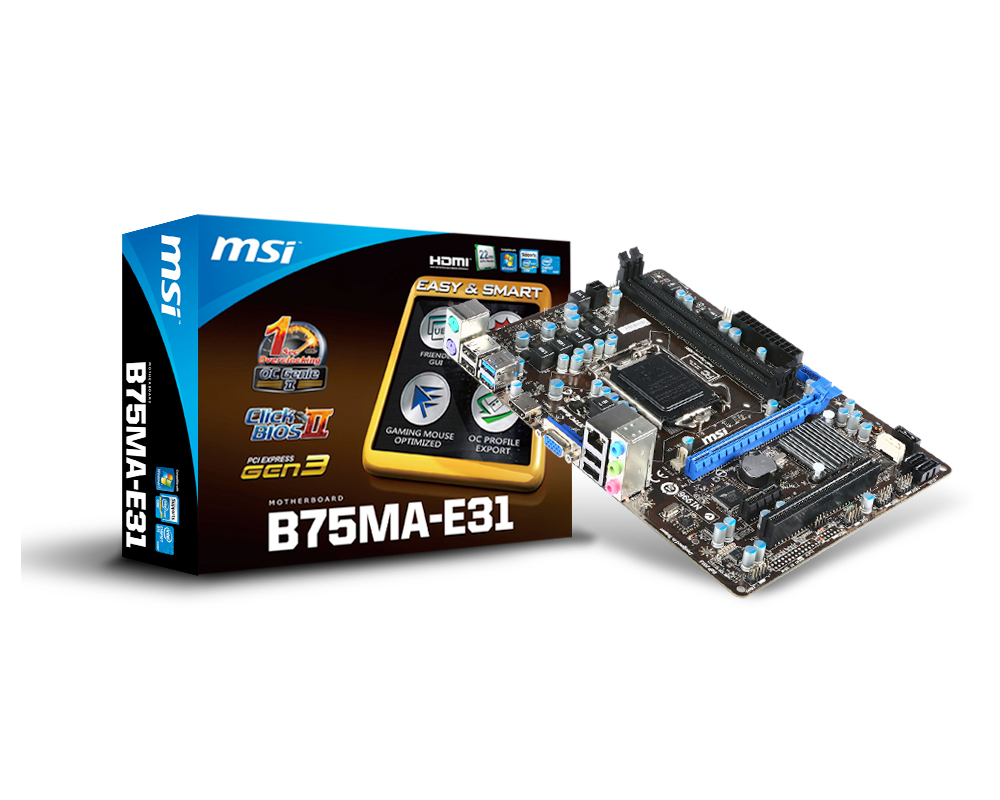

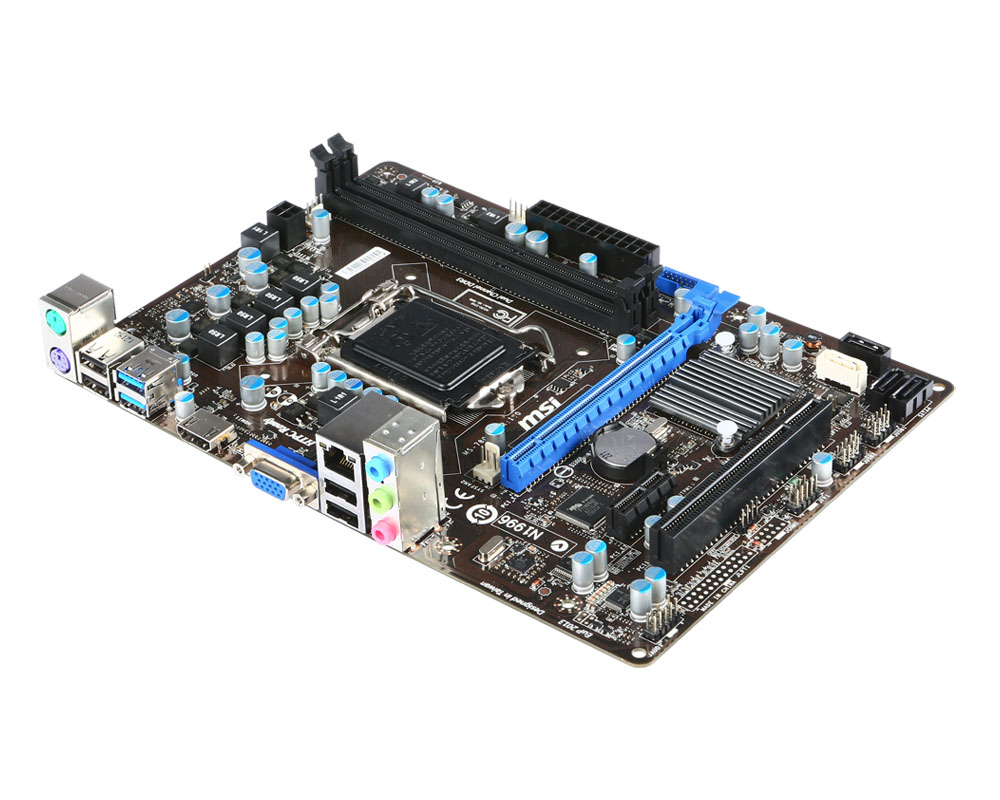

MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX
Model B75MA-E31Part no. 7808-014REAN 4719072296834
57 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Discrete graphics supportYes
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Discrete graphics support
- Yes
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- B75MA-E31
- Part number
- 7808-014R
- EAN / UPC
- 4719072296834
- Also known as
- MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX
Specifications
57 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-2xxx, i3-3xxx, i5-2xxx, i5-3xxx, i7-2xxx, i7-3xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 16GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 1 |
| Number of SATA II connectors | 3 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |

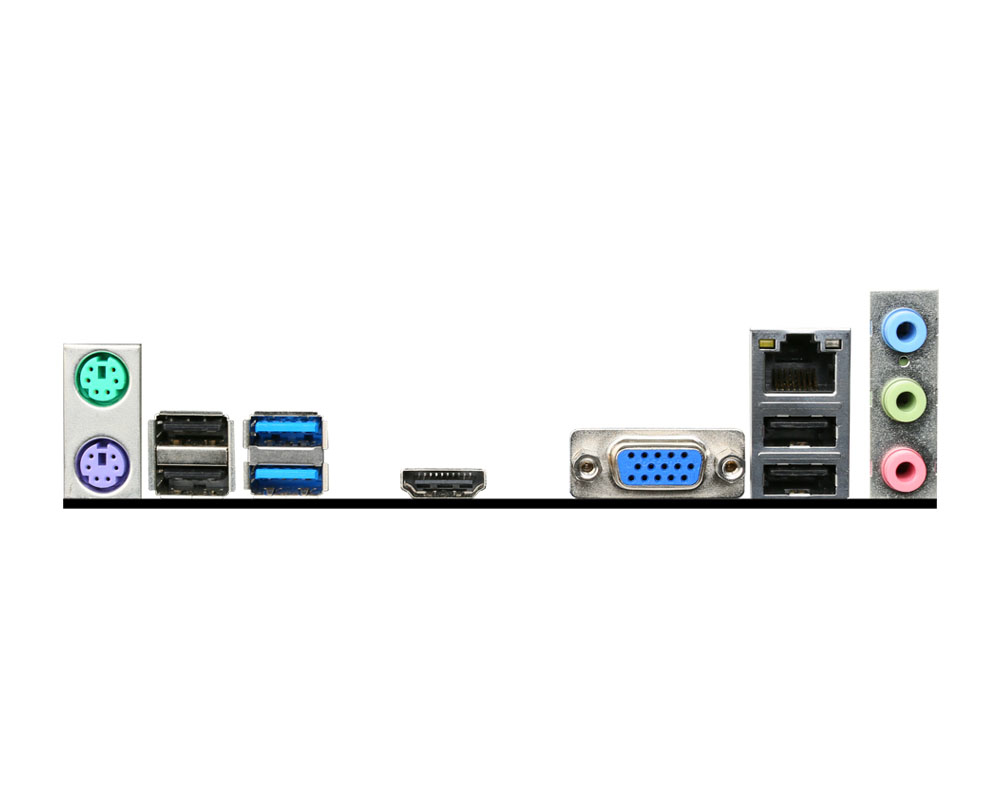

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B75 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0, 3.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 173 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| PCI Express slots quantity | 2 |
What people say
Reviews & ratings
MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX
All motherboard comparisons- MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX vsMSI H87M-E33 motherboard Intel® H87 LGA 1150 (Socket H3) micro ATXCompare specs
- MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX vsMSI B85-G43 motherboard Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs

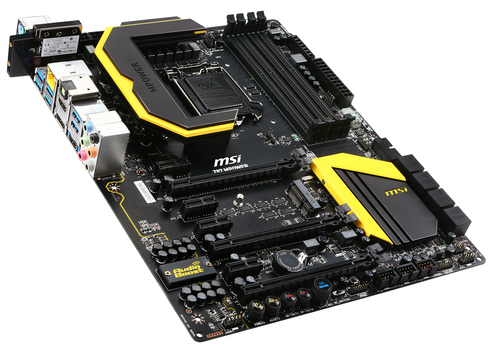

- MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX vsMSI Z87 MPOWERCompare specs

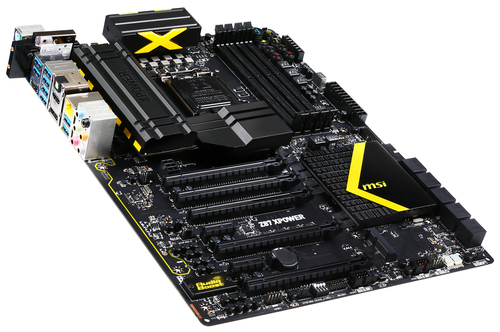

- MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX vsMSI Z87 XPOWERCompare specs

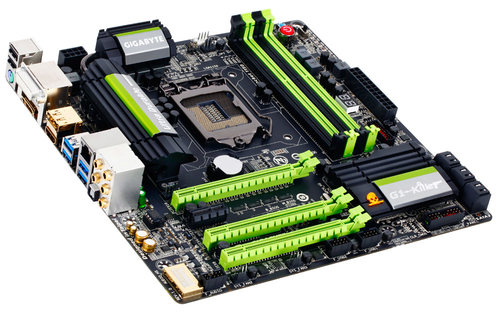

- MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX vsGIGABYTE G1.Sniper M5Compare specs

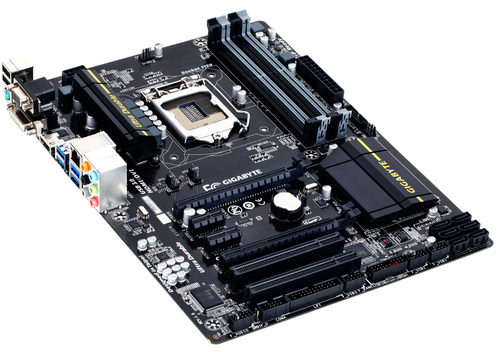

- MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-H87-HD3 motherboard LGA 1150 (Socket H3) ATXCompare specs

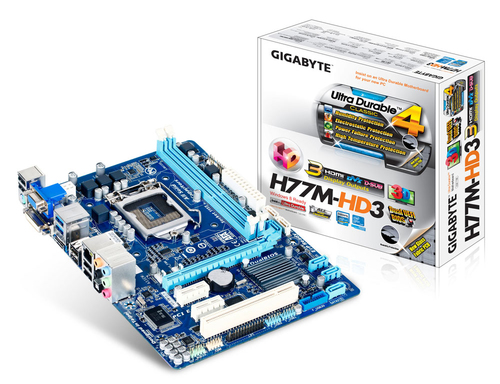

- MSI B75MA-E31 Intel B75 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-H77M-HD3 motherboard Intel H77 LGA 1155 (Socket H2) micro ATXCompare specs
