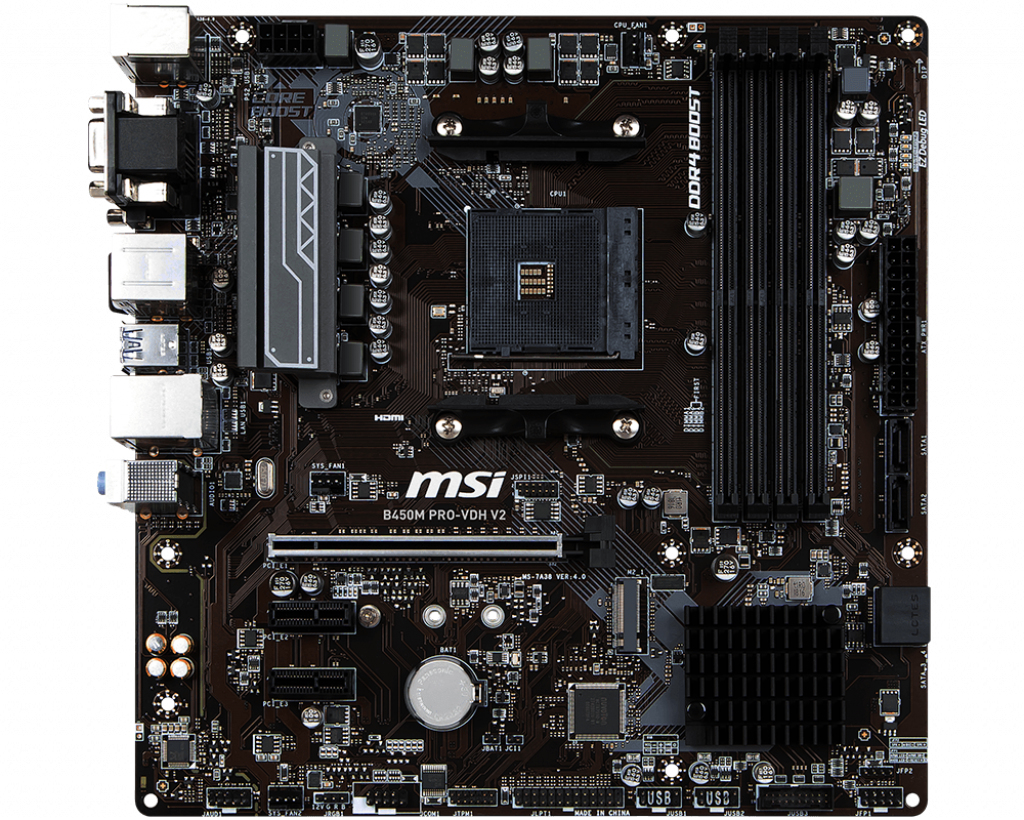

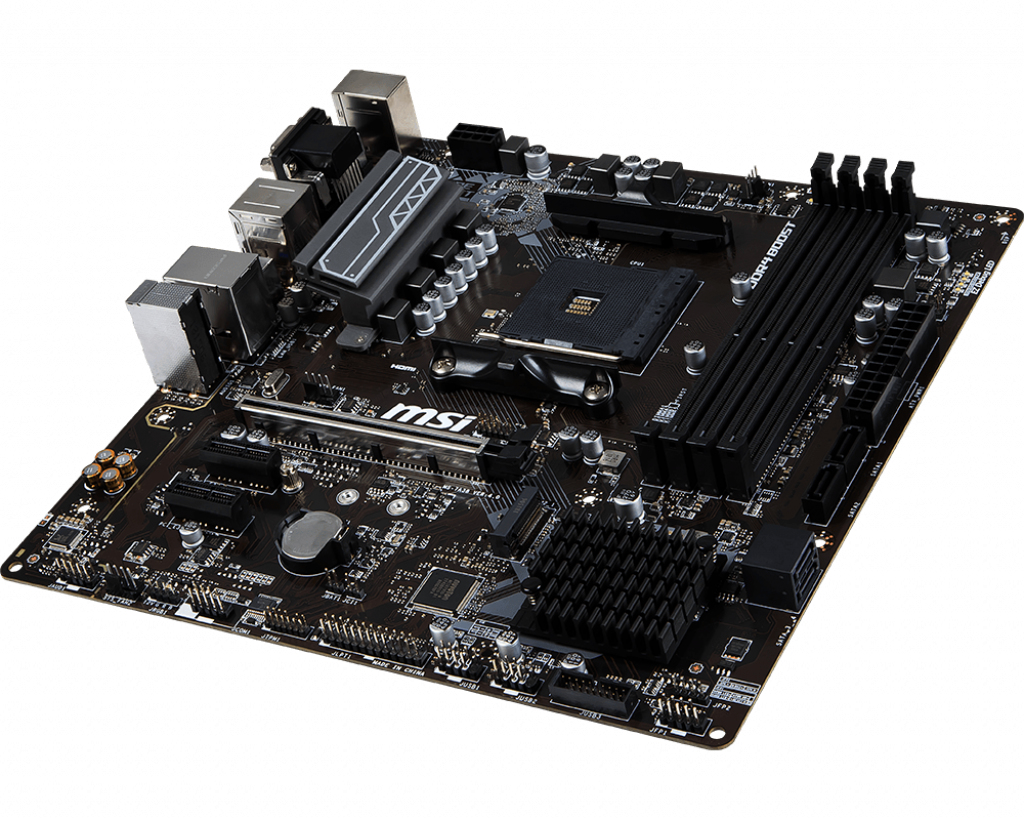

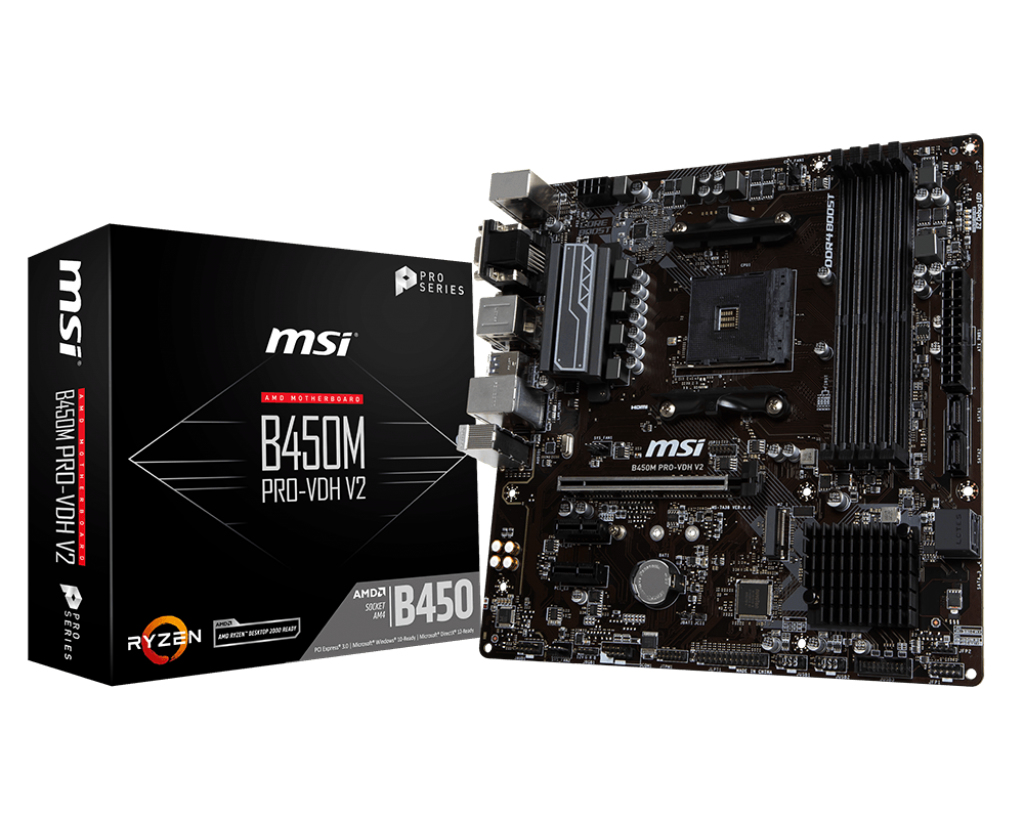

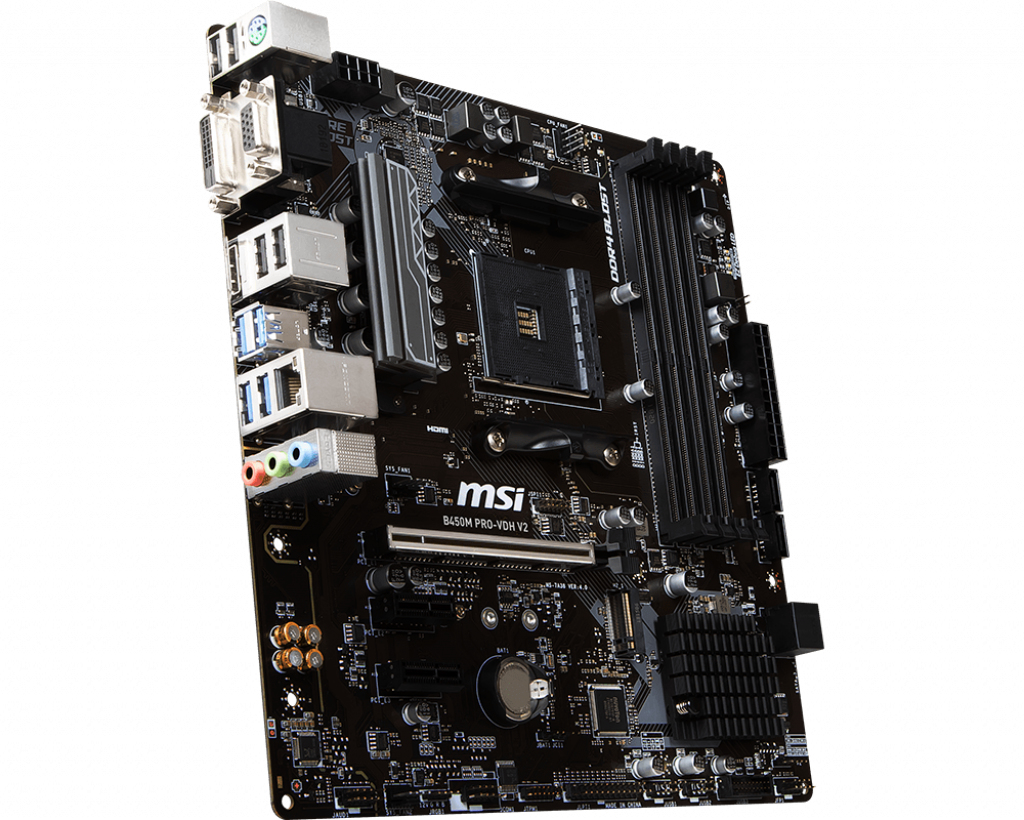

MSI B450M PRO-VDH V2

MSI B450M PRO-VDH V2

Model B450M PRO-VDH V2Part no. 7A38-027REAN 4719072606596

69 specifications
  • Memory64 GB
  • Typem-ATX
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Number of displays supported3
See all specifications

Overview

Memory
64 GB
Type
m-ATX
Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Number of displays supported
3
Brand
MSI
Category
Motherboard
Model
B450M PRO-VDH V2
Part numbers
7A38-027R, 911-7A38-027
EAN / UPC
4719072606596
Also known as
MSI B450M PRO-VDH V2 AMD B450 Socket AM4 micro ATX

Specifications

69 specifications in 14 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Supported processor socketsSocket AM4

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Internal memory64 GB
Supported memory clock speeds1866,2133,2400,2667,2800,2933,3000,3066,3200,3466 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA
Number of HDDs supported4
RAID levels0, 1, 10

Graphics

Number of displays supported3

Internal I/O

USB 2.0 connectors8
USB 3.2 Gen 1 (3.1 Gen 1) connectors6
Number of SATA connectors4
Total number of SATA connectors4
Number of Parallel ATA connectors1
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
TPM connectorYes

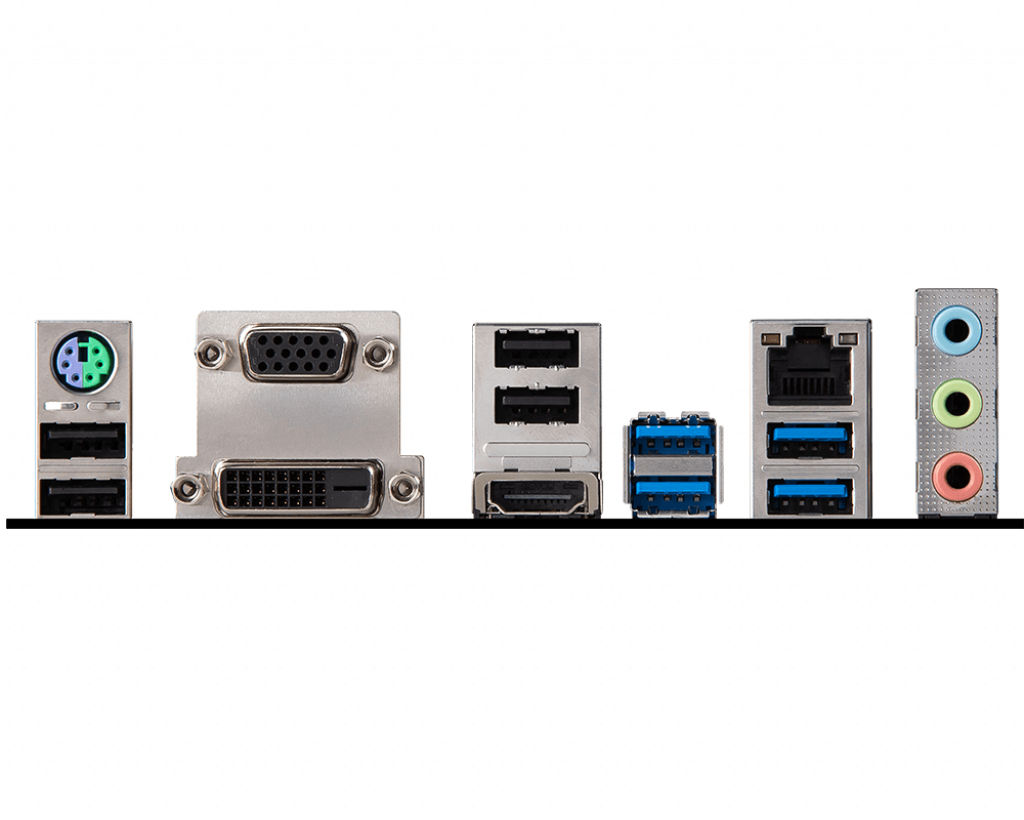

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B450
Audio chipRealtek ALC892
Audio output channels7.1 channels
Cooling typeActive
Power source typeATX
Number of mounting holes9
Windows operating systems supportedWindows 10

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

Clear CMOS jumperYes
Plug and PlayYes

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

HDD size2.5/3.5"
Analog audio output1
Quick installation guideYes

Technical details

Form factorm-ATX
M.2 card slot (storage)1
