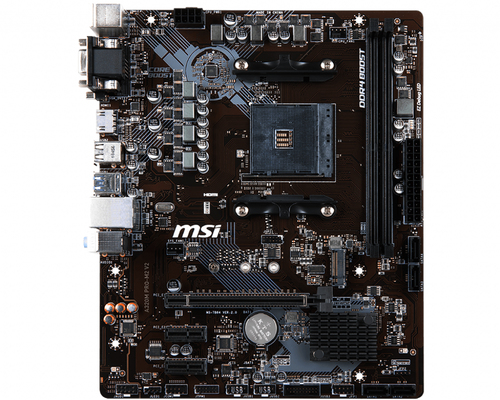

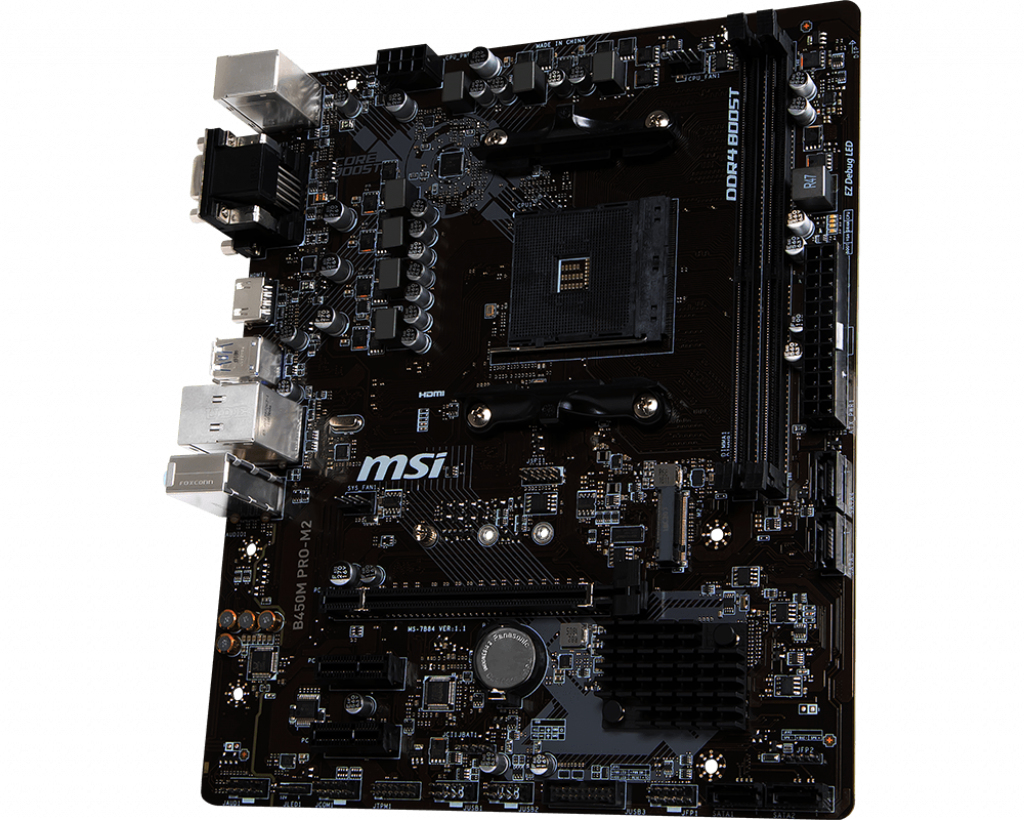

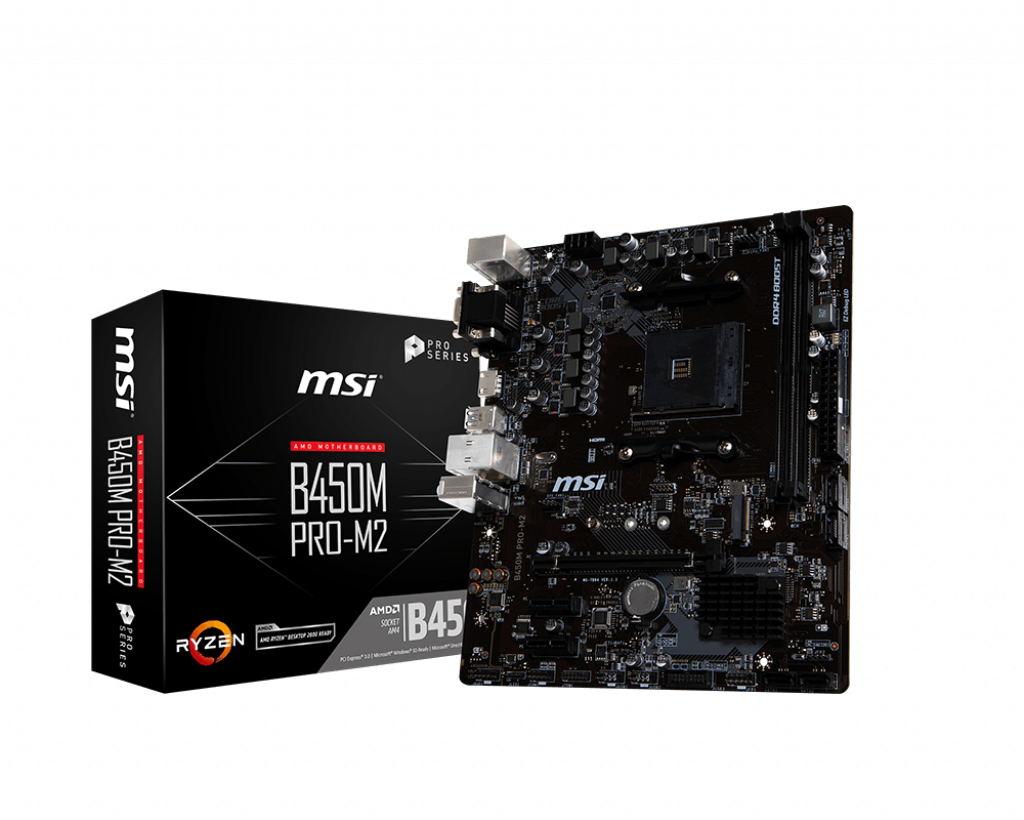

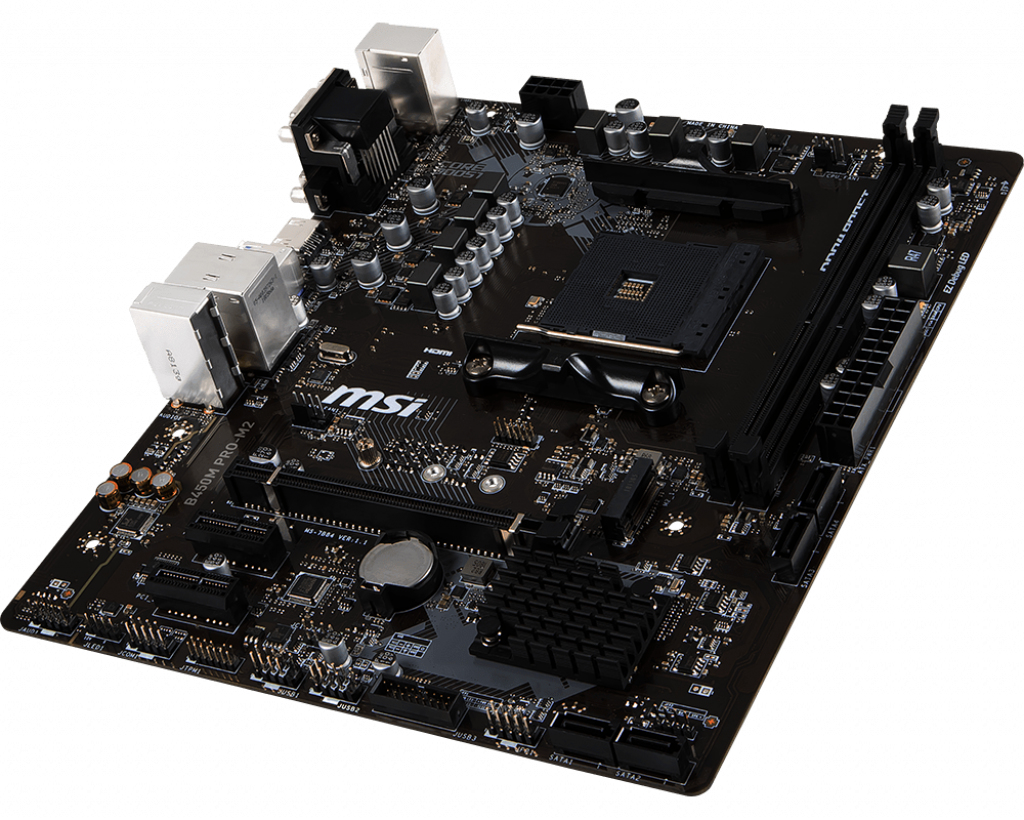

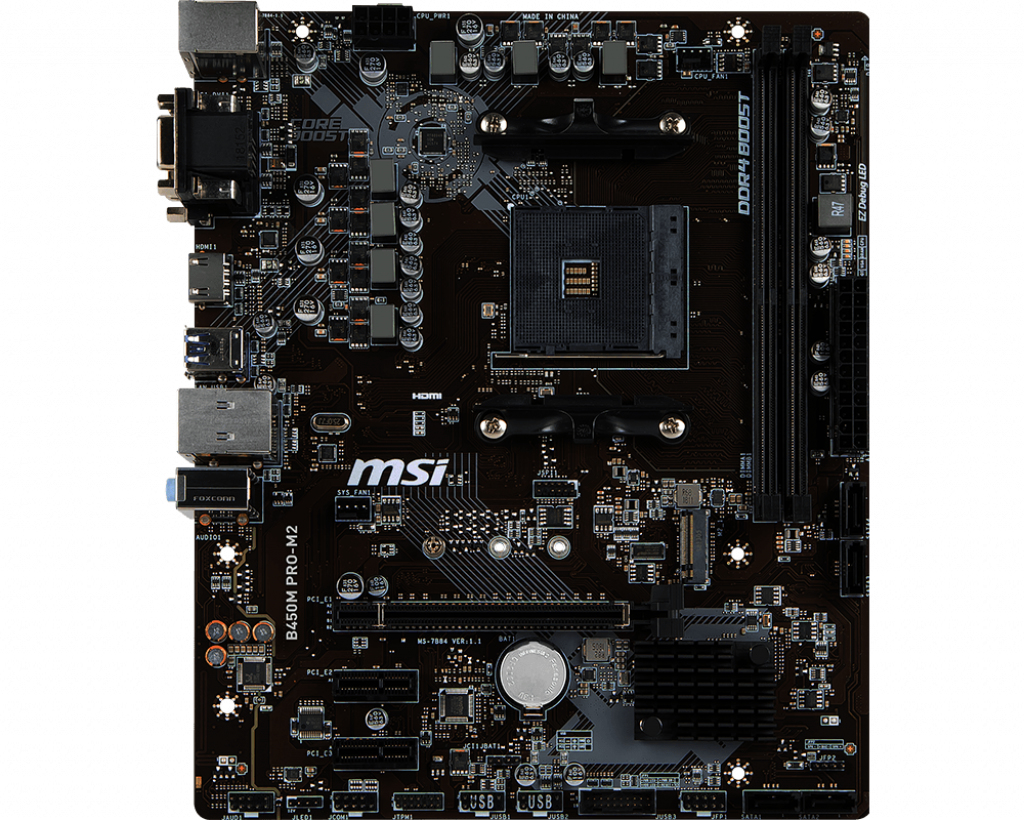

MSI B450M PRO-M2 V2

MSI B450M PRO-M2 V2

Model B450M PRO-M2 V2Part no. 4719072611446EAN 4719072611446

57 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • Maximum graphics card memory2048 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
Maximum graphics card memory
2048 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
B450M PRO-M2 V2
Part numbers
4719072611446, 7B84-014R, B450M PRO-M2 V2
EAN / UPC
4719072611446, 824142176337
Also known as
MSI B450M PRO-M2 V2 AMD B450 Socket AM4 micro ATX

Specifications

57 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1866,2133,2400,2667,2800,2933,3000,3066,3200,3466 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 10

Graphics

Maximum graphics card memory2048 MB
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Chassis intrusion connectorYes
12V power connectorYes
TPM connectorYes
RGB LED pin headerYes

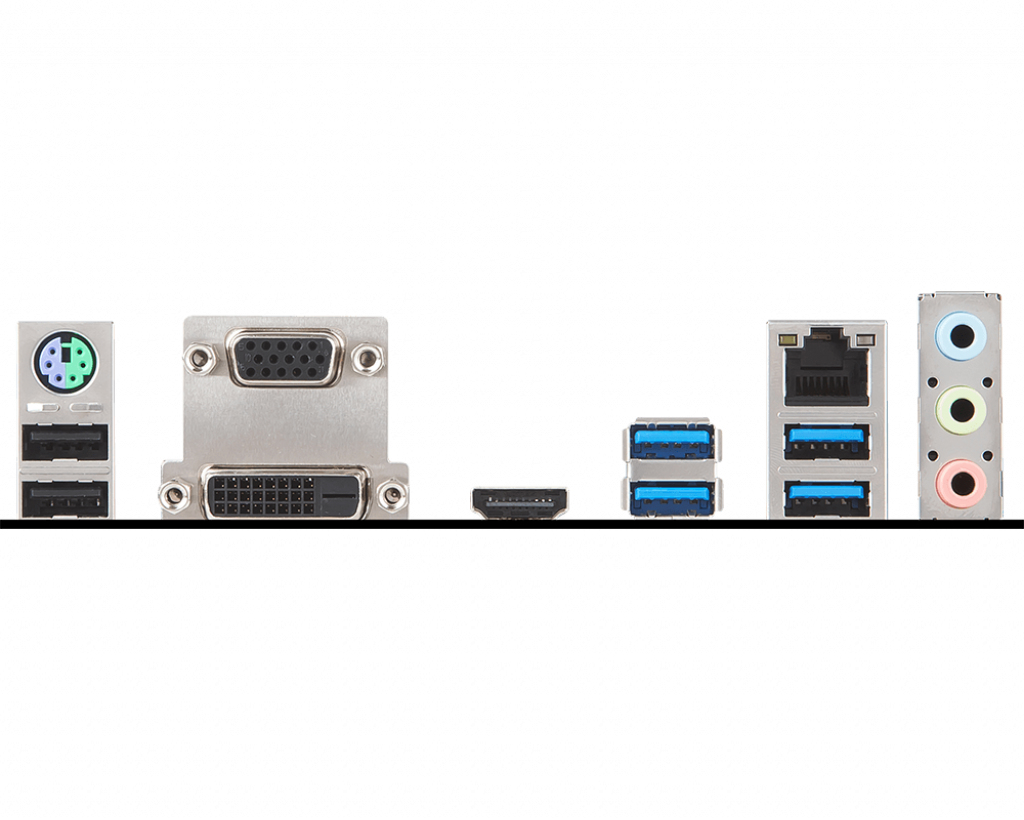

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B450
Audio chipRealtek ALC887
Audio output channels7.1 channels
Number of mounting holes9
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth206 mm
