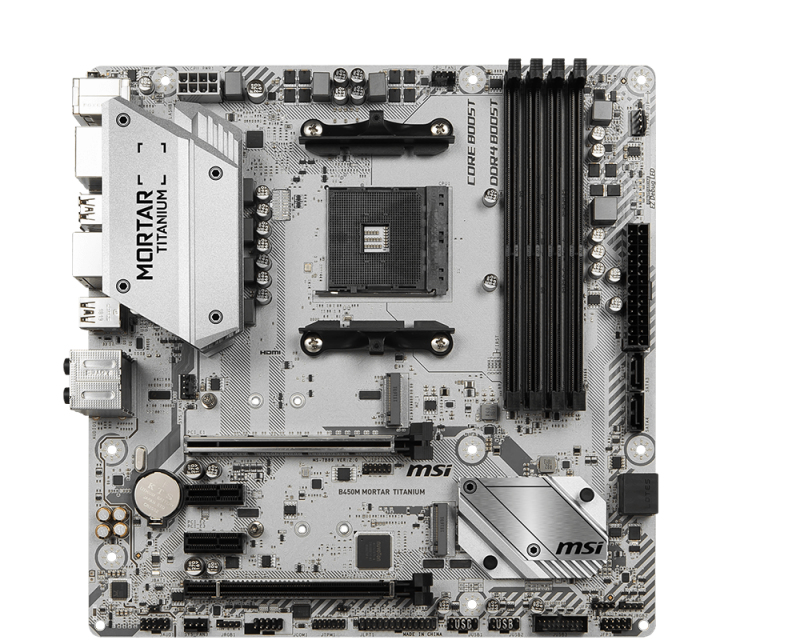

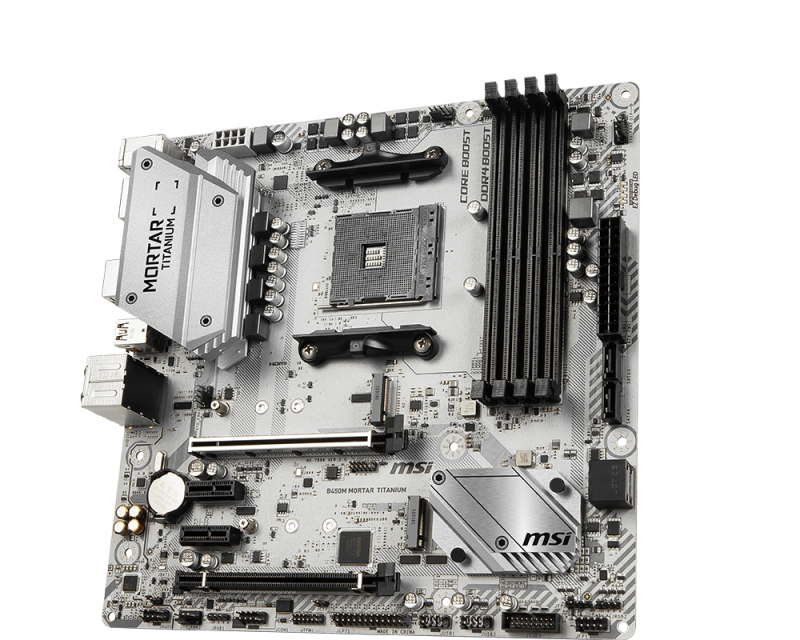

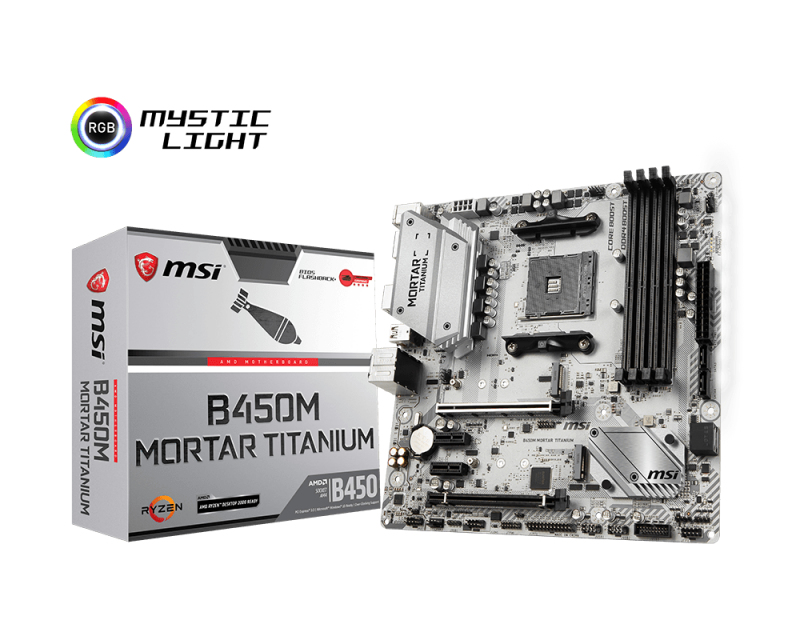

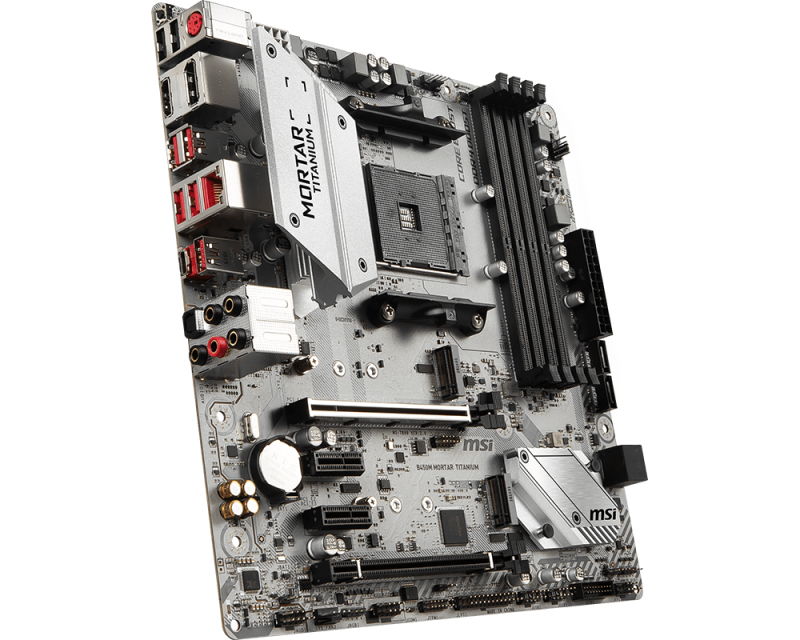

MSI B450M MORTAR TITANIUM

MSI B450M MORTAR TITANIUM

Model B450M MORTAR TITANIUMPart no. 7B89-002REAN 824142168677

71 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Maximum graphics card memory2048 MB
  • USB 2.0 connectors6
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Maximum graphics card memory
2048 MB
USB 2.0 connectors
6
USB 2.0 ports quantity
2
Brand
MSI
Category
Motherboard
Model
B450M MORTAR TITANIUM
Part numbers
7B89-002R, 911-7B89-005
EAN / UPC
824142168677, 4719072591434
Also known as
MSI B450M MORTAR TITANIUM AMD B450 Socket AM4 micro ATX

Specifications

71 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1866,2133,2400,2667,2800,2933,3000,3066,3200,3466 MHz

Storage controllers

Supported storage drive typesHDD & SSD
RAID levels0, 1, 10

Graphics

Maximum graphics card memory2048 MB
Parallel processing technology support2-Way CrossFireX
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors6
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors1
Audio connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
RGB LED pin headerYes

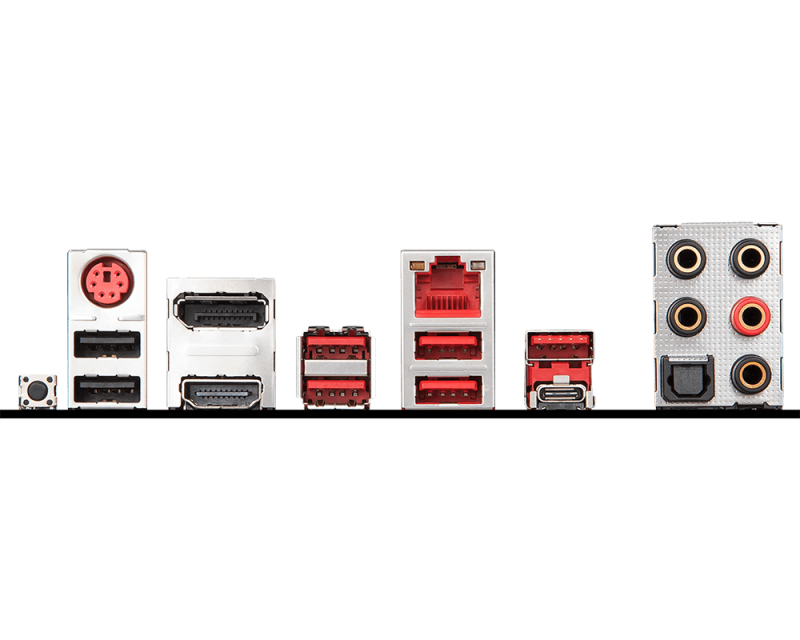

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B450
Audio chipRealtek ALC892
Audio output channels7.1 channels
Number of mounting holes8
Windows operating systems supportedWindows 10, Windows 10 Pro x64, Windows 7, Windows 7 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots2

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes

Other features

Analog audio output3
Quick installation guideYes
Serial port via internal headerYes
