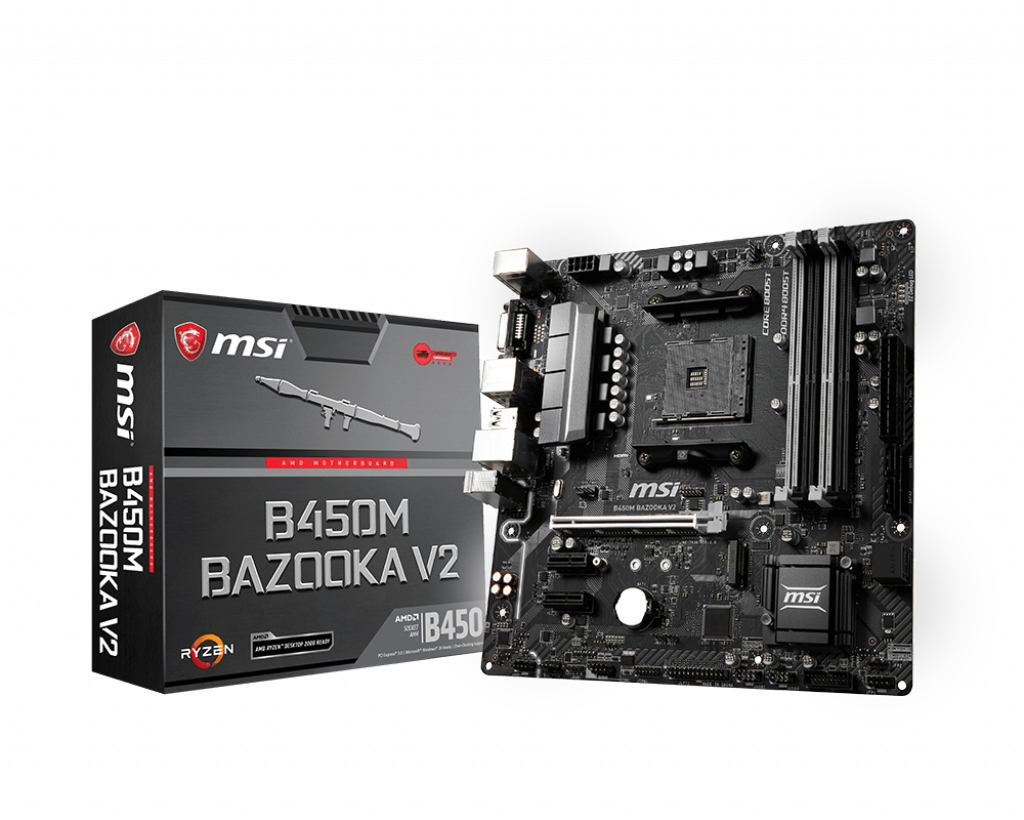

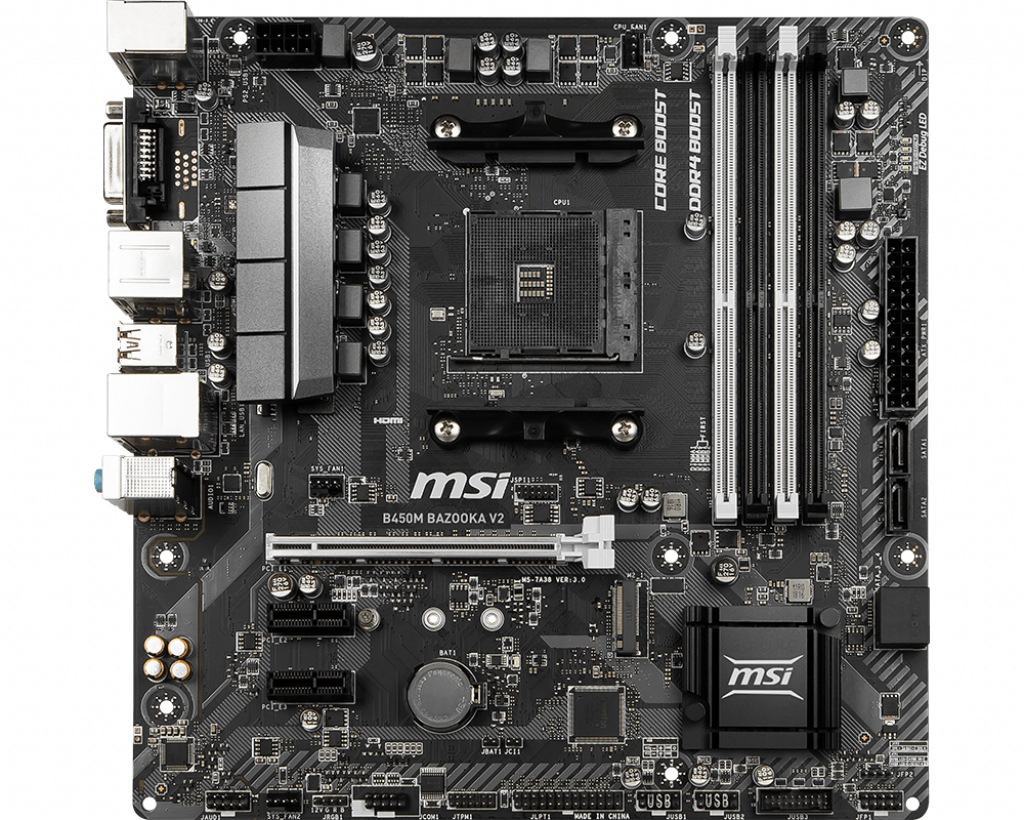

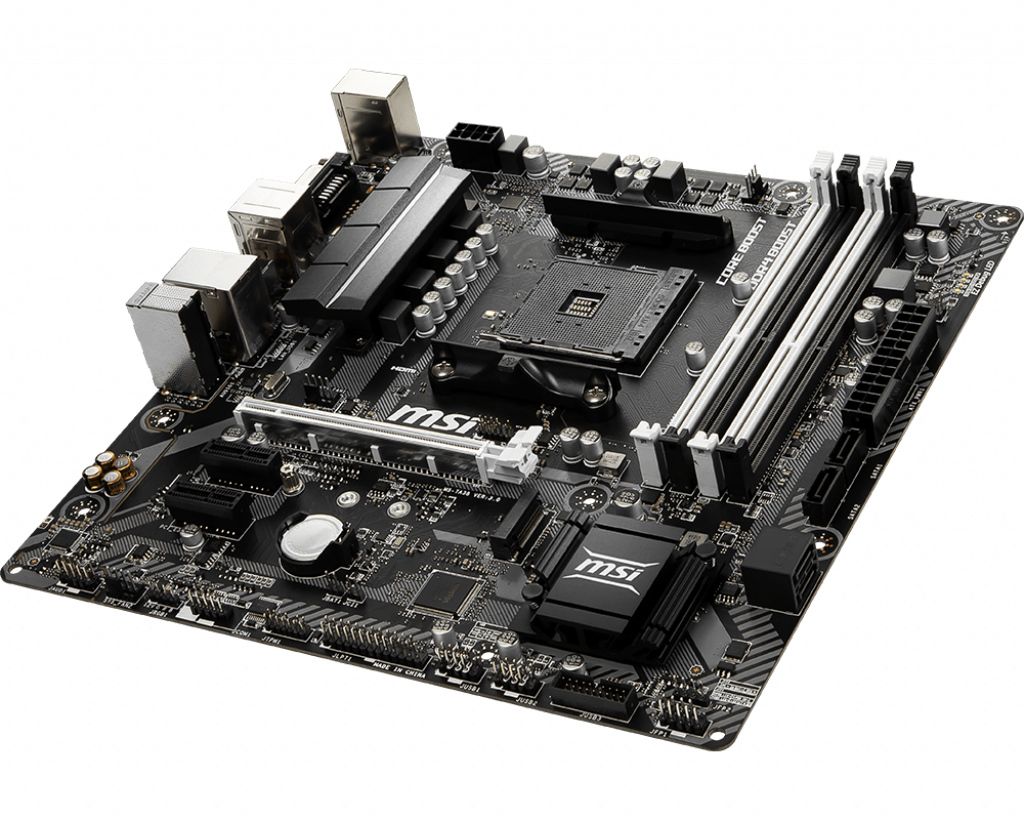

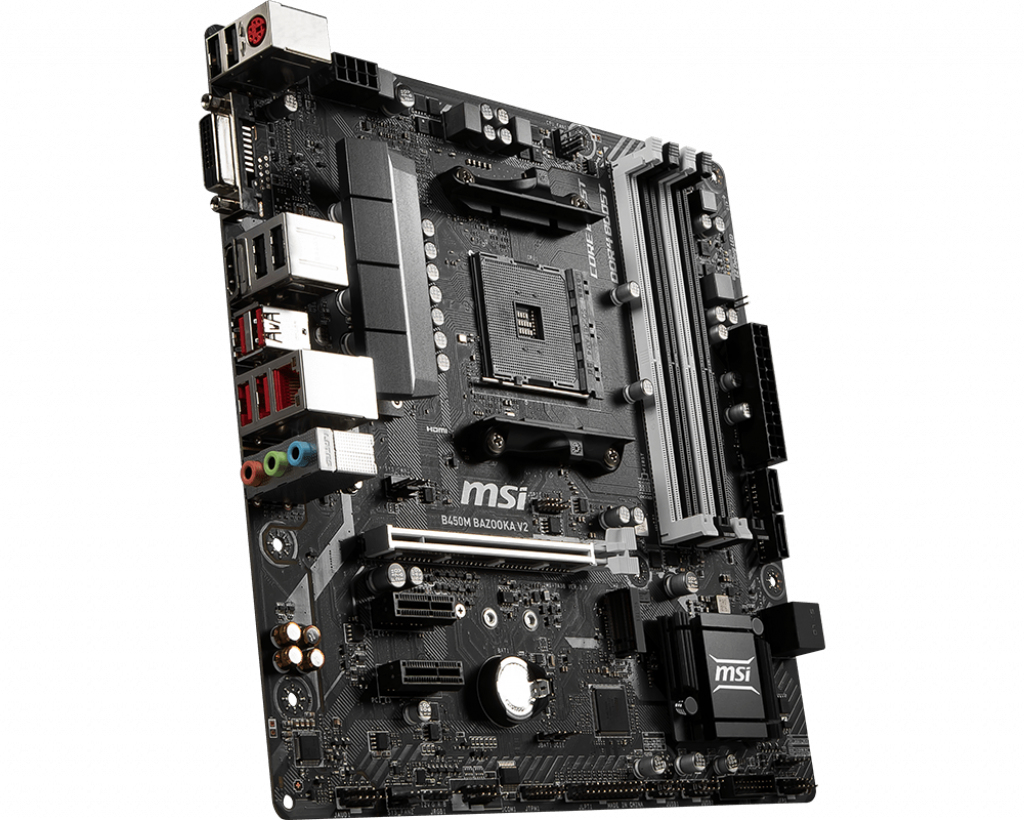

MSI B450M Bazooka V2

MSI B450M Bazooka V2

Model B450M Bazooka V2Part no. 911-7A38-026EAN 4719072606602

71 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Graphics card familyAMD, Intel, NVIDIA
  • USB 2.0 connectors4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Graphics card family
AMD, Intel, NVIDIA
USB 2.0 connectors
4
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
B450M Bazooka V2
Part numbers
911-7A38-026, 7A38-026R
EAN / UPC
4719072606602
Also known as
MSI B450M Bazooka V2 AMD B450 Socket AM4 ATX

Specifications

71 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Memory

Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1866,2133,2400,2667,2800,2933,3000,3066,3200,3466 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive typesHDD & SSD
Number of HDDs supported4
RAID levels0, 1, 10

Graphics

Graphics card familyAMD, Intel, NVIDIA
Maximum resolution4096 x 2160 pixels
DirectX version12.0
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)2
EPS power connector (8-pin)Yes
Parallel connectorYes
Serial port headers1
TPM connectorYes
RGB LED pin headerNo

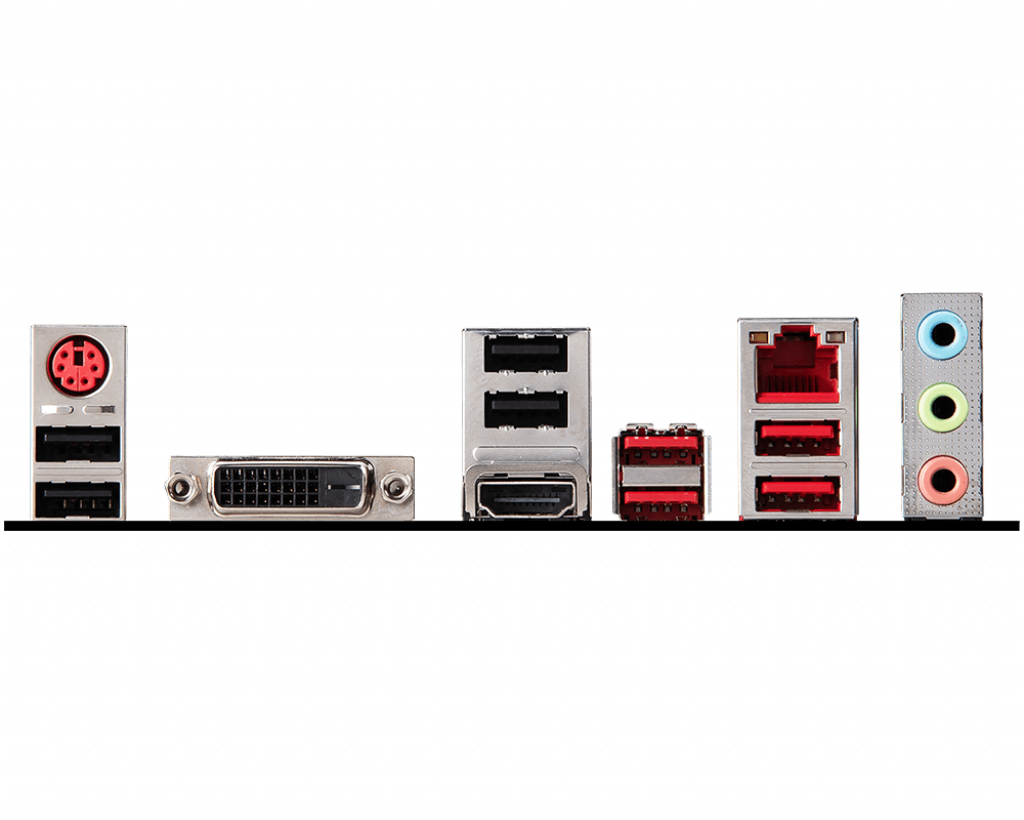

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs3
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek 8111H

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B450
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Number of mounting holes8
Windows operating systems supportedWindows 10, Windows 10 x64, Windows 7, Windows 7 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth244 mm

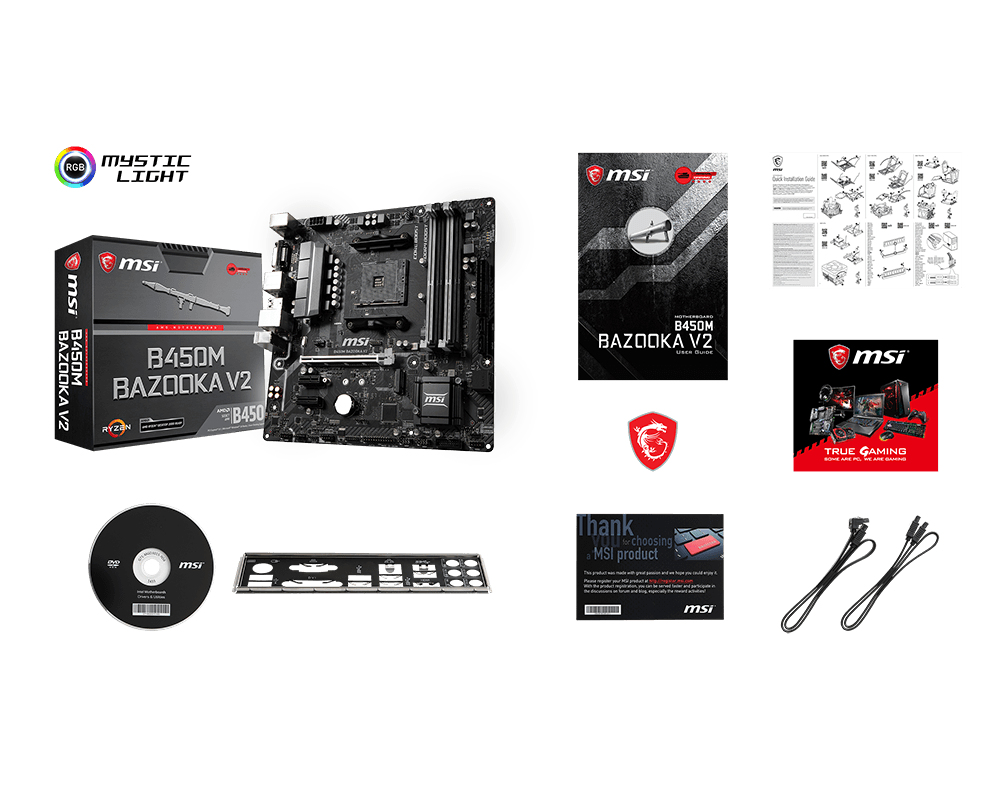

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes

Other features

Dual Power System (DPS) slotYes
Quick installation guideYes
Utilities includedYes
