MSI B450M BAZOOKA PLUS

MSI B450M BAZOOKA PLUS

Model B450M BAZOOKA PLUSPart no. 7B90-001REAN 4719072587086

71 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Maximum graphics card memory2048 MB
  • USB 2.0 connectors6
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Maximum graphics card memory
2048 MB
USB 2.0 connectors
6
USB 2.0 ports quantity
2
Brand
MSI
Category
Motherboard
Model
B450M BAZOOKA PLUS
Part number
7B90-001R
EAN / UPC
4719072587086
Also known as
MSI B450M BAZOOKA PLUS AMD B450 Socket AM4 micro ATX

Specifications

71 specifications in 14 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1866,2133,2200,2400,2666 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive typesHDD & SSD
RAID levels0, 1, 10

Graphics

Maximum graphics card memory2048 MB
Maximum resolution4096 x 2160 pixels
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors6
USB 3.2 Gen 1 (3.1 Gen 1) connectors6
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors1
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
RGB LED pin headerYes

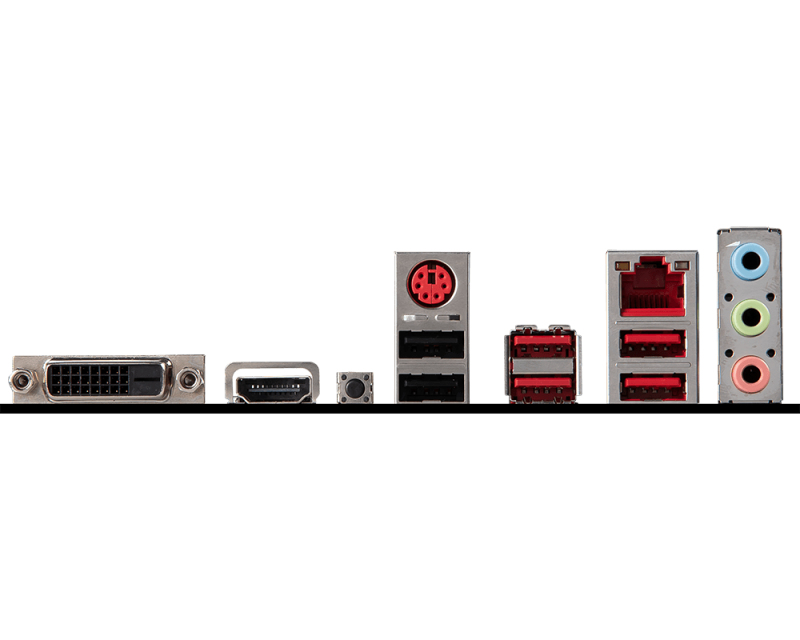

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B450
Audio chipRealtek ALC892
Audio output channels7.1 channels
Number of mounting holes8
Windows operating systems supportedWindows 10, Windows 10 Pro x64, Windows 7, Windows 7 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

Clear CMOS jumperYes

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes

Other features

Analog audio output1
Back-to-BIOS buttonYes
Quick installation guideYes
Serial port via internal headerYes
