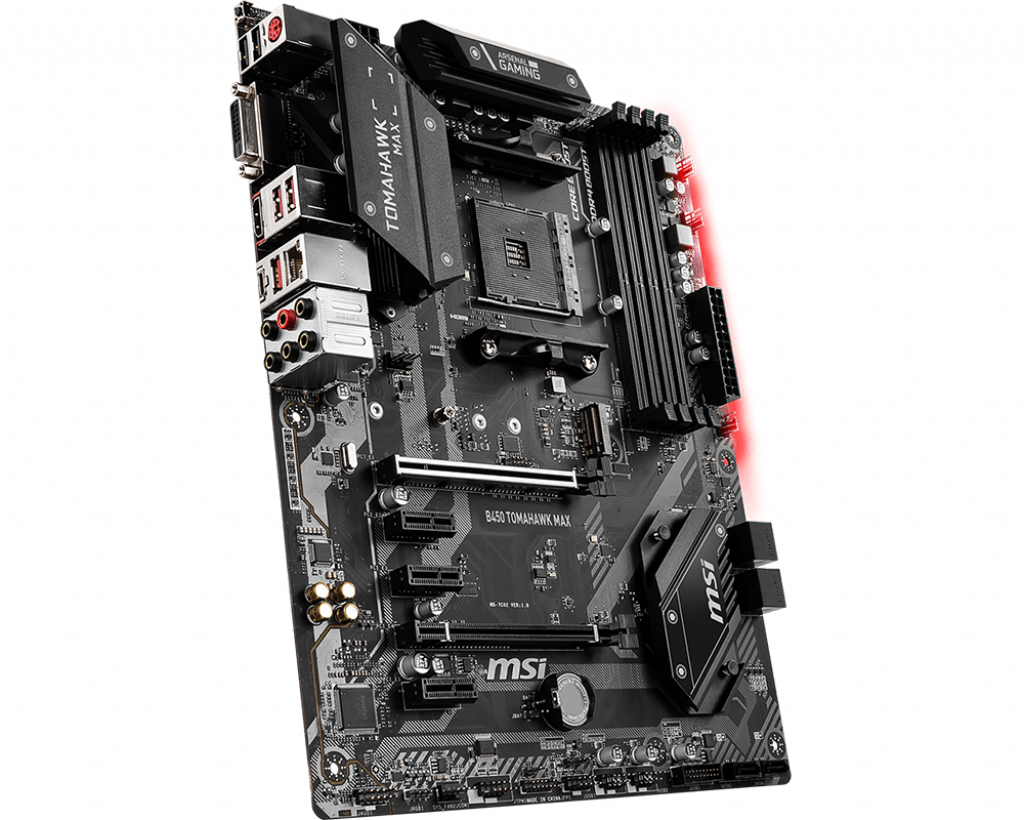

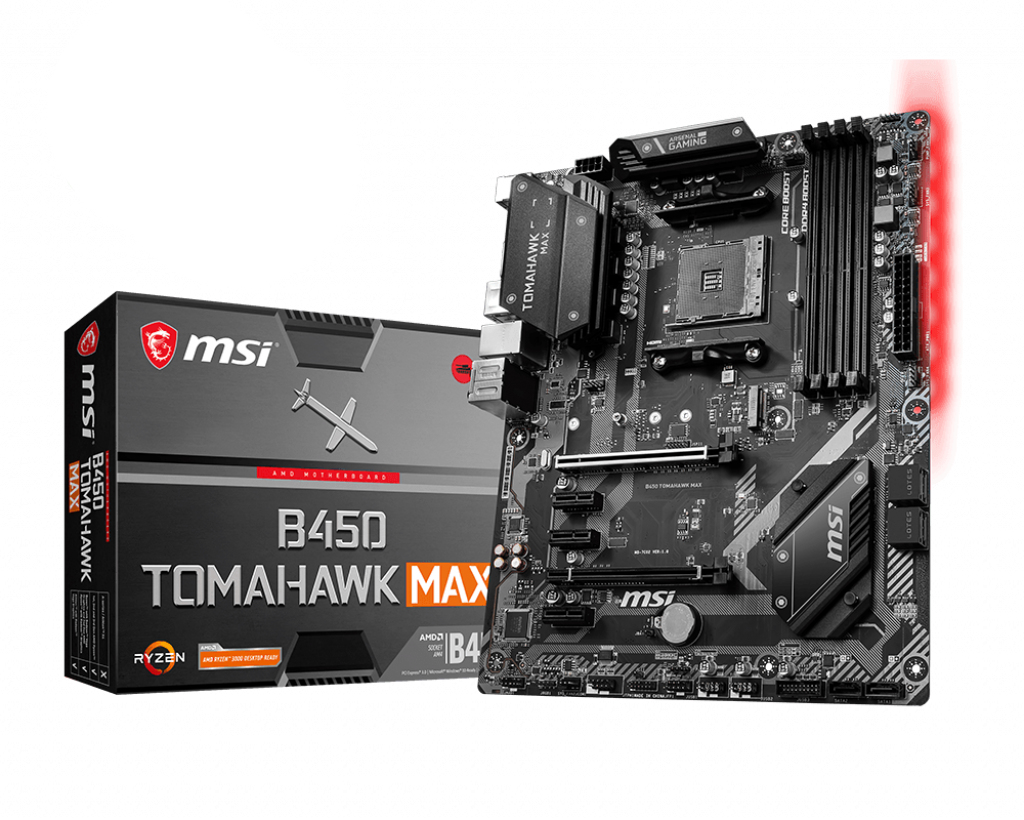

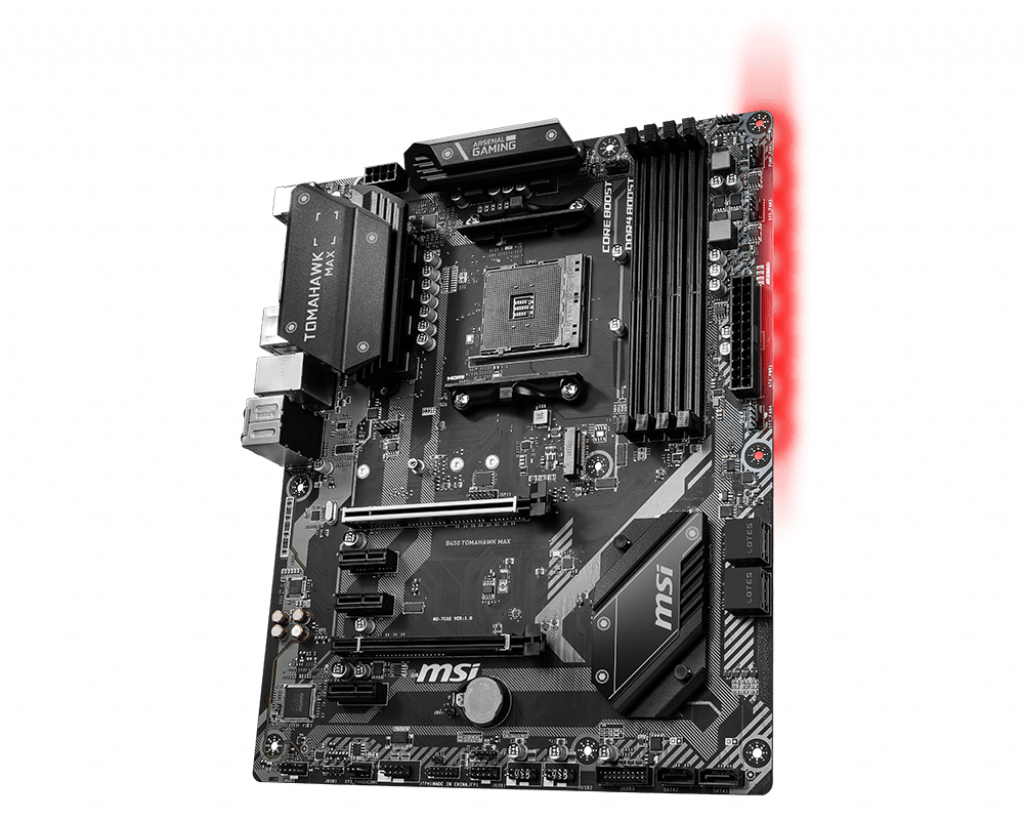

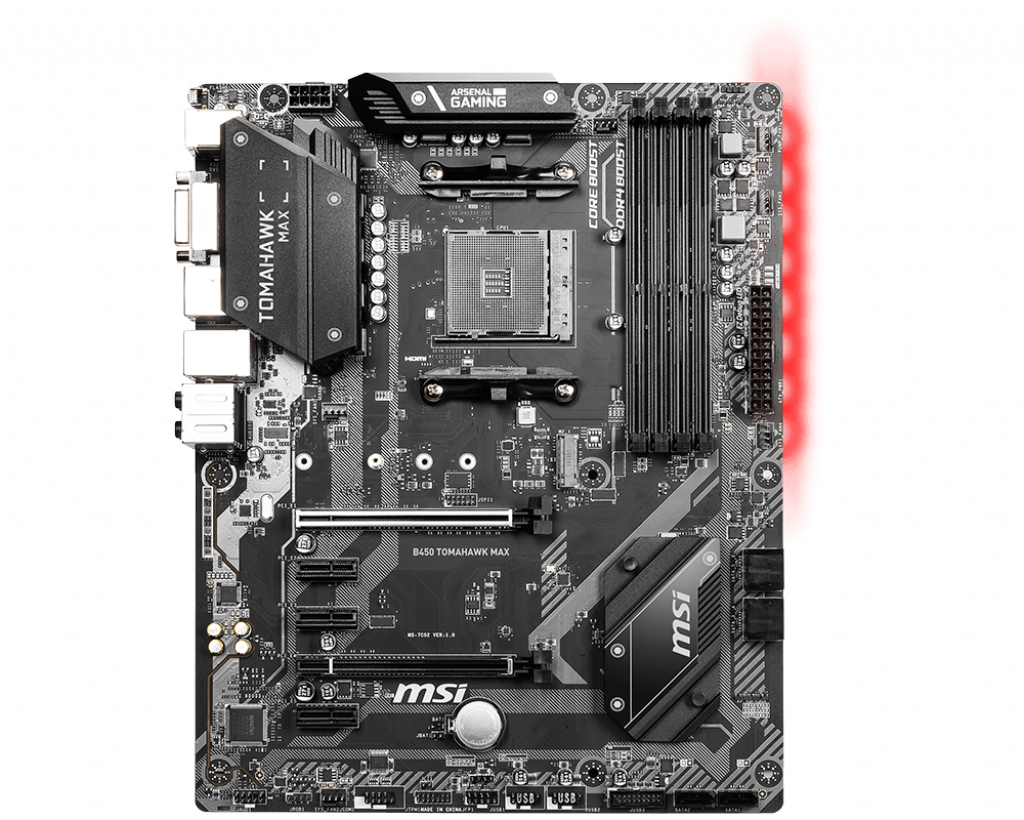

B450 TOMAHAWK MAX
Model B450 TOMAHAWK MAXEAN 824142191699
72 specifications
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory2048 MB
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 2048 MB
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- MSI
- Category
- Motherboard
- Model
- B450 TOMAHAWK MAX
- Part numbers
- B450 TOMAHAWK MAX, B450-TOMHWK-MAX, 601-7C02-100
- EAN / UPC
- 824142191699, 4719072659226
- Also known as
- MSI B450 TOMAHAWK MAX motherboard AMD B450 Socket AM4 ATX
Specifications
72 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2667,2800,2933,3000,3066,3200,3466,4100,4133 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 2048 MB |
| Parallel processing technology support | 2-Way CrossFireX |
| Maximum resolution | 4096 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |

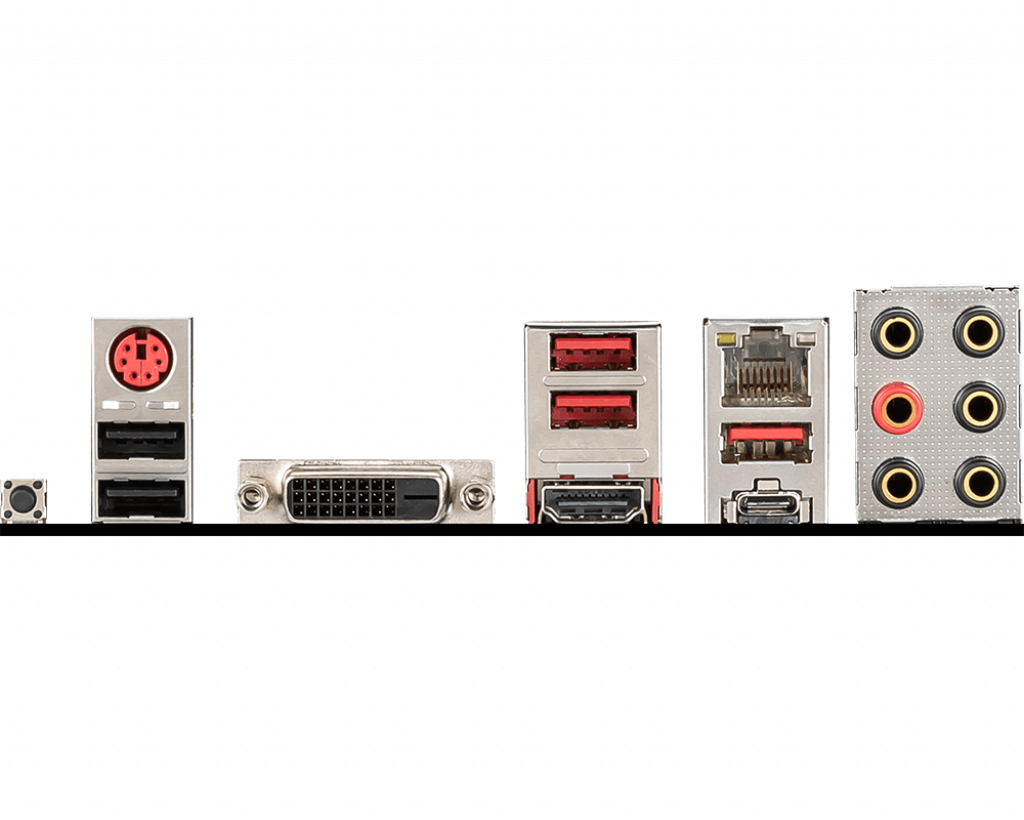

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek 8111H |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B450 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature |
| Number of mounting holes | 9 |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 3 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.1 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 2.8 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
