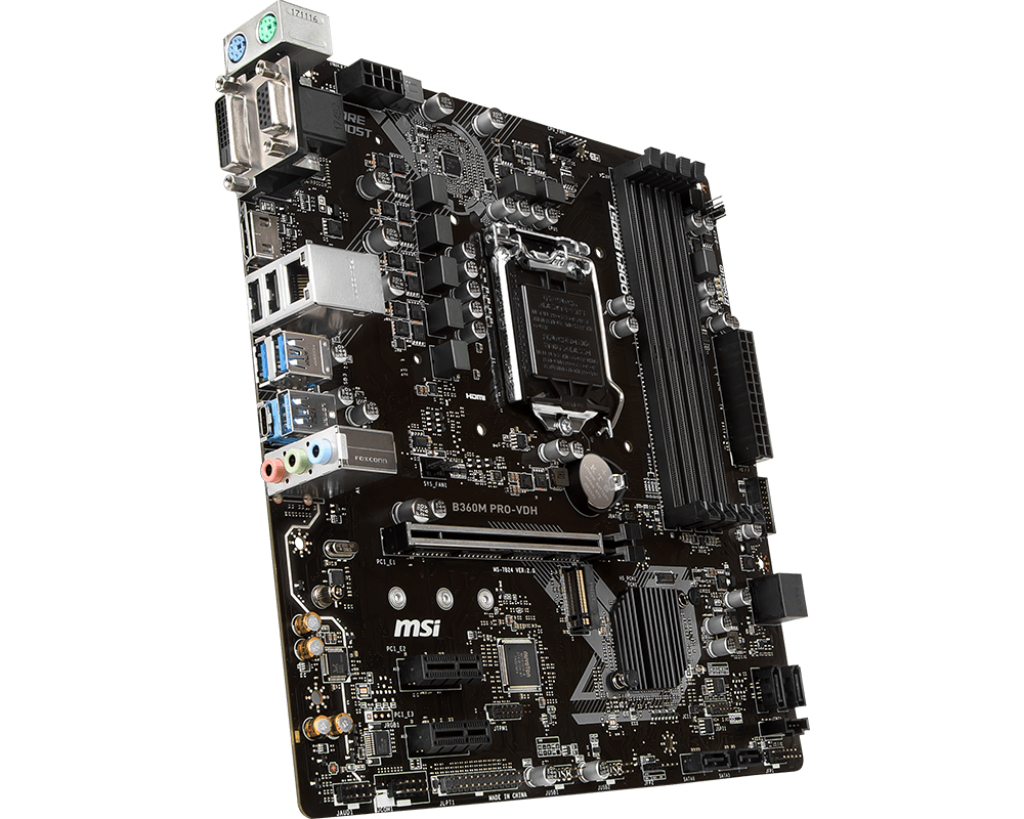

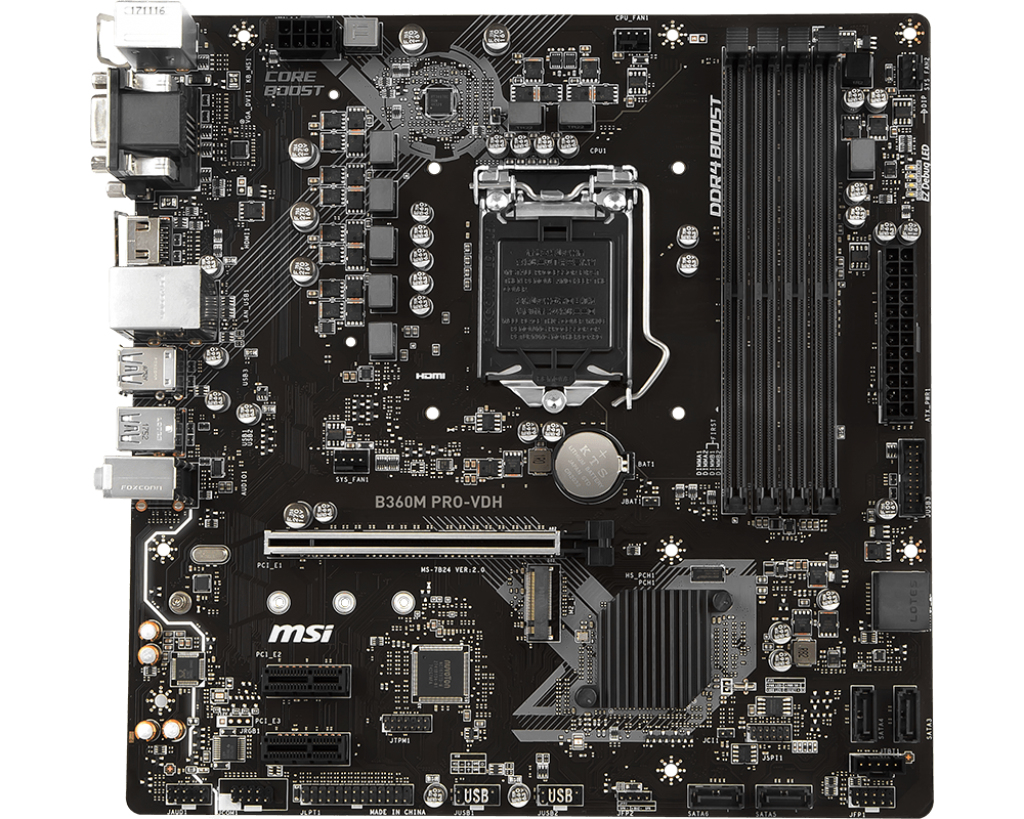

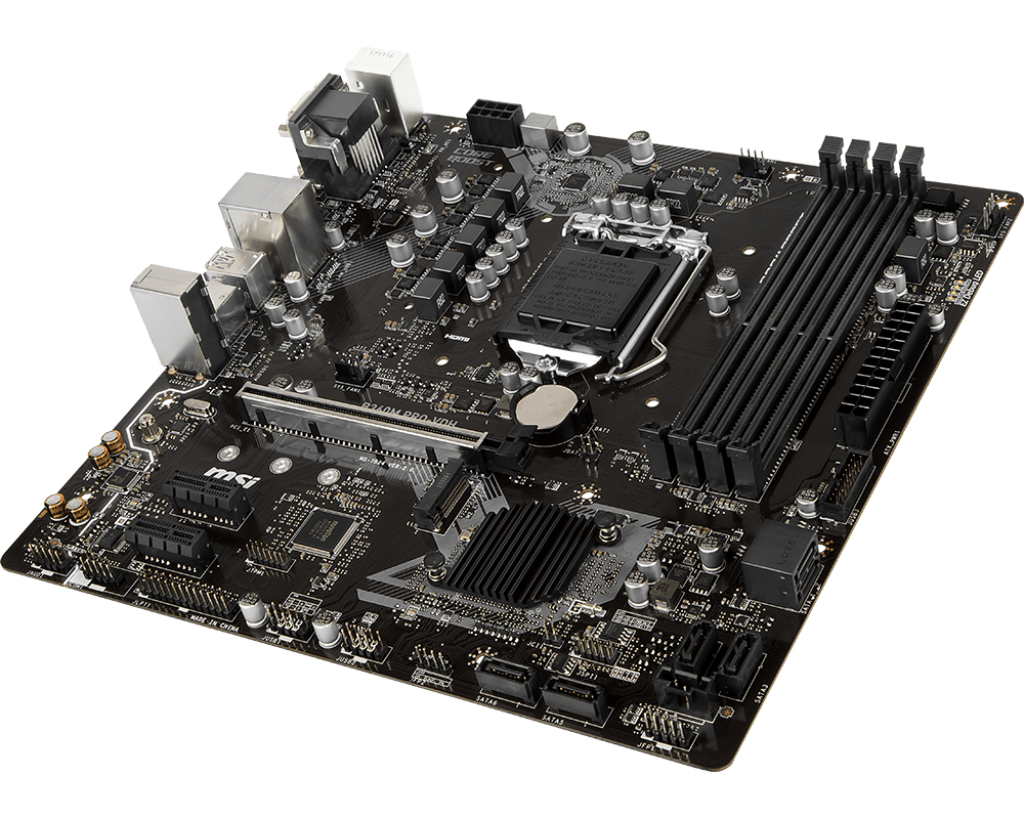

MSI B360M PRO-VDH

MSI B360M PRO-VDH

Model B360M PRO-VDHPart no. 7B24-003REAN 824142159491

70 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • On-board graphics cardYes
  • USB 2.0 connectors2
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
On-board graphics card
Yes
USB 2.0 connectors
2
Component for
PC
Brand
MSI
Category
Motherboard
Model
B360M PRO-VDH
Part number
7B24-003R
EAN / UPC
824142159491, 4719072562885, 5706998610171
Also known as
MSI B360M PRO-VDH Intel® B360 LGA 1151 (Socket H4) micro ATX

Specifications

70 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Maximum number of SMP processors1
Intel Core i3/i5/i7/i9 seriesi3-8xxx, i5-8xxx, i7-8xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesM.2, SATA III

Graphics

On-board graphics cardYes
Graphics card familyIntel
Maximum resolution4096 x 2160 pixels
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Parallel connectorYes
TPM connectorYes
Thunderbolt headers1

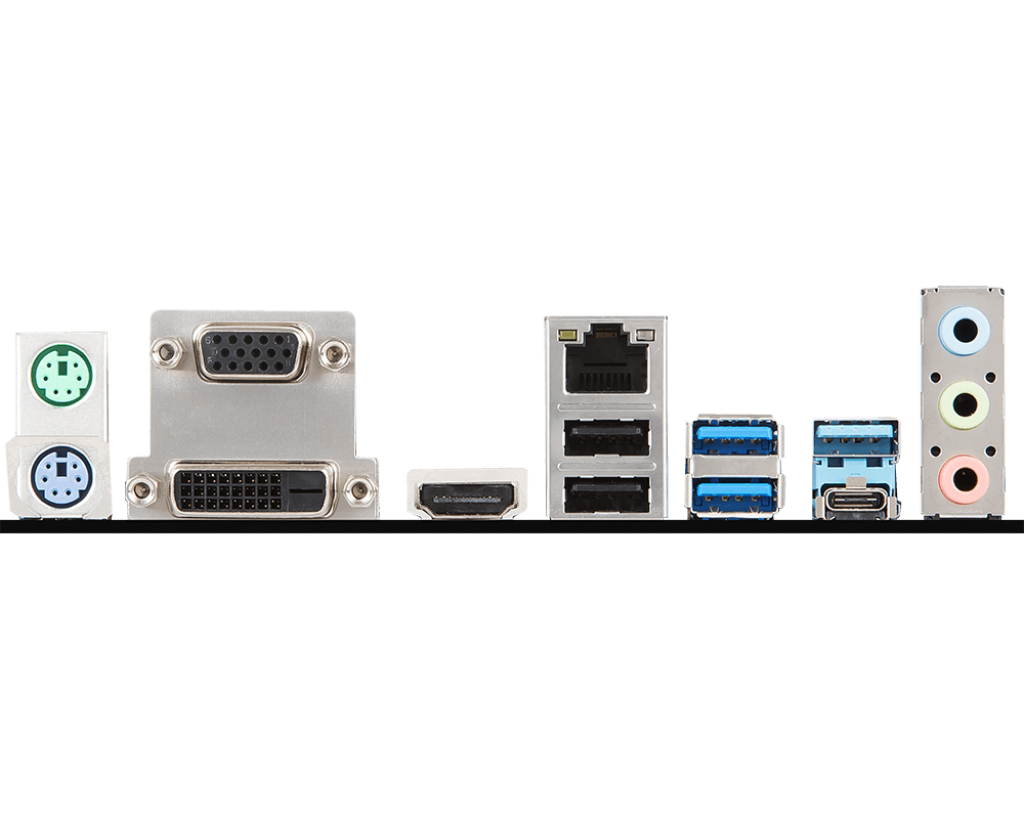

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B360
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
Plug and PlayYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes

Other features

Serial port via internal headerYes
