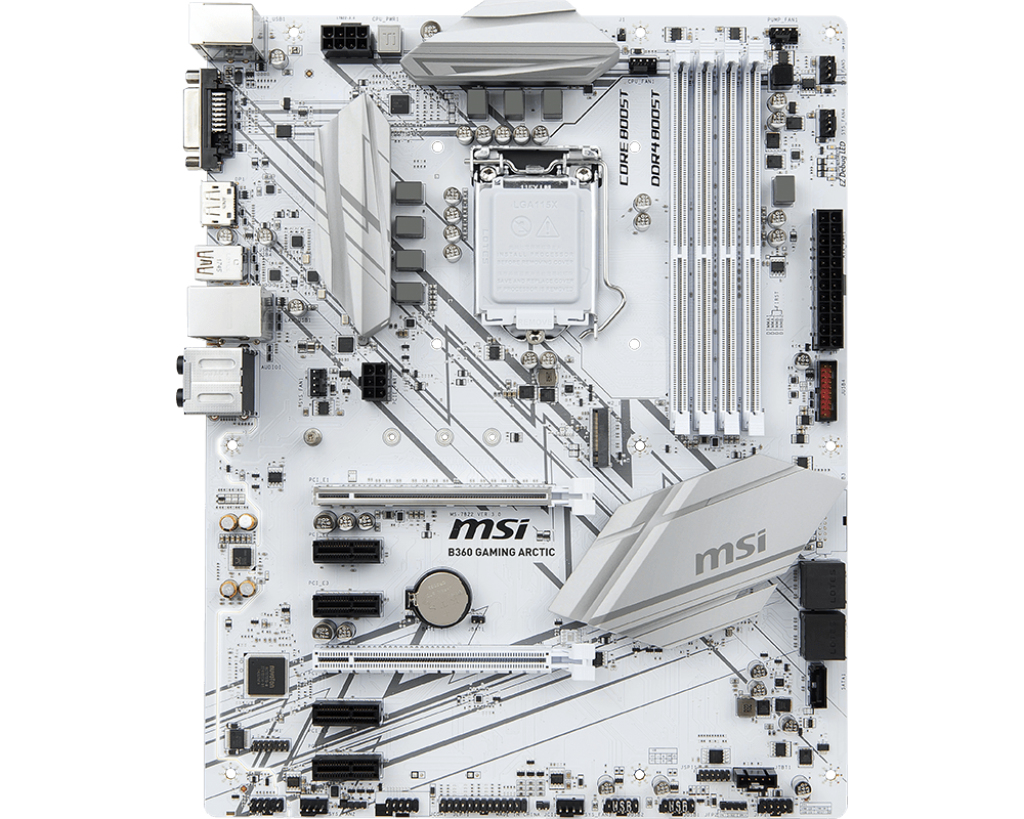

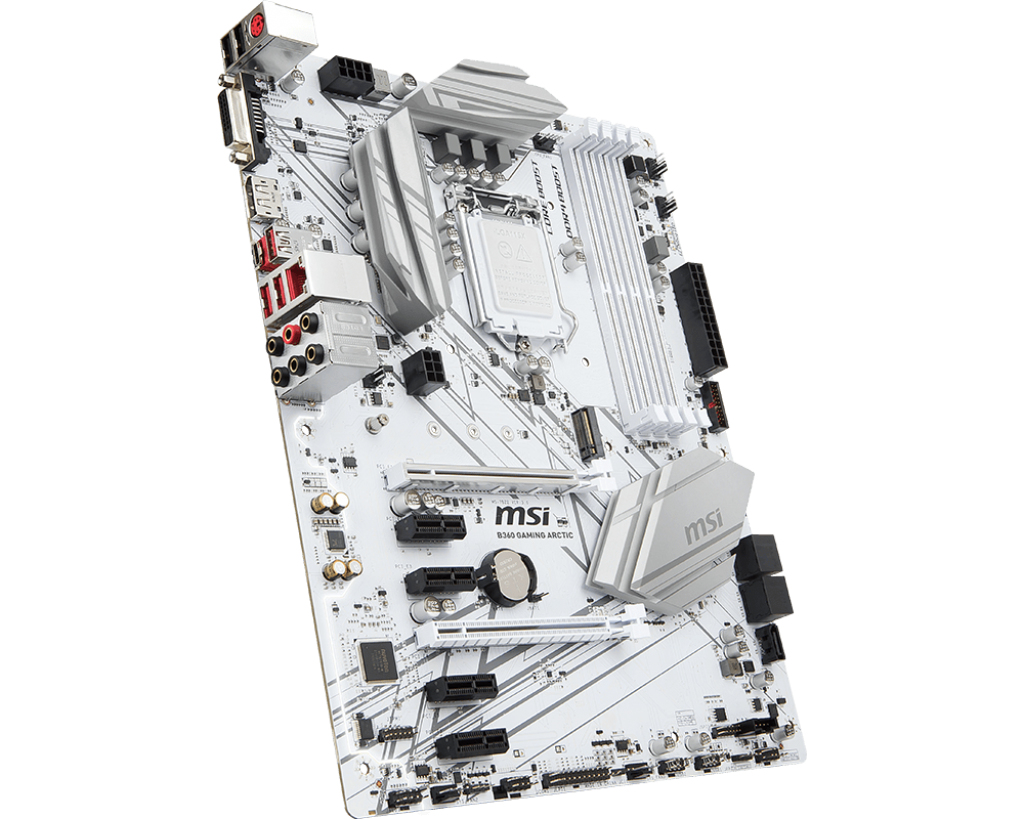

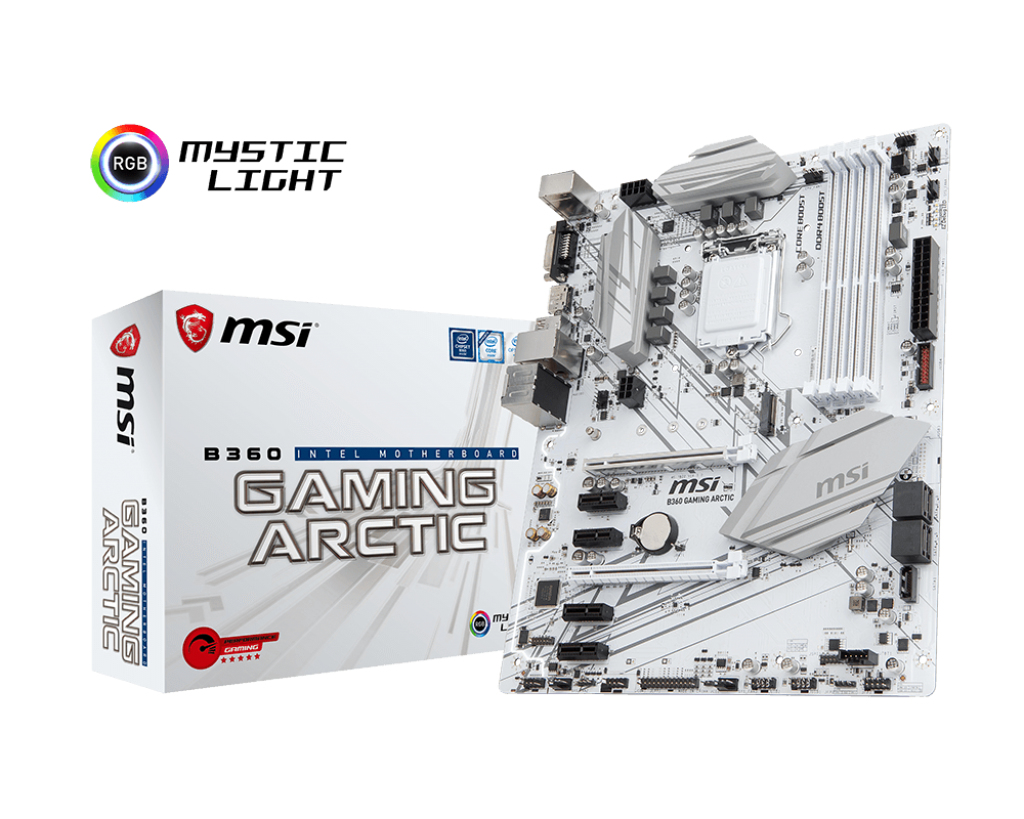

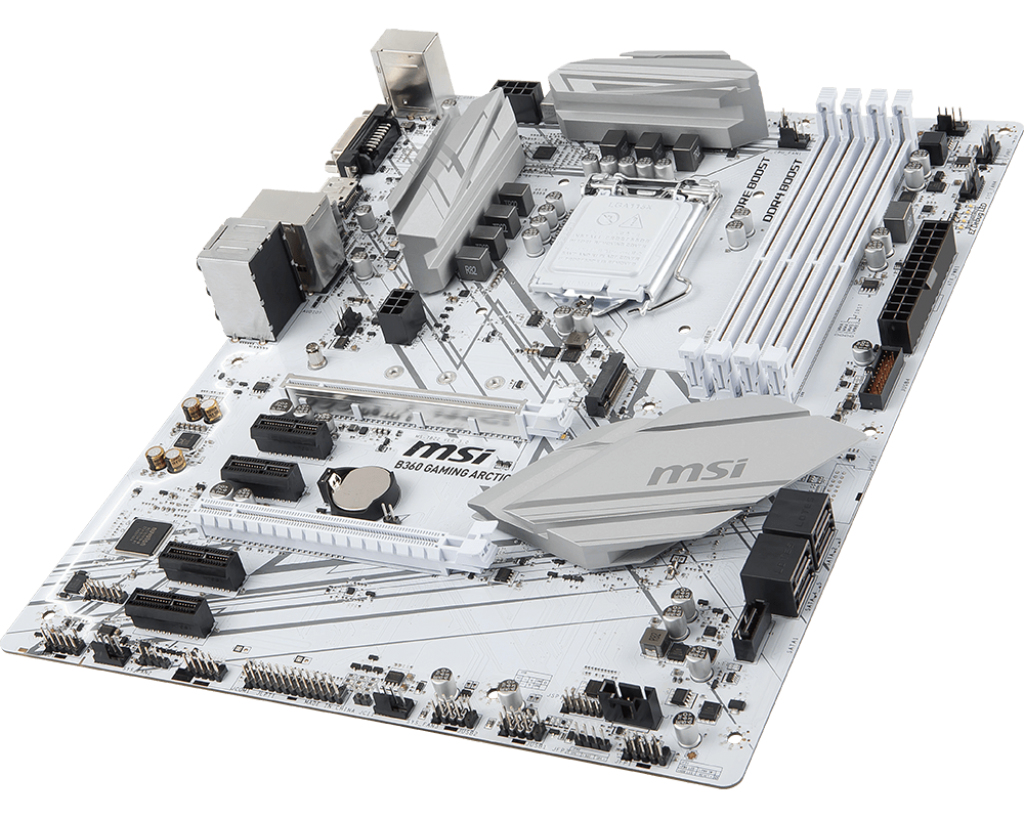

MSI B360 GAMING ARCTIC

MSI B360 GAMING ARCTIC

Model B360 GAMING ARCTICPart no. 7B22-011REAN 824142159606

60 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • USB 2.0 connectors2
  • Component forPC
  • PCI Express x1 (Gen 3.x) slots4
  • BIOS typeUEFI AMI
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
USB 2.0 connectors
2
Component for
PC
PCI Express x1 (Gen 3.x) slots
4
BIOS type
UEFI AMI
Brand
MSI
Category
Motherboard
Model
B360 GAMING ARCTIC
Part numbers
7B22-011R, 911-7B22-017
EAN / UPC
824142159606, 4719072563455
Also known as
MSI B360 GAMING ARCTIC Intel® B360 LGA 1151 (Socket H4) ATX

Specifications

60 specifications in 9 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory64 GB
Supported memory module capacities16GB

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors5
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors5
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes
Thunderbolt headers1

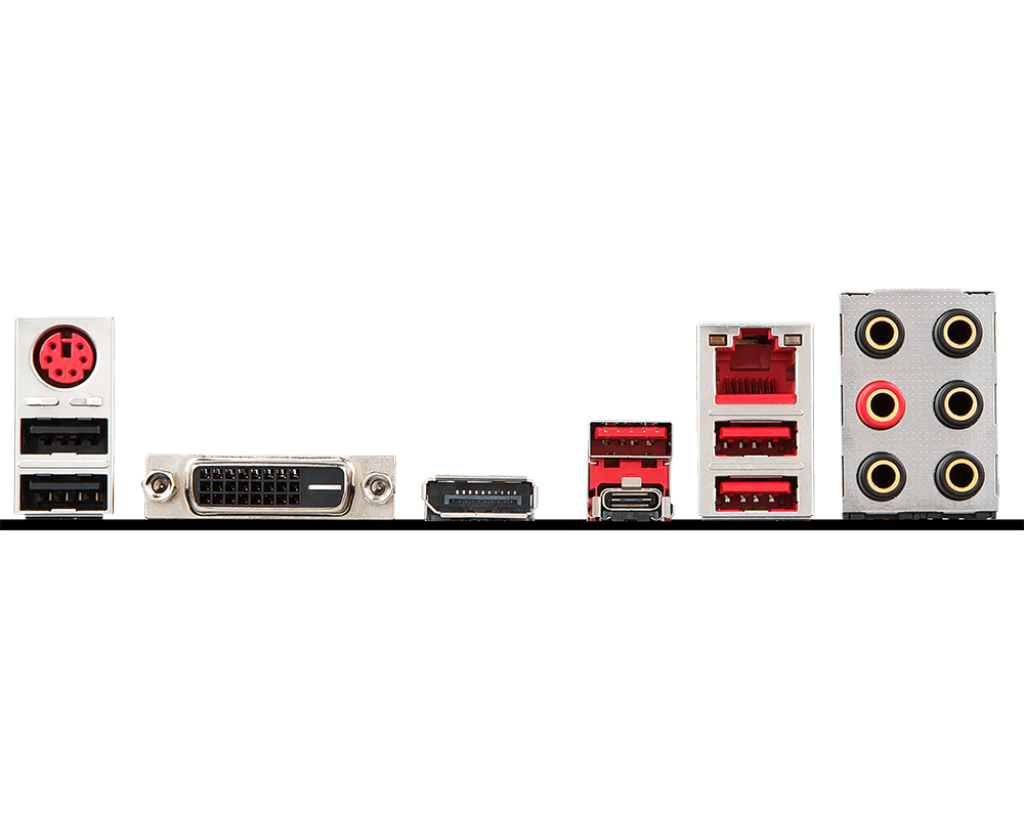

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity1
DisplayPorts quantity1
Headphone outputs1
Microphone inYes

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B360
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 3.x) slots4
PCI Express x16 (Gen 3.x) slots2
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes

Weight & dimensions

Width304 mm
Depth243 mm

Other features

PCI Express power connectors (6-pin)1
Parallel port via internal headerYes
Serial port via internal headerYes
