MSI B350M MORTAR

MSI B350M MORTAR

Model B350M MORTAREAN 824142143711

69 specifications
  • Memory0 GB
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors2
See all specifications

Overview

Memory
0 GB
Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
2
Brand
MSI
Category
Motherboard
Model
B350M MORTAR
Part number
B350M MORTAR
EAN / UPC
824142143711, 4719072512286
Also known as
MSI B350M MORTAR motherboard AMD B350 Socket AM4 micro ATX

Specifications

69 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series
Maximum number of SMP processors1
Supported processor socketsSocket AM4

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Internal memory0 GB
Supported memory clock speeds1866,2133,2400,2933,3200 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 10

Graphics

Maximum resolution4096 x 2160 pixels
DirectX version12.0
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
12V power connectorYes
Parallel connectorYes
TPM connectorYes

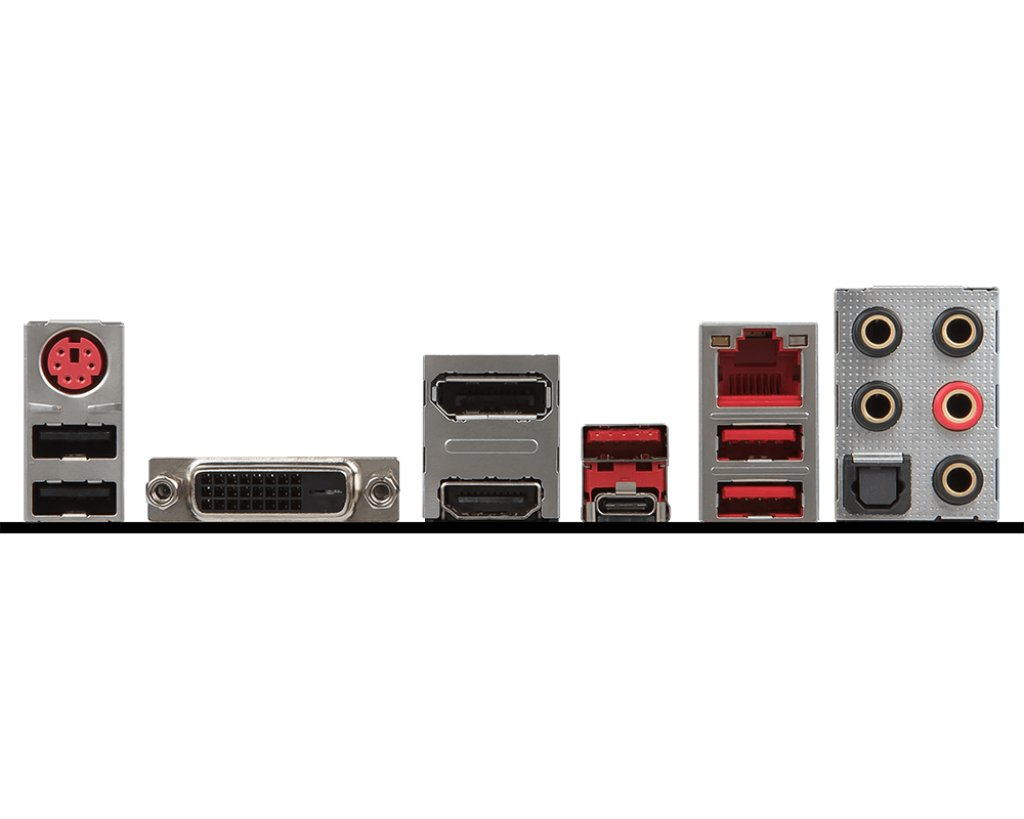

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
USB connector typeUSB Type-A, USB Type-C

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B350
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Weight & dimensions

Width243 mm
Depth243 mm

Packaging content

ManualYes

Other features

Quick installation guideYes
