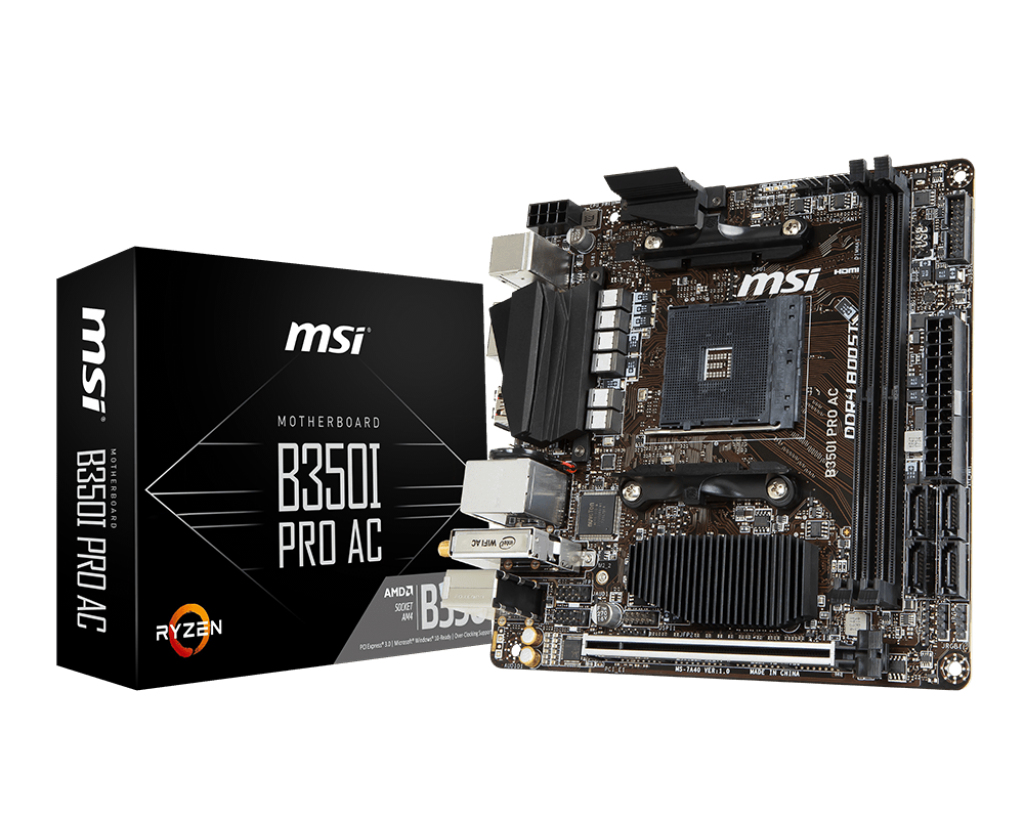

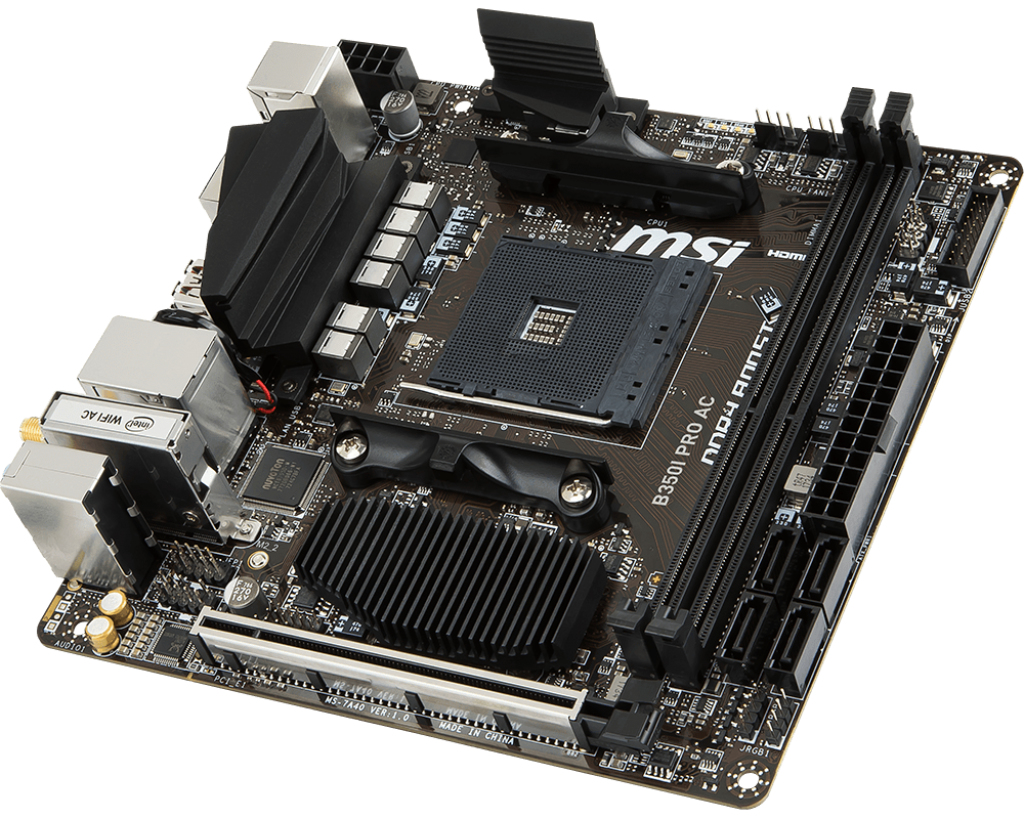

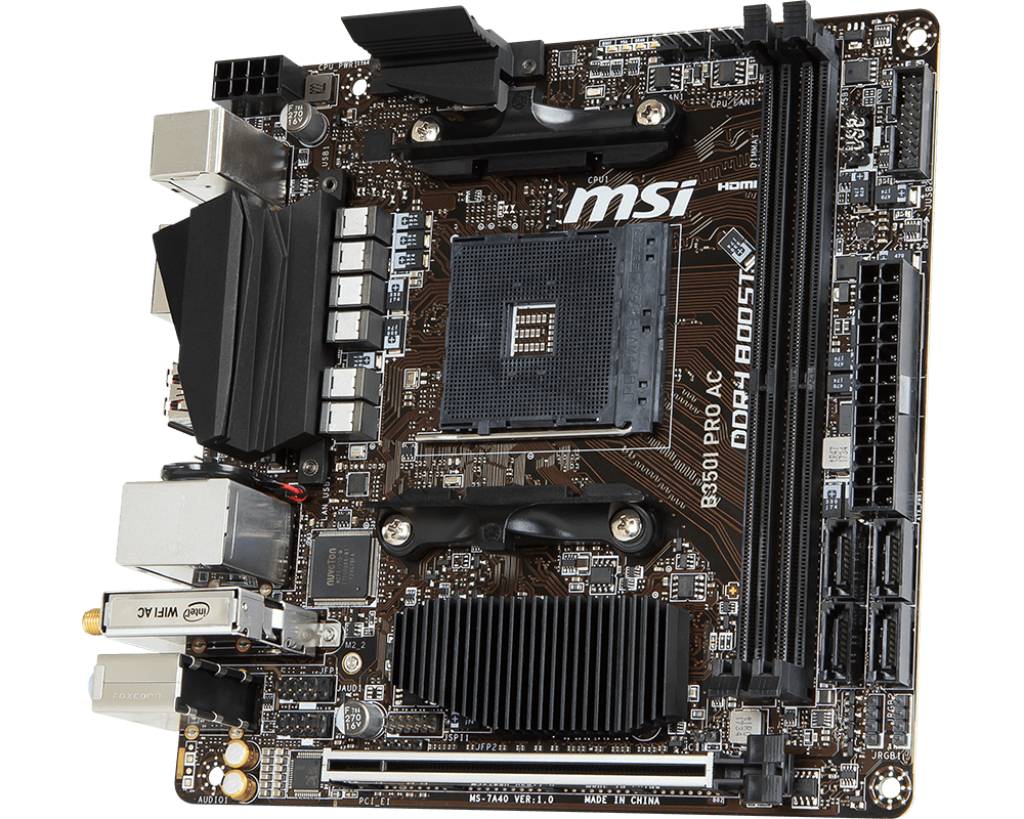

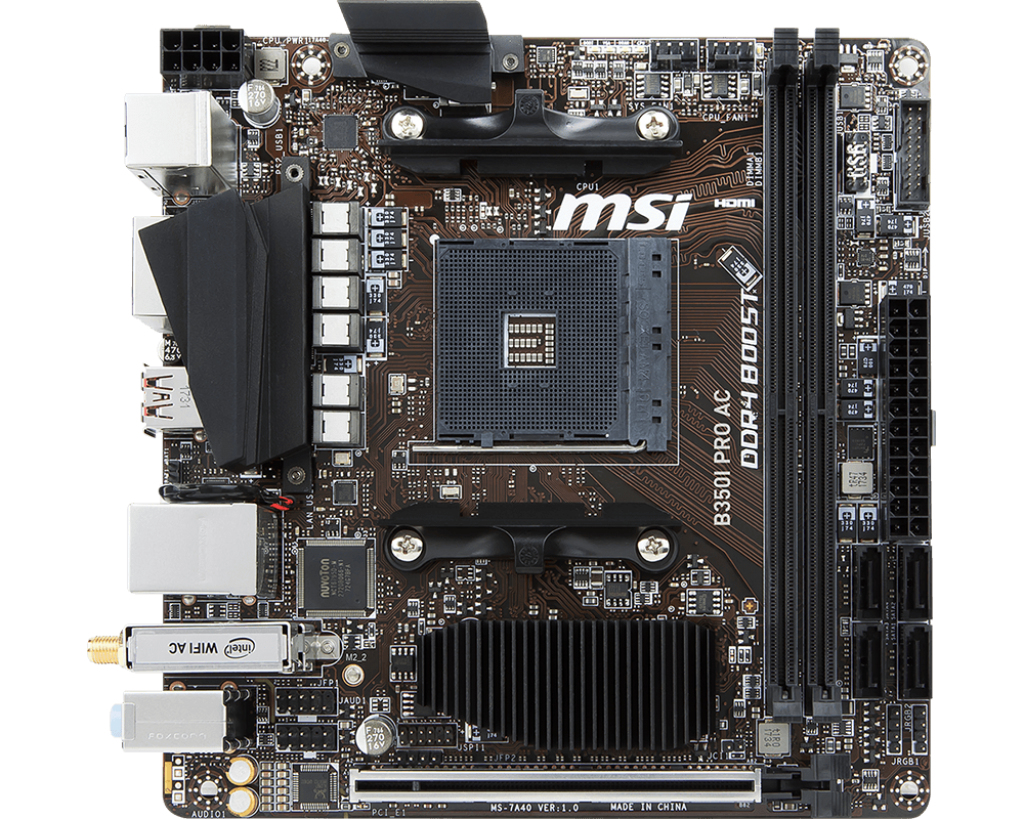

MSI B350I PRO AC

MSI B350I PRO AC

Model B350I PRO ACPart no. 7A40-001REAN 4719072555030

55 specifications
  • Memory32 GB
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Memory
32 GB
Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
MSI
Category
Motherboard
Model
B350I PRO AC
Part number
7A40-001R
EAN / UPC
4719072555030
Also known as
MSI B350I PRO AC AMD B350 Socket AM4 mini ITX

Specifications

55 specifications in 10 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Internal memory32 GB
Supported memory clock speeds1866,2133,2400,2667,2933,3200 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 10

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes

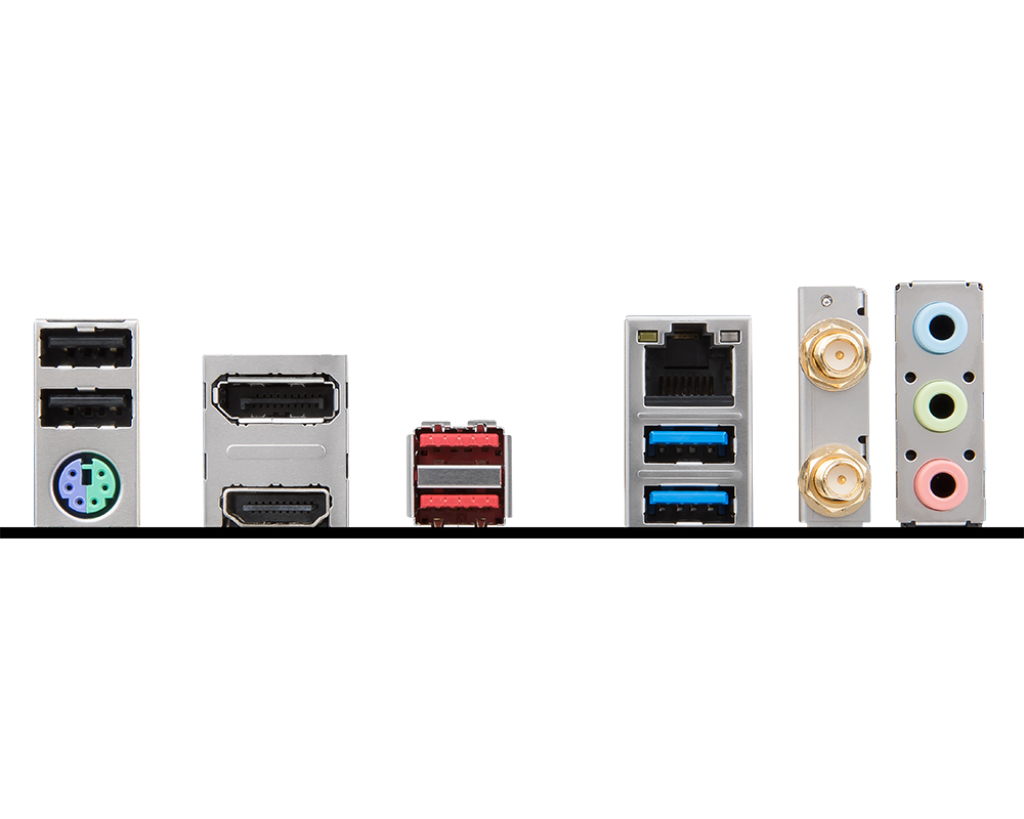

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
LAN controllerRealtek 8111H
Wi-FiYes
Wi-Fi standardsWi-Fi 5 (802.11ac)
BluetoothYes

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyAMD
Motherboard chipsetAMD B350
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes

Weight & dimensions

Width170 mm
Depth170 mm
