MSI B150M PRO-VH

MSI B150M PRO-VH

Model B150M PRO-VHPart no. 7996-001REAN 824142121559

53 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
MSI
Category
Motherboard
Model
B150M PRO-VH
Part number
7996-001R
EAN / UPC
824142121559, 4719072421724
Also known as
MSI B150M PRO-VH Intel® B150 LGA 1151 (Socket H4) micro ATX

Specifications

53 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC
Supported memory clock speeds2133 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors0
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
TPM connectorYes

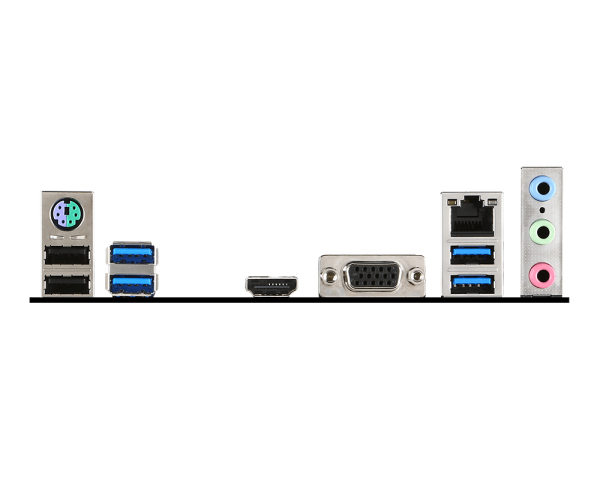

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B150
Audio output channels7.1 channels
Power source typeATX

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Processor special features

Intel Rapid Storage TechnologyYes
Intel Stable Image Platform Program (SIPP)No
Intel® High Definition Audio (Intel® HD Audio)Yes
Intel® Small Business Advantage (Intel® SBA)Yes
Intel® Smart Response TechnologyNo
Intel® Virtualization Technology (Intel® VT)VT-d

Weight & dimensions

Width235 mm
Depth180 mm

Other features

Intel® vPro™ Platform EligibilityNo
