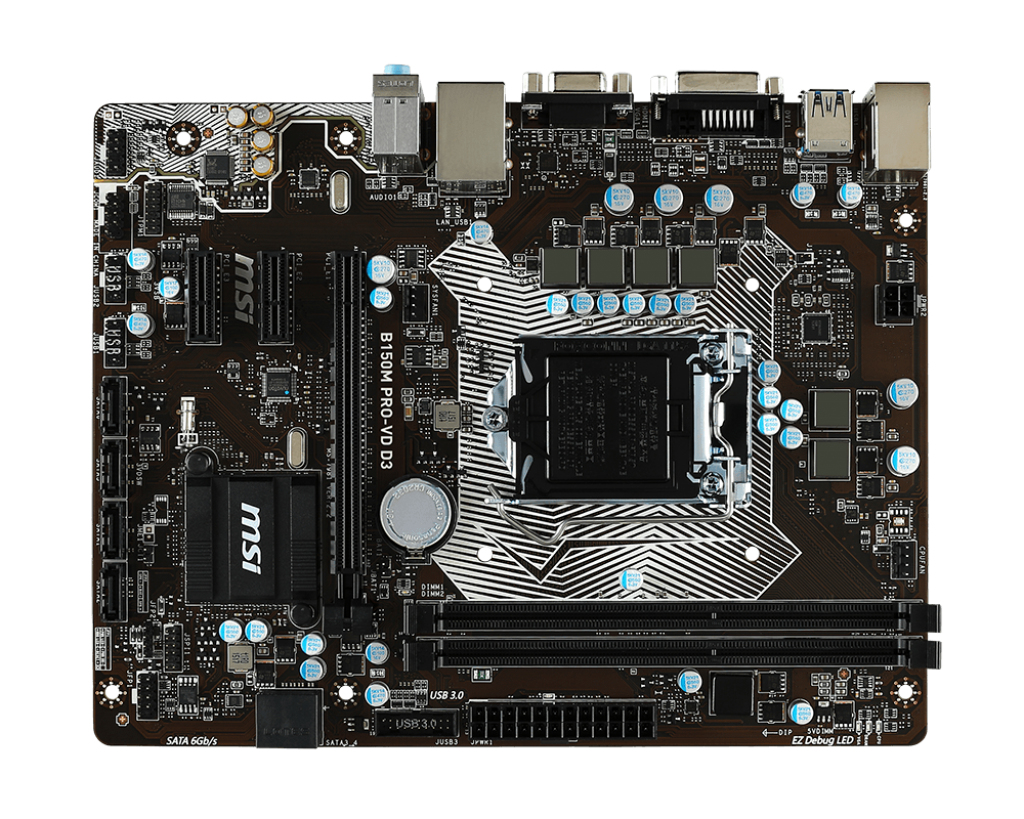

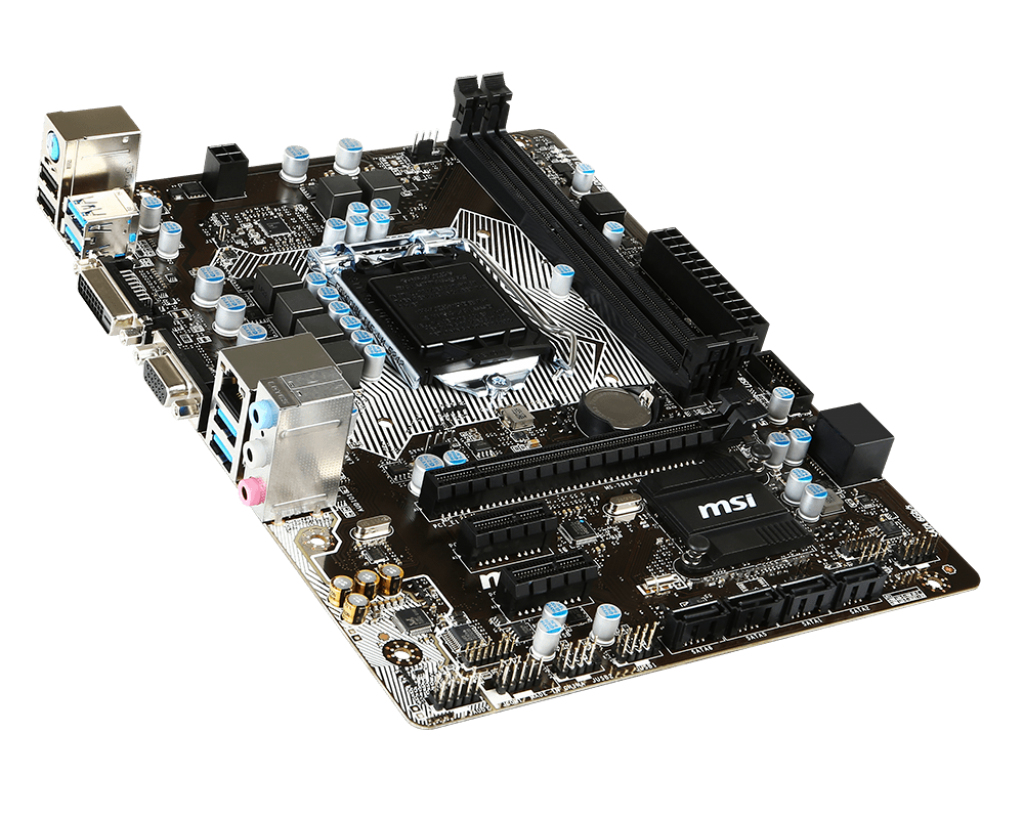

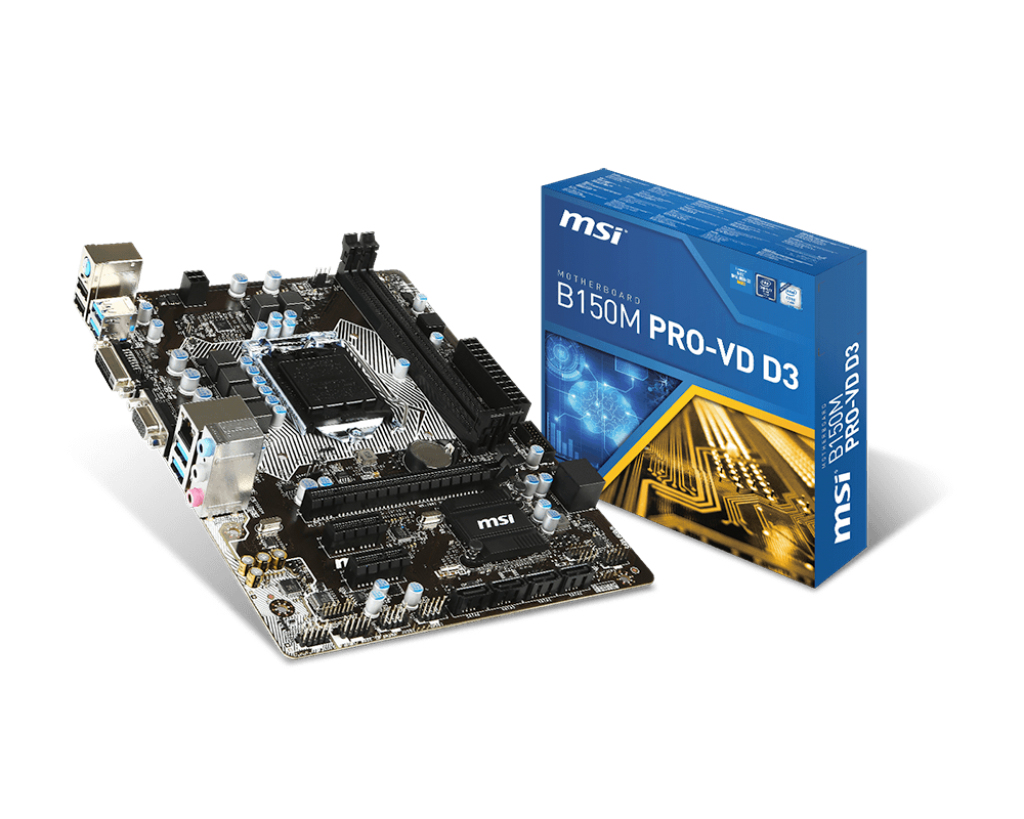

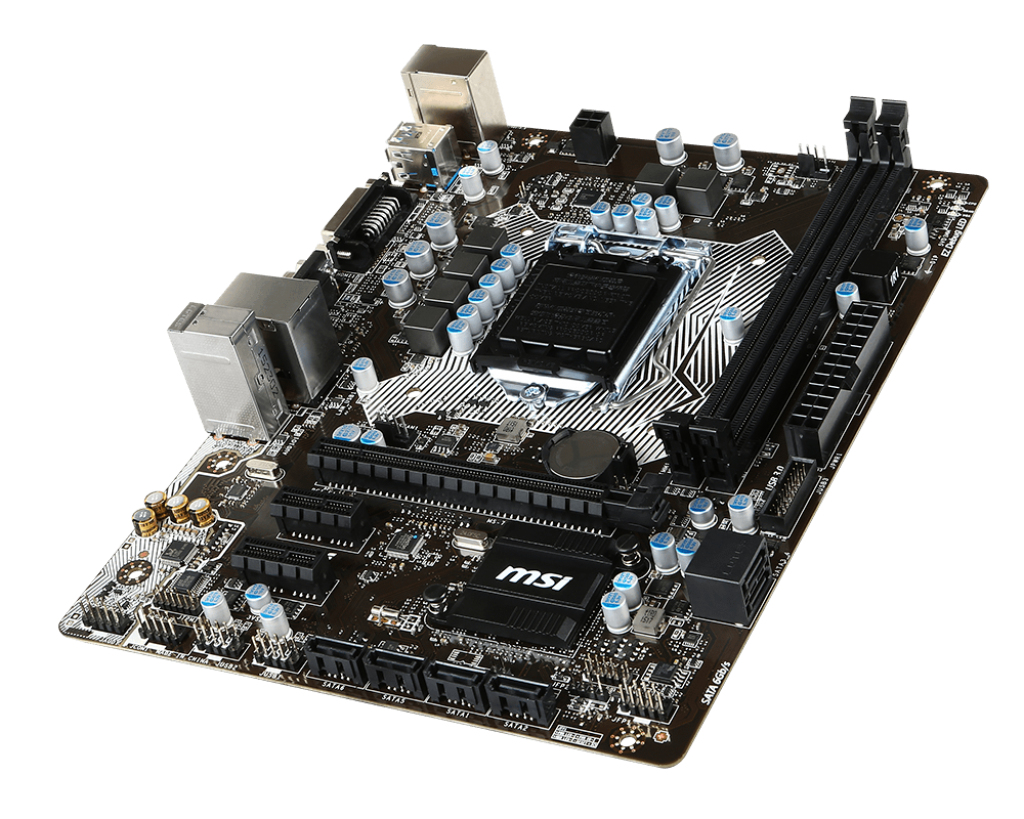

MSI B150M PRO-VD D3

MSI B150M PRO-VD D3

Model B150M PRO-VD D3Part no. 7981-001REAN 4207814419509

61 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3L-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3L-SDRAM
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
MSI
Category
Motherboard
Model
B150M PRO-VD D3
Part number
7981-001R
EAN / UPC
4207814419509, 4719072419509
Also known as
MSI B150M PRO-VD D3 Intel® B150 LGA 1151 (Socket H4) ATX

Specifications

61 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Supported memory typesDDR3L-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory32 GB
Supported memory module capacities16GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Serial port headers1
TPM connectorYes

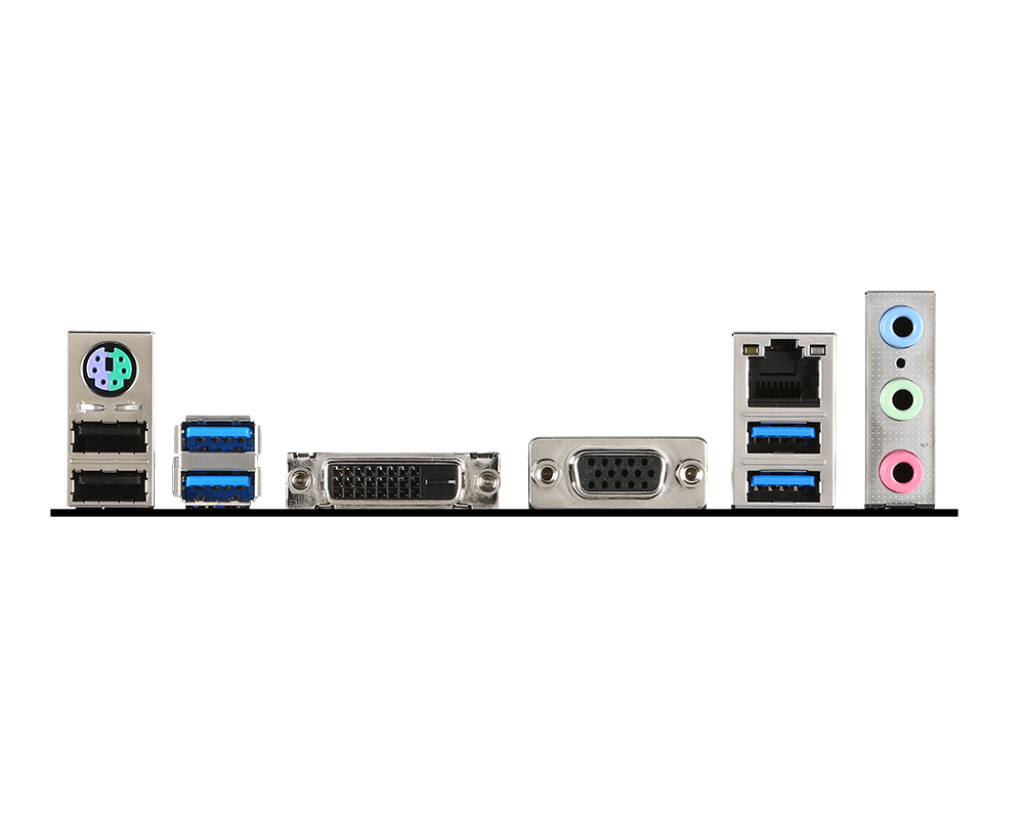

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiNo

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B150
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width235 mm
Depth180 mm

Other features

Serial port via internal headerYes
