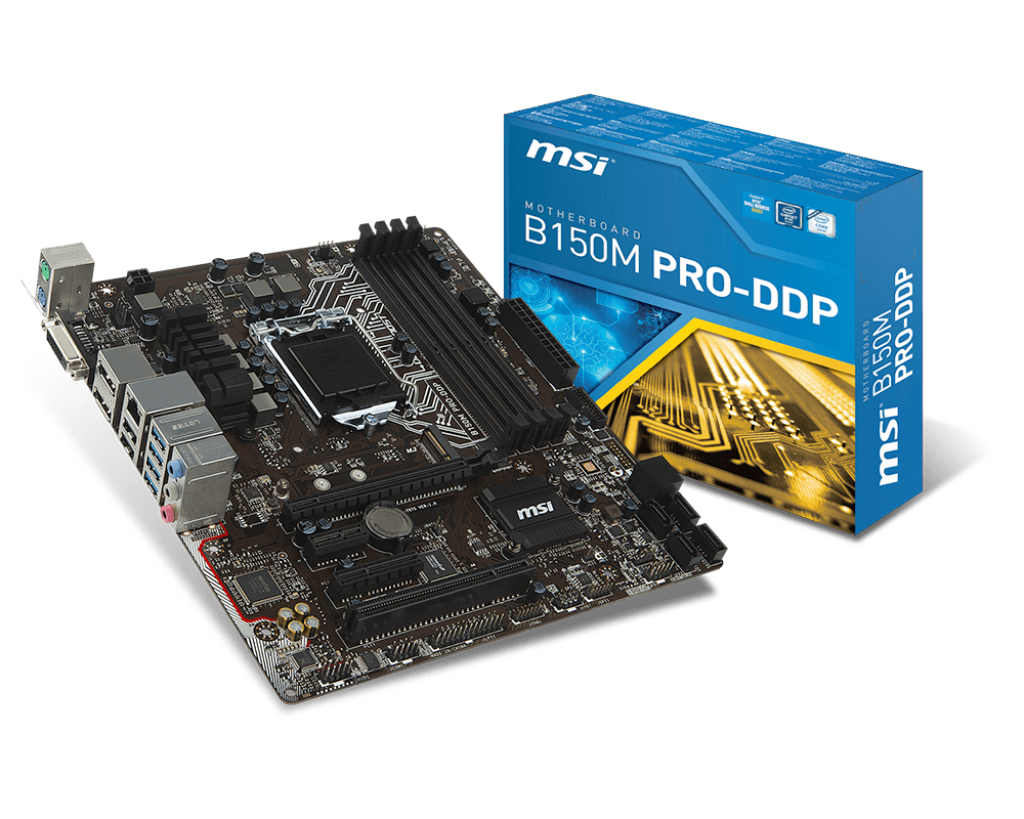

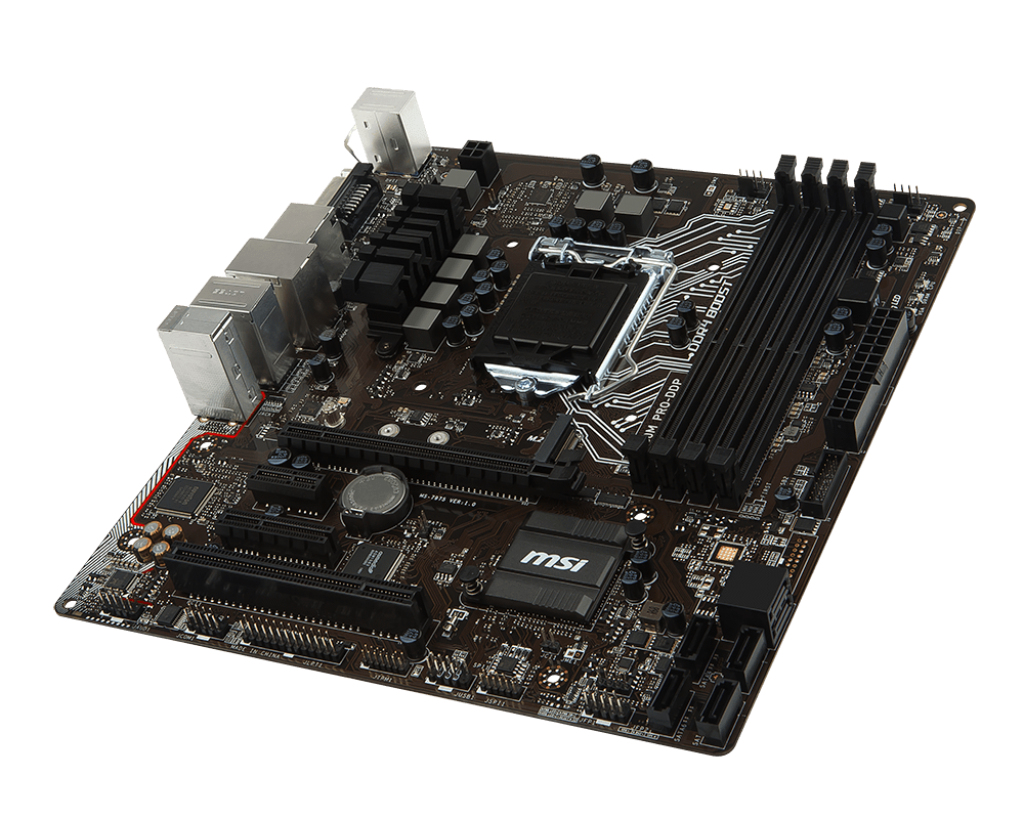

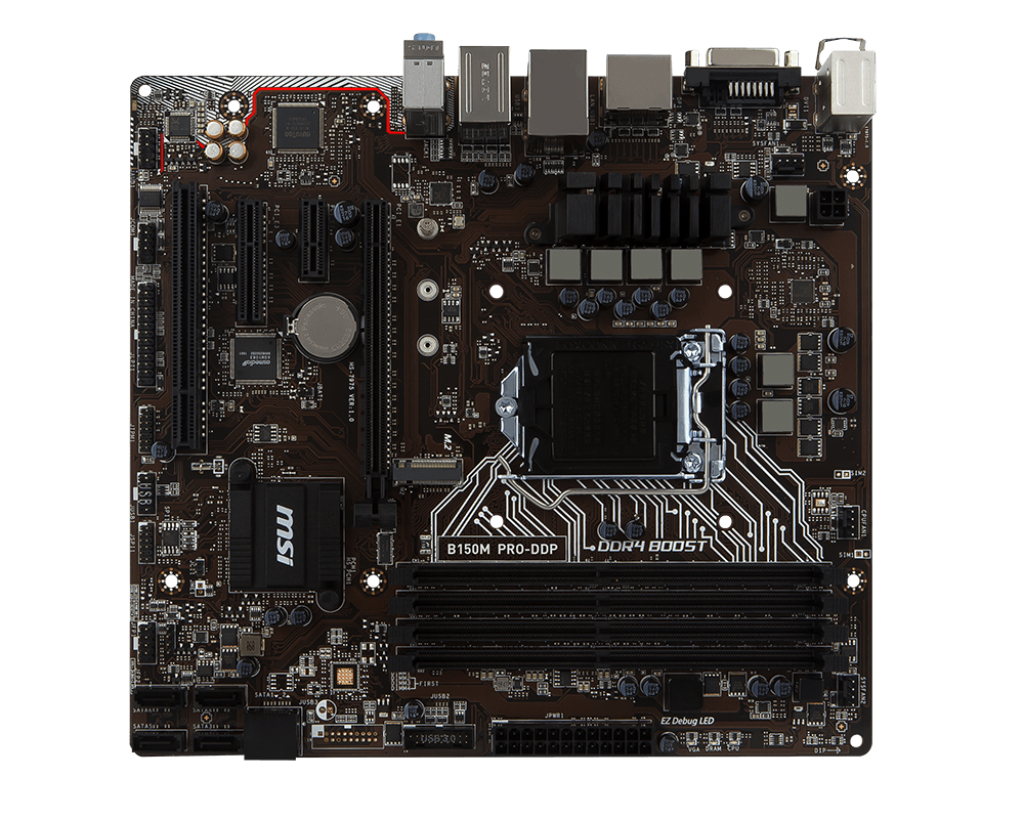

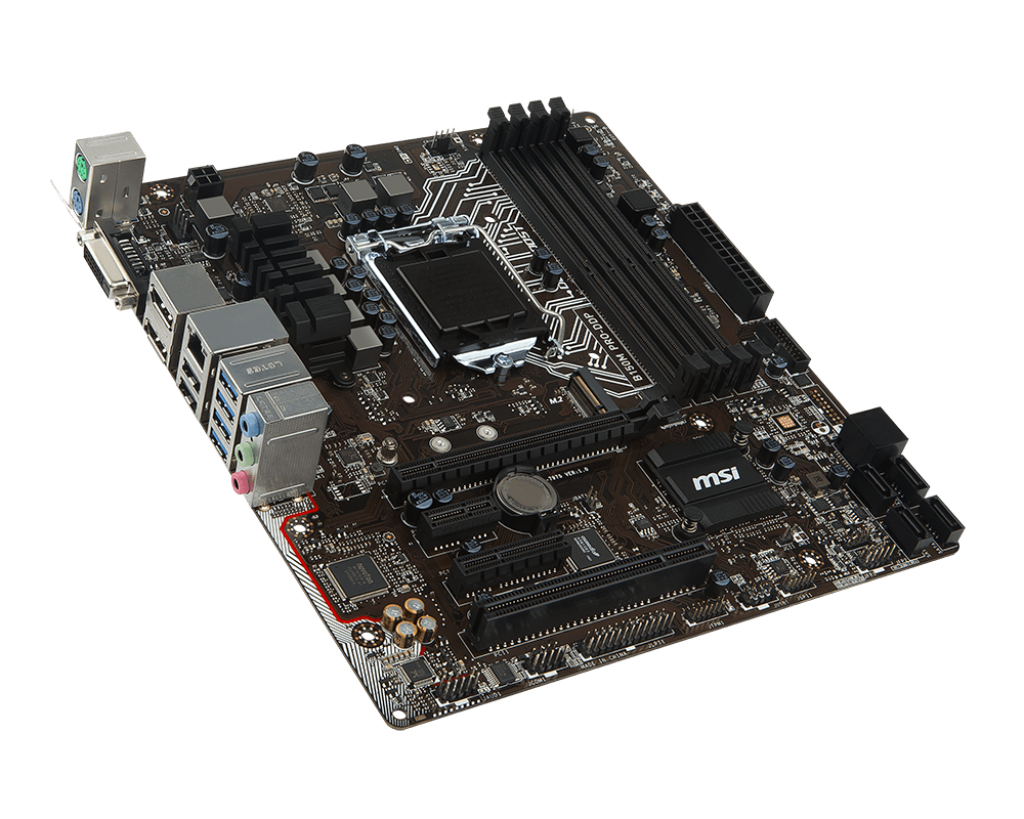

MSI B150M PRO-DDP
Model B150M PRO-DDPEAN 824142134443
37 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA III
- Parallel processing technology supportCrossfire
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- Parallel processing technology support
- Crossfire
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- MSI
- Category
- Motherboard
- Model
- B150M PRO-DDP
- Part numbers
- B150M PRO-DDP, 7975-001R, 007975-001R
- EAN / UPC
- 824142134443, 4719072477264
- Also known as
- MSI B150M PRO-DDP motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX
Specifications
37 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 2133 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Crossfire |
| DirectX version | 12.0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Number of SATA III connectors | 6 |
| TPM connector | Yes |

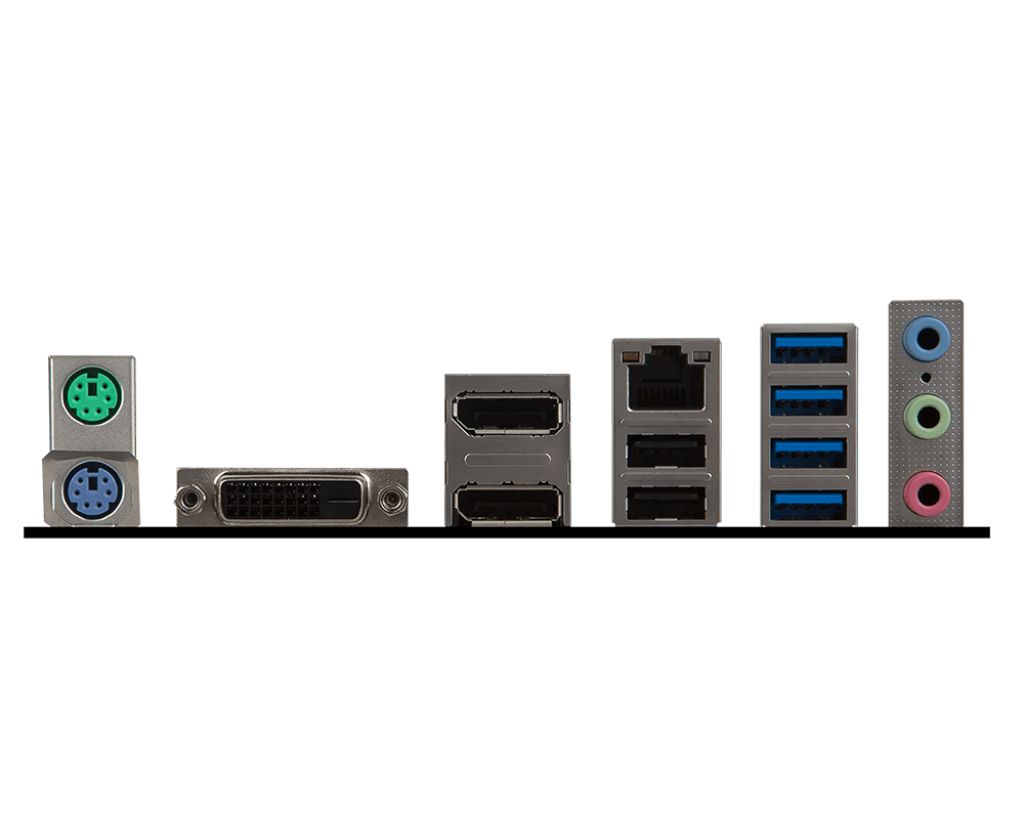

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111GN |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B150 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 1 |
| Number of M.2 (M) slots | 1 |
What people say
Reviews & ratings
MSI B150M PRO-DDP
No reviews yet
Be the first to tell others how MSI B150M PRO-DDP works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI B150M PRO-DDP
All motherboard comparisons- MSI B150M PRO-DDP vsMSI Z170A SLICompare specs
- MSI B150M PRO-DDP vsMSI H110M PRO-VDLCompare specs
- MSI B150M PRO-DDP vsMSI X99A Gaming Pro CarbonCompare specs

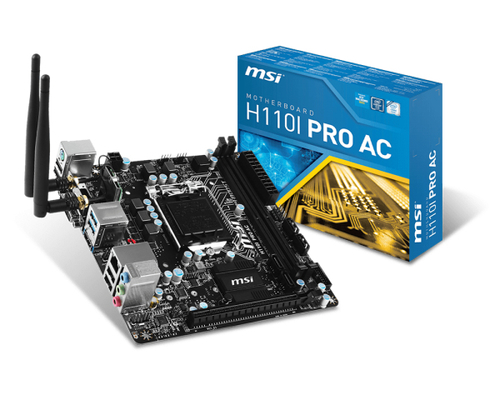

- MSI B150M PRO-DDP vsMSI H110I PRO ACCompare specs
