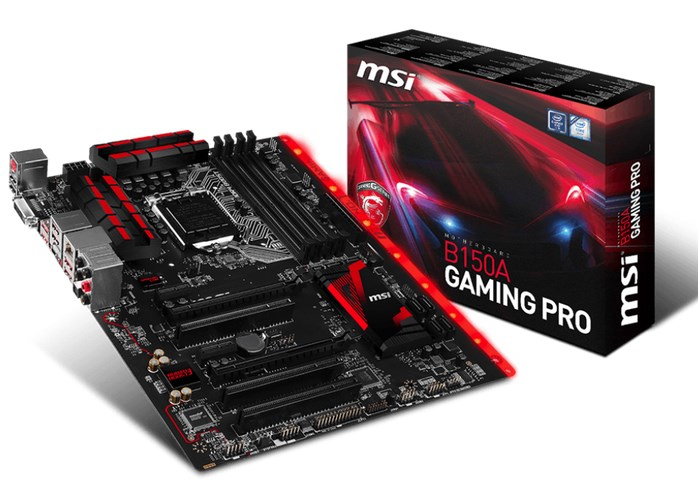

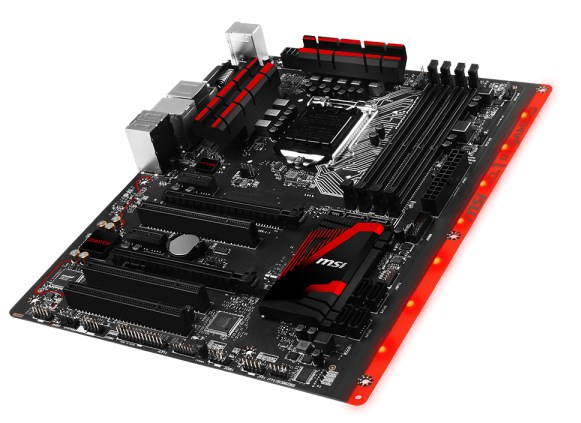

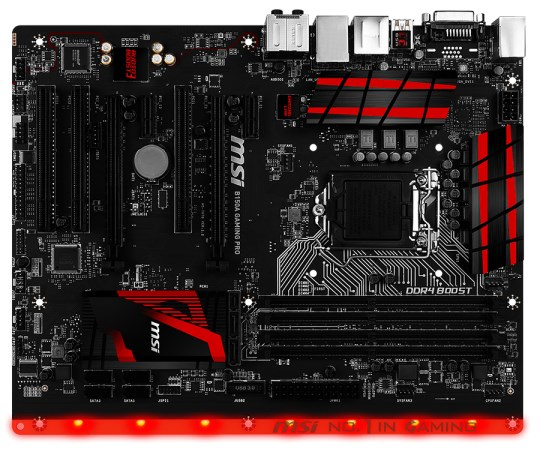

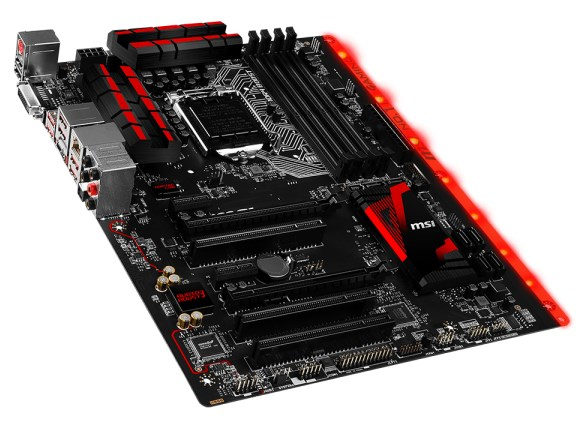

MSI B150A Gaming Pro

MSI B150A Gaming Pro

Model B150A Gaming ProPart no. 7978-003REAN 5283566774386

54 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
MSI
Category
Motherboard
Model
B150A Gaming Pro
Part numbers
7978-003R, B150A GAMING PRO
EAN / UPC
5283566774386, 824142119815, 4719072412838, 5054629846643 +4 more
Also known as
MSI B150A Gaming Pro ATX

Specifications

54 specifications in 12 groups

Processor

Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC
Supported memory clock speeds2133 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA III

Graphics

Parallel processing technology support2-Way CrossFireX

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA Express connectors1
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Parallel connectorYes
Serial port headers1
TPM connectorYes

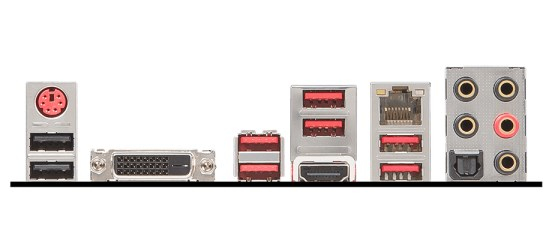

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity6
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerIntel® I219-V

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots2
PCI slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width305 mm
Depth244 mm
