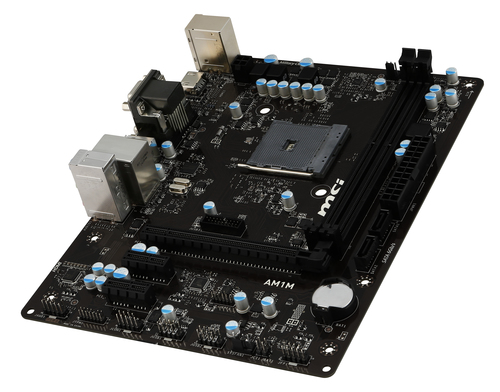

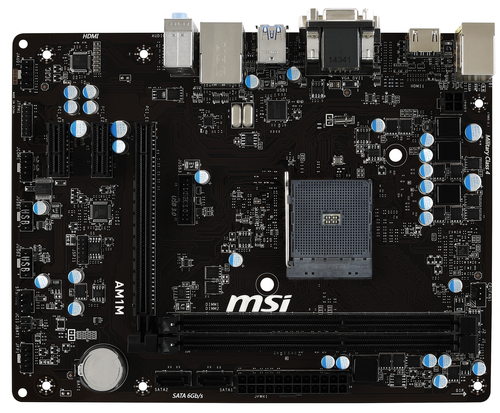

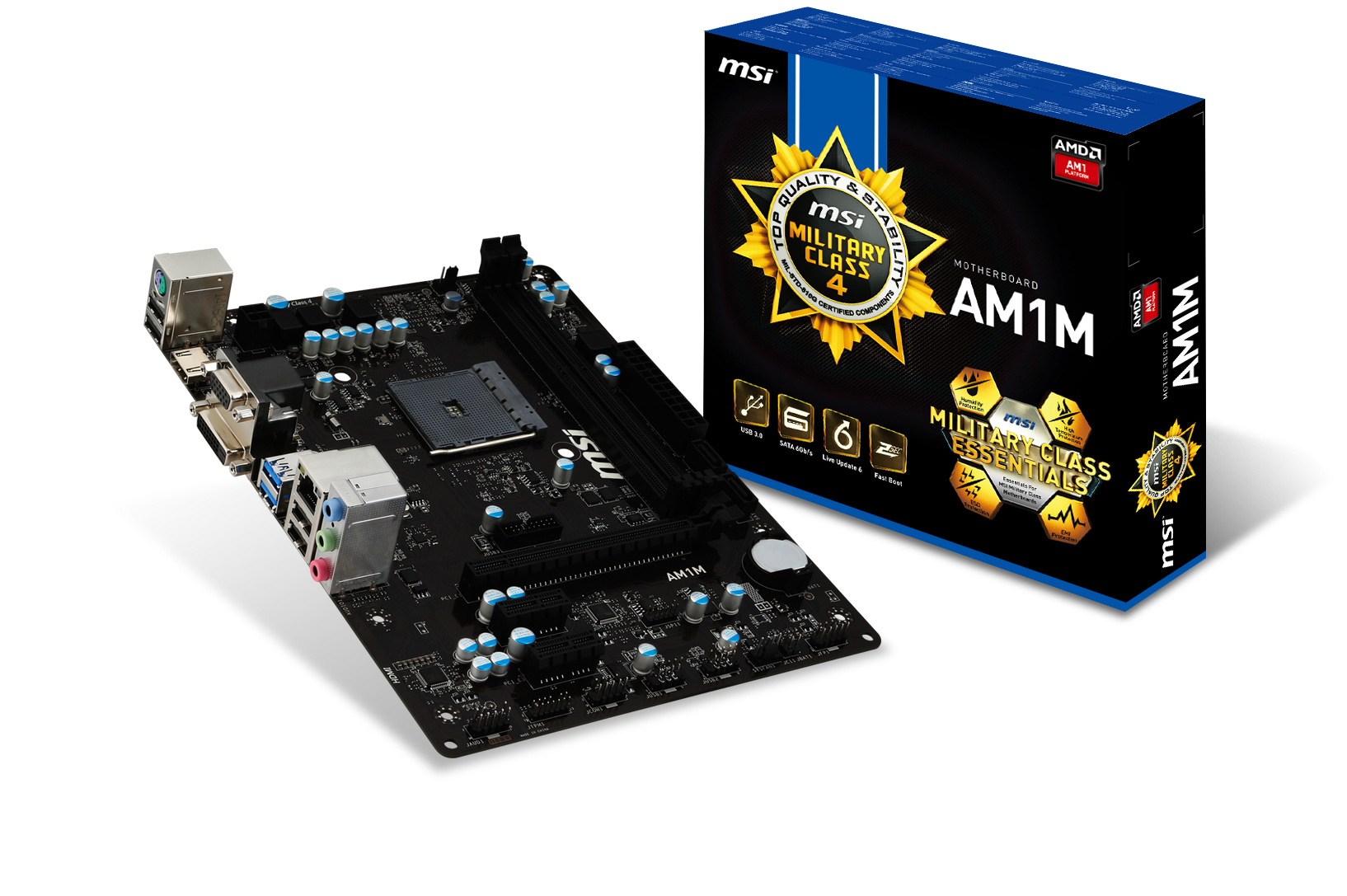

MSI AM1M motherboard Socket AM1 micro ATX

MSI AM1M motherboard Socket AM1 micro ATX

Model AM1MEAN 824142029206

54 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
4
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
AM1M
Part number
AM1M
EAN / UPC
824142029206, 4719072370312, 8241420292060
Also known as
MSI AM1M motherboard Socket AM1 micro ATX

Specifications

54 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM1
Compatible processor seriesAMD Athlon, AMD Sempron

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsSingle-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600 MHz
Maximum internal memory32 GB
Supported memory module capacities16GB

Storage controllers

Supported storage drive interfacesSATA III

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes
DirectX version11.1
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors2
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Serial port headers1
TPM connectorYes

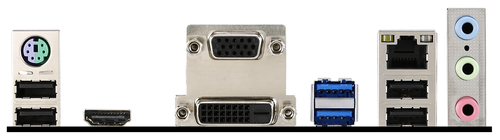

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek 8111G

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 2.x) slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width226 mm
Depth173 mm
