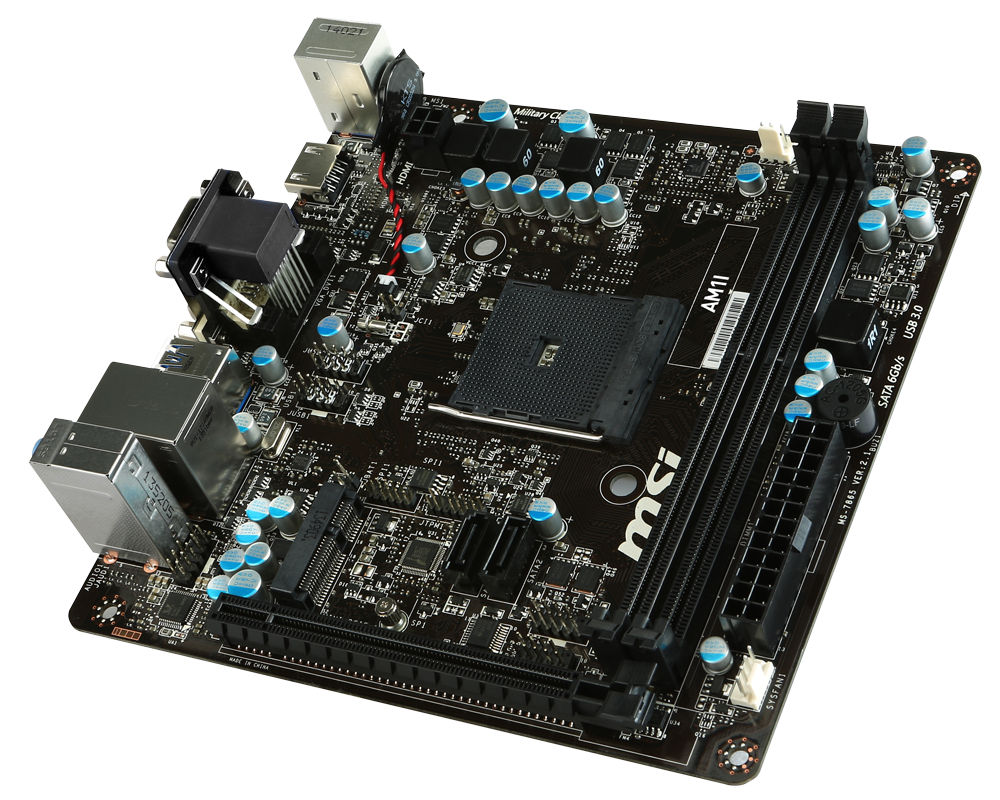

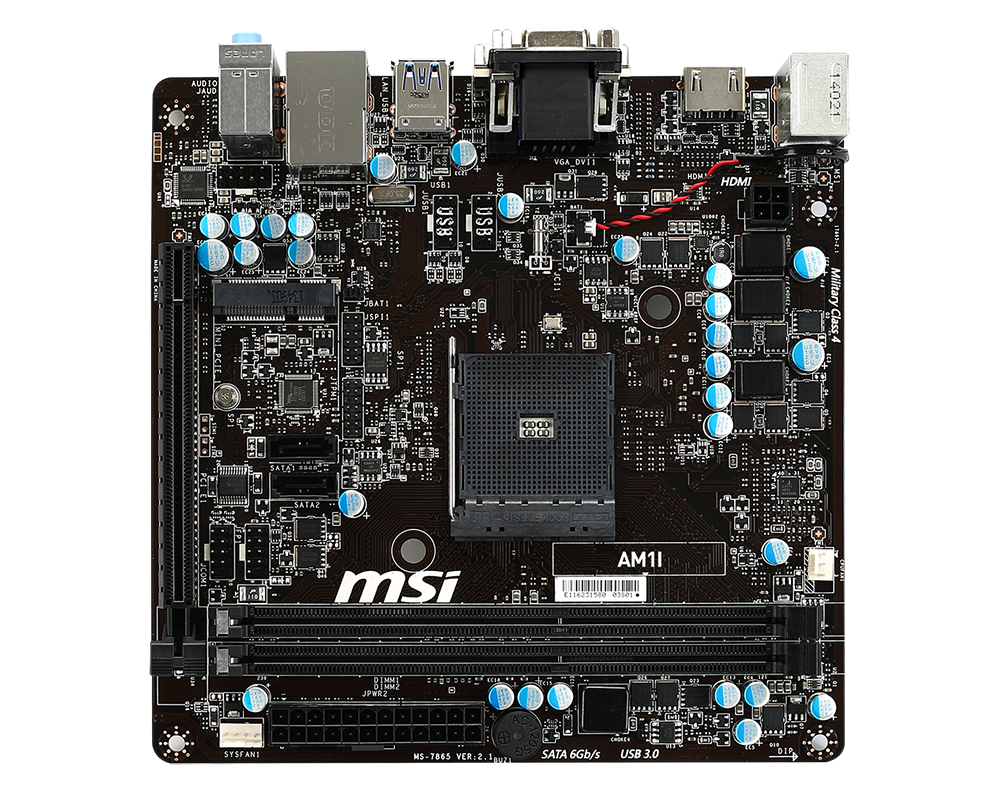

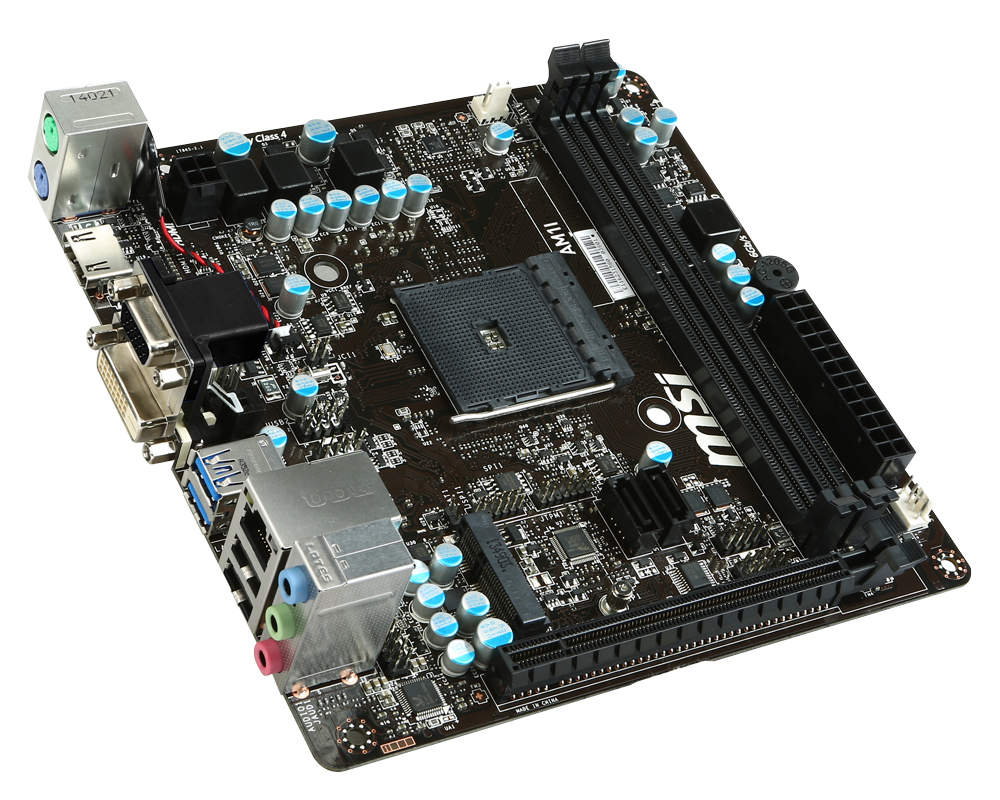

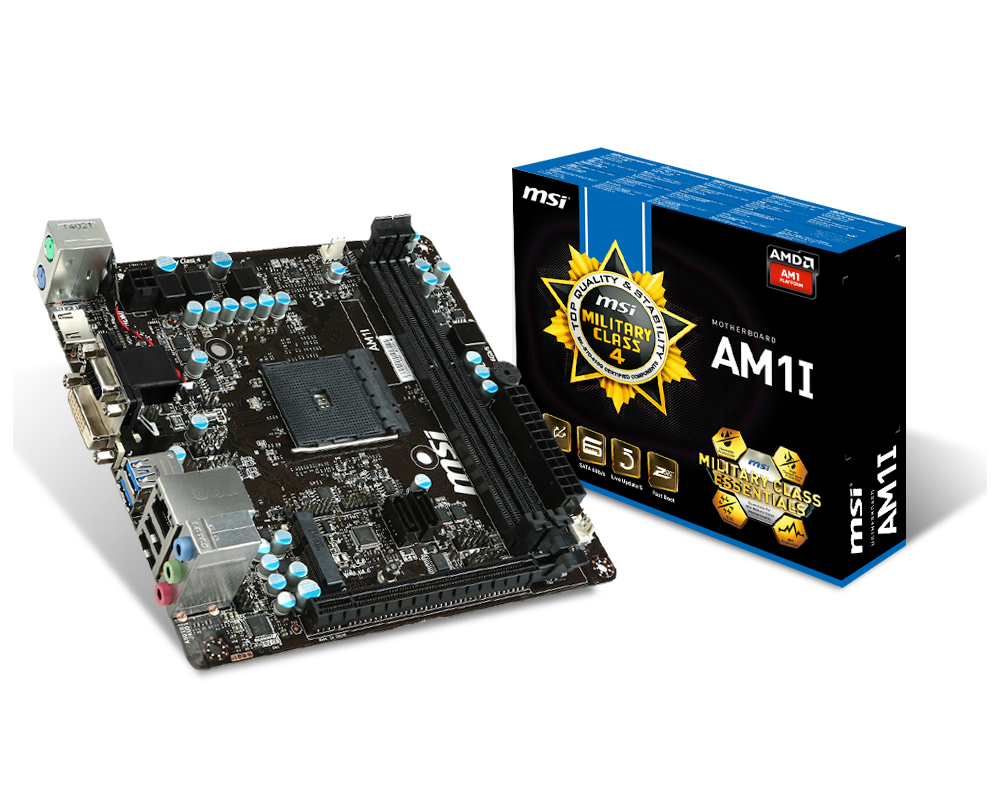

MSI AM1I Socket AM1 mini ITX

MSI AM1I Socket AM1 mini ITX

Model AM1IPart no. 7865-001REAN 8241420212242

54 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum graphics card memory2048 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Maximum graphics card memory
2048 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
AM1I
Part number
7865-001R
EAN / UPC
8241420212242, 132018510230, 163121465995, 345857569882 +4 more
Also known as
MSI AM1I Socket AM1 mini ITX

Specifications

54 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM1
Compatible processor seriesAMD Athlon, AMD Sempron

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsSingle-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III

Graphics

Maximum graphics card memory2048 MB
Parallel processing technology supportNot supported
Maximum resolution4096 x 2160 pixels
DirectX version11.1
Number of displays supported2

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors2
Number of SATA II connectors0
Number of Parallel ATA connectors0
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Serial port headers1
TPM connectorYes

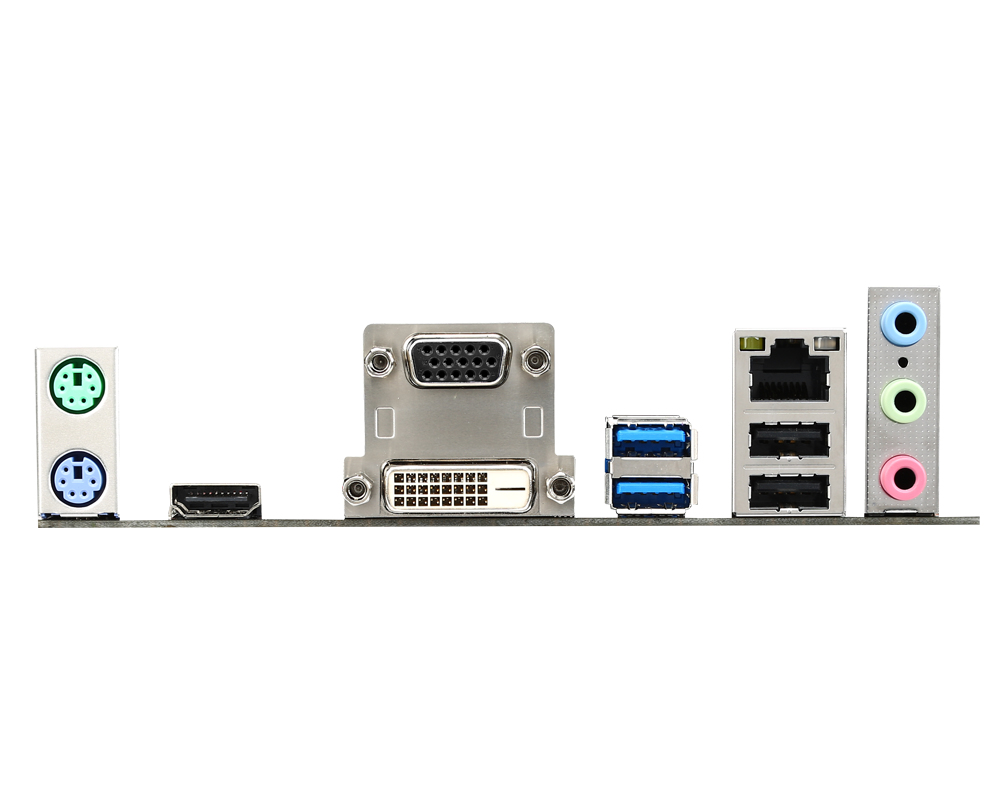

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyAMD
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x16 (Gen 2.x) slots1
Mini PCI Express slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width170 mm
Depth170 mm
