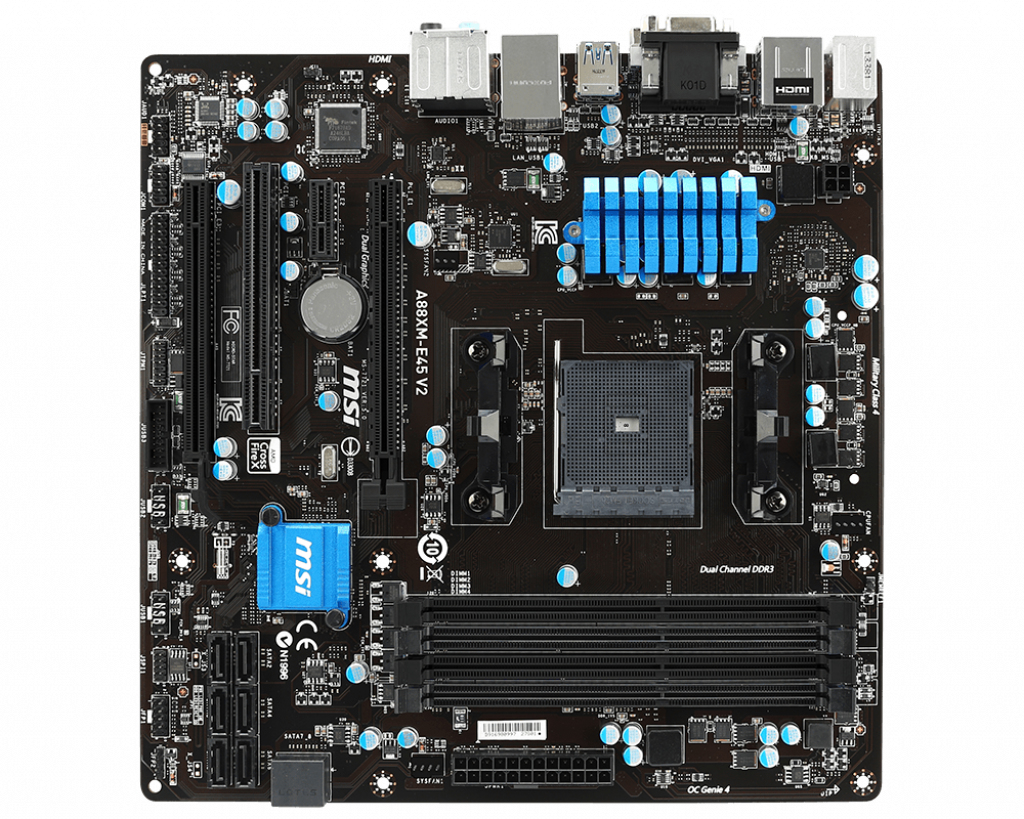

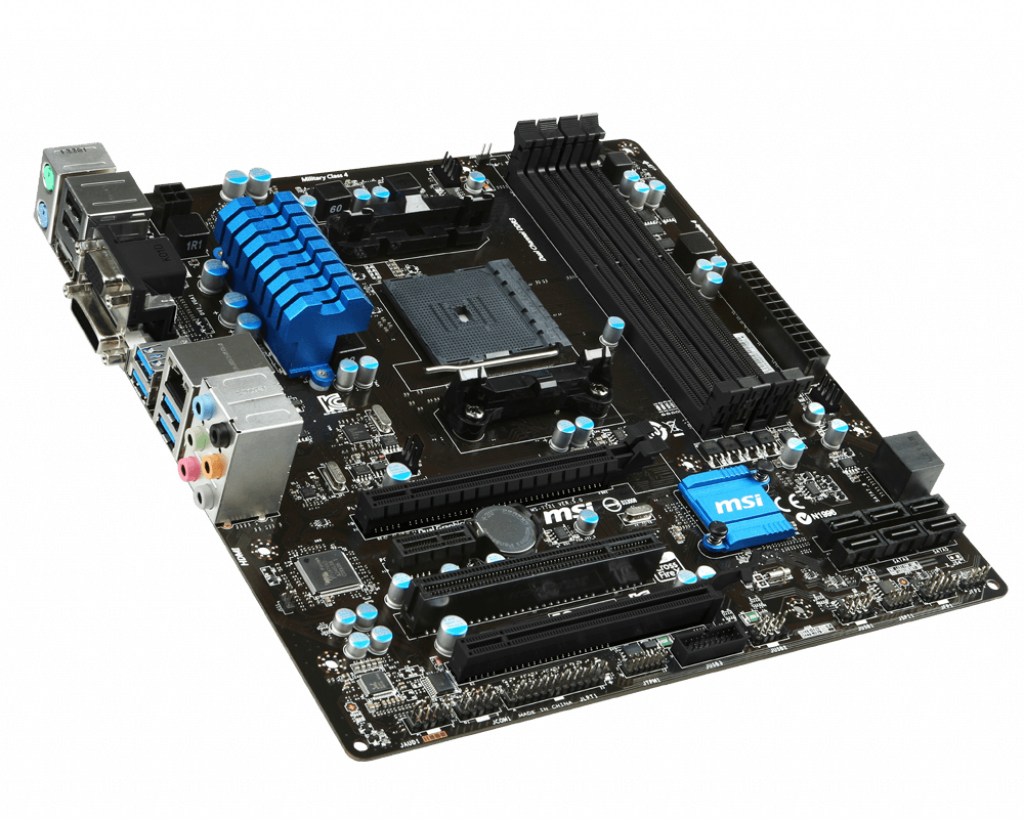

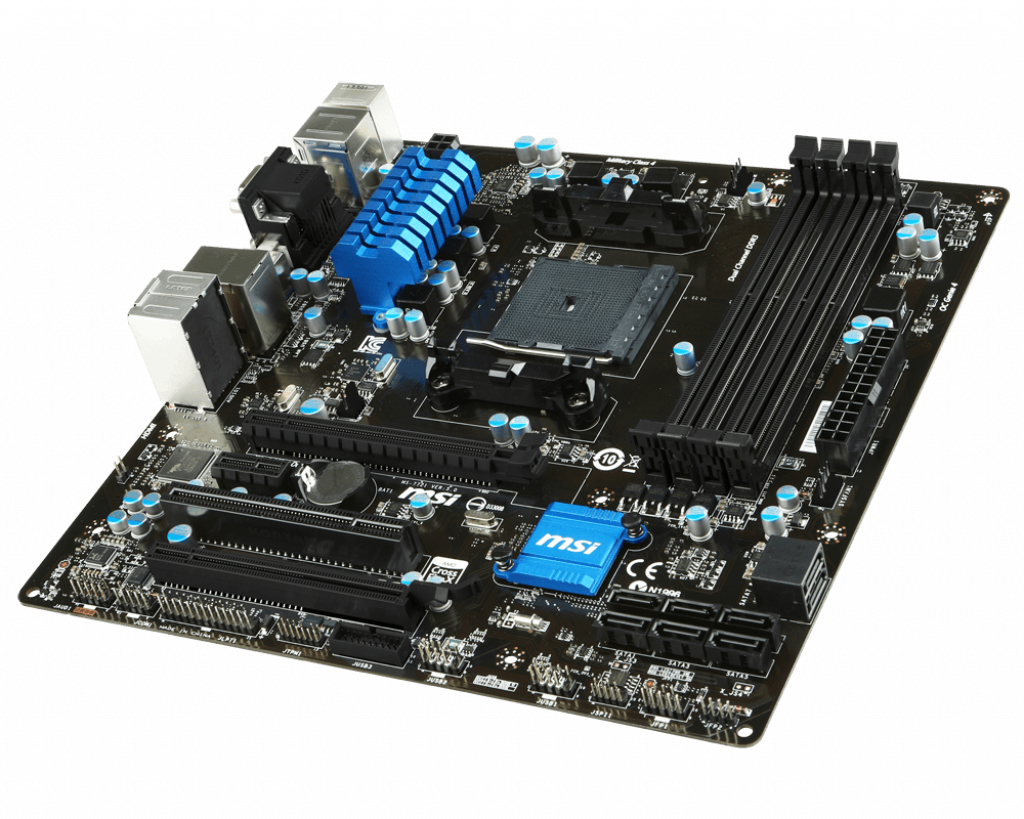

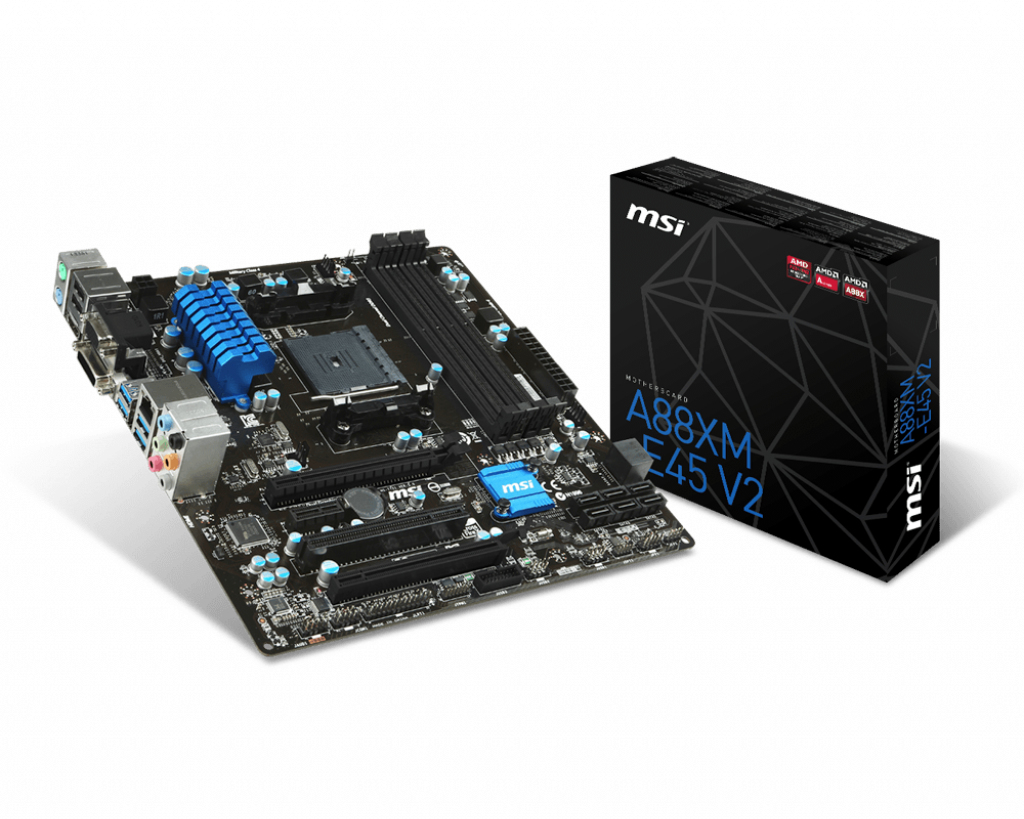

MSI A88XM-E45 V2

MSI A88XM-E45 V2

Model A88XM-E45 V2EAN 824142115565

48 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
MSI
Category
Motherboard
Model
A88XM-E45 V2
Part number
A88XM-E45 V2
EAN / UPC
824142115565
Also known as
MSI A88XM-E45 V2 motherboard A88X Socket FM2+ micro ATX

Specifications

48 specifications in 10 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2+
Compatible processor seriesAMD Athlon

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866,2133 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID supportYes
RAID levels0, 1, 5, 10

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors8
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Serial port headers1
TPM connectorYes

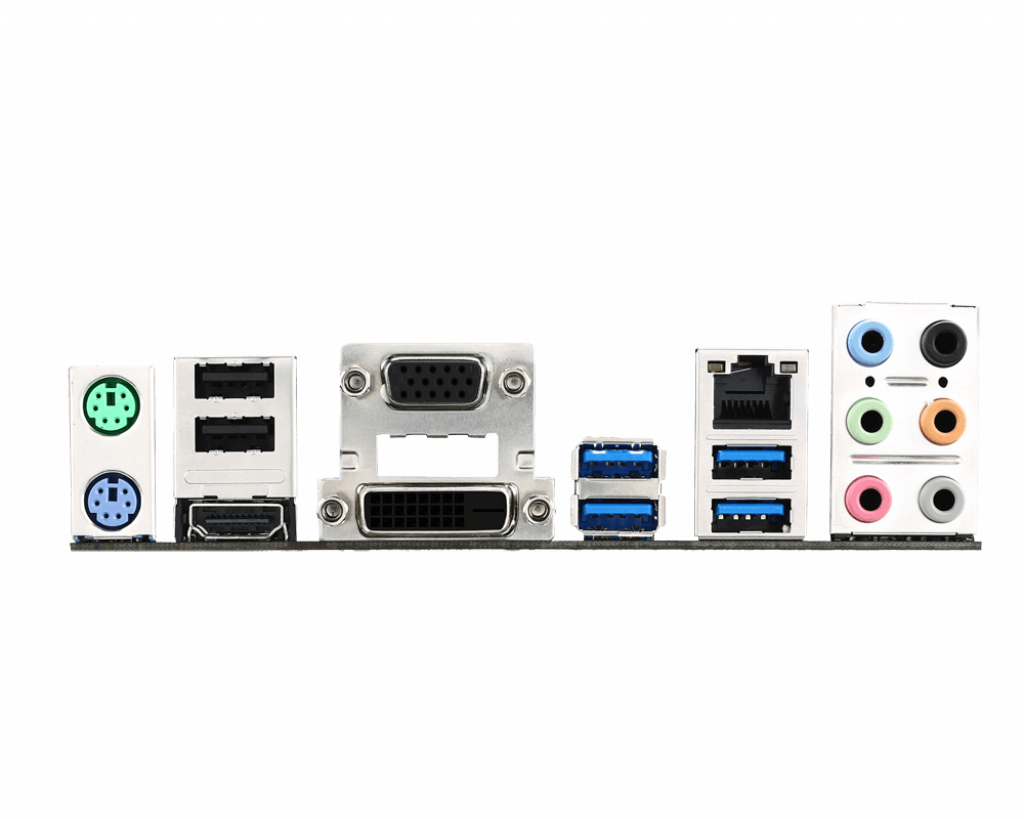

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Digital audio optical out6
Parallel ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetA88X
Audio chipRealtek ALC887
Audio output channels7.1 channels

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width243 mm
Depth243 mm
