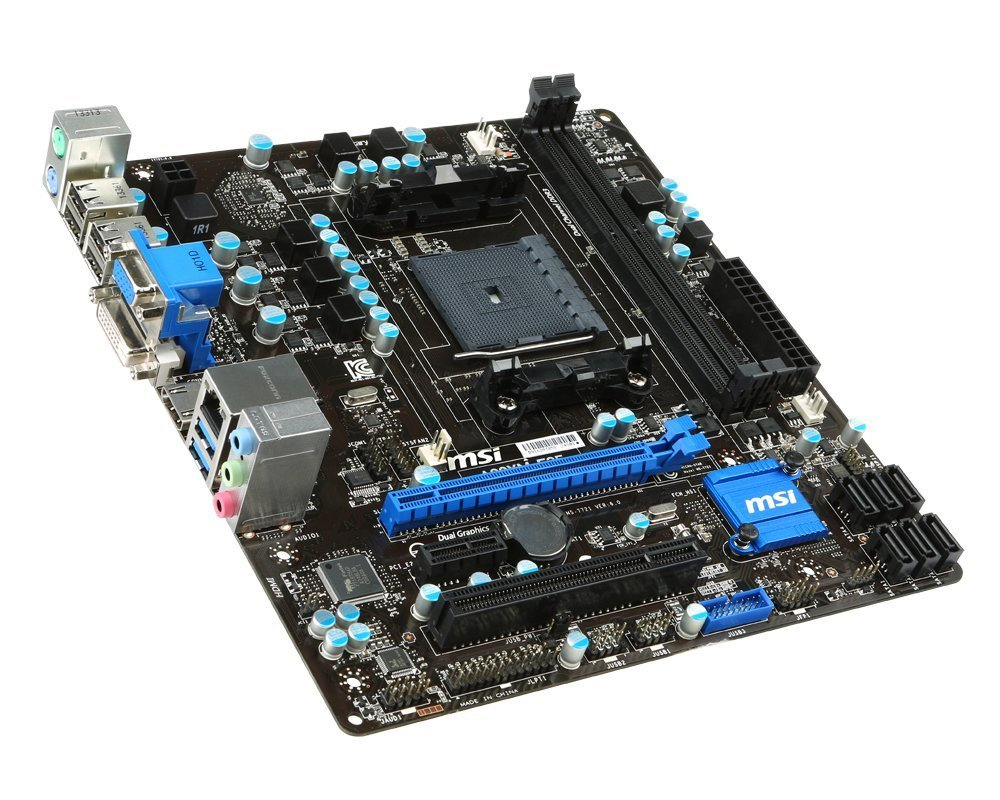

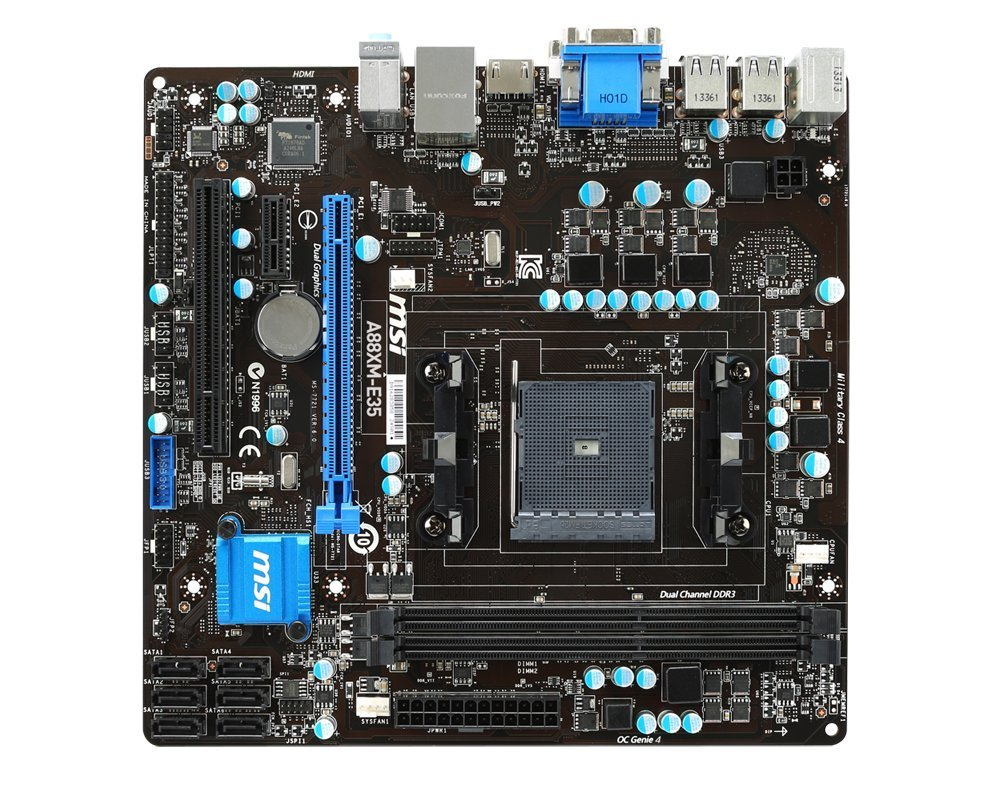

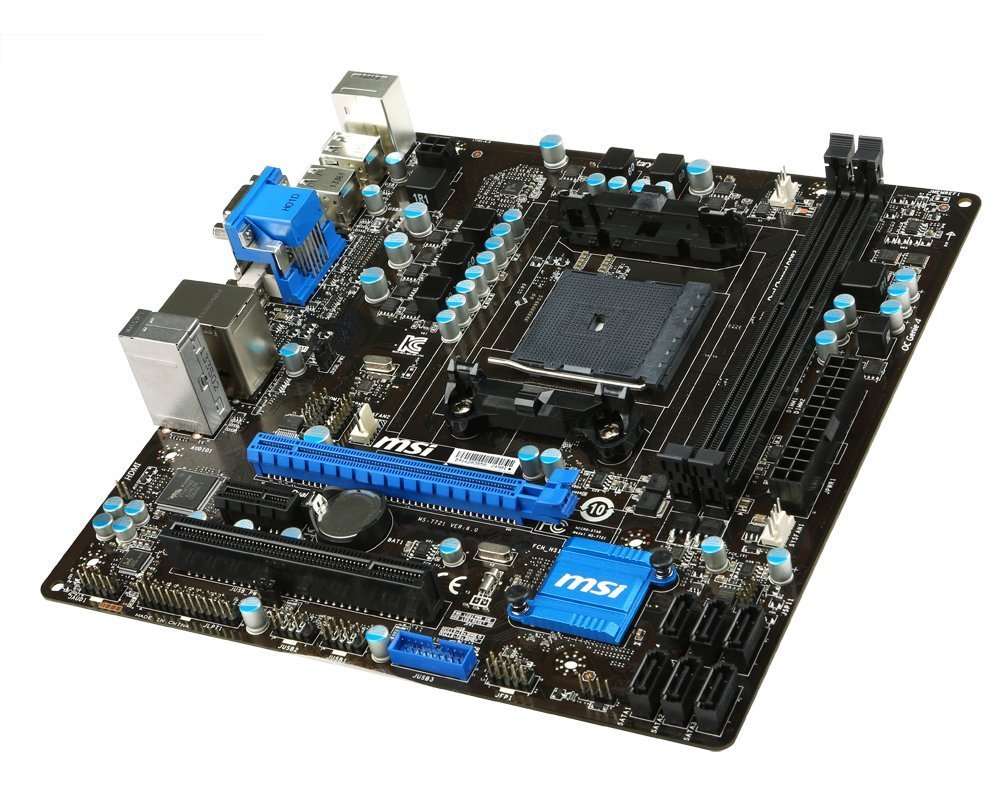

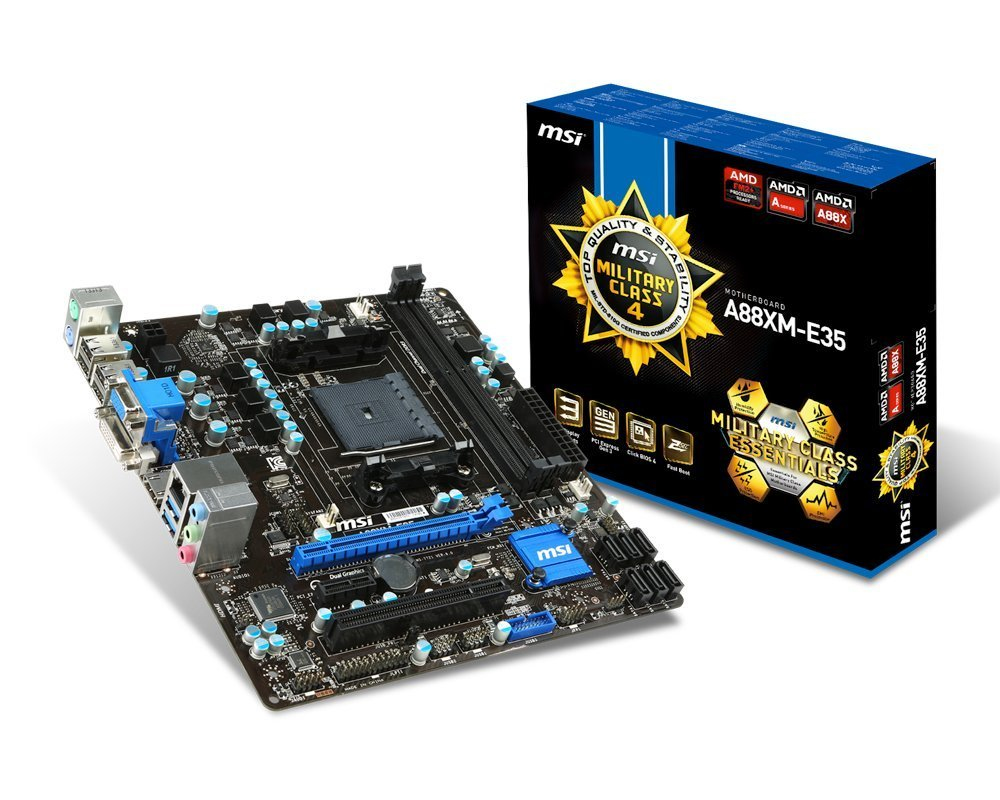

MSI A88XM-E35 AMD A88X Socket FM2+ micro ATX

MSI A88XM-E35 AMD A88X Socket FM2+ micro ATX

Model A88XM-E35EAN 8241420175554

55 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
A88XM-E35
Part numbers
A88XM-E35, 7721-001R
EAN / UPC
8241420175554, 4053162667532, 4719072319410, 172304256855 +3 more
Also known as
MSI A88XM-E35 AMD A88X Socket FM2+ micro ATX

Specifications

55 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2+
Compatible processor seriesAMD A
Supported processor socketsSocket FM2

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866,2133 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Parallel connectorYes
Serial port headers1
TPM connectorYes

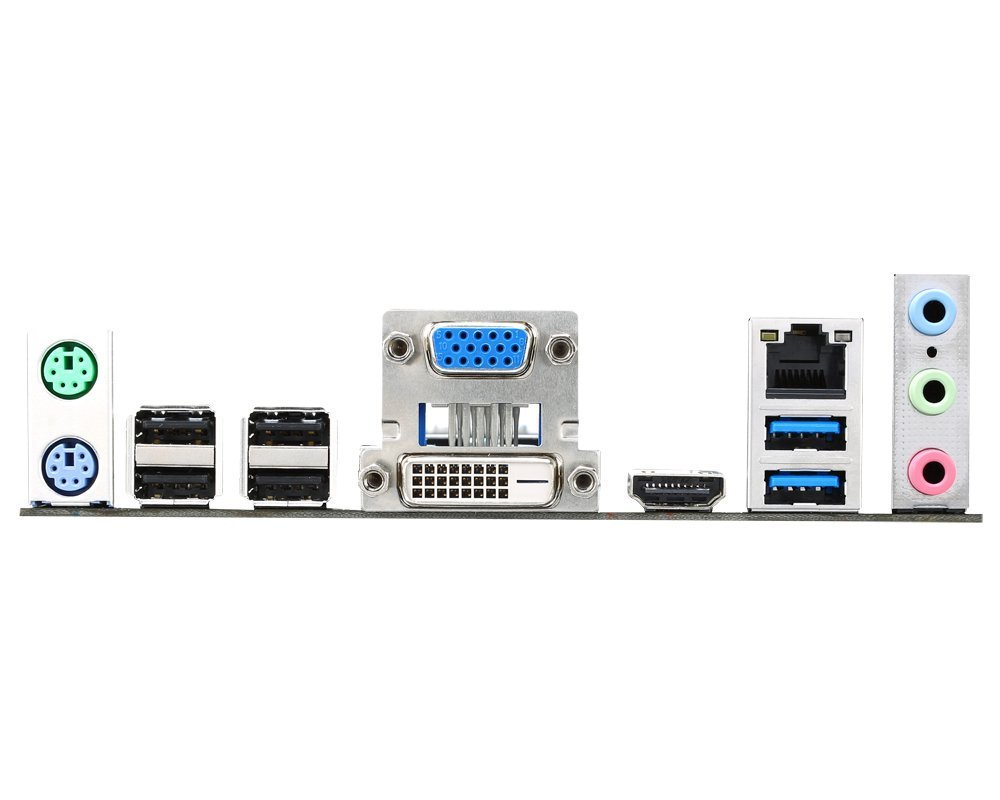

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A88X
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width226 mm
Depth216 mm
