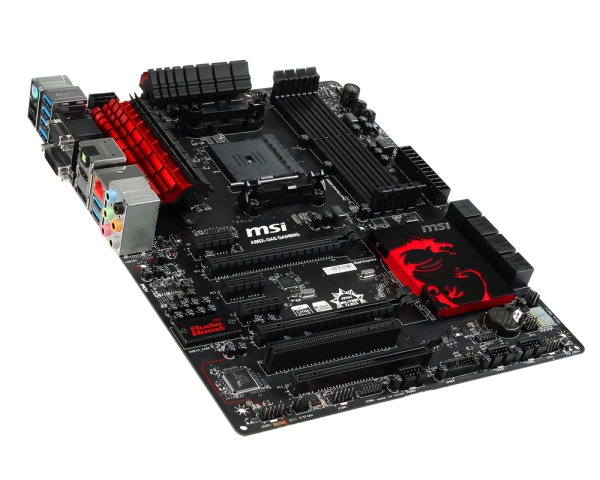

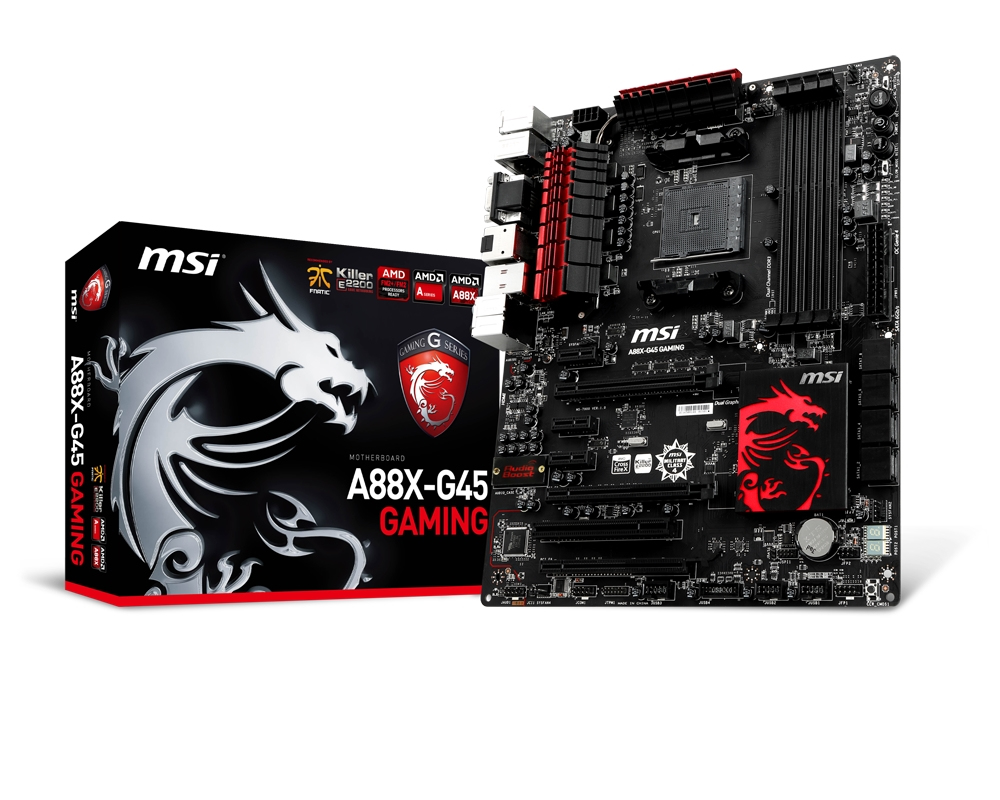

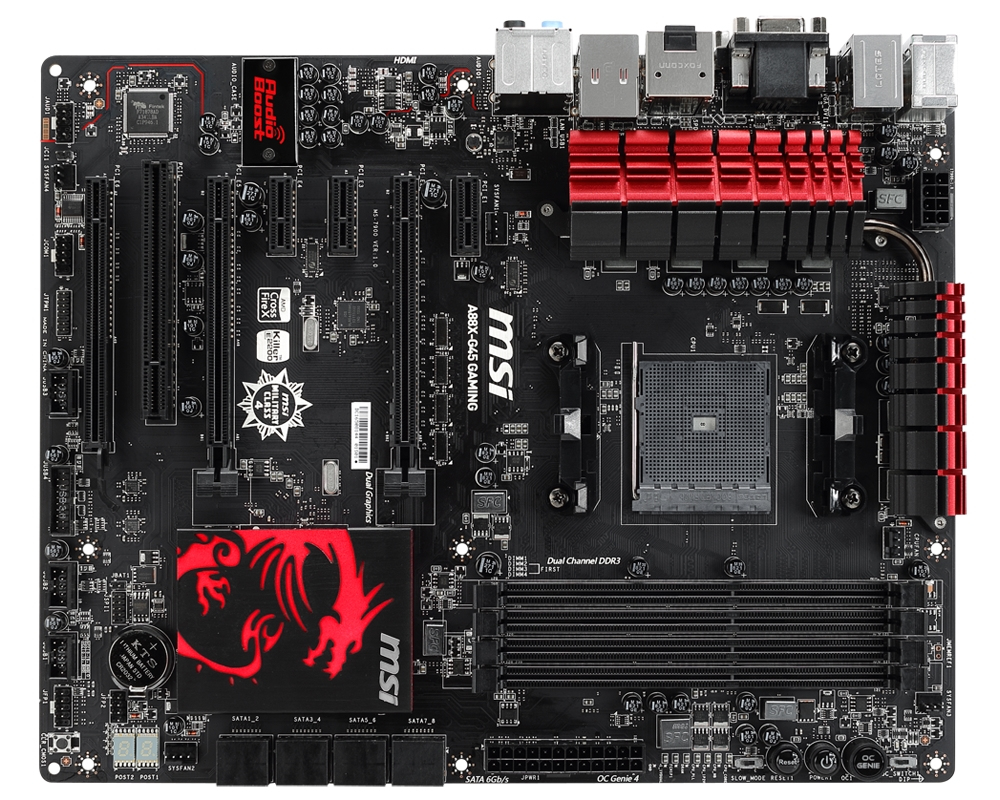

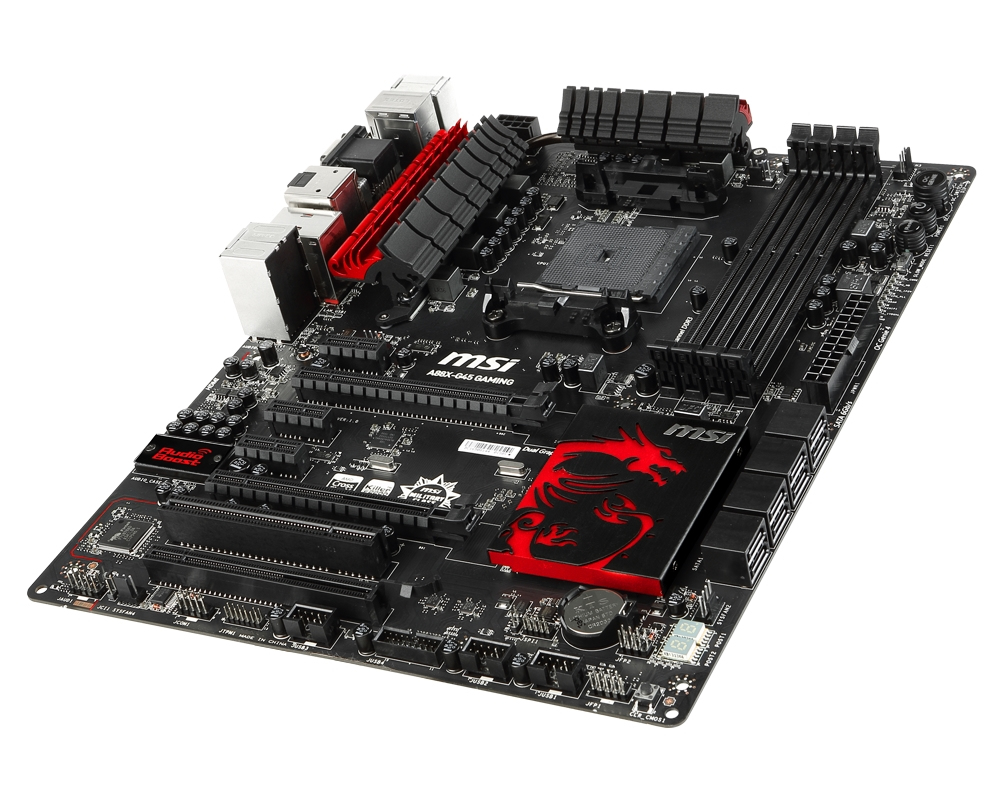

MSI A88X-G45 GAMING

MSI A88X-G45 GAMING

Model A88X-G45 GAMINGPart no. 7900-001REAN 4053162667983

63 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum graphics card memory1760 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Maximum graphics card memory
1760 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
2
Brand
MSI
Category
Motherboard
Model
A88X-G45 GAMING
Part number
7900-001R
EAN / UPC
4053162667983
Also known as
MSI A88X-G45 GAMING AMD A88X Socket FM2+ ATX

Specifications

63 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2+
Compatible processor seriesAMD A
Supported processor socketsSocket FM2

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866,2133,2400 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1760 MB
Parallel processing technology support3-Way CrossFireX
Maximum resolution4096 x 2160 pixels
DirectX version11.1
Number of displays supported3

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors8
Number of SATA II connectors0
Number of SATA connectors8
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

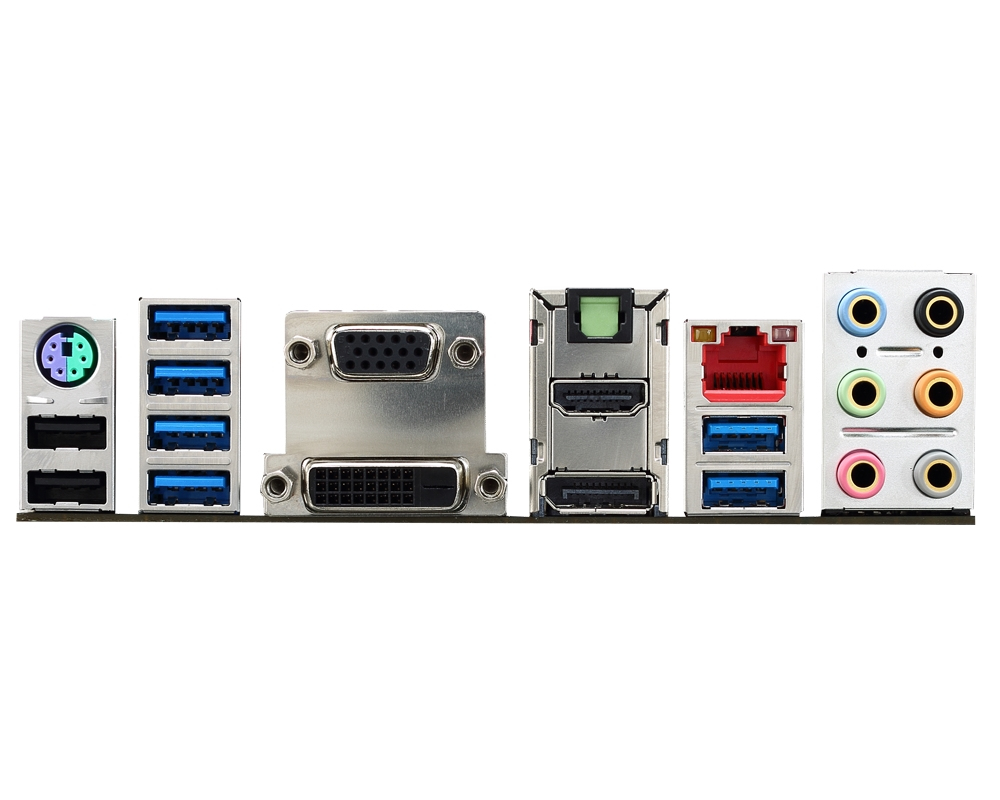

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerBigfoot Killer E2205

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A88X
Audio chipRealtek ALC1150
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win

Expansion slots

PCI Express x1 (Gen 2.x) slots3
PCI Express x16 slots3
PCI slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth244 mm
