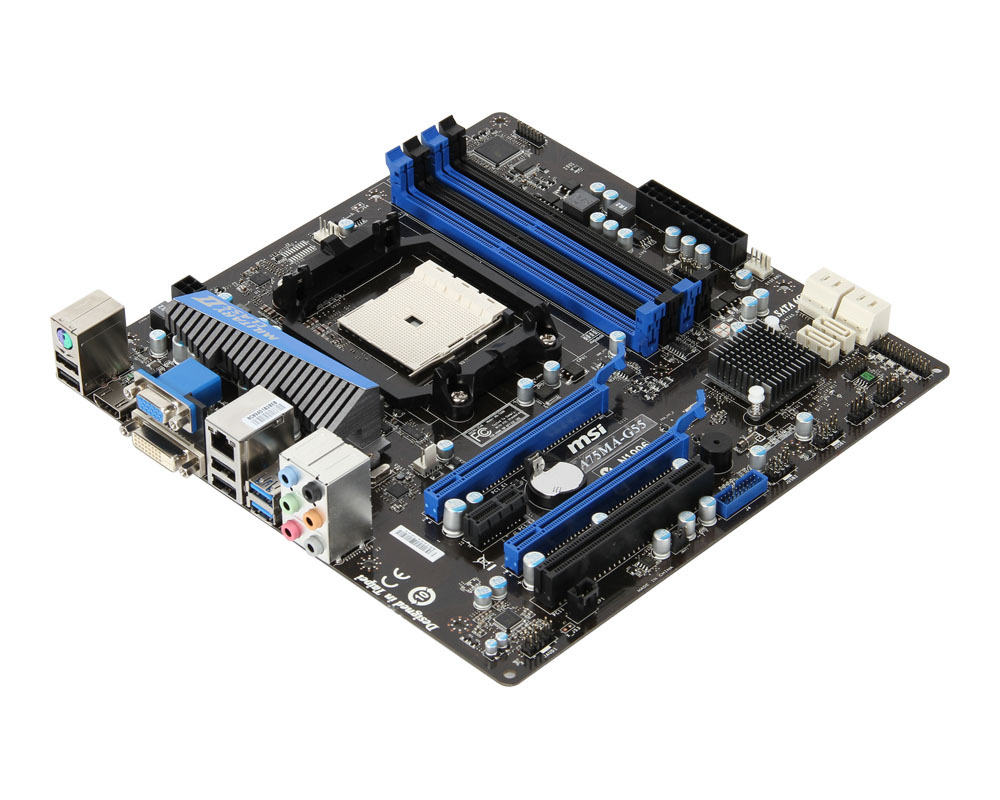

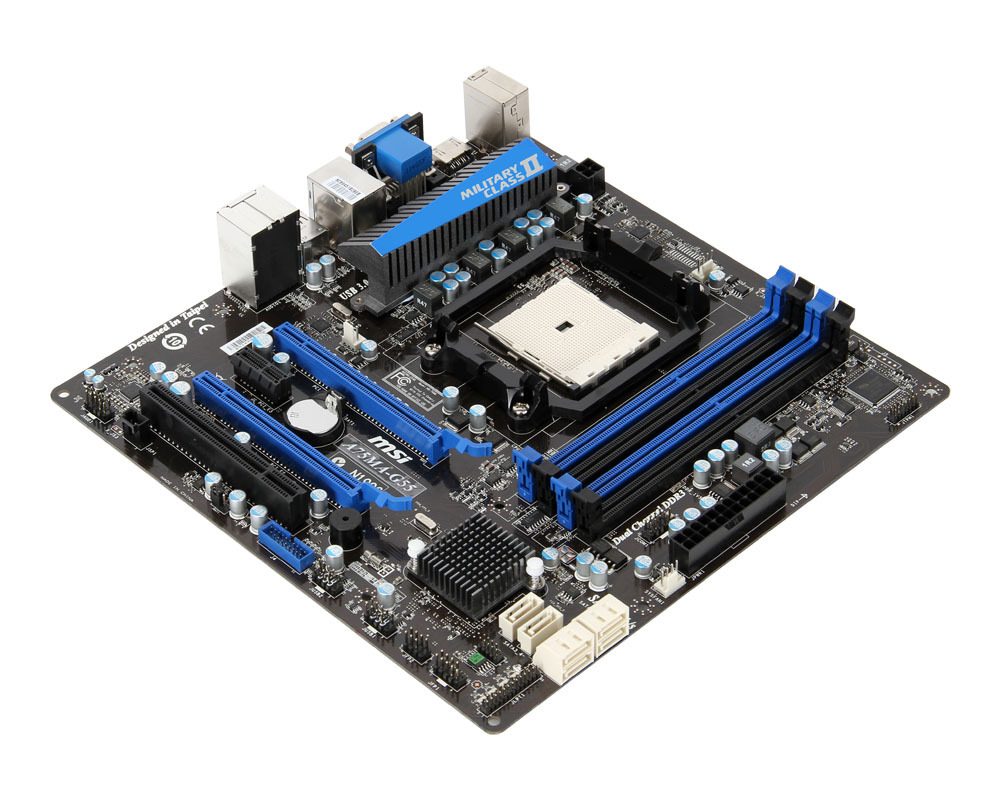

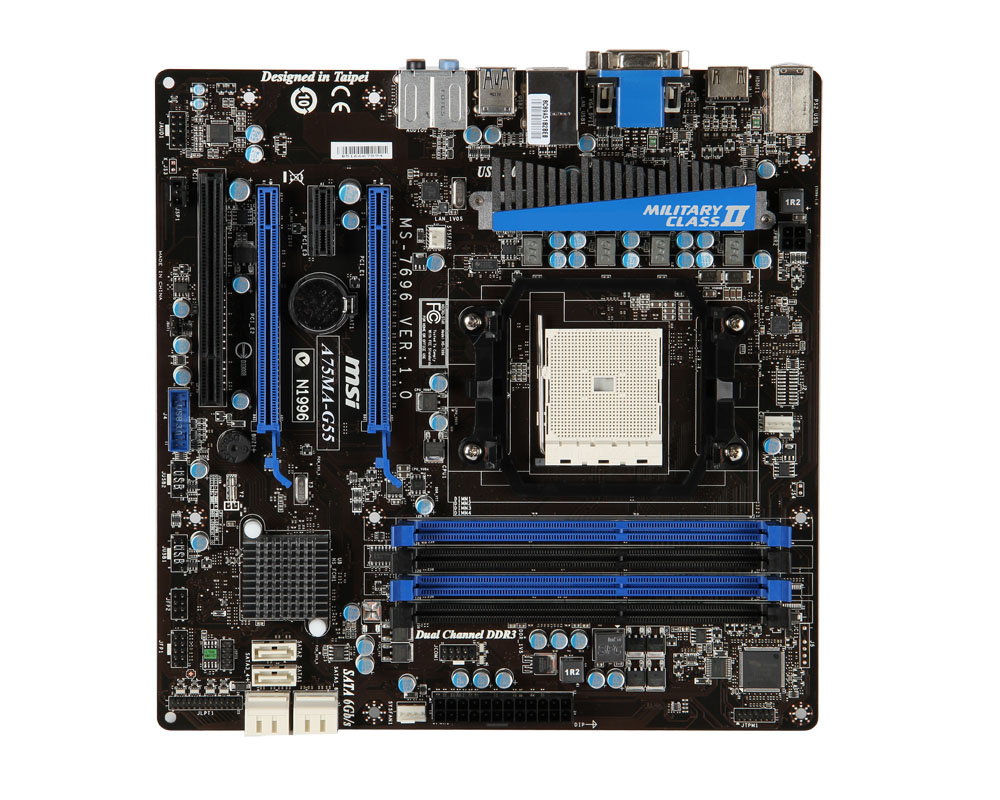

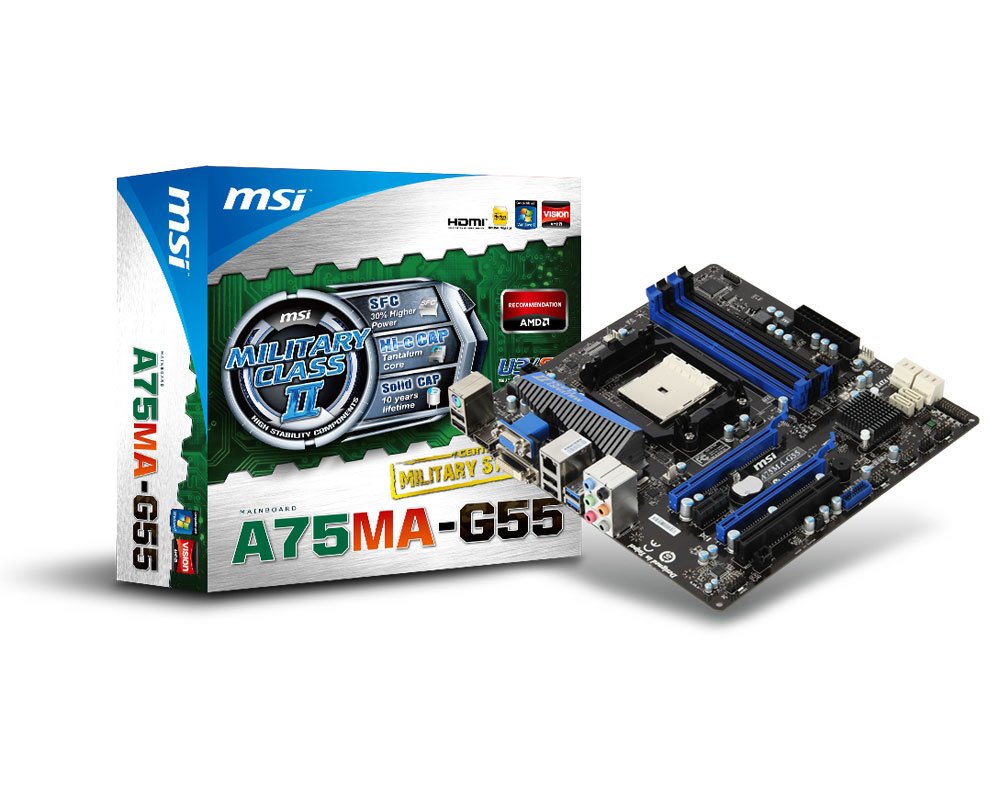

MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX
Model A75MA-G55EAN 816909087611
46 specifications
- Processor manufacturerAMD
- Number of memory slots4
- Maximum graphics card memory2048 MB
- USB 2.0 connectors2
- Ethernet interface typeFast Ethernet, Gigabit Ethernet
- Component forPC
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- Maximum graphics card memory
- 2048 MB
- USB 2.0 connectors
- 2
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- Component for
- PC
- Brand
- MSI
- Category
- Motherboard
- Model
- A75MA-G55
- Part numbers
- A75MA-G55, 601-7696-010, 7696-010R, 911-7696-004
- EAN / UPC
- 816909087611, 4719072228538
- Also known as
- MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX
Specifications
46 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 32 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 2048 MB |
| Parallel processing technology support | Hybrid CrossFireX |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |

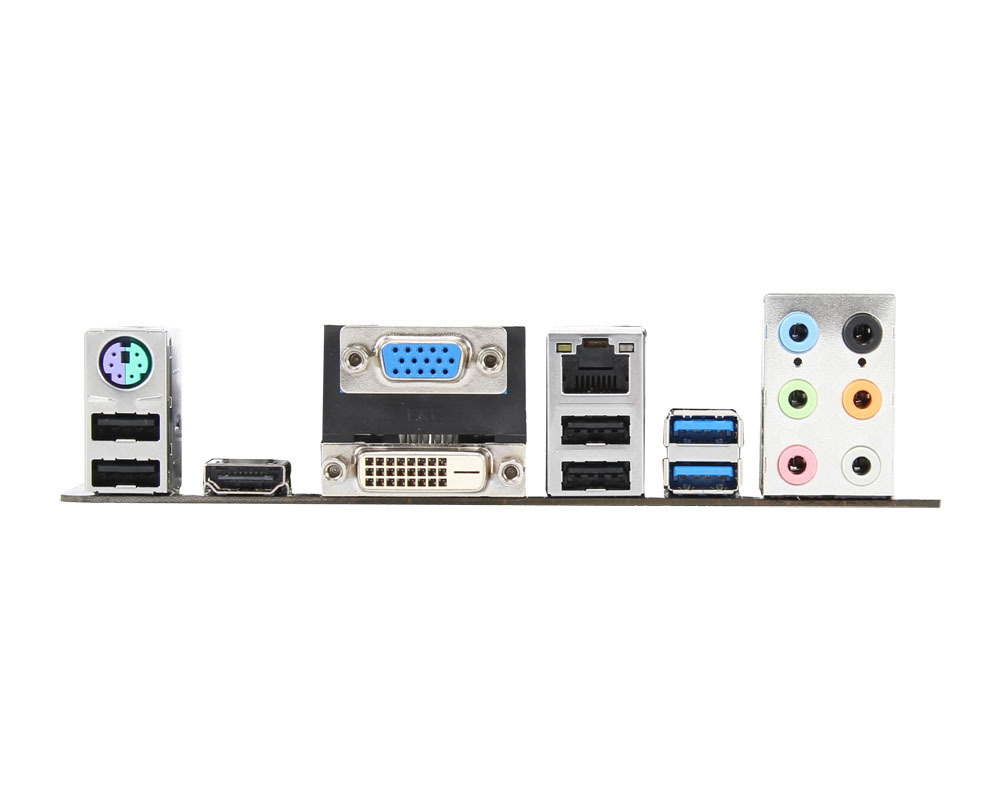

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD A75 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
What people say
Reviews & ratings
MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX
No reviews yet
Be the first to tell others how MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX
All motherboard comparisons- MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX vsMSI A75A-G35 AMD A75 Socket FM1 ATXCompare specs
- MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX vsMSI A75A-G55 AMD Hudson D3 Socket FM1 ATXCompare specs

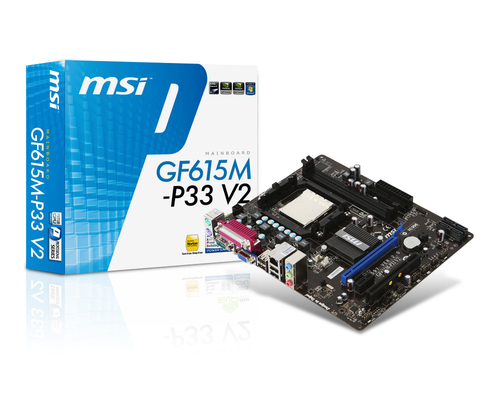

- MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX vsMSI GF615M-P33 V2Compare specs

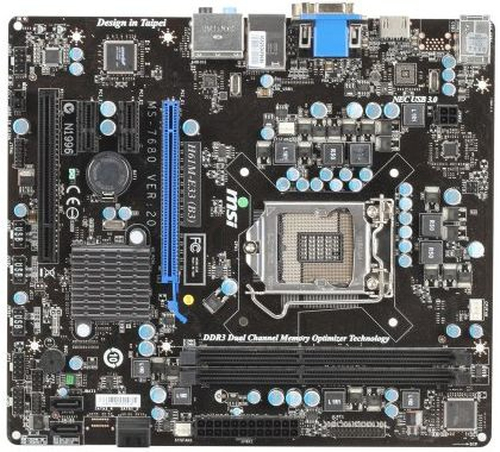

- MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX vsMSI H61M-E33 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
- MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX vsASUS M5A97 EVOCompare specs

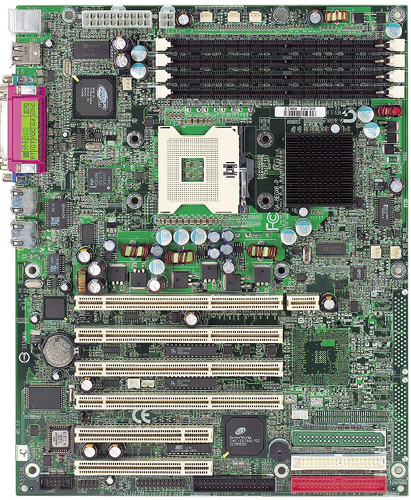

- MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX vsGIGABYTE GA-8EGXRP-EC motherboard Intel PM55 Socket 604 (mPGA604) ATXCompare specs

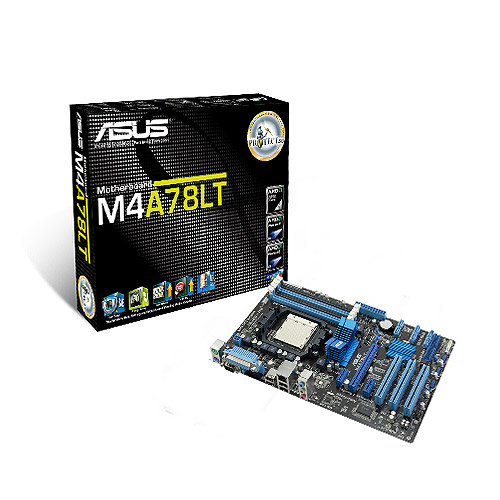

- MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX vsASUS M4A78LT motherboard AMDCompare specs

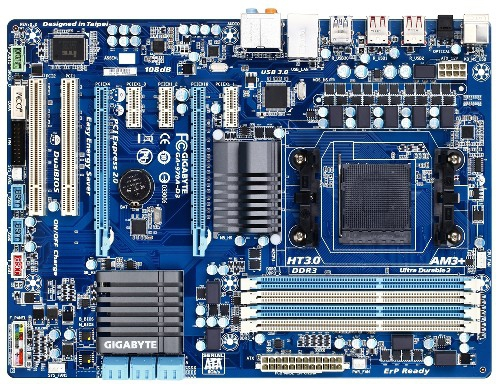

- MSI A75MA-G55 motherboard AMD A75 Socket FM1 micro ATX vsGIGABYTE GA-970A-D3 motherboard AMD 970 Socket AM3 ATXCompare specs
