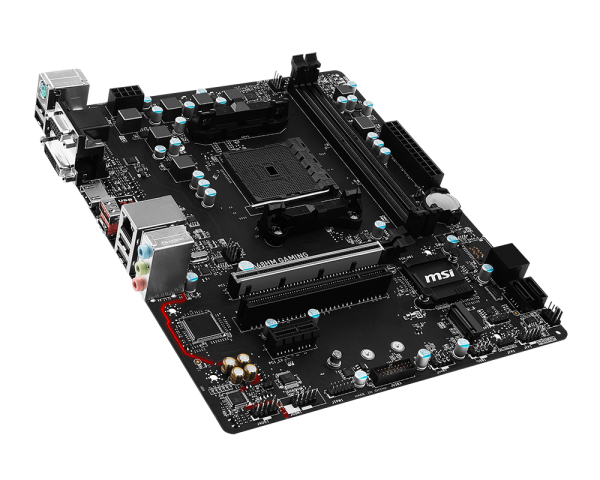

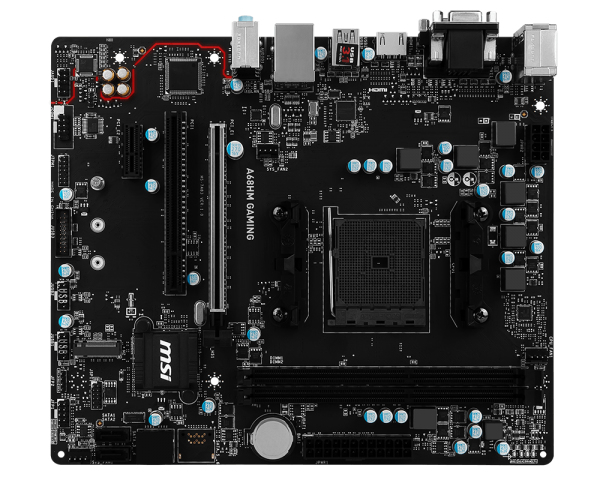

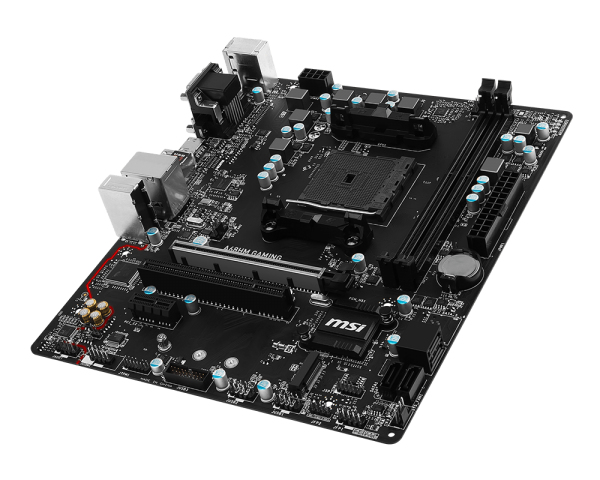

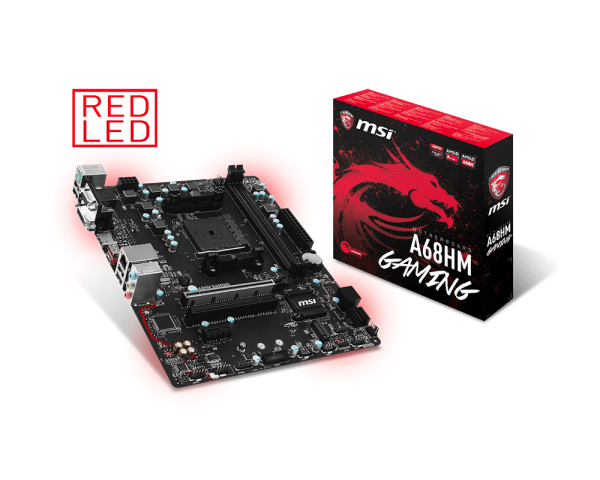

MSI A68HM GAMING

MSI A68HM GAMING

Model A68HM GAMINGEAN 4719072483234

62 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • RAID levels0, 1, 10
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
RAID levels
0, 1, 10
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
4
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
A68HM GAMING
Part numbers
A68HM GAMING, 7A83-001R
EAN / UPC
4719072483234
Also known as
MSI A68HM GAMING motherboard AMD A68H Socket FM2+ micro ATX

Specifications

62 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2+
Compatible processor seriesAMD A, AMD FX™
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866,2133,2400 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

RAID levels0, 1, 10

Graphics

Maximum resolution4096 x 2160 pixels
DirectX version12.0

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
USB 3.2 Gen 2 (3.1 Gen 2) connectors2
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)2
EPS power connector (8-pin)Yes
Serial port headers1

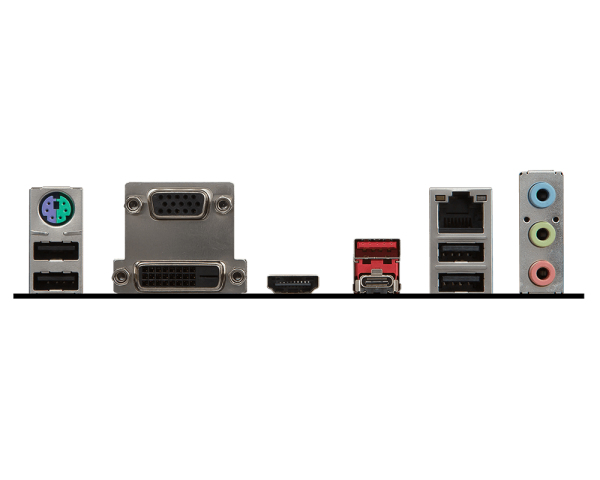

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs3

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A68H
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Trusted Platform Module (TPM)Yes

Weight & dimensions

Width205 mm
Depth244 mm
