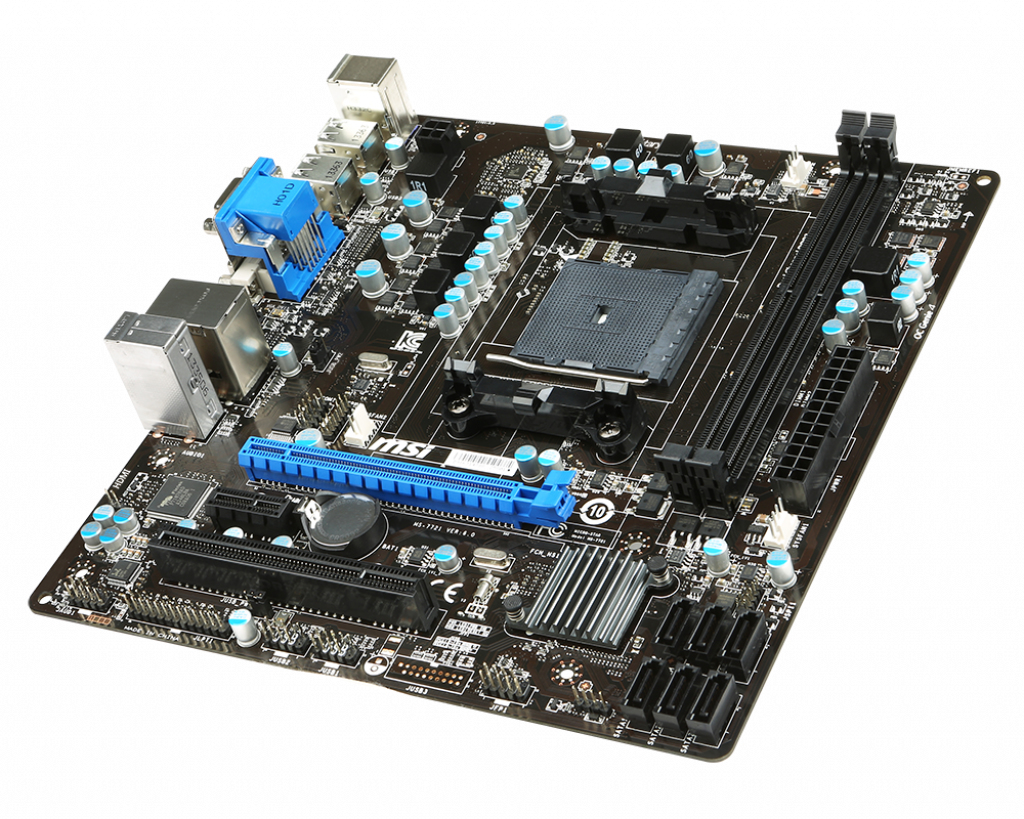

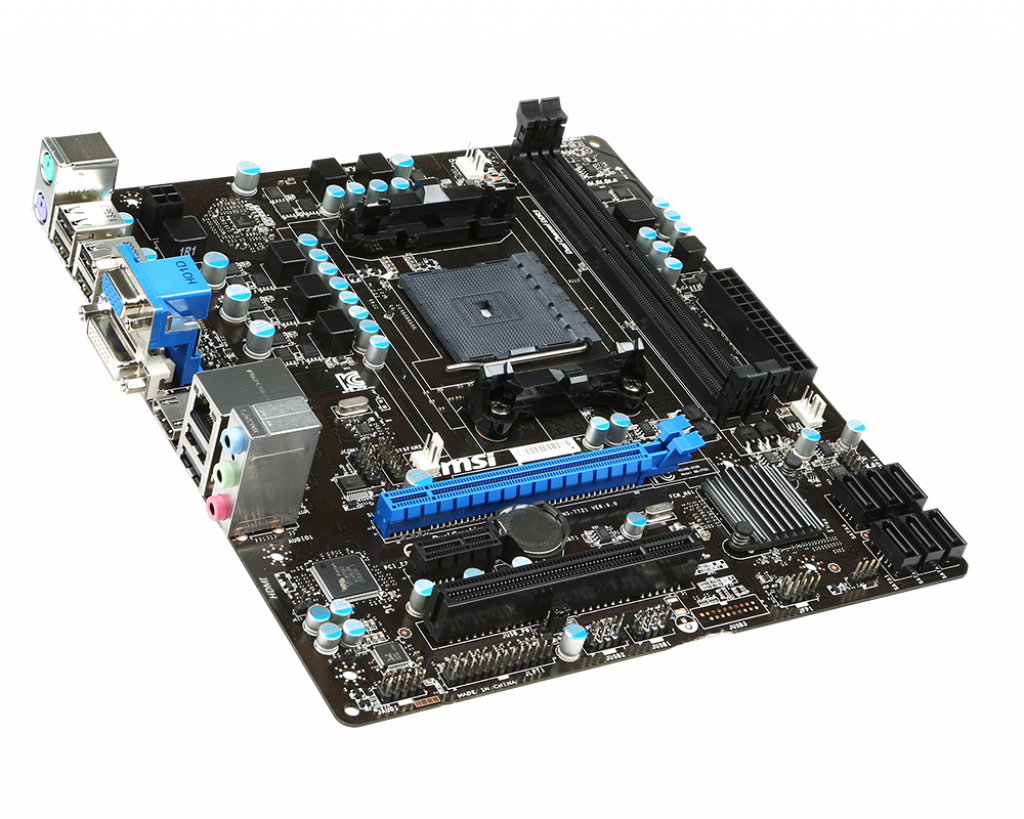

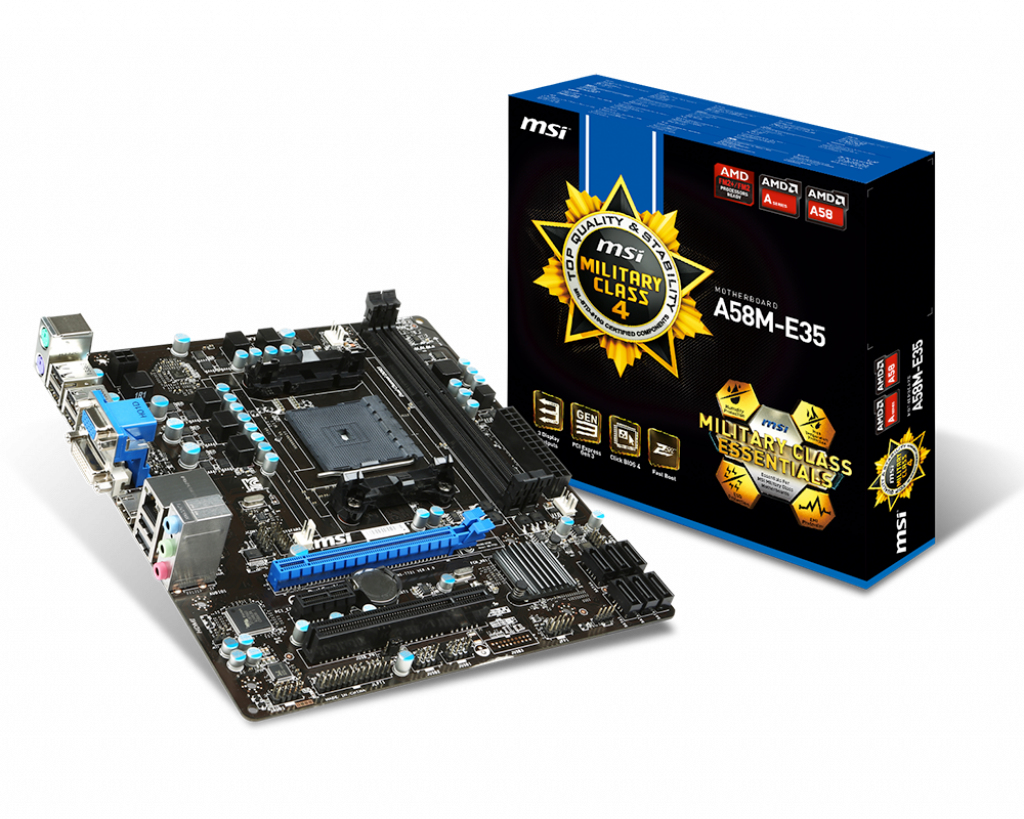

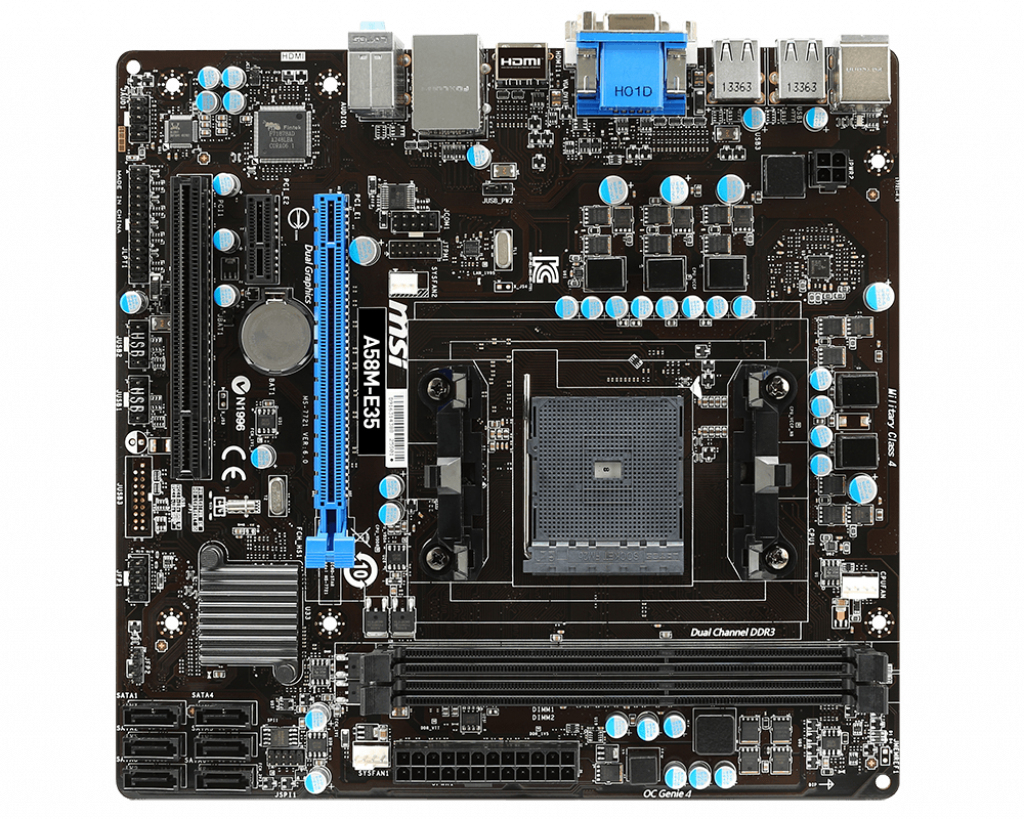

MSI A58M-E35 motherboard AMD A58 Socket FM2+ micro ATX

MSI A58M-E35 motherboard AMD A58 Socket FM2+ micro ATX

Model A58M-E35EAN 824142021620

47 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • RAID supportYes
  • DirectX version11.1
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
RAID support
Yes
DirectX version
11.1
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
A58M-E35
Part numbers
A58M-E35, 7721-084R
EAN / UPC
824142021620, 8241420216202, 4719072335984
Also known as
MSI A58M-E35 motherboard AMD A58 Socket FM2+ micro ATX

Specifications

47 specifications in 10 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2+
Compatible processor seriesAMD Athlon

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots3
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866,2133 MHz
Maximum internal memory32 GB

Storage controllers

RAID supportYes
RAID levels0, 1, 10

Graphics

DirectX version11.1
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
Number of SATA II connectors6
Audio connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Parallel connectorYes
Serial port headers1
TPM connectorYes

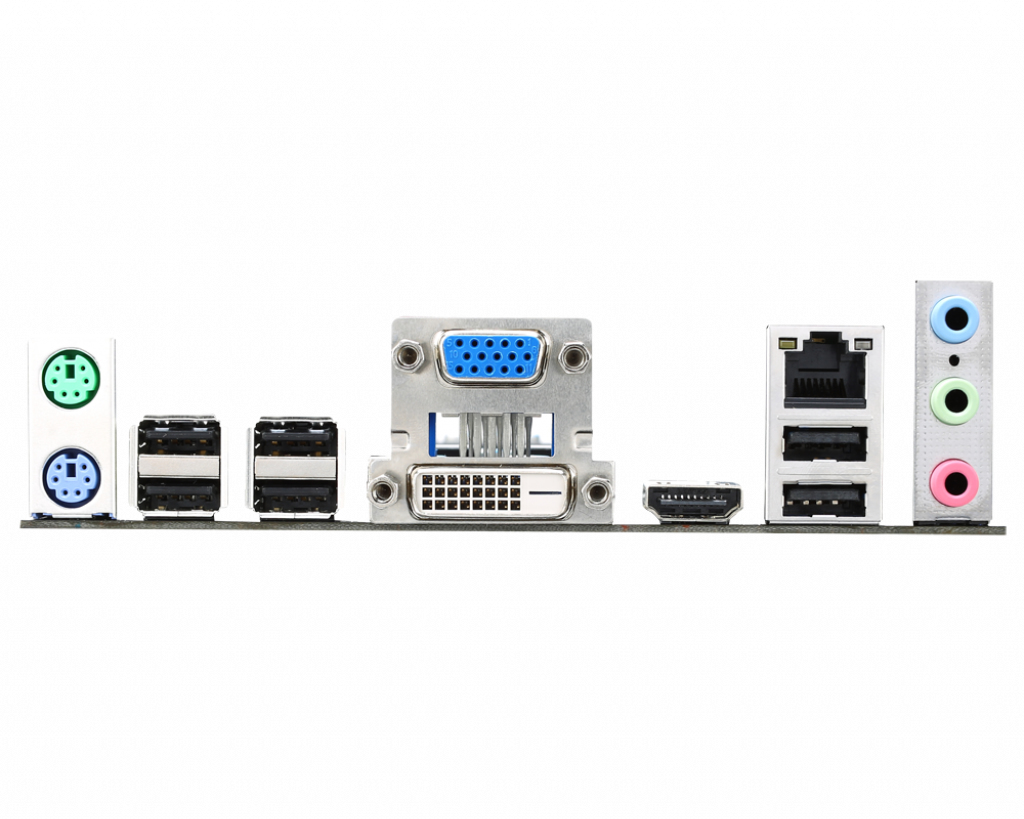

Rear panel I/O ports

USB 2.0 ports quantity6
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Digital audio optical out3

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A58
Audio chipRealtek ALC887
Audio output channels8 channels

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots1

BIOS

Clear CMOS jumperYes
