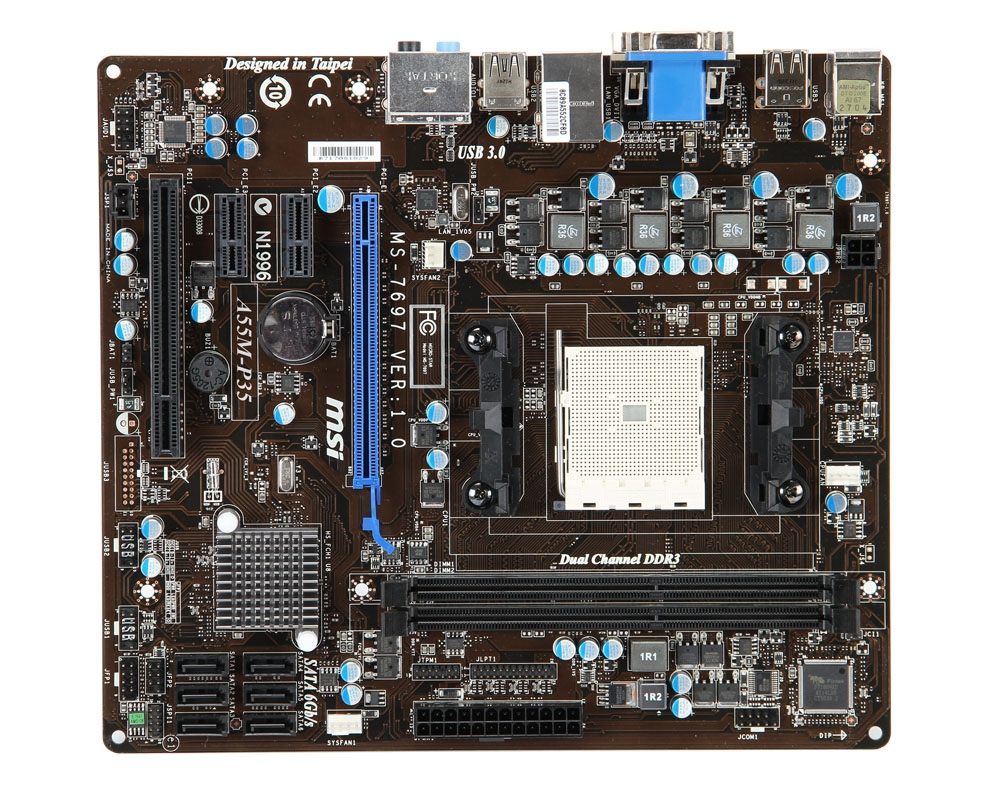

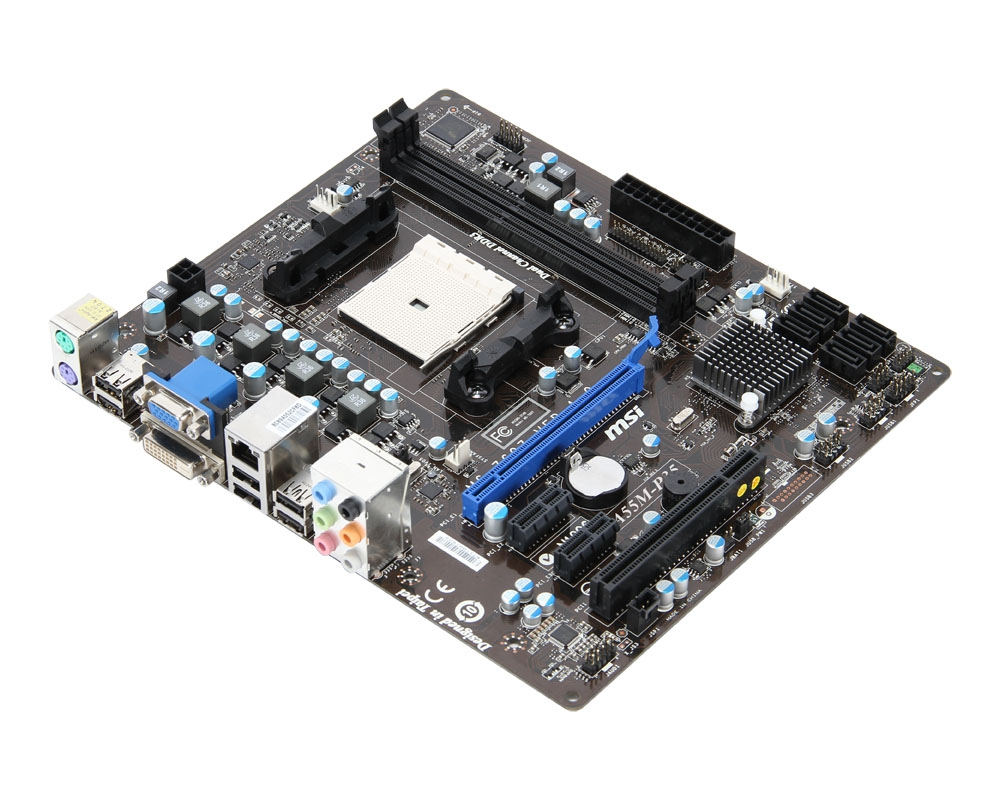

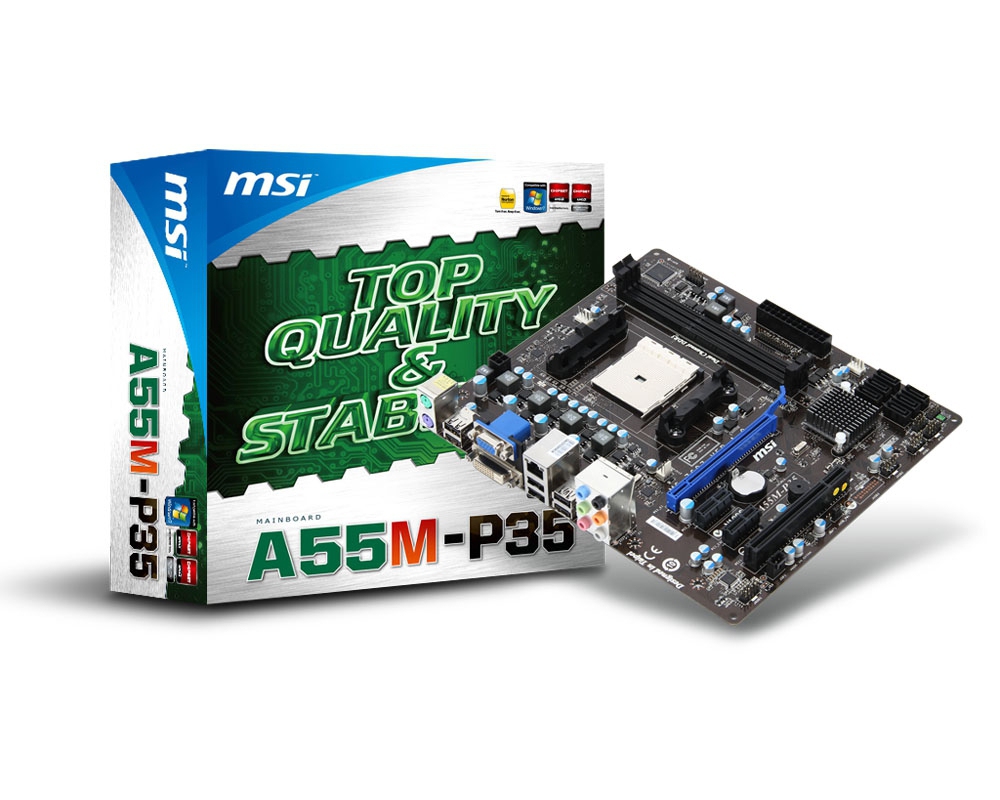

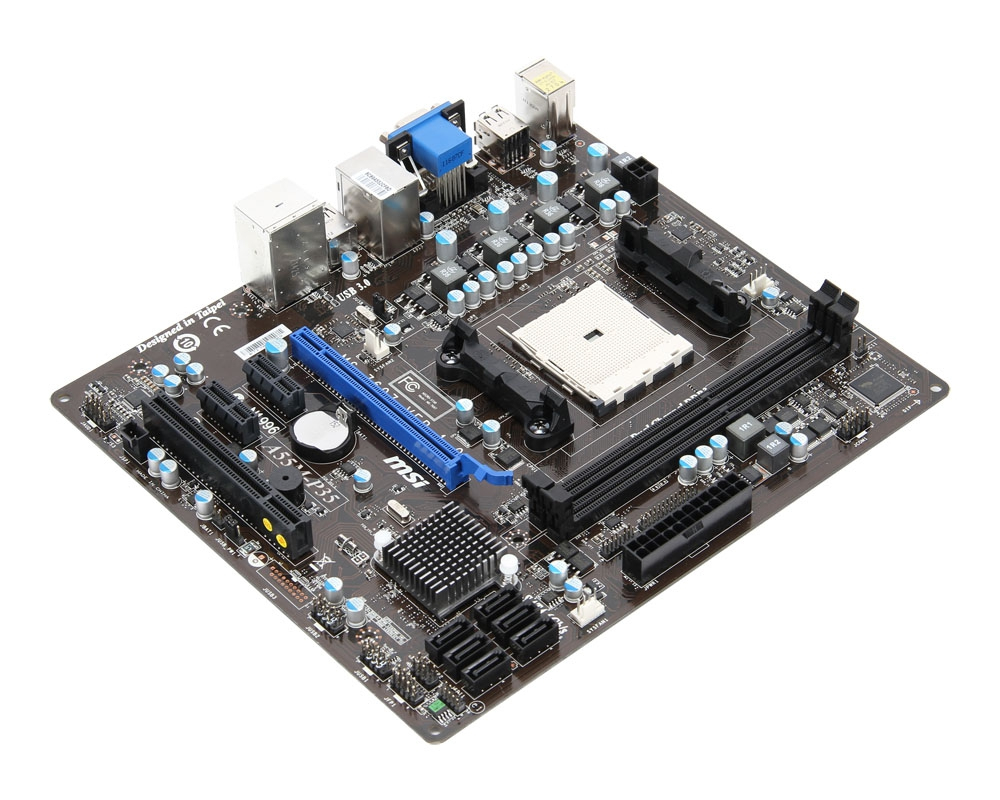

MSI A55M-P35 motherboard AMD A55 Socket FM1 micro ATX
Model A55M-P35EAN 816909090161
79 specifications
- Memory0 GB
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA, SATA II
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
Overview
- Memory
- 0 GB
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA, SATA II
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Brand
- MSI
- Category
- Motherboard
- Model
- A55M-P35
- Part numbers
- A55M-P35, 601-7697-010, 7695-030R, 911-7697-005
- EAN / UPC
- 816909090161, 4719072237943
- Also known as
- MSI A55M-P35 motherboard AMD A55 Socket FM1 micro ATX
Specifications
79 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM1 |
| Compatible processor series | AMD A |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Internal memory | 0 GB |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Maximum internal memory | 16 GB |
| Controller type | 1.5 |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA, SATA II |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA II connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 0 |
| Parallel connector | Yes |
| TPM connector | No |

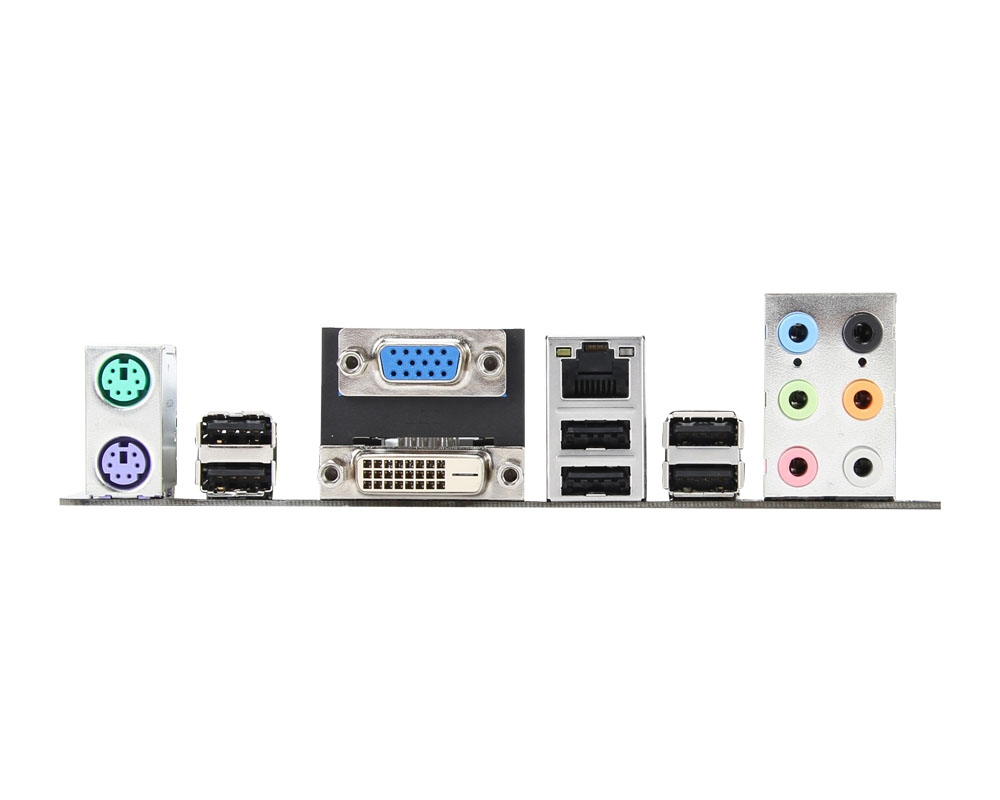

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Digital audio optical out | 0 |
| COM ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| WiFi-AP antenna jack | 0 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Bluetooth | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A55 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x16 slots | 1 |
| Mini PCI Express slots | 0 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
| PCI-X slots | 0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 215 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | No |
| Controller interface type | SATA |
| AGP x4 slots | 0 |
| AGP x8 slots | 0 |
| Audio Modem Rise (AMR) slot | No |
| Azalia Digital Header (ADH) connector | No |
| CF card connector | No |
| CNR slot | No |
| Dual Power System (DPS) slot | No |
| IPMI 2.0 slot | No |
