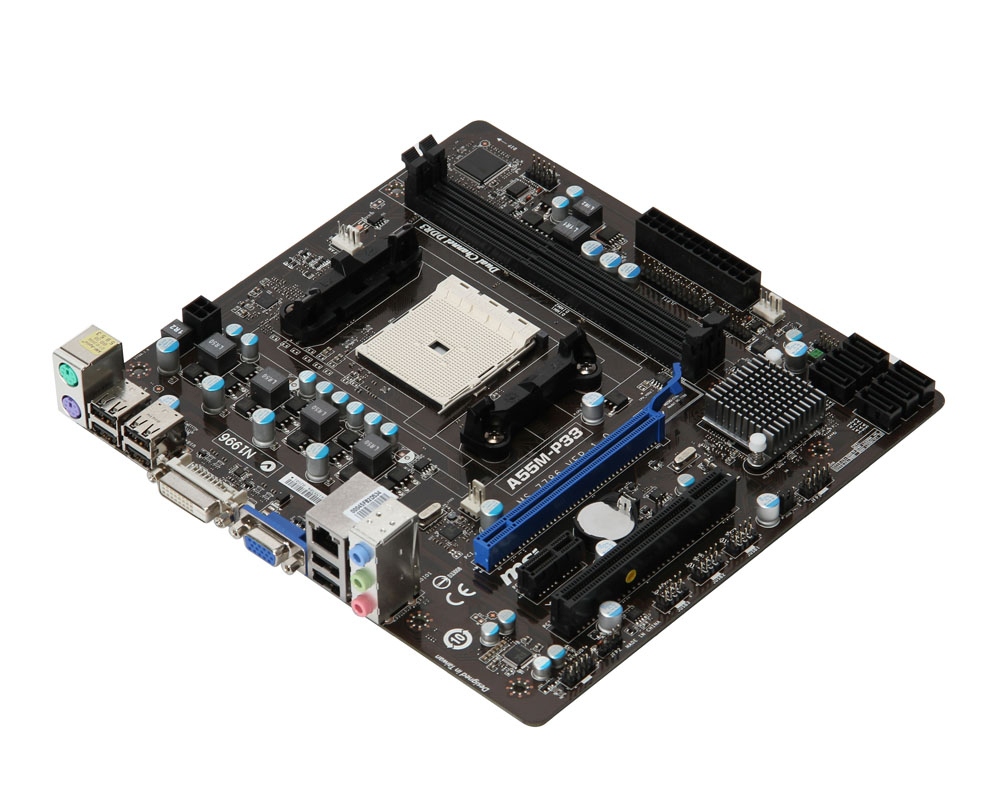

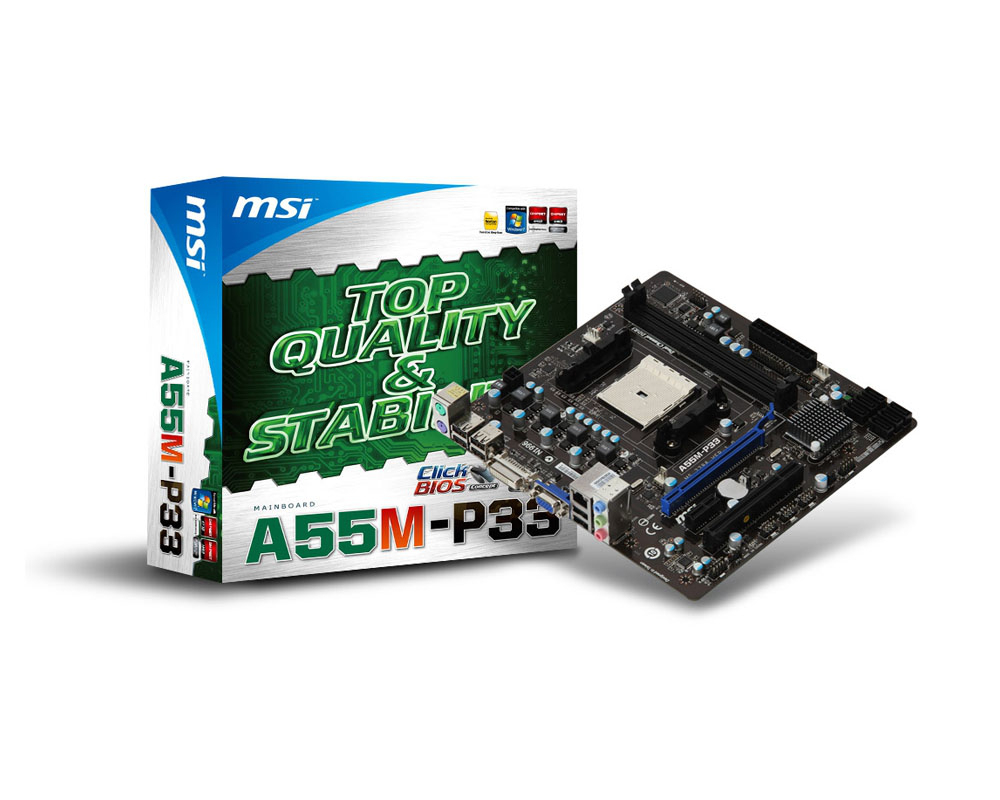

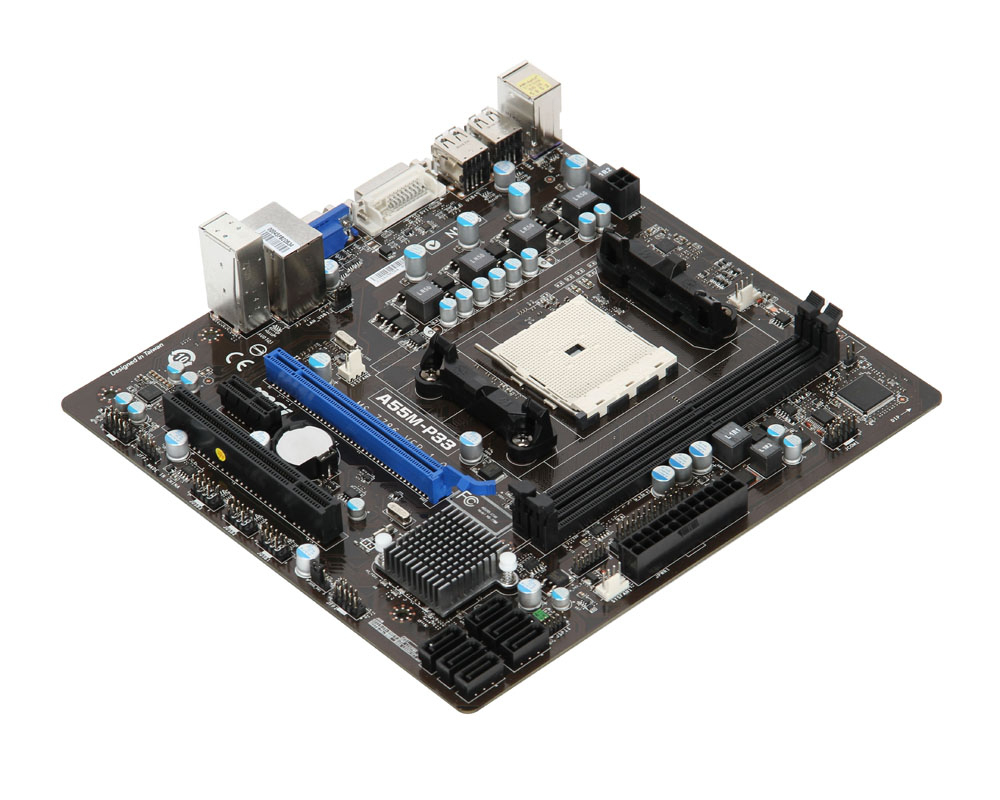

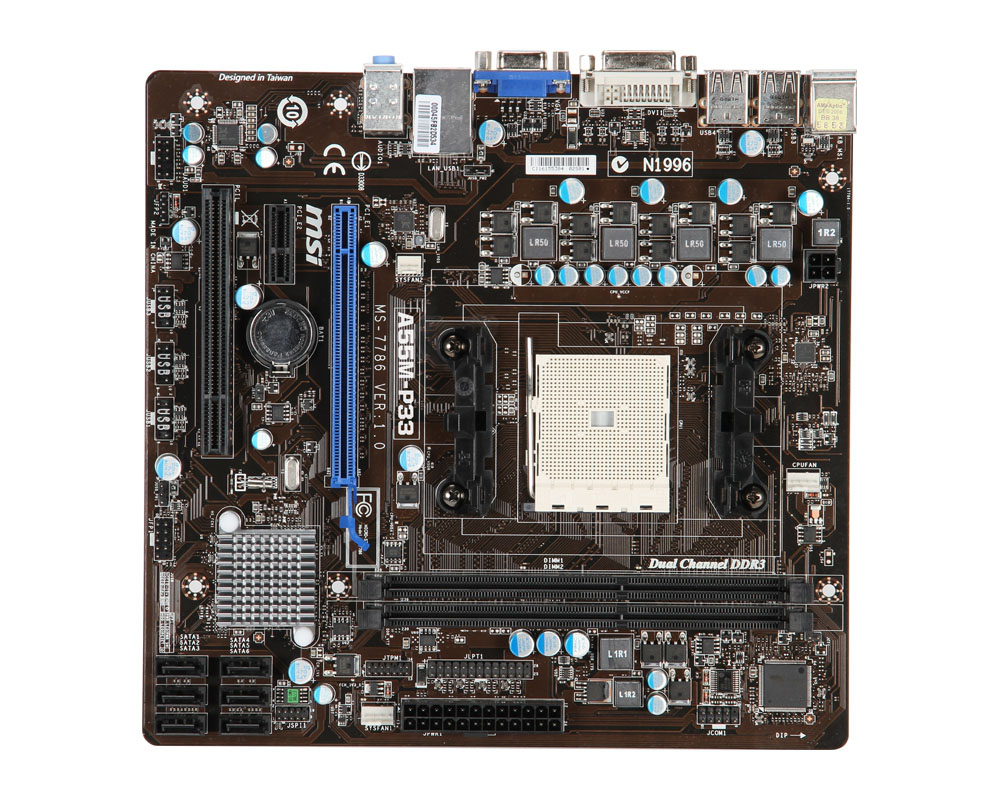

MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX
Model A55M-P33EAN 637282927611
52 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA, SATA II
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA, SATA II
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Brand
- MSI
- Category
- Motherboard
- Model
- A55M-P33
- Part number
- A55M-P33
- EAN / UPC
- 637282927611, 816909095418, 4719072256517, 8169090954180
- Also known as
- MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX
Specifications
52 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM1 |
| Compatible processor series | AMD A, AMD E |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 16 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA, SATA II |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | AMD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA II connectors | 6 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Parallel connector | Yes |

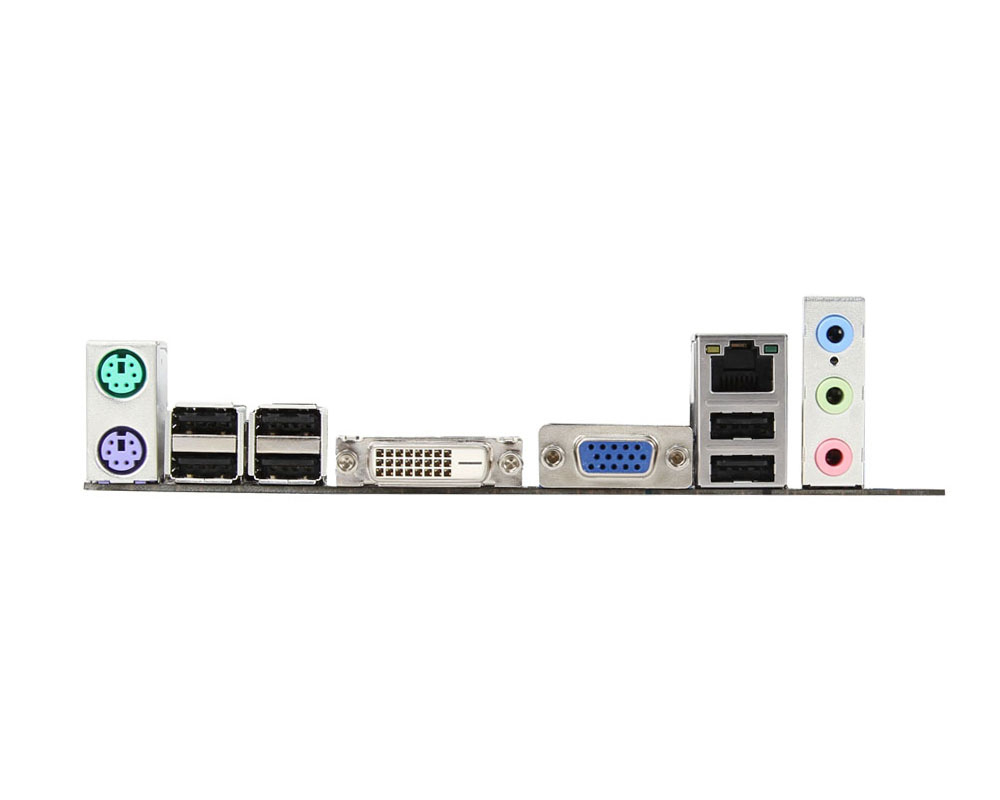

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A55 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
| Overclocking features | OC Genie II |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 226 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
What people say
Reviews & ratings
MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX
No reviews yet
Be the first to tell others how MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX

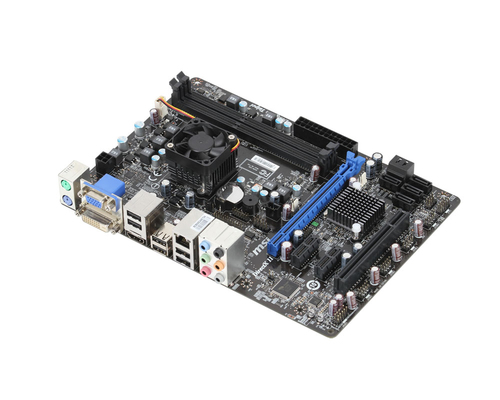

All motherboard comparisons- MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX vsMSI E350DM-E33 AMD Hudson D1 NA (integrated CPU) micro ATXCompare specs

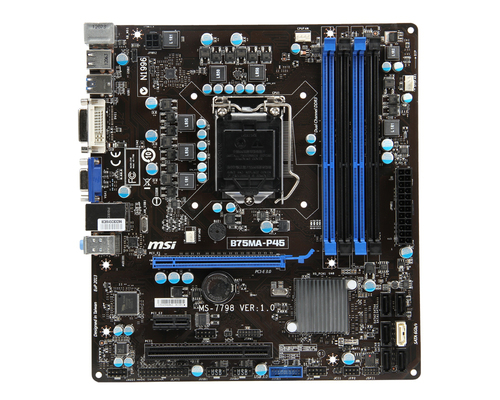

- MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX vsMSI B75MA-P45 Intel B75 LGA 1155 (Socket H2) micro ATXCompare specs
- MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX vsMSI Z77A-GD80 motherboard LGA 1155 (Socket H2) ATXCompare specs
- MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX vsMSI ZH77A-G43 motherboard LGA 1155 (Socket H2) ATXCompare specs
- MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX vsASUS P8H77-I Intel H77 LGA 1155 (Socket H2) mini ITXCompare specs

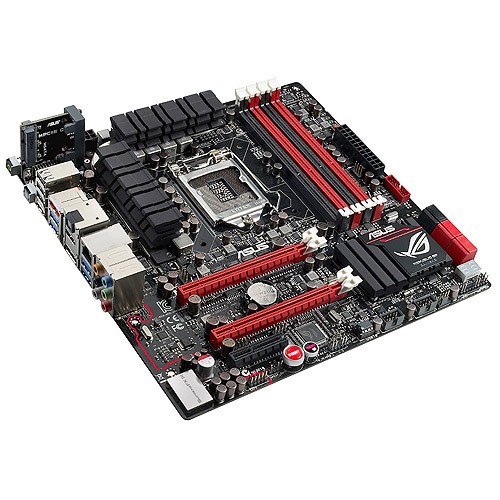

- MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX vsASUS Maximus V GENECompare specs

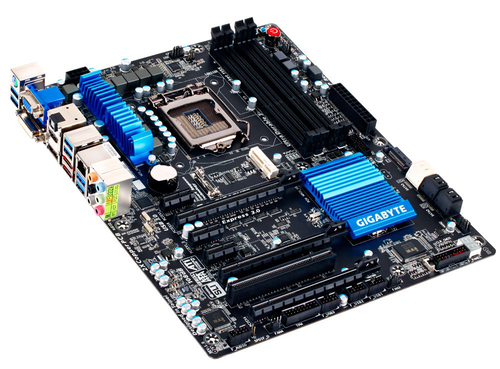

- MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX vsGIGABYTE GA-Z77X-UD3H motherboard Intel Z77 LGA 1155 (Socket H2) ATXCompare specs

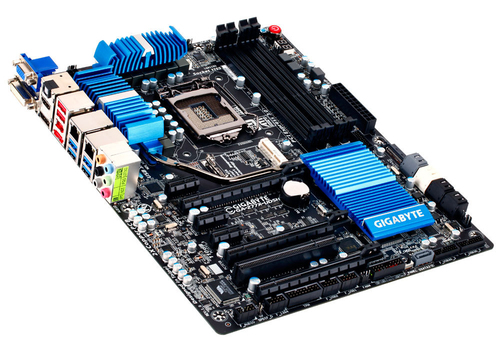

- MSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATX vsGIGABYTE GA-Z77X-UD5H motherboard LGA 1155 (Socket H2) ATXCompare specs
