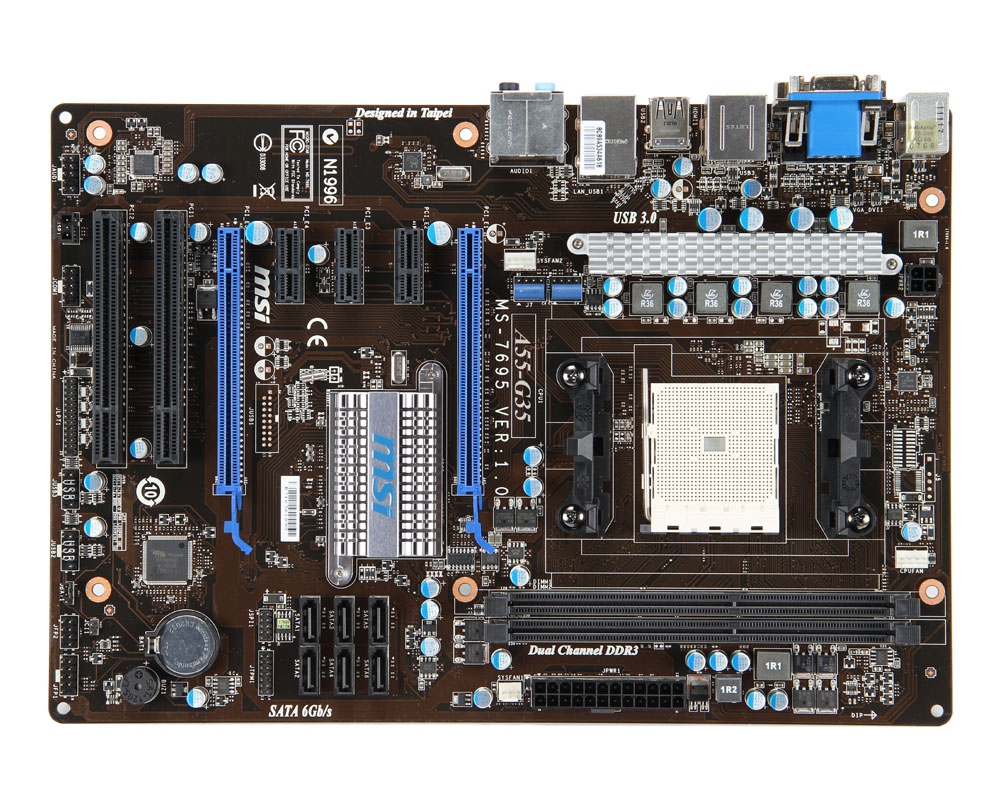

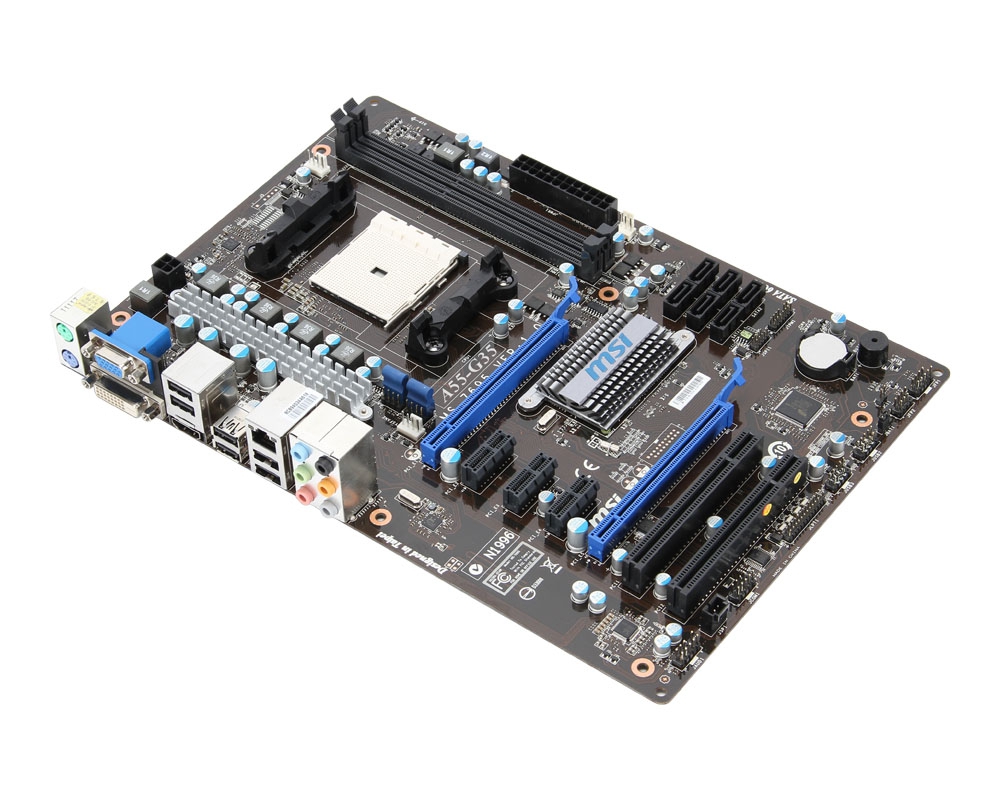

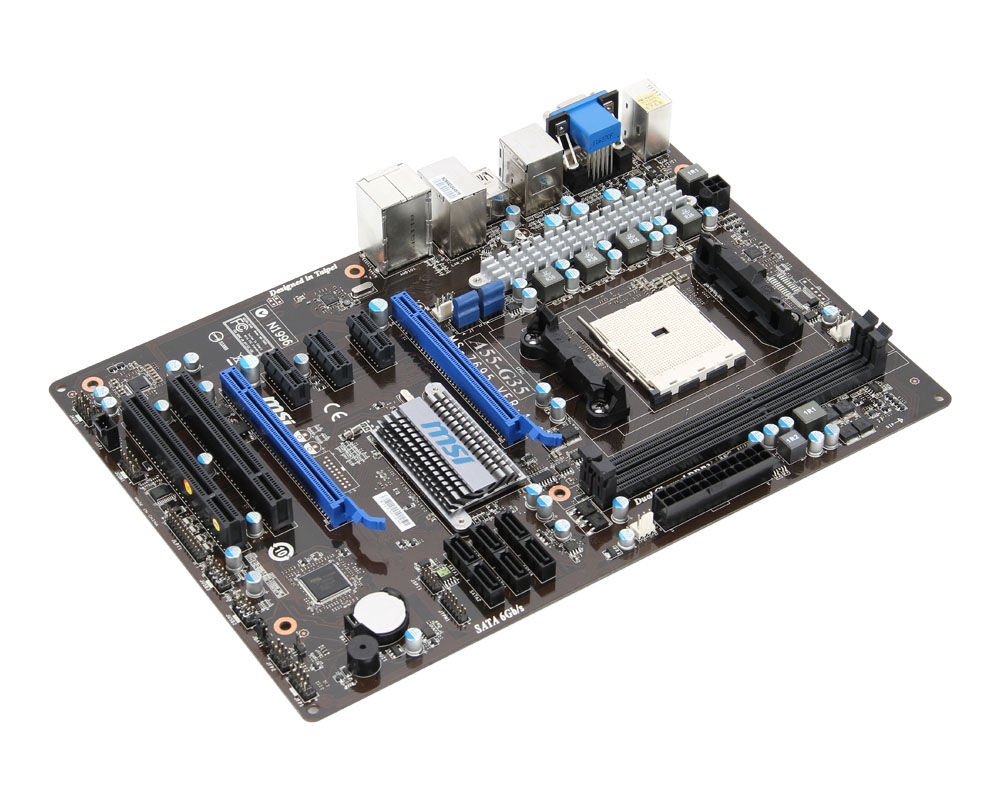

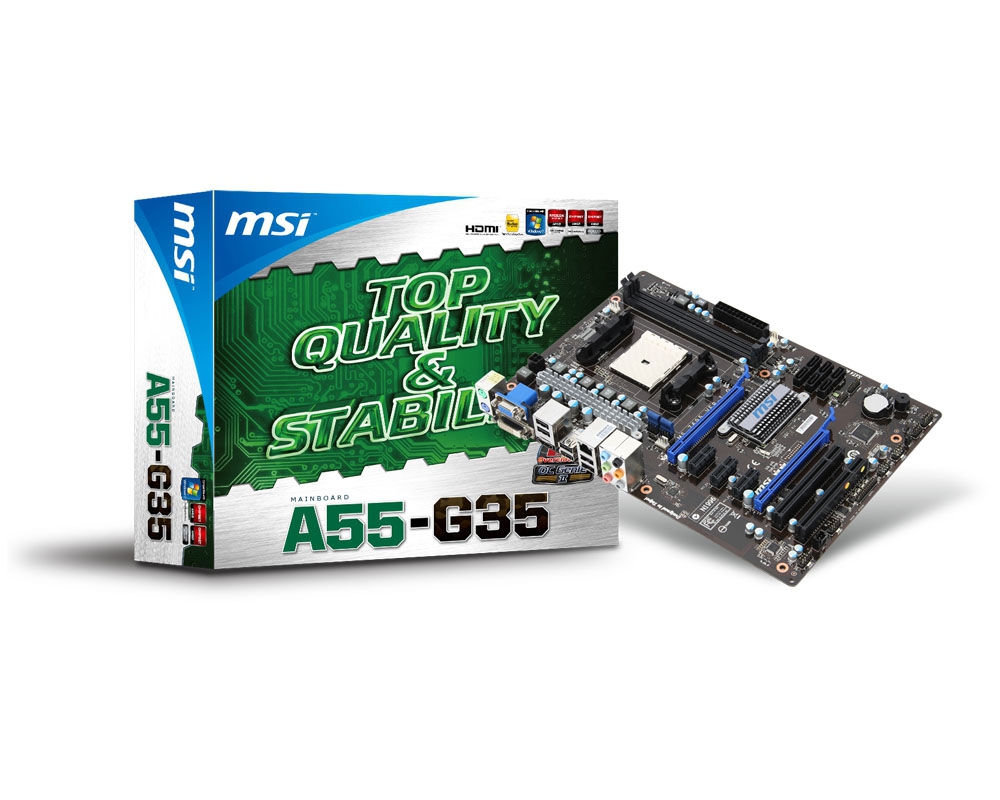

MSI A55-G35 motherboard AMD A55 Socket FM1 ATX
Model A55-G35EAN 4719072240202
52 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- Maximum graphics card memory2048 MB
- USB 2.0 connectors2
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- Maximum graphics card memory
- 2048 MB
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- Brand
- MSI
- Category
- Motherboard
- Model
- A55-G35
- Part number
- A55-G35
- EAN / UPC
- 4719072240202
- Also known as
- MSI A55-G35 motherboard AMD A55 Socket FM1 ATX
Specifications
52 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM1 |
| Compatible processor series | AMD Athlon II X2, AMD Athlon II X4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 2048 MB |
| Parallel processing technology support | Hybrid CrossFireX |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA II connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Parallel connector | Yes |

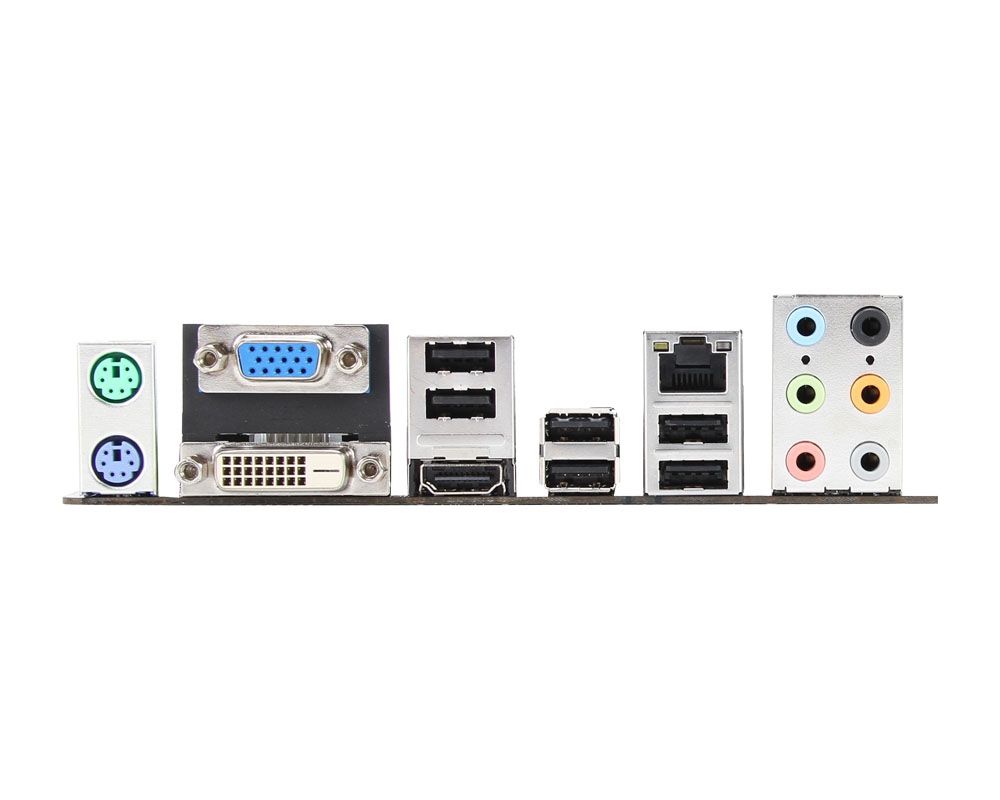

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A55 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Controller interface type | AMD A55 |
What people say
Reviews & ratings
MSI A55-G35 motherboard AMD A55 Socket FM1 ATX
No reviews yet
Be the first to tell others how MSI A55-G35 motherboard AMD A55 Socket FM1 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI A55-G35 motherboard AMD A55 Socket FM1 ATX
All motherboard comparisons- MSI A55-G35 motherboard AMD A55 Socket FM1 ATX vsMSI H61M-P22 (B3)Compare specs

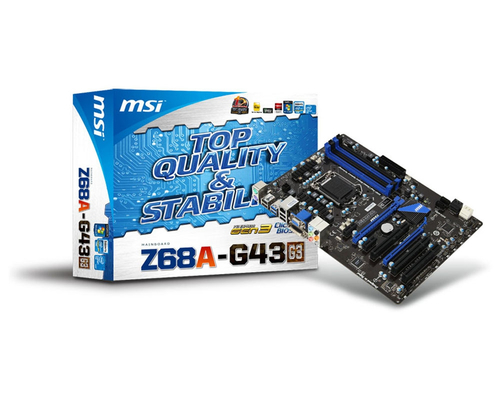

- MSI A55-G35 motherboard AMD A55 Socket FM1 ATX vsMSI Z68A-G43 (G3)Compare specs
- MSI A55-G35 motherboard AMD A55 Socket FM1 ATX vsMSI 990XA-GD55 AMD 990X Socket AM3 ATXCompare specs
- MSI A55-G35 motherboard AMD A55 Socket FM1 ATX vsMSI A55-G45 AMD A55 Socket FM1 ATXCompare specs

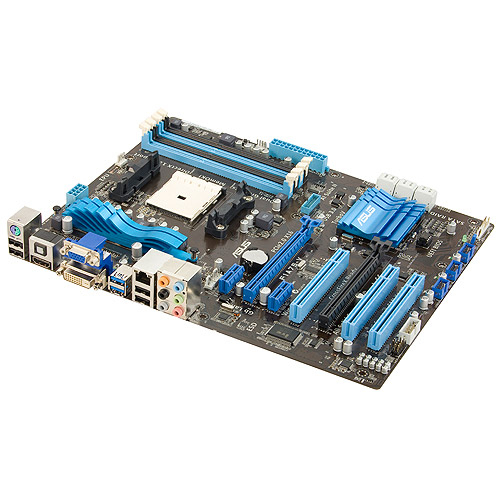

- MSI A55-G35 motherboard AMD A55 Socket FM1 ATX vsASUS F1A75-V FM1Compare specs

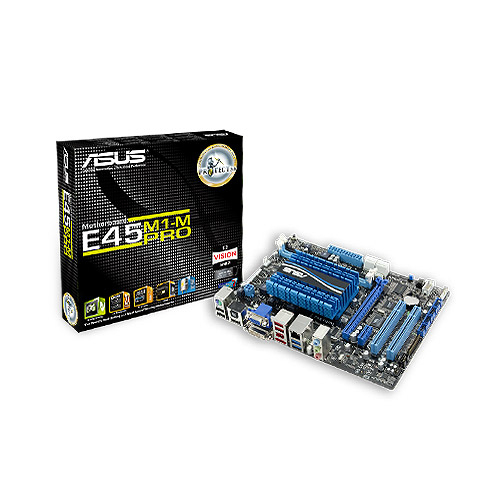

- MSI A55-G35 motherboard AMD A55 Socket FM1 ATX vsASUS E45M1-M PROCompare specs

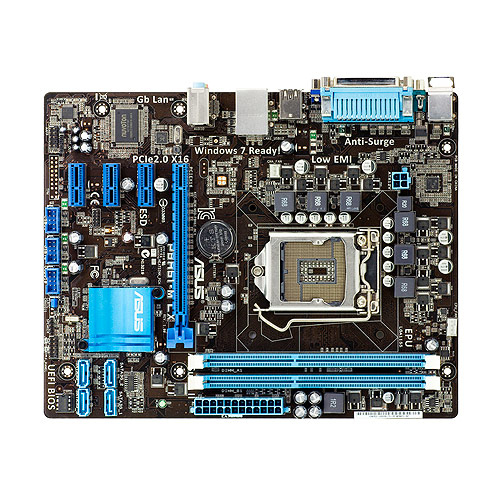

- MSI A55-G35 motherboard AMD A55 Socket FM1 ATX vsASUS P8H61-M LXCompare specs
