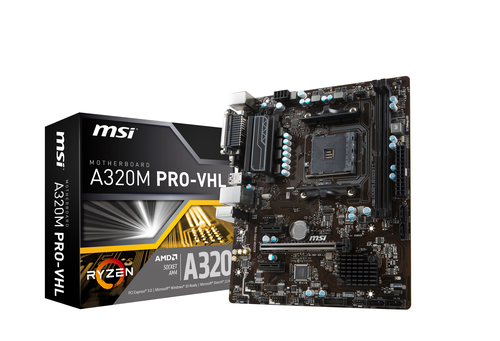

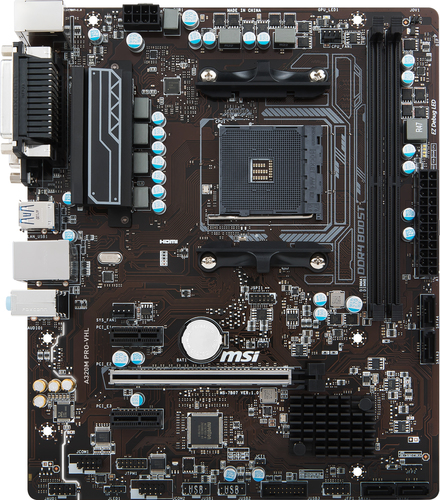

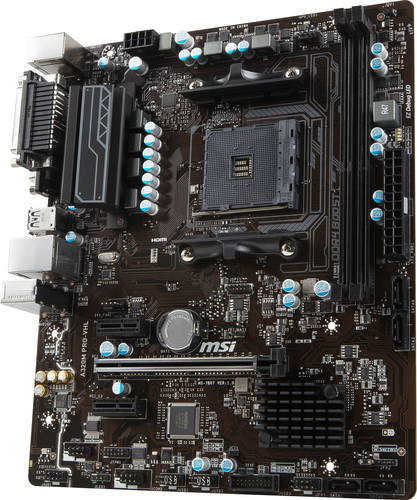

MSI A320M PRO-VHL

MSI A320M PRO-VHL

Model A320M PRO-VHLEAN 824142149065

60 specifications
  • Memory32 GB
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Memory
32 GB
Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
A320M PRO-VHL
Part number
A320M PRO-VHL
EAN / UPC
824142149065
Also known as
MSI A320M PRO-VHL motherboard AMD A320 Socket AM4 micro ATX

Specifications

60 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Internal memory32 GB
Supported memory clock speeds1866,2133,2400,2667,2933,3200 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive typesHDD & SSD
RAID levels0, 1, 10

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

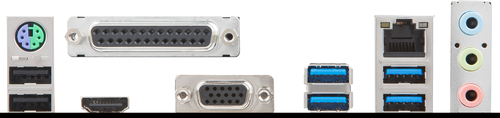

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A320
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes

Weight & dimensions

Width236 mm
Depth187 mm

Other features

Serial port via internal headerYes
