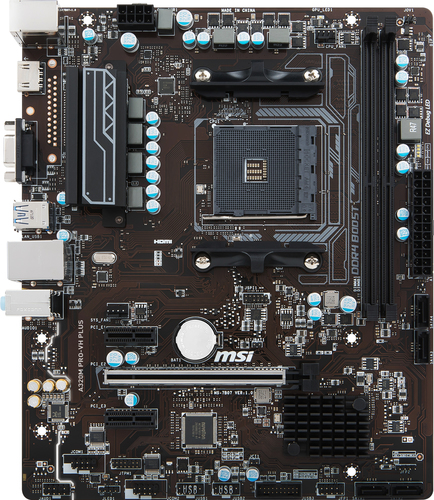

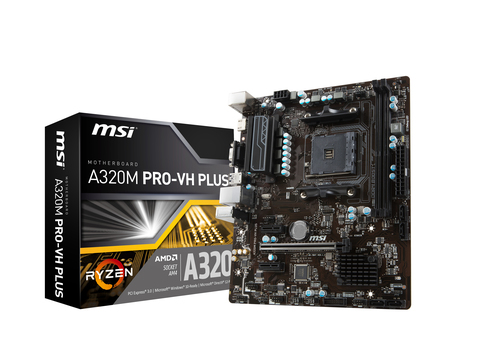

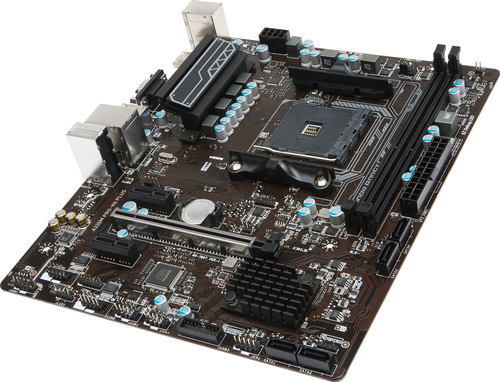

MSI A320M PRO-VH PLUS

MSI A320M PRO-VH PLUS

Model A320M PRO-VH PLUSEAN 824142149072

69 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
A320M PRO-VH PLUS
Part number
A320M PRO-VH PLUS
EAN / UPC
824142149072, 4719072527433
Also known as
MSI A320M PRO-VH PLUS motherboard AMD A320 Socket AM4 micro ATX

Specifications

69 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1866,2133,2400,2667,2933,3200 MHz
Supported memory clock speed (max)3200 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID supportYes
RAID levels0, 1, 10

Graphics

Maximum resolution4096 x 2160 pixels
DirectX version12.0

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers2
TPM connectorYes

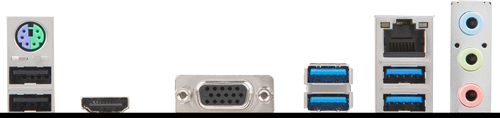

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A320
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Linux operating systems supportedYes
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes

Weight & dimensions

Width236 mm
Depth187 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Quick installation guideYes
Serial port via internal headerYes
Utilities includedYes
