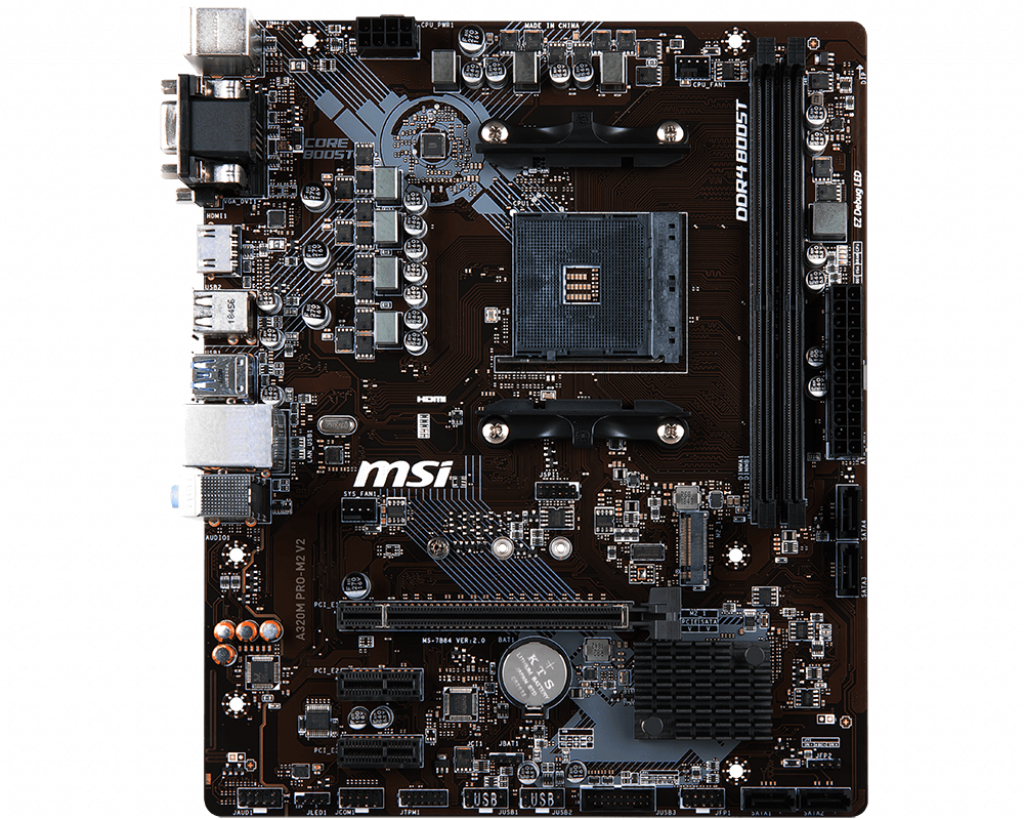

MSI A320M PRO-M2 V2

MSI A320M PRO-M2 V2

Model A320M PRO-M2 V2Part no. 4719072611453EAN 4719072611453

60 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
MSI
Category
Motherboard
Model
A320M PRO-M2 V2
Part numbers
4719072611453, A320M PRO-M2 V2, 7B84-013R
EAN / UPC
4719072611453, 6821442176344
Also known as
MSI A320M PRO-M2 V2 AMD A320 Socket AM4 mini ATX

Specifications

60 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1866,2133,2400,2667,2933,3200 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Total number of SATA connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
RGB LED pin headerYes

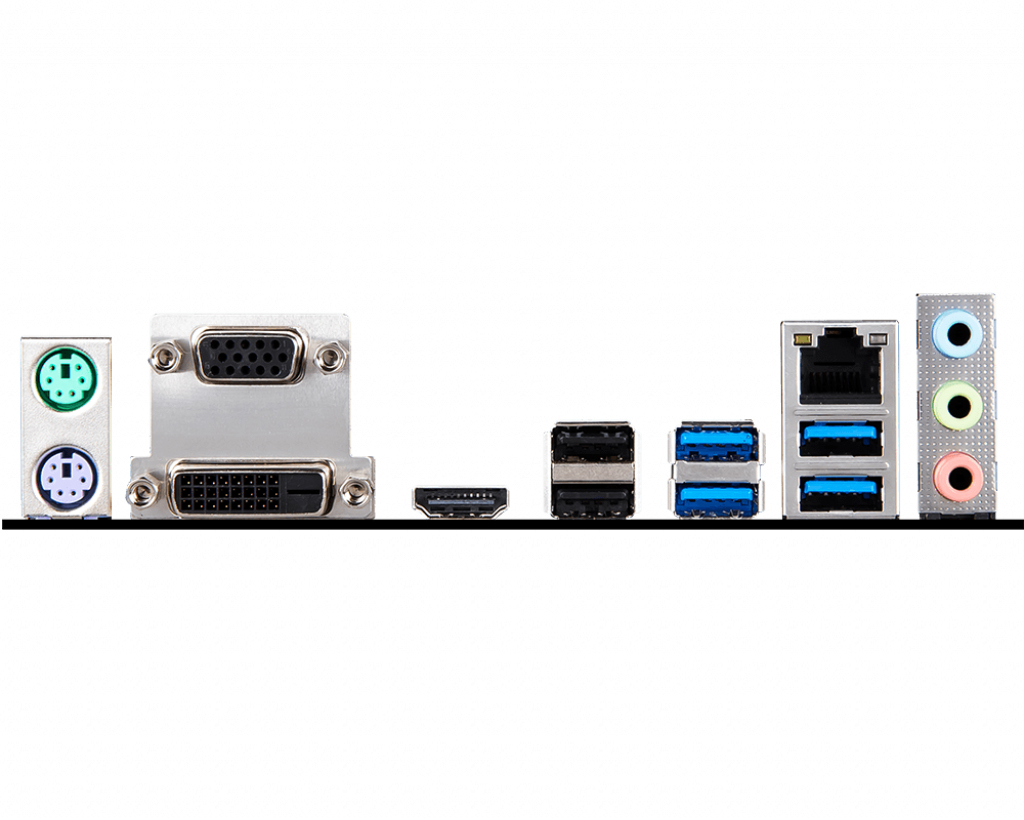

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek 8111H

Features

Component forPC
Motherboard form factormini ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A320
Audio output channels7.1 channels
Number of mounting holes9
Windows operating systems supportedWindows 10 x64, Windows 7 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth206 mm

Packaging content

Cables includedPCIe
Drivers includedYes

Other features

Quick installation guideYes
Utilities includedYes
