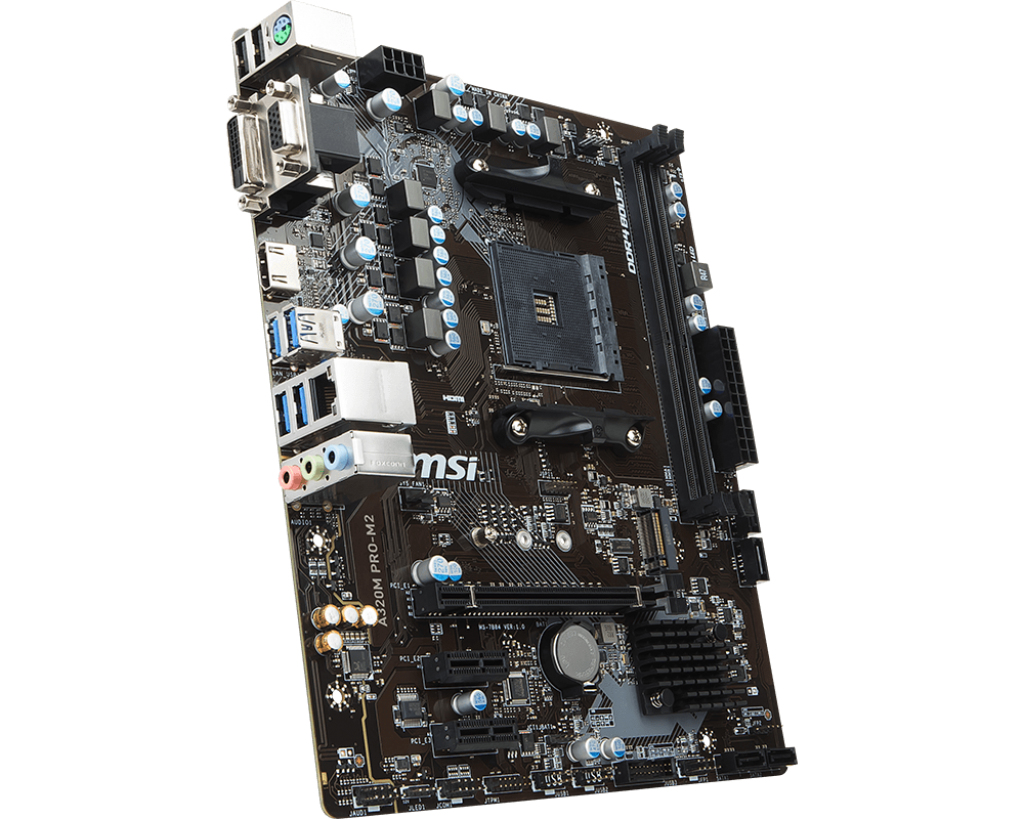

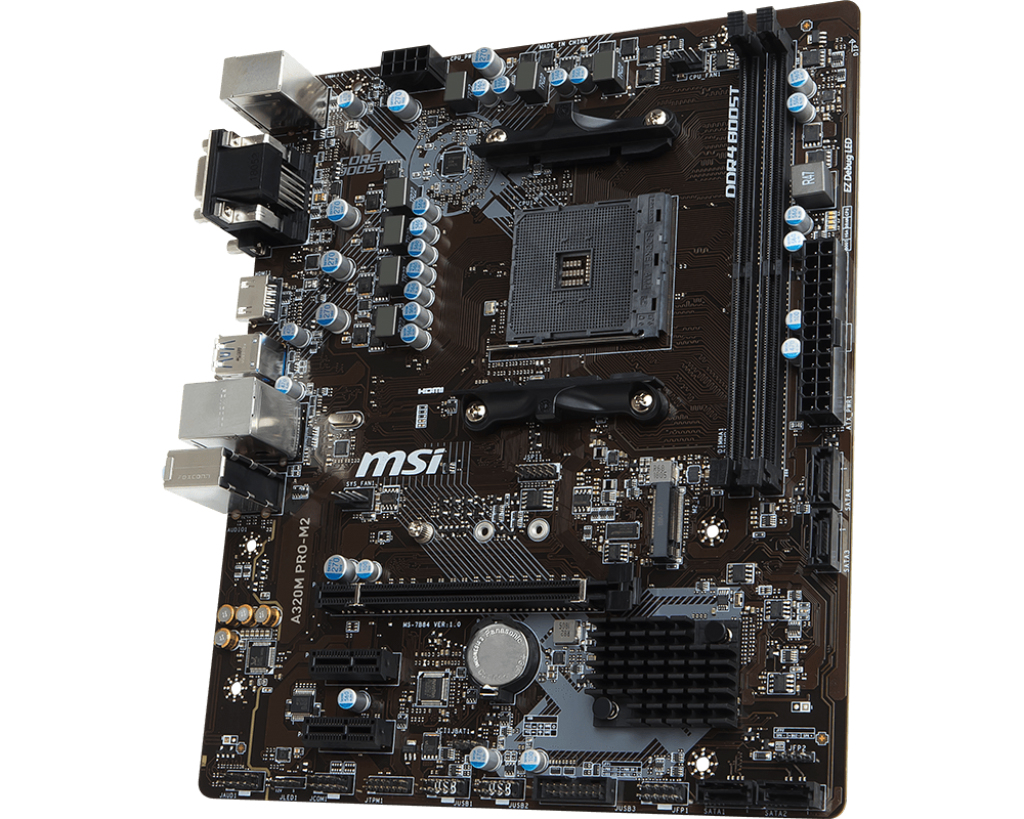

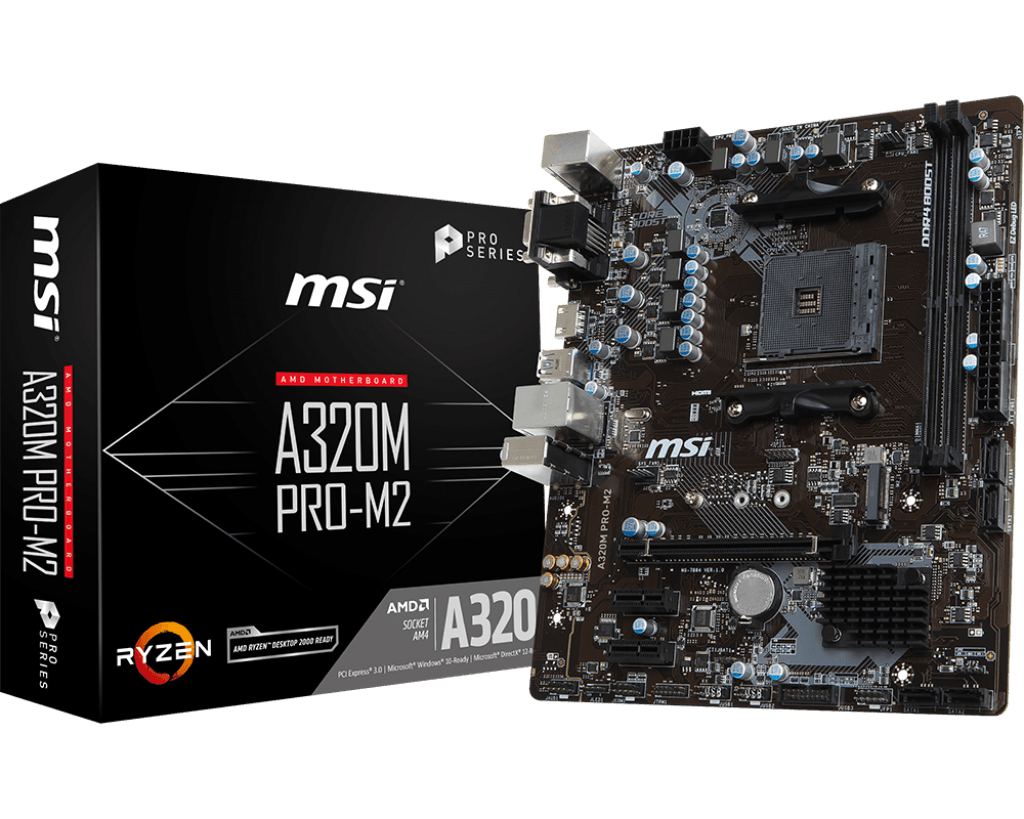

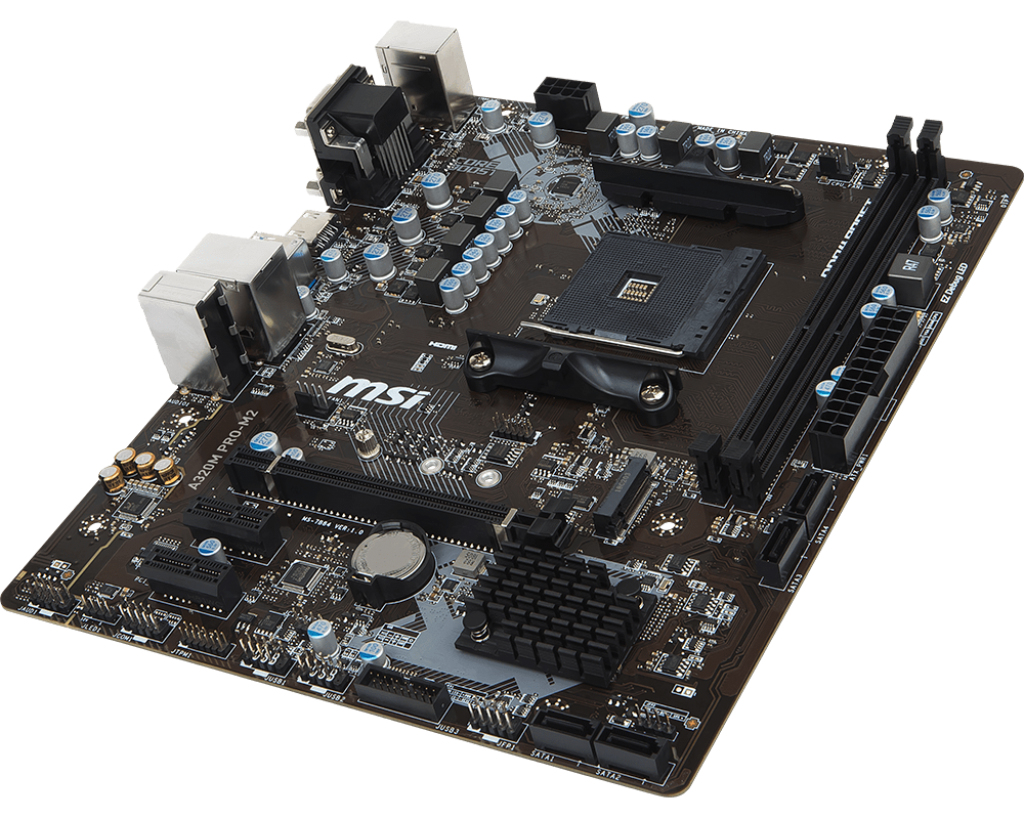

MSI A320M PRO-M2

MSI A320M PRO-M2

Model A320M PRO-M2Part no. 7B84-001REAN 824142166031

67 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
MSI
Category
Motherboard
Model
A320M PRO-M2
Part numbers
7B84-001R, A320M PRO-M2, 911-7B84-001
EAN / UPC
824142166031, 4719072581619
Also known as
MSI A320M PRO-M2 AMD A320 Socket AM4 micro ATX

Specifications

67 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1866,2133,2400,2667,2933,3200 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

RAID levels0, 1, 10

Graphics

Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
12V power connectorYes
Serial port headers1
TPM connectorYes

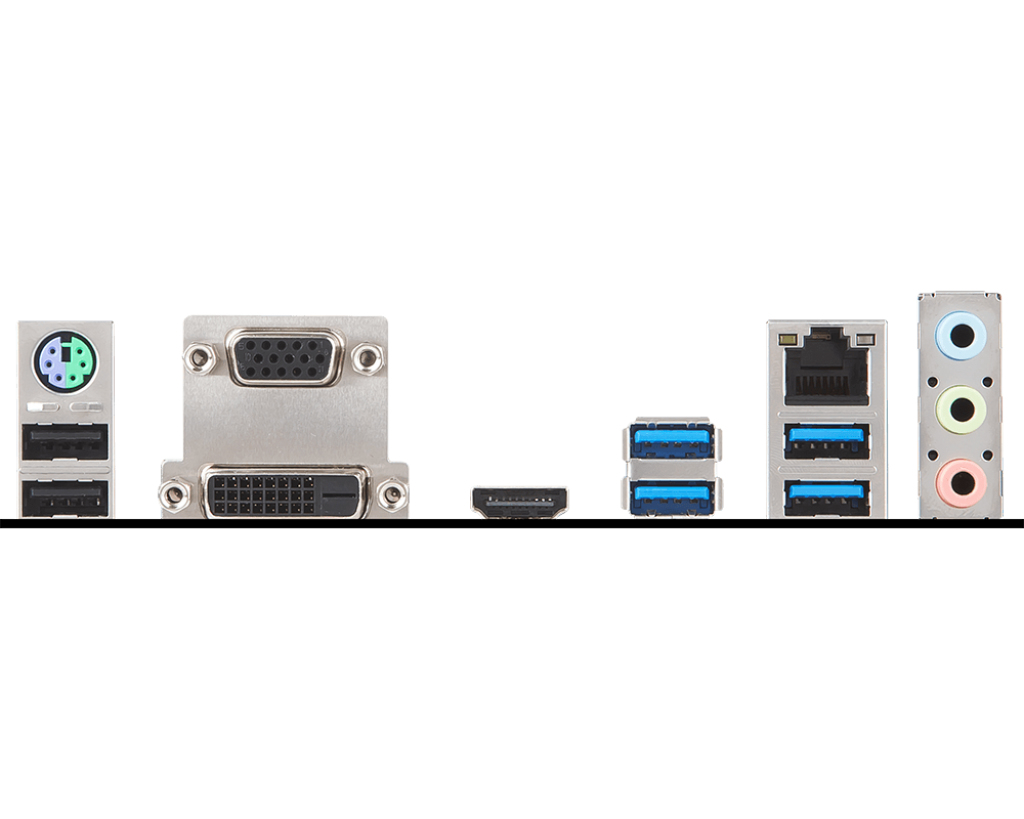

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek 8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A320
Audio chipRealtek ALC887
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature
Number of mounting holes4
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
System Management BIOS (SMBIOS) version2.8

Weight & dimensions

Width244 mm
Depth206 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes
