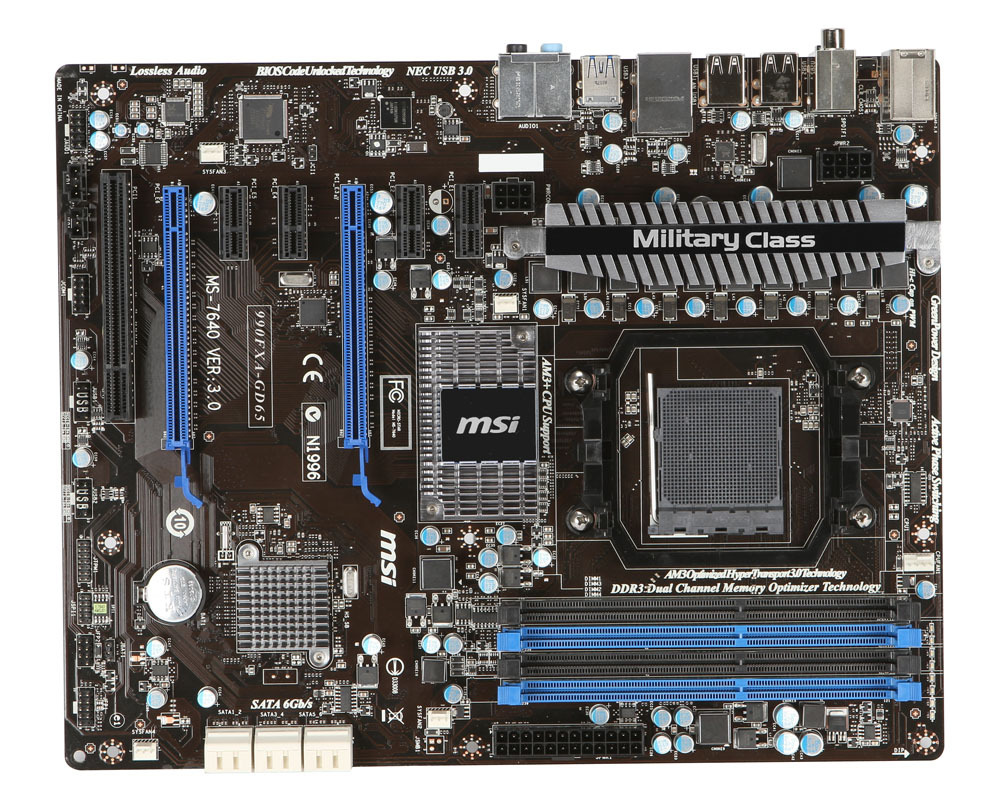

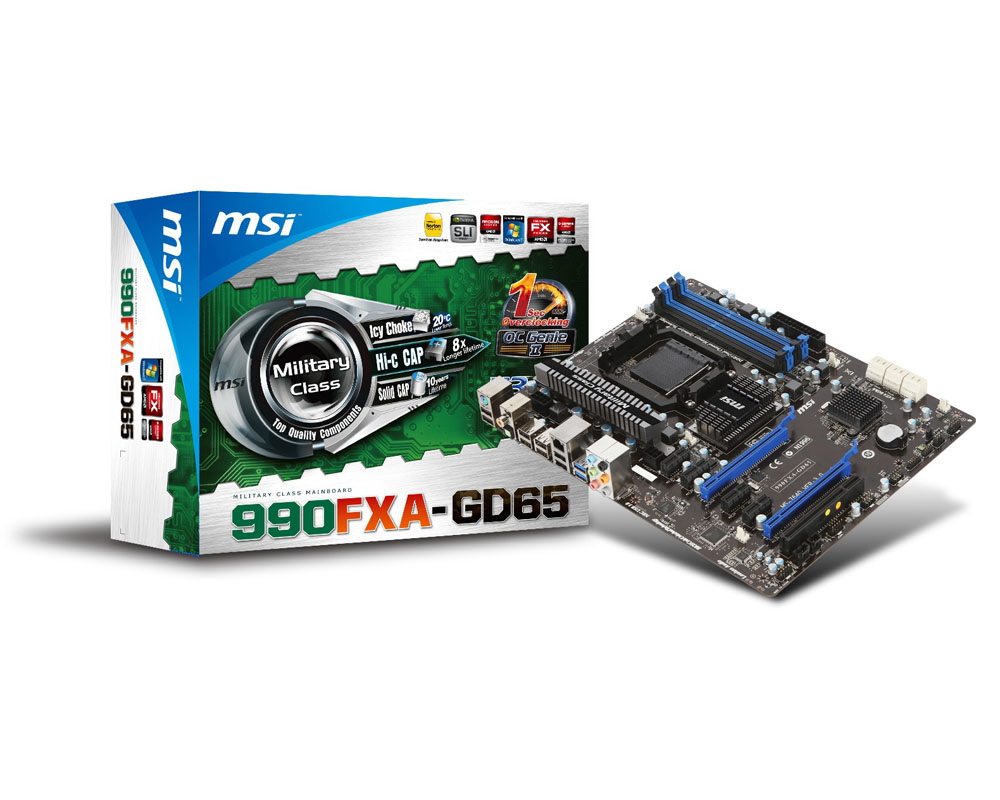

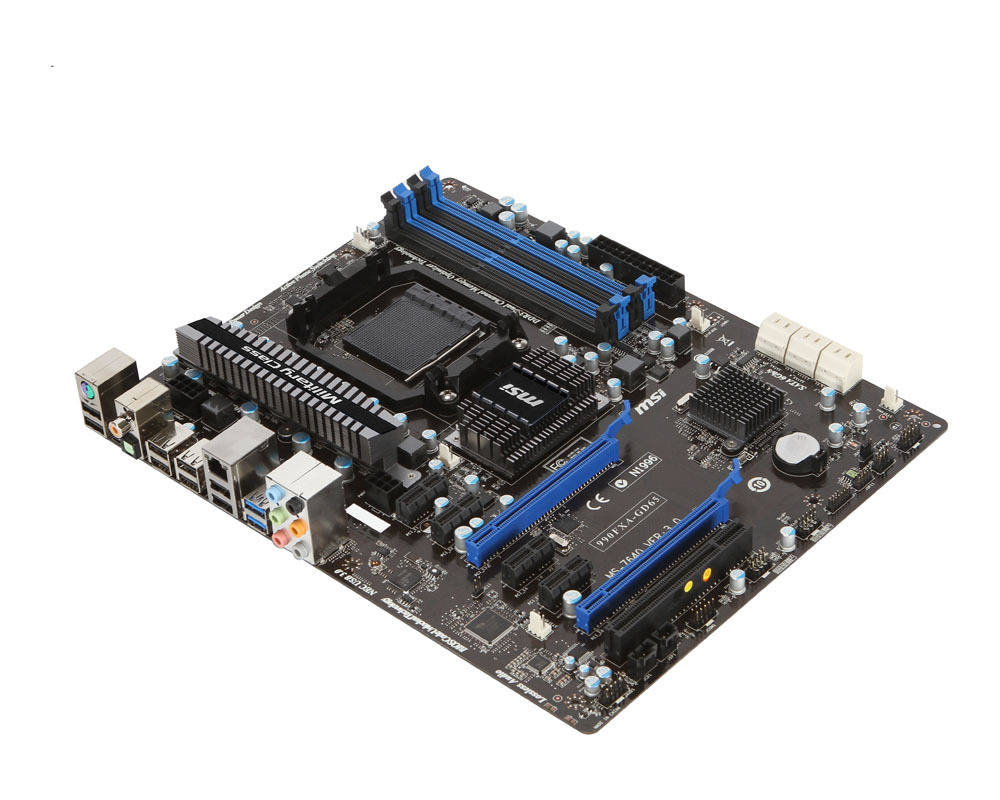

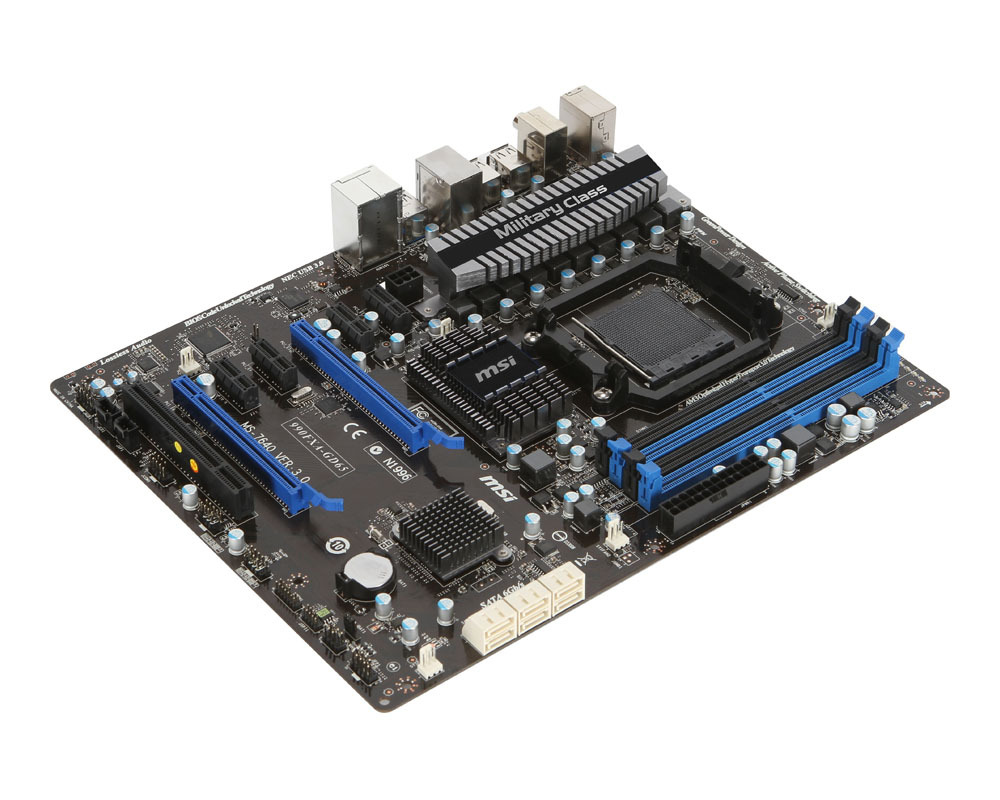

MSI 990FXA-GD65 AMD 990FX Socket AM3 ATX

MSI 990FXA-GD65 AMD 990FX Socket AM3 ATX

Model 990FXA-GD65Part no. 990FXA-GD65 V2EAN 8169090970234

57 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 2.0 ports quantity
8
Ethernet interface type
Gigabit Ethernet
Brand
MSI
Category
Motherboard
Model
990FXA-GD65
Part numbers
990FXA-GD65 V2, 7640-030R, 990FXA-GD65, 911-7640-039, 911-7681-068, 601-7640-070
EAN / UPC
8169090970234, 3610170562535, 4053162789791, 4054842412176 +10 more
Also known as
MSI 990FXA-GD65 AMD 990FX Socket AM3 ATX

Specifications

57 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
System bus rate5.2 GT/s

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds800,1066,1333,1600,1866,2133 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
TPM connectorYes

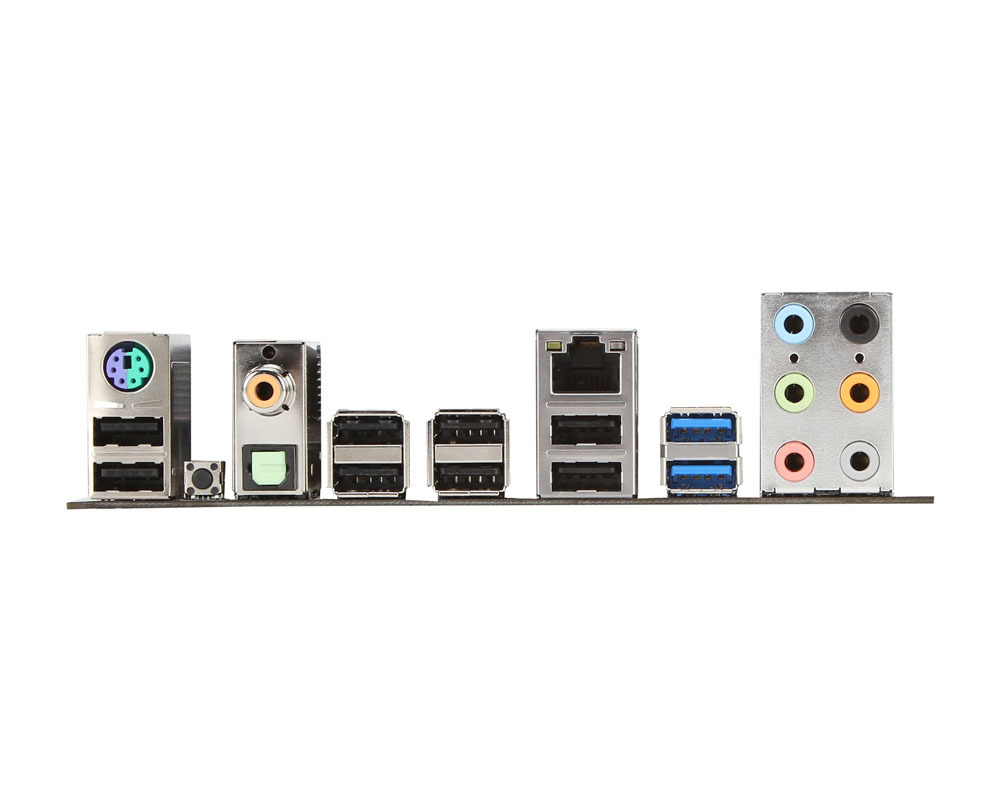

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs6
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 990FX
Motherboard southbridgeAMD SB950
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x1 slots4
PCI Express x16 slots2
PCI slots1

BIOS

Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Drivers includedYes
