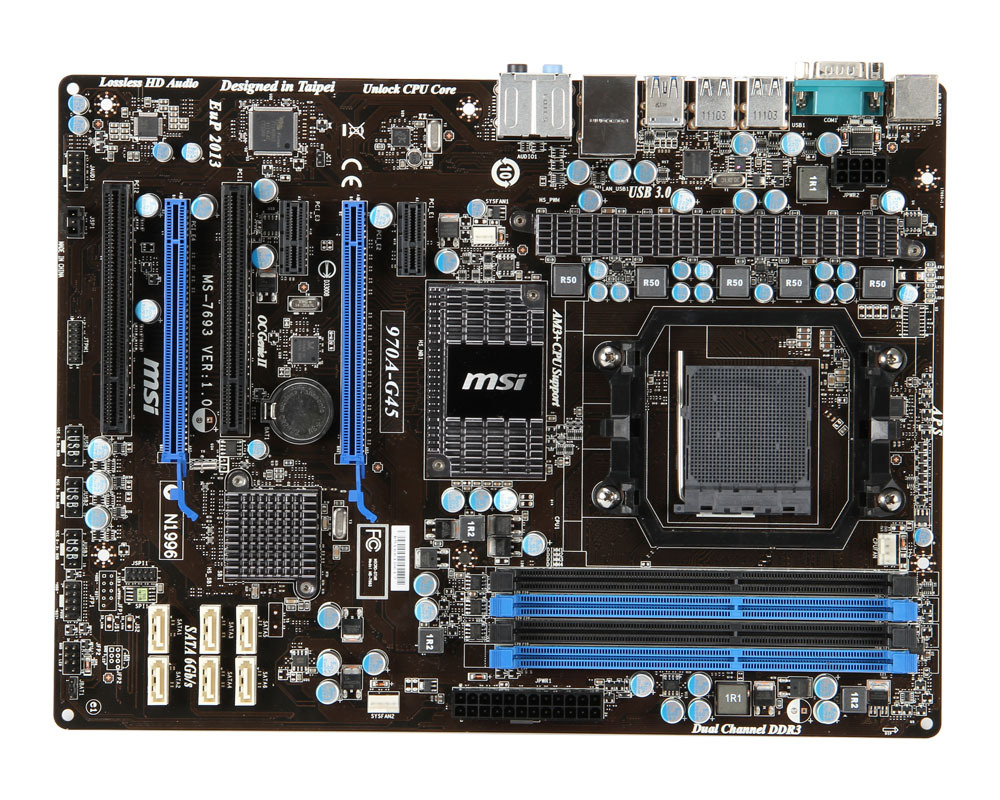

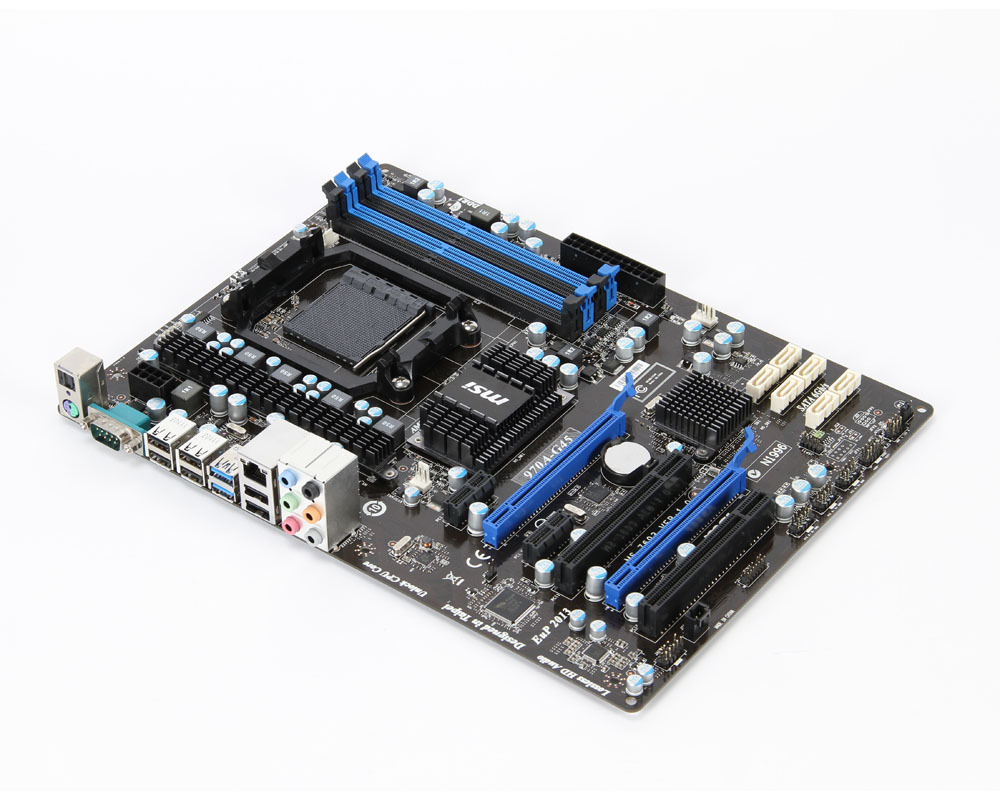

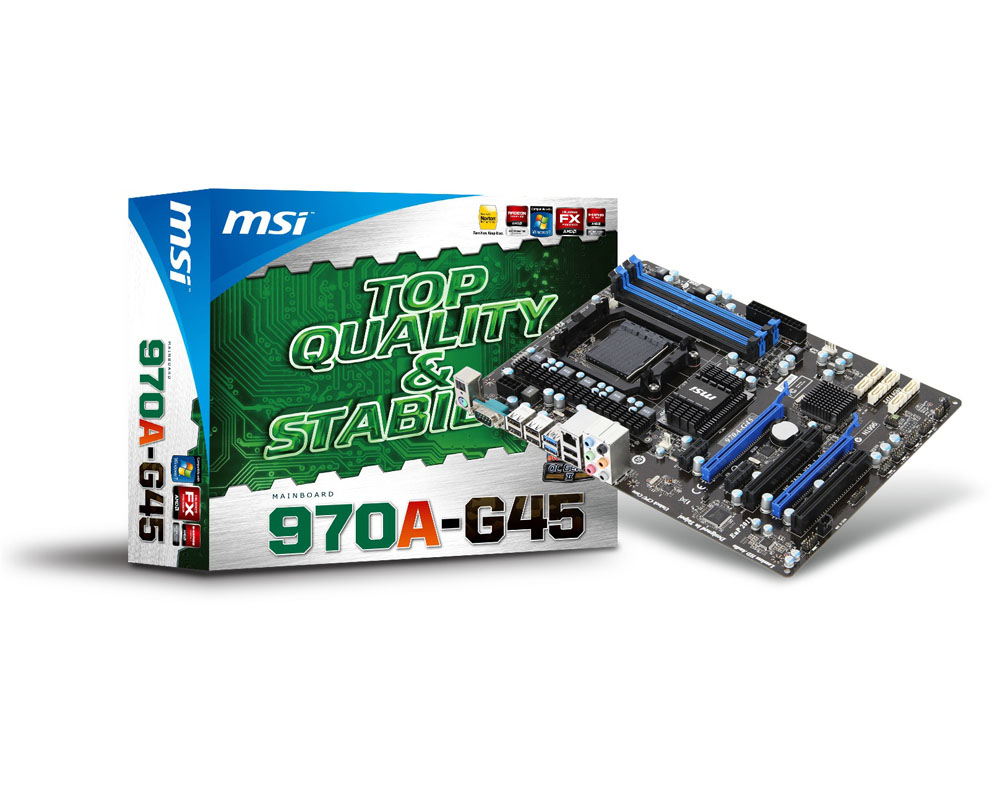

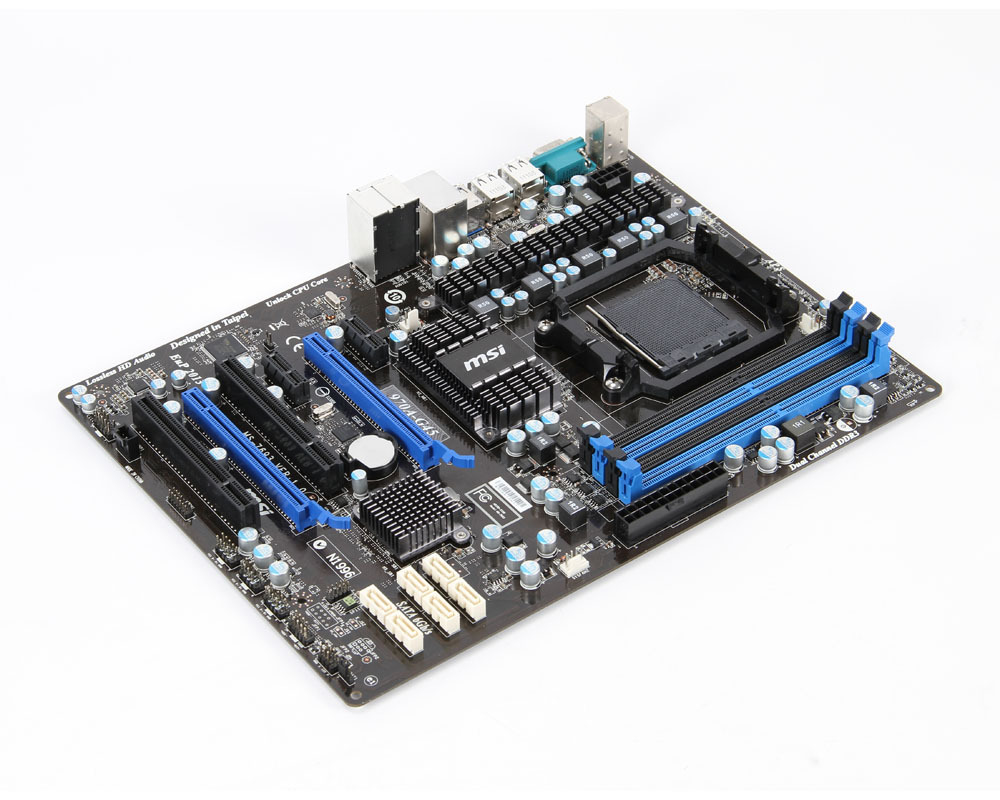

MSI 970A-G45 AMD 970 Socket AM3 ATX

MSI 970A-G45 AMD 970 Socket AM3 ATX

Model 970A-G45Part no. 911-7693-003EAN 816909087604

51 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • On-board graphics cardNo
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 5, 10
On-board graphics card
No
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
MSI
Category
Motherboard
Model
970A-G45
Part numbers
911-7693-003, 7693-010R, 970A-G45
EAN / UPC
816909087604, 4719072228521, 3610170564027, 5053106635138
Also known as
MSI 970A-G45 AMD 970 Socket AM3 ATX

Specifications

51 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X6
System bus rate4.8 GT/s

Memory

Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds800,1066,1333,1600,1866,2133 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
Number of SATA III connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
TPM connectorYes

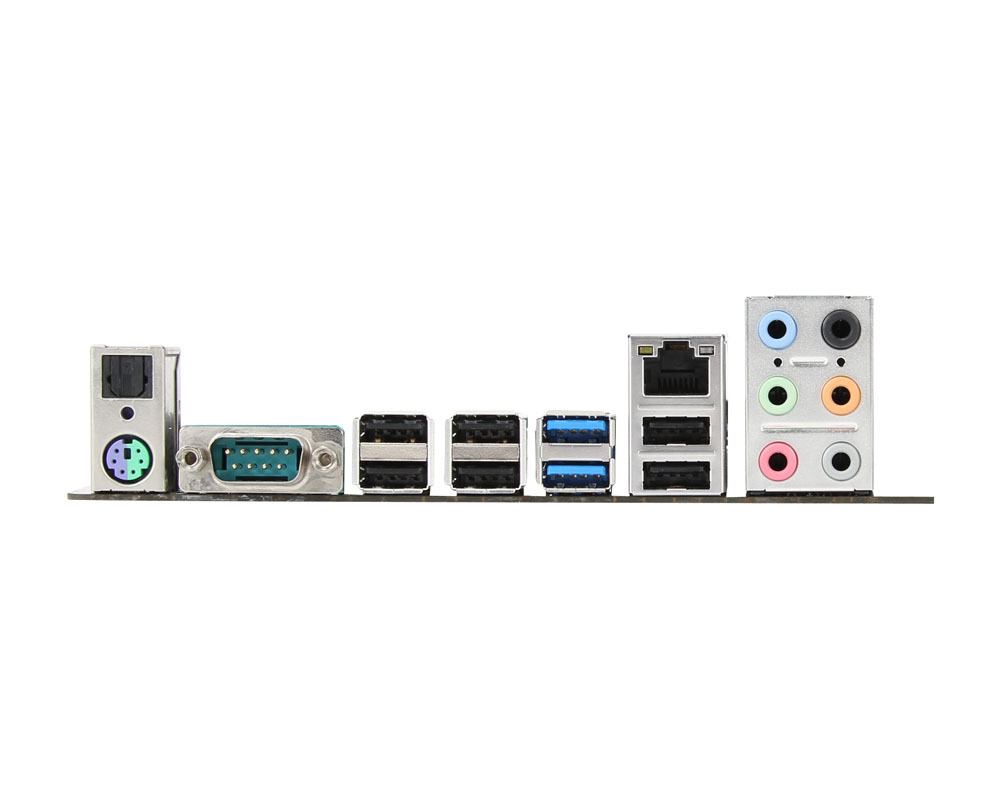

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Serial ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetAMD 970
Motherboard southbridgeAMD SB950
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2
PCI Express slots version2.0
PCI slots2

Weight & dimensions

Width305 mm
Depth225 mm

Other features

Controller interface typeSATA III 6Gb/s
