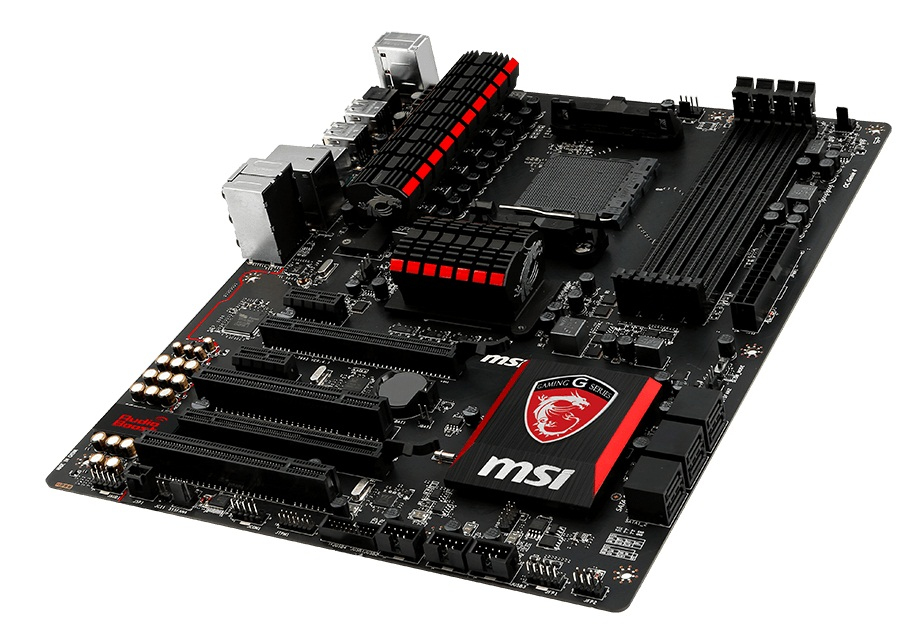

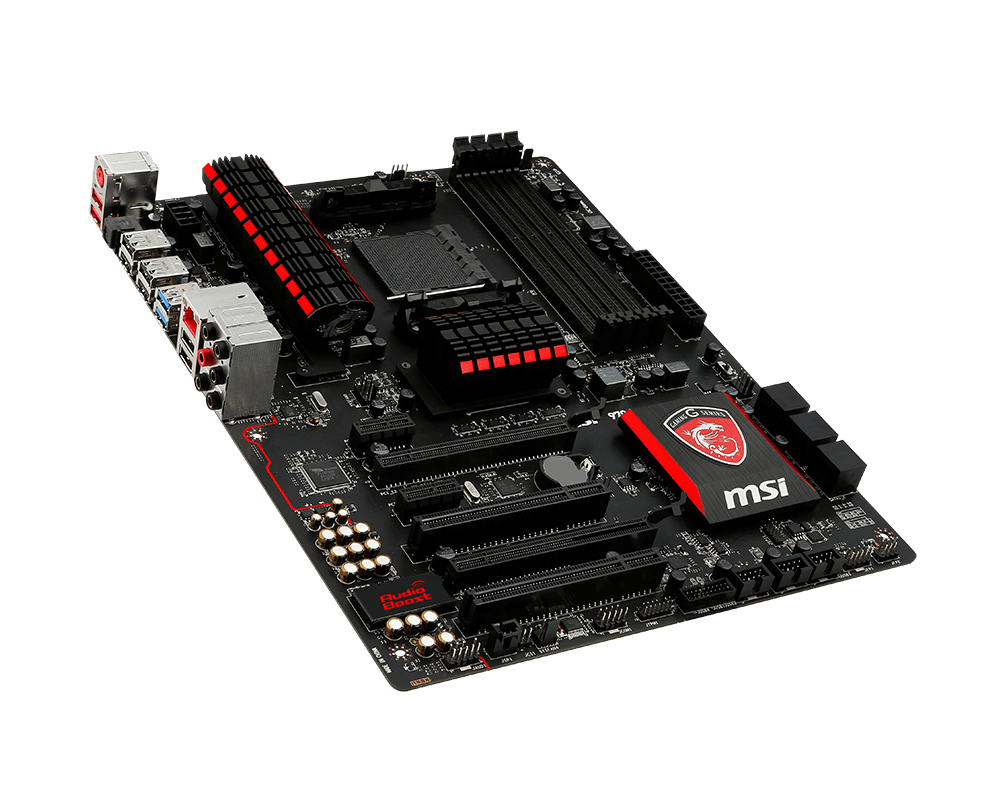

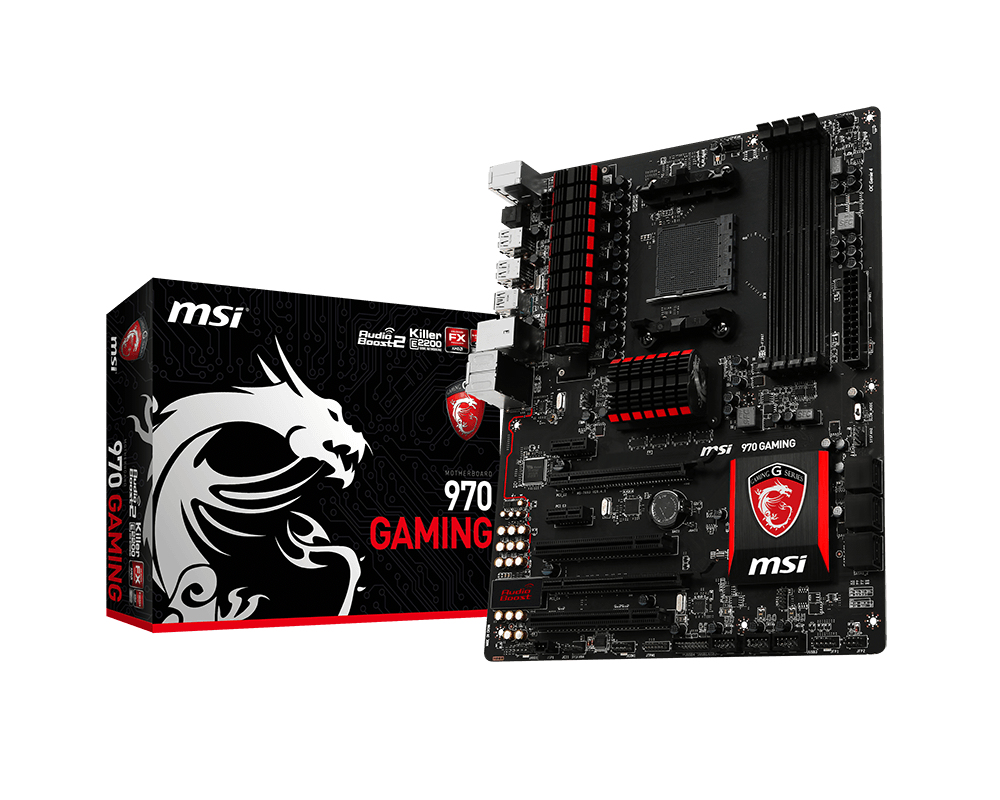

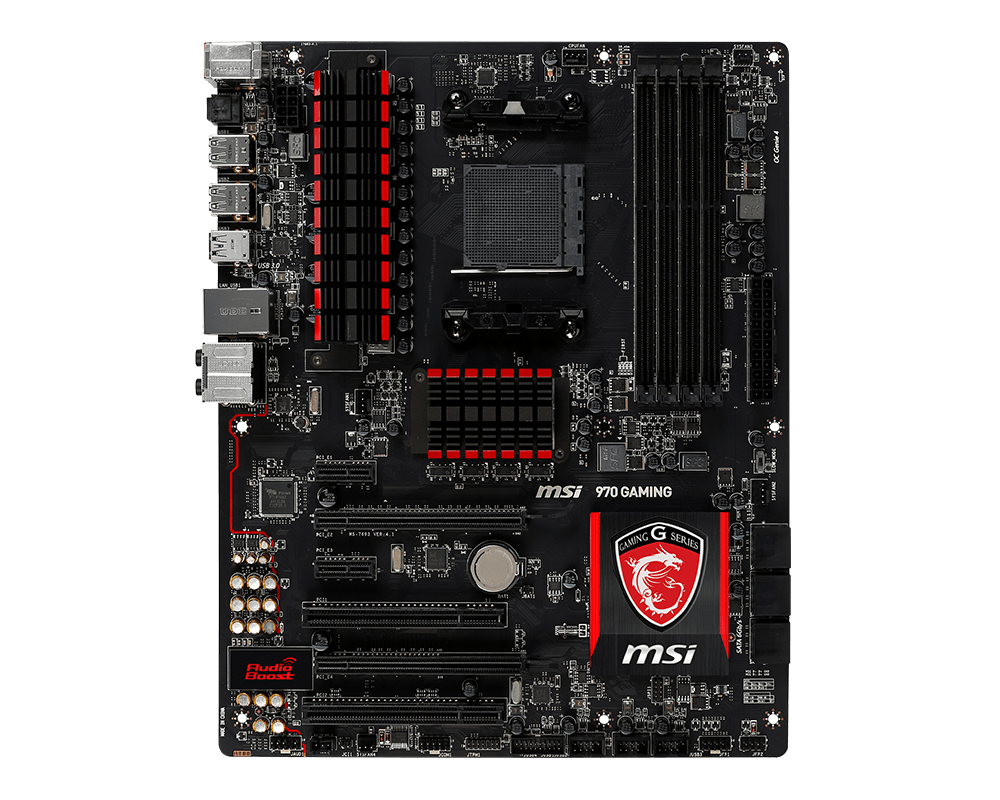

MSI 970 GAMING

MSI 970 GAMING

Model 970 GAMINGPart no. 7693-040REAN 8241420255362

50 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • Parallel processing technology support2-Way CrossFireX, 2-Way SLI
  • USB 2.0 connectors3
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
Parallel processing technology support
2-Way CrossFireX, 2-Way SLI
USB 2.0 connectors
3
USB 2.0 ports quantity
8
Brand
MSI
Category
Motherboard
Model
970 GAMING
Part number
7693-040R
EAN / UPC
8241420255362, 804067208382, 804904089051, 808112935292 +10 more
Also known as
MSI 970 GAMING AMD 970 Socket AM3+ ATX

Specifications

50 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Athlon FX, AMD Athlon II, AMD Sempron

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA connectors6
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

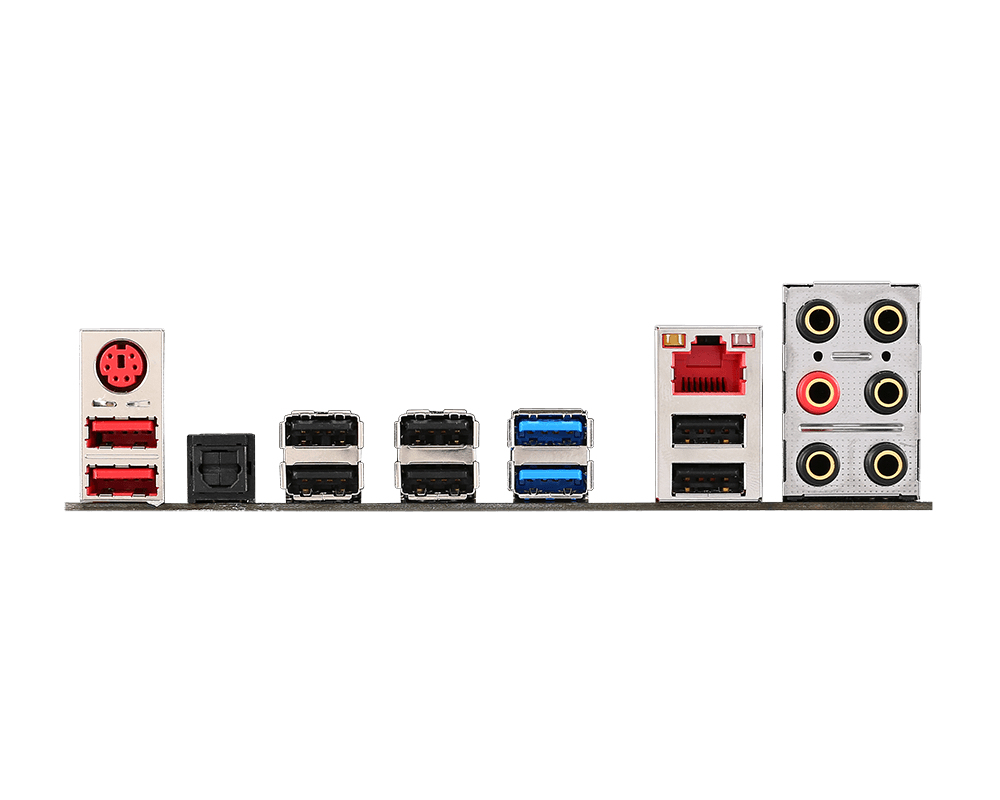

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
Headphone outputs6
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 970
Motherboard southbridgeAMD SB950
Audio chipRealtek ALC1150
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x1 (Gen 2.x) slots2
PCI Express x16 slots2
PCI Express x16 (Gen 2.x) slots2
PCI slots2

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth244 mm
