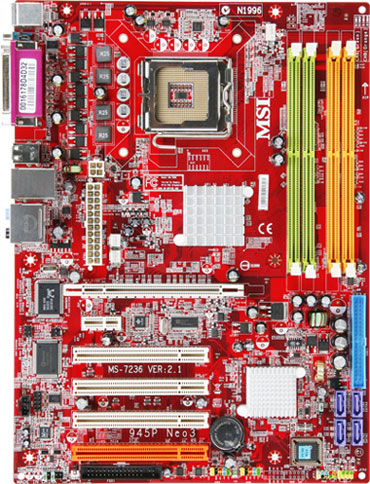

MSI 945P Neo3-F
Model 945P Neo3-FPart no. 945P NEO3-FEAN 816909036176
22 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- Serial ports quantity1
- Networking featuresEthernet/Fast-Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Serial ports quantity
- 1
- Networking features
- Ethernet/Fast-Ethernet
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- 945P Neo3-F
- Part numbers
- 945P NEO3-F, 7236-070R
- EAN / UPC
- 816909036176
- Also known as
- MSI 945P Neo3-F LGA 775 (Socket T) ATX
Specifications
22 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet/Fast-Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 PCI Express x16 - 1 PCI Express x1 slot. - 4 32-bit v2.3 master PCI bus |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Special features | - Intel Hyper-Threading technology - Intel Dual Core Technology - EIST technology - 10/100/1000 Mb/s |
| I/O ports | - 1 x Parallel port - 1 x Serial port (COM 1) - 1 x PS/2 keyboard - 1 x PS/2 mouse - 1 x 6 in 1 audio jack - 4 x USB 2.0 ports - 1 x RJ45 LAN jacks |
