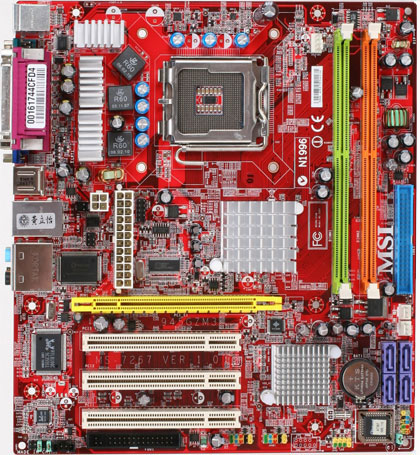

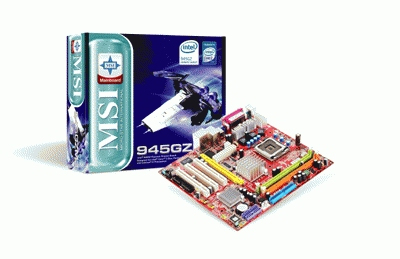

MSI 945GZM3-L LGA 775 (Socket T) micro ATX
Model 945GZM3-LPart no. 7267-020R
33 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- Networking features10 / 100 / 1000 Mb/s
- Motherboard form factormicro ATX
- Expansion slots3xPCI, 1xPCI-E (x16)
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- 10 / 100 / 1000 Mb/s
- Motherboard form factor
- micro ATX
- Expansion slots
- 3xPCI, 1xPCI-E (x16)
- Brand
- MSI
- Category
- Motherboard
- Model
- 945GZM3-L
- Part number
- 7267-020R
- Also known as
- MSI 945GZM3-L LGA 775 (Socket T) micro ATX
Specifications
33 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10 / 100 / 1000 Mb/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC850 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 3xPCI, 1xPCI-E (x16) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 225 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| I/O ports | 1 x IrDA connector |
