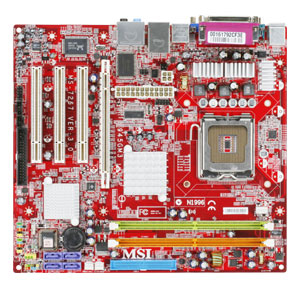

MSI 945GM3-F motherboard LGA 775 (Socket T) micro ATX
Model 945GM3-FEAN 816909037449
23 specifications
- Processor manufacturerIntel
- Number of memory slots3
- USB 2.0 connectors2
- Networking featuresEthernet/Fast-Ethernet
- Motherboard form factormicro ATX
- Width225 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 3
- USB 2.0 connectors
- 2
- Networking features
- Ethernet/Fast-Ethernet
- Motherboard form factor
- micro ATX
- Width
- 225 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- 945GM3-F
- Part numbers
- 945GM3-F, 7267-030, 7267-030R
- EAN / UPC
- 816909037449
- Also known as
- MSI 945GM3-F motherboard LGA 775 (Socket T) micro ATX
Specifications
23 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron® D |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet/Fast-Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 PCI Express x 16 slot. - 3 32-bit v2.3 master PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 225 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC883 |
| Floppy disk drive connector | Yes |
| I/O ports | - 1 x Parallel port - 1 x Serial port (COM 1) - 1 x VGA port - 1 x PS/2 keyboard - 1 x PS/2 mouse - 1 x 6 in 1 audio jack - 4 x USB 2.0 ports - 1 x RJ45 LAN jack |
