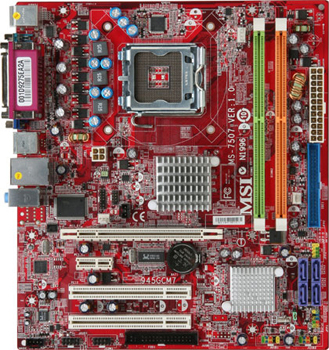

MSI 945GCM7-LV2 Motherboard
Model 945GCM7-LV2 MotherboardPart no. 945GCM7-LV2EAN 816909043945
27 specifications
- Processor manufacturerIntel
- Number of memory slots2
- S/PDIF out connectorYes
- Motherboard form factormicro ATX
- PCI Express x1 slots1
- Width218.4 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- S/PDIF out connector
- Yes
- Motherboard form factor
- micro ATX
- PCI Express x1 slots
- 1
- Width
- 218.4 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- 945GCM7-LV2 Motherboard
- Part number
- 945GCM7-LV2
- EAN / UPC
- 816909043945
- Also known as
- MSI 945GCM7-LV2 Motherboard LGA 775 (Socket T) micro ATX
Specifications
27 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| S/PDIF out connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 218.4 mm |
| Depth | 243.8 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Graphics controller | GMA 950 |
| I/O ports | -2 x USB 2.0 connector support -1 x Floppy disk drive connector -4 x Serial ATAII connectors -1 x ATA100 connector -1 x SPDIF-out connector -1 x serial port pinheader -1 x PS/2 keyboard -1 x PS/2 mouse -3 in 1 audio jack -4 x USB 2.0 ports -1 x RJ45 LAN jack |
